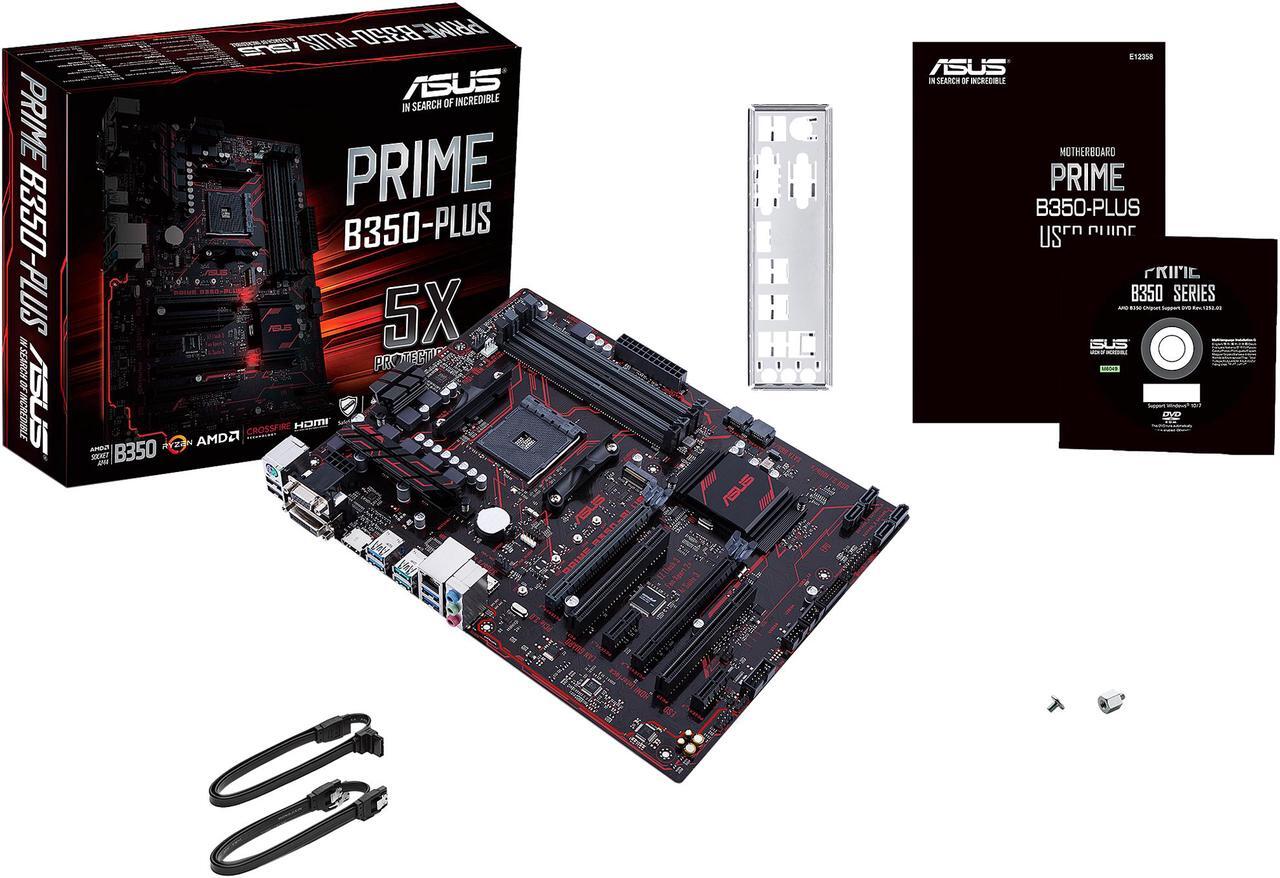

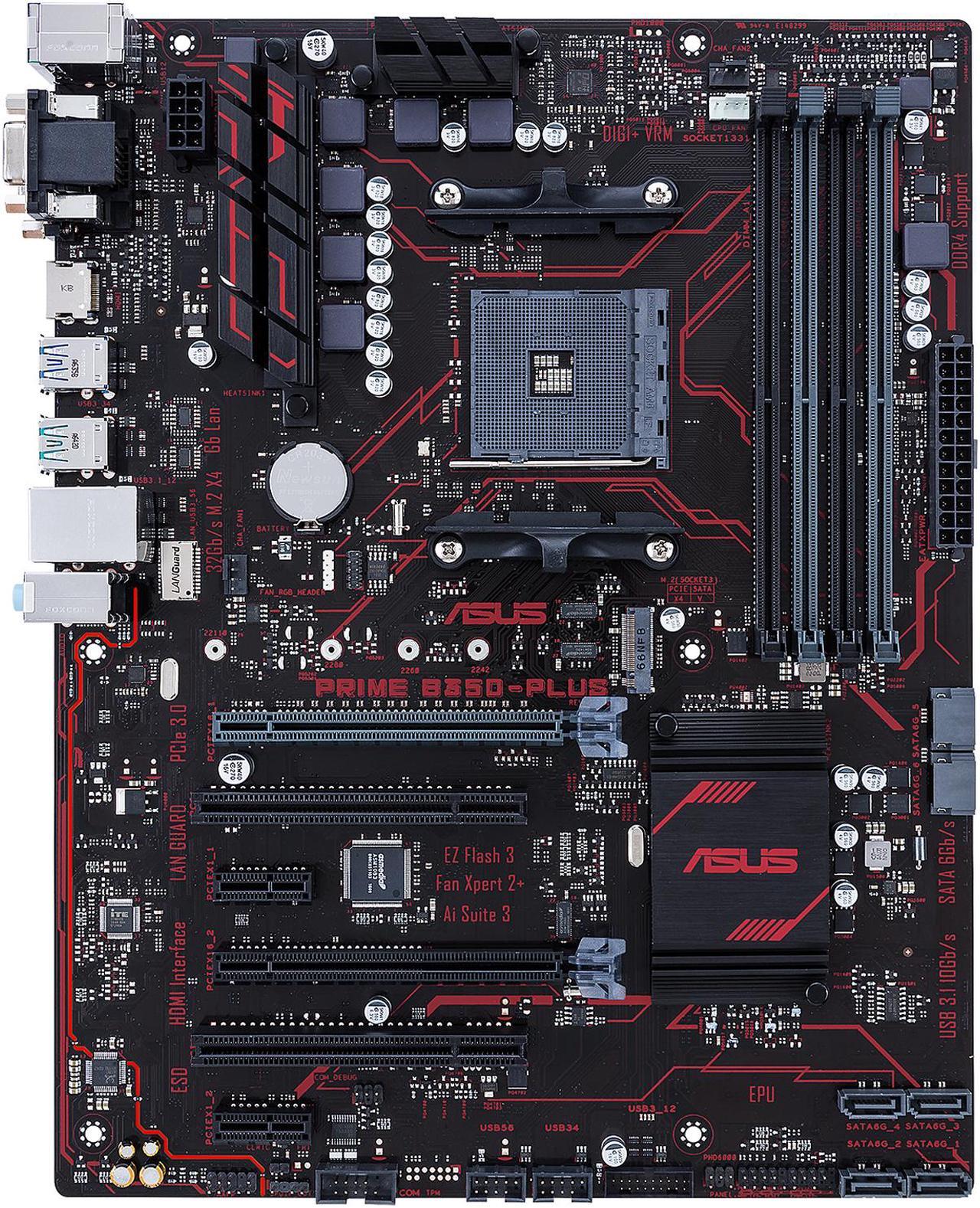

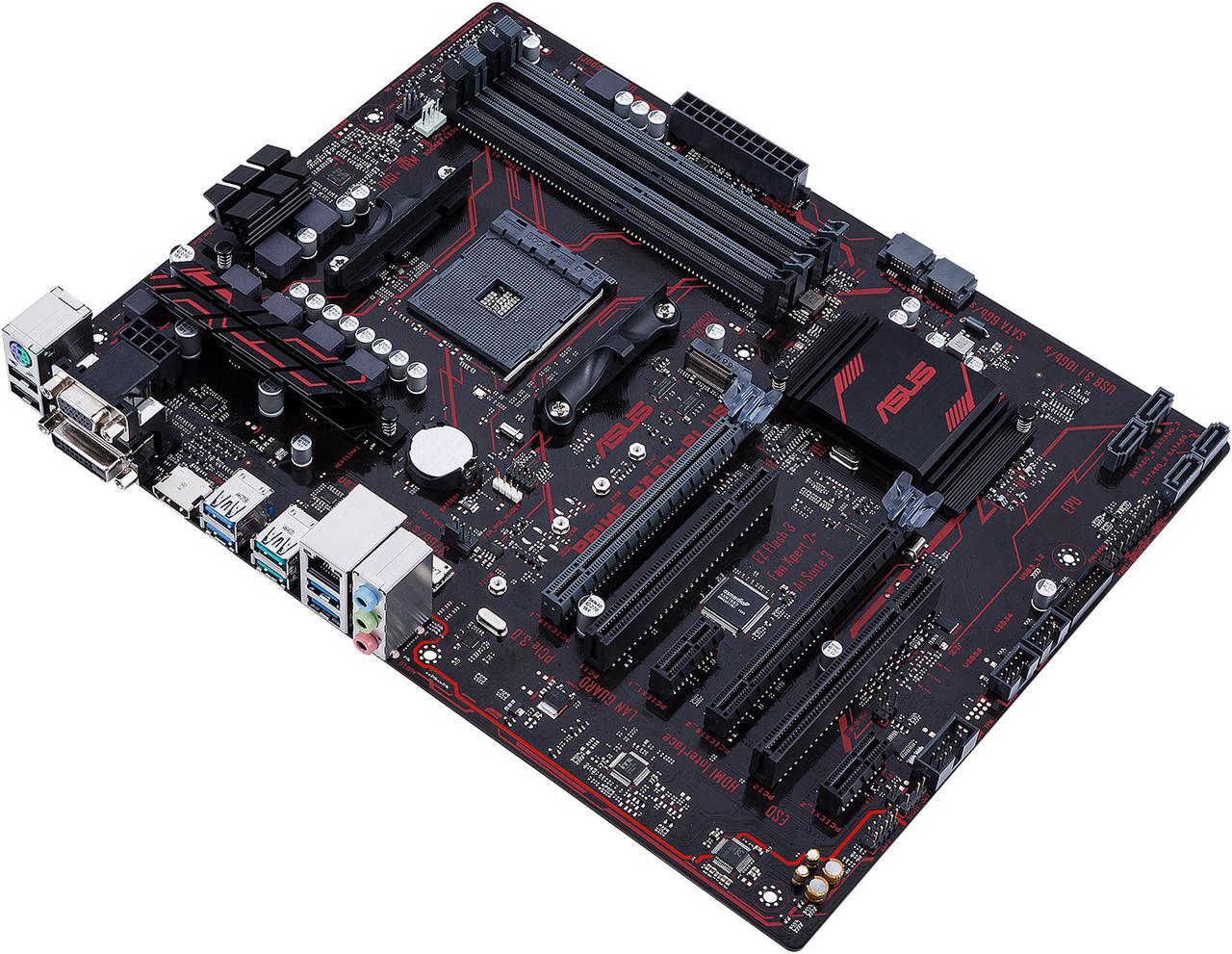

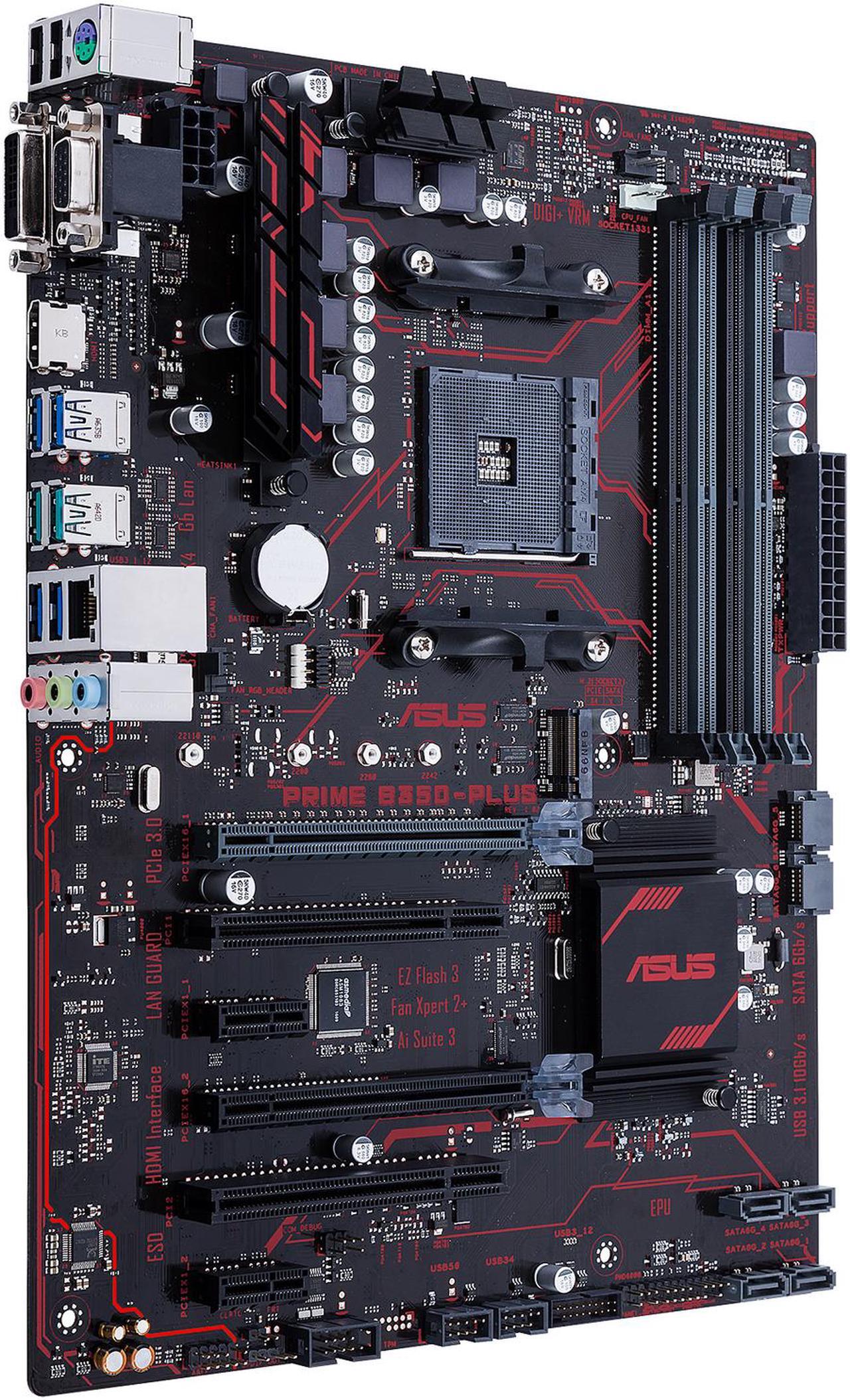

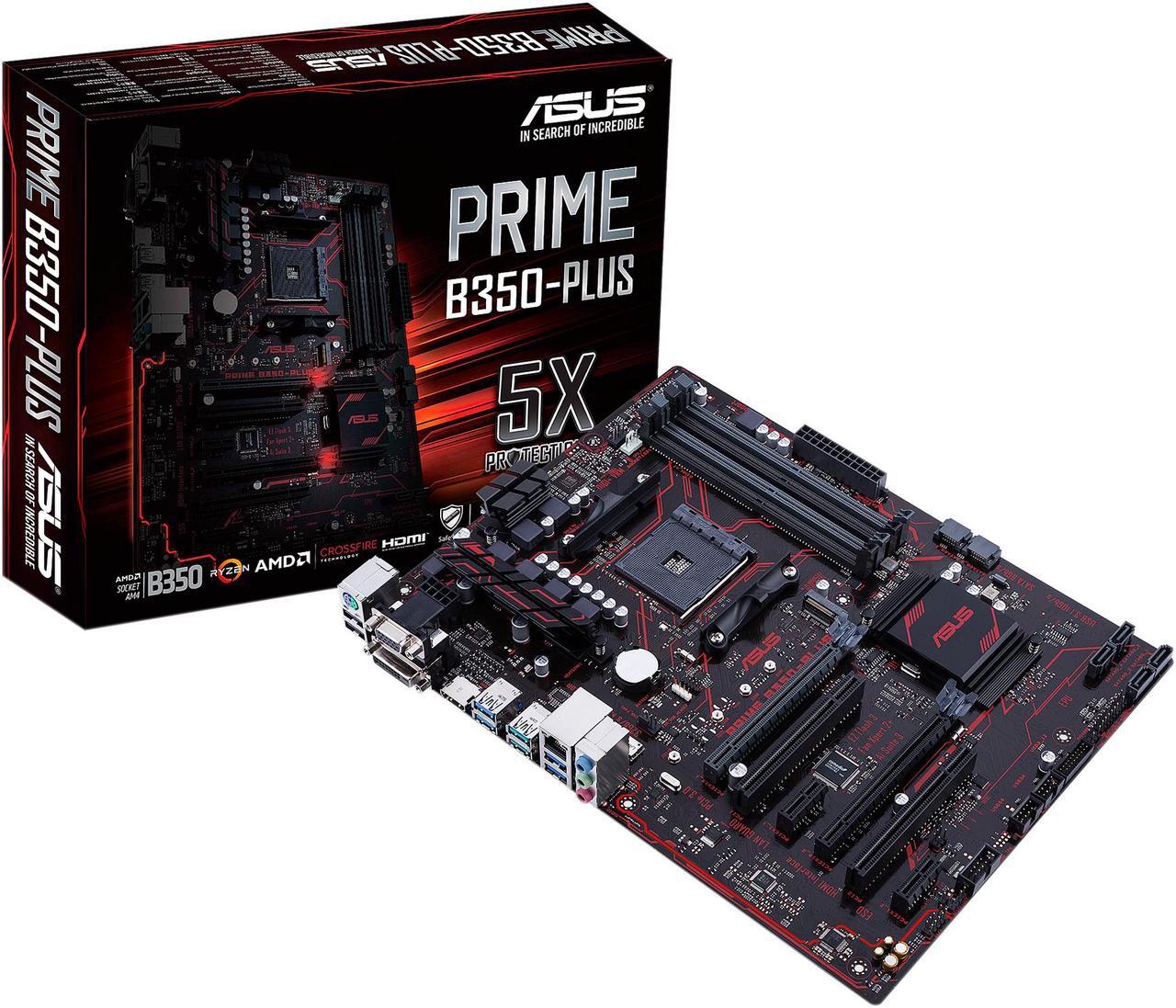

ASUS PRIME B350-PLUS AM4 AMD B350 SATA 6Gb/s USB 3.1 HDMI ATX Motherboards - AMD

Used - Very Good

Powered by AMD Ryzen AM4, 7th generation Athlon processors to maximize connectivity and speed with NVMe M.2, USB 3.1, DDR4 and Gigabit LAN
5X Protection III Hardware-level safeguards provide component longevity and reliability
Specially designed fan RGB header to support multi-color CPU fan LED strips
Unique SafeSlot Core fortified PCIe slot prevents damage caused by heavyweight GPUs
FanXpert 2+ delivers advanced fan controls for optimized cooling. Supports CPU up to 8 cores

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
CONTACT

CPU Socket Type	AM4
CPU Type	AMD AM4 Socket for AMD Ryzen/ 7th Generation A-series/Athlon Processors * Refer to www.asus.com for CPU support list

Number of Memory Slots	4x288pin (DDR4)
Memory Standard	AMD Ryzen Processors DDR4 3200(O.C.)/ 2933(O.C.)/ 2666/ 2400/ 21331 AMD 7th Generation A-series/ Athlon Processors DDR4 2400/ 2133 1 Due to the limitation of AMD Ryzen processors, memory frequencies higher than DDR4 2666 MHz are supported only when using one DIMM per channel. * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported	64GB
Channel Supported	Dual Channel

PCI Express 3.0 x16	AMD Ryzen Processors 1 x PCIe 3.0/2.0 x16 (x16 mode) AMD 7th Generation A-series/Athlon Processors 1 x PCIe 3.0/2.0 x16 (x8 mode)
PCI Express 2.0 x16	1 x PCI Express 2.0 x16 slot (max.@x4 mode) 3 3 PCIeX16_2 slot shares bandwidth with PCIeX1_1 and PCIeX1_2.
PCI Express x1	2 x PCI Express 2.0 x1 slots
PCI Slots	2 x PCI Slots

SATA 6Gb/s	AMD B350 chipset: 4 x SATA 6Gb/s port(s), gray AMD Ryzen/ 7th Generation A-series/Athlon Processors: 2 x SATA 6Gb/s port(s), gray
M.2	AMD Ryzen Processors: 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x4 mode)4 AMD 7th Generation A-series/Athlon Processors: 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x2 mode)5 4 The M.2 Socket shares bandwidth with the SATA6G_5/6 ports, therefore the SATA6G_5/6 ports cannot be used when a SATA/PCIE mode M.2 device is installed. 5 The M.2 Socket shares bandwidth with the SATA6G_5/6 ports, therefore the SATA6G_5/6 ports cannot be used when a SATA/PCIE mode M.2 device is installed.
SATA RAID	0/1/10

Audio Chipset	Realtek ALC887
Audio Channels	8 Channels

PS/2	1 x PS/2 keyboard/mouse port

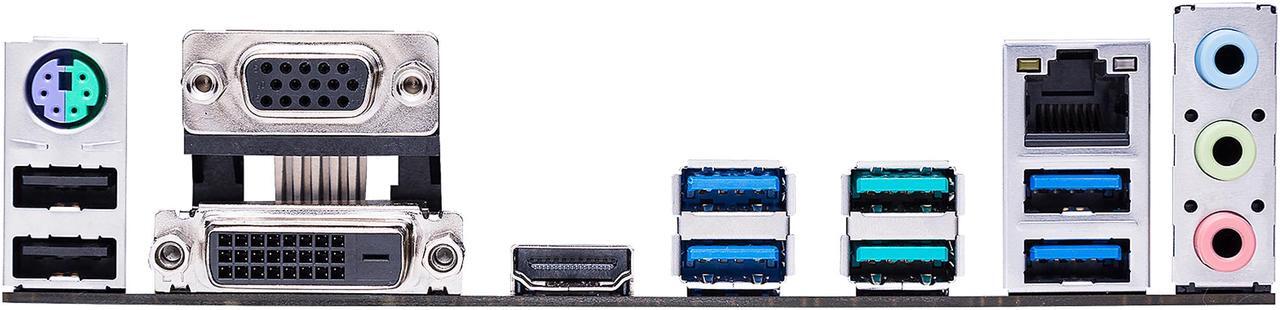

Video Ports	1 x DVI-D port 1 x D-Sub port
HDMI	1 x HDMI
RJ45	1 x RJ45
USB 3.1	2 x USB 3.1 Gen 2 (teal blue) 4 x USB 3.1 Gen 1 (blue)
USB 1.1/2.0	2 x USB 2.0
Audio Ports	3 Ports

Onboard USB	1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
Other Connectors	1 x Fan RGB header 1 x COM port(s) connector(s) 1 x CPU Fan connector(s) (1 x 4-pin) 2 x Chassis Fan connector(s) (2 x 4-pin) 1 x S/PDIF out header(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s)

Form Factor	ATX
Dimensions (W x L)	12.0" x 9.3"
Power Pin	1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s)

Onboard LAN
LAN Chipset	Realtek RTL8111H
Max LAN Speed	1Gbps
