Question 1

If I buy this board which has onboard video connectors and I get a AMD RYZEN 7 1700 CPU - do I need to buy a graphics card to make this work?

Accepted Answer

The onboard video ports are going to be used for the lower-end APU series  processors that AMD will come out with later this year. The Ryzen R7/R5 chips do not have integrated graphics. So Yes you will need a separate graphics card if using an R7 CPU.

Question 2

How to find BIOS version on motherboard without turning it on? Any way to find from Serial No or written on board itself somewhere?

Accepted Answer

As far as I know you have to get into the bios to see it. I have never seen one on the board. You can look to see what version they shipped with but that's about as close as your going to get without actuality booting into the bios.

Question 3

Would this work with Ryzen 5 2600x?
Box says Ryzen 2000 compatible. But the barcode on board says  BOC 3803 indicating 3803 BIOS.
Ryzen 2000+ needs 3904?
Is it possible that barcode on board is not updated, but still they have updated BIOS hence the sticker on box Rzyen 2000 compatible?

Accepted Answer

Sorry, tapped the wrong button.  Ryzen 5 2600X is supported since 3904, but 3904 was never generally released- they went from 3803 to 4008. Current BIOS  revision available is 4014. I expect it will POST just fine with 3803- Just update to the latest as soon as you power up for the first time and you should be good.

Question 4

can it  go into a bigger atx case?

Accepted Answer

Hi there!

Yes it sure can!

Have a great day!
-AA, Newegg Product Support.

Question 5

I'm considering switching to this from a MSI board to get the ASUS CrashFree BIOS 3, but I notice a comment saying a BIOS update failed and they have to RMA it.. Does it actually have a BIOS recovery method or not? (https://www.newegg.com/Product/SingleProductReview.aspx?reviewid=4903837)

Accepted Answer

there is no dual bios recovery method, or any specific kind of bios recovery. But I've updated the bios 3 times with no problems. I did the update in the bios from a usb drive.

Question 6

Just assembled the board. Using 2400 speed ram - 64GB. No video using HDMI port on MB. I get one short beep - then I get 1 long beep and 3 short beeps.  What am I doing wrong?

Accepted Answer

The video output connectors on this motherboard are there for when AMD releases processors with integrated GPUs. The first generation Ryzen chips don't have GPU, so a discrete video card is required.

Question 7

Have the bios updates fixed memory incompatibilities?

Accepted Answer

I'm using the latest BIOS (0502) and it still detects the wrong speed settings for my RAM.  I'm using memory modules specifically listed on the manufacturer's website as being tested with this motherboard.

Question 8

Is uATX the same as mATX?

Accepted Answer

Yes, that u looking symbol means Micro when you're dealing with electronics and  board schematics.

Question 9

Is this board compatible with my used i7 2600k?

Accepted Answer

No that processor is made by Intel who uses a different socket type. AMD chips have pins on the chips, while Intel has the pins built into the motherboard, plus many other physical differences.

Question 10

Will this support the ryzen 2200g? or does it require BIOS update?

Accepted Answer

It will require a BIOS update to support that processor depending on which BIOS version your unit is shipped with. Unfortunately we are not able to tell which version it will be shipped with.

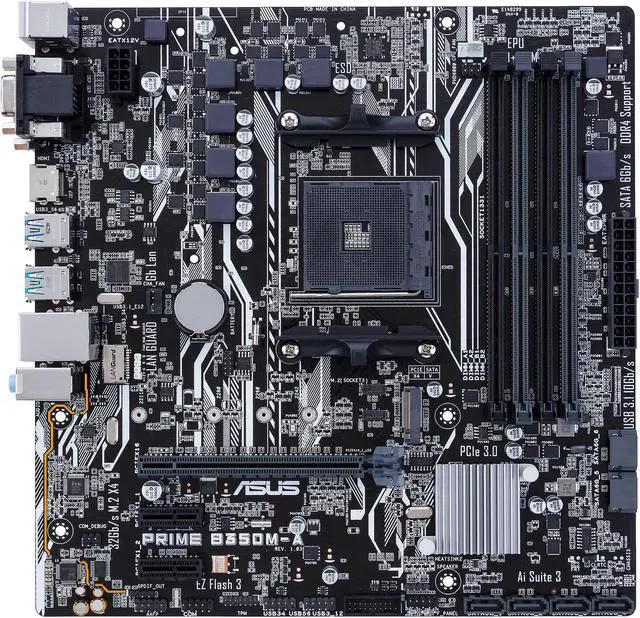

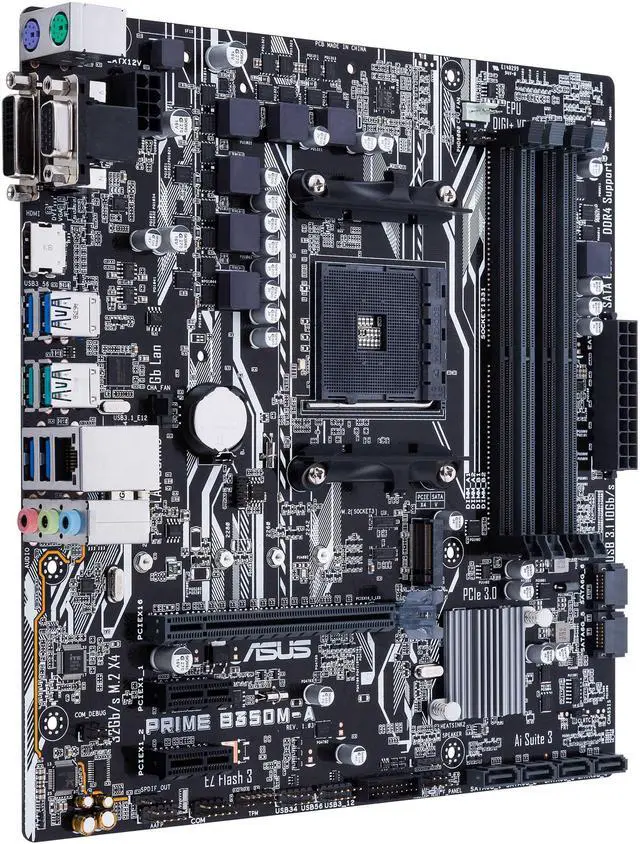

Brand	ASUS
Model	Prime B350M-A/CSM

CPU Socket Type	AM4
CPU Type	AMD AM4 Socket Athlon II/for AMD Ryzen/7th Generation A-series/Athlon Processors * Refer to www.asus.com for CPU support list

Number of Memory Slots	4x288pin (DDR4)
Memory Standard	AMD Ryzen Processors 4 x DIMM, Max. 64GB, DDR4 3200(O.C.)/ 2933(O.C.)/ 2666/ 2400/ 2133* AMD 7th Generation A-series/ Athlon Processors 4 x DIMM, Max. 4GB, DDR4 2400/ 2133 * Due to the limitation of AMD Ryzen processors, memory frequencies higher than DDR4 2666 MHz are supported only when using one DIMM per channel. Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). Hyper DIMM support is subject to the physical characteristics of individual CPUs.
Maximum Memory Supported	64GB
Channel Supported	Dual Channel

PCI Express 3.0 x16	Ryzen Processors 1 x PCI Express 3.0/2.0 x16 slot (max.@x16 mode) 7th Generation A-series/Athlon Processors 1 x PCI Express 3.0/2.0 x16 slot (max.@x8 mode)
PCI Express x1	2 x PCI Express 2.0 x1 slots

Serial ATA (SATA)	AMD B350 chipset: 4 x SATA 6Gb/s port(s), gray AMD Ryzen/ 7th Generation A-series/Athlon Processors: 2 x SATA 6Gb/s port(s), gray
M.2	1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x4 mode)* * The M.2 Socket shares bandwidth with the SATA6G_5/6 ports, therefore the SATA6G_5/6 ports cannot be used when a SATA/PCIE mode M.2 device is installed.
SATA RAID	0/1/10

ASUS Prime B350M-A/CSM AM4 AMD B350 USB 3.1 HDMI Micro ATX Motherboards - AMD

Learn more about the ASUS Prime B350M-A/CSM

Customer Reviews of the ASUS Prime B350M-A/CSM

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

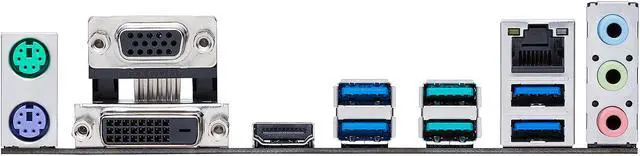

PS/2	1 x PS/2 keyboard (purple) 1 x PS/2 mouse port (green)
Video Ports	1 x DVI-D port 1 x D-Sub port
HDMI	1 x HDMI
RJ45	1 x RJ45
USB 3.1	2 x USB 3.1 Gen 2 (teal blue) 4 x USB 3.1 Gen 1 (blue)
Audio Ports	3 Ports

Onboard USB	1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
Other Connectors	1 x Fan RGB header 1 x COM port(s) connector(s) 1 x CPU Fan connector(s) (1 x 4-pin) 1 x Chassis Fan connector(s) (1 x 4-pin) 1 x S/PDIF out header(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s)

Form Factor	Micro ATX
Dimensions (W x L)	9.6" x 9.5"
Power Pin	1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s)

Onboard Audio
Audio Chipset	Realtek ALC887
Audio Channels	8 Channels

Onboard LAN
LAN Chipset	Realtek RTL8111H
Max LAN Speed	1Gbps

Item#: N82E16813132966
