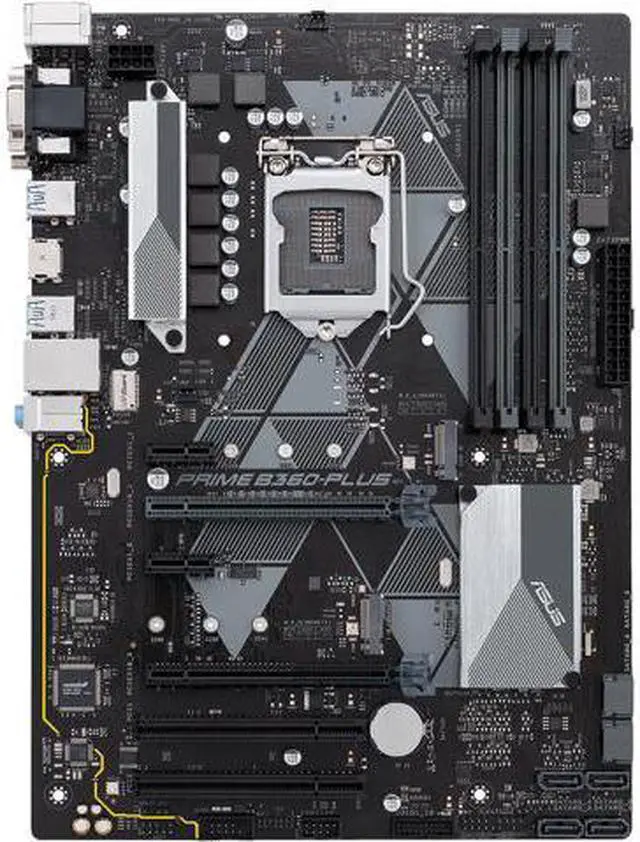

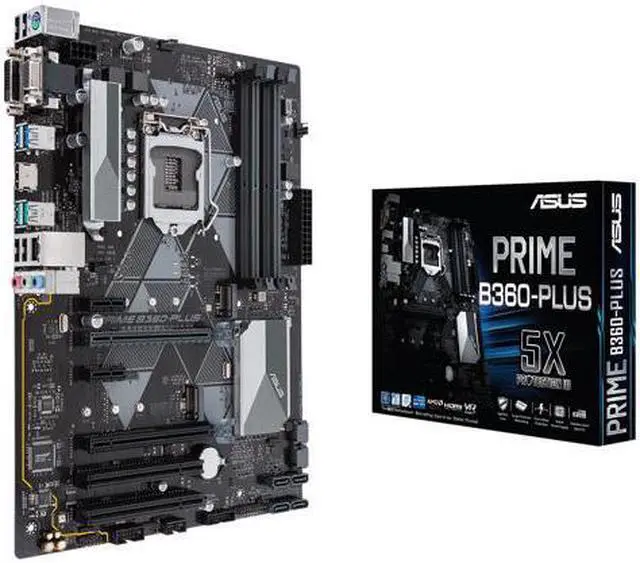

ASUS Prime B360-Plus LGA1151 (300 Series) DDR4 HDMI DVI VGA M.2 ATX Motherboard

ASUS Prime B360-Plus LGA1151 (300 Series) DDR4 HDMI DVI VGA M. 2 ATX Motherboard Designed exclusively for 8th generation Intel Core processors to maximize connectivity and speed with integrated dual M. 2 slots with Intel Optane Memory compatibility and USB 3.1 Gen2 5X Protection III Hardware-level safeguards provide component longevity and reliability Fan
Xpert 2+ delivers advanced fan controls for dynamic cooling ASUS Opti
Mem improves memory stability and performance by improving trace isolation between PCB layers to maintain signal integrity even at higher frequencies On-board 8-Channel HD Audio provides warm, immersive crystal-clear surround sound PRIME ASUS Prime 300 Series motherboards provide the solid foundation needed for your first build, plus flexibility to grow with your...
Chipset Manufacturer: Intel
Total
Processor Supported: 1Processor
Socket: Socket
H4 LGA-1151Processor Supported: Core i7Processor
Supported: Core i3Processor
Supported: Core i5Processor
Supported: Celeron
Processor Supported: Pentium
Number of
Memory Slots: 4Memory
Form Factor: UDIMM
Memory Form Factor: DIMM
Maximum Memory: 64 GBMemory
Speed Supported: 2.67 GHzMemory
Speed Supported: 2.40 GHzMemory
Speed Supported: 2.13
GHzMemory Technology: DDR4 SDRAM
Intel
Optane Memory Ready: Yes
Controller Type: Serial
ATA/600Onboard Video: CPU Dependent
Video
Audio Channels: 7.1G igabit
Ethernet: Yes
Number of Total
Expansion Slots: 6Total Number of
PCI Express Slots: 4Number of PCI Express x1
Slots: 2Number of PCI Express x16
Slots: 2Total Number of
USB Ports: 8Number of
USB 3.1 Ports:
4VGA: Yes
HDMI: Yes
DVI: Yes
Number of
SATA Interfaces: 6Number of M.
2 Interfaces: 2Total Number of
Onboard USB Ports: 6Number of
Onboard USB 3.1 Ports: 4Onboard
S/PDIF Header: Yes
Form Factor: ATX
Width:
12Depth: 8.7"P ackage

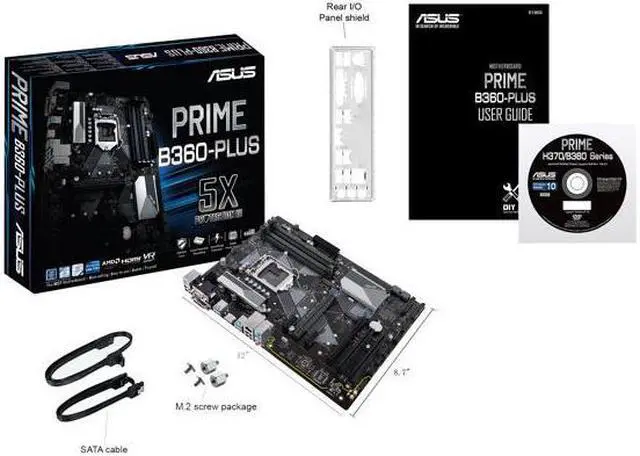

Contents: Prime B360-Plus Desktop Motherboard User's Manual I/O Shield 2 x SATA 6Gb/s cable (s) 2 x M. 2 Screws 1 x SCD (By Region)
Environmentally Friendly: Yes
Environmental Certification: RoHSCountry of
Origin: China
Limited Warranty: 3 Year
Package Contents Prime B360-Plus Desktop Motherboard User's Manual I/O Shield 2 x SATA 6Gb/s cable (s) 2 x M. 2 Screws 1 x SCD (By Region) "
