Does this come with bios already updated?

Bios will be updated to the date of manufacture, but you won't know that date when you buy the board. My board did not come with the latest bios, but it's easy to upgrade by downloading the latest firmware in the bios settings. Be aware that 3000 series Ryzen cpu's need at least version 1201 to work on this board. Ryzen 5 2400G will work out of the box and be magnitudes faster than say a PhenomII from ten years ago. You just won't know out of the box which bios version you have 'till you get the board.

So this is the motherboard my wife got as a default with her cyberpower rig she bought. I am regrettably unfamiliar with Micro ATX boards. She wants to upgrade to a ryzen 7 cpu and a higher gpu(I believe the 5800 is what she told me for the amd radeon series) as well as getting an additional SSD for gaming. What do I need to know as far as that all goes?

All of the Ryzen 7 cpu's use the AM4 socket so there isnt an issue there. As long as there is not an issue with clearance or a PSU that isnt powerful enough to run the GPU then that also shouldnt be a problem. For an additional SSD, I would recommend a Sabrent Rocket M.2 nvme ssd, or any M.2 nvme ssd and make it your boot drive. With that you will notice a remarkable change in boot times as well as read and write speeds. like 10x faster than a normal ssd.

$149^.00

Free 30-day Returns

Limit 99999 per customer.

Ships from China.

Price alert

Add to wish list

Sold by Smith's Computer Market

Top Rated

3.9 (131 seller ratings)

Shipped by Smith's Computer Market

Meet Your Seller

Smith's Computer Market

See Seller Store

Main image of ASUS PRIME B450M-A AM4 AMD B450 USB 3.1 HDMI Micro ATX AMD Motherboard

Alt view image 2 of 12 - ASUS PRIME B450M-A AM4 AMD B450 USB 3.1 HDMI Micro ATX AMD Motherboard

Alt view image 3 of 12 - ASUS PRIME B450M-A AM4 AMD B450 USB 3.1 HDMI Micro ATX AMD Motherboard

Alt view image 4 of 12 - ASUS PRIME B450M-A AM4 AMD B450 USB 3.1 HDMI Micro ATX AMD Motherboard

Alt view image 5 of 12 - ASUS PRIME B450M-A AM4 AMD B450 USB 3.1 HDMI Micro ATX AMD Motherboard

Alt view image 6 of 12 - ASUS PRIME B450M-A AM4 AMD B450 USB 3.1 HDMI Micro ATX AMD Motherboard

Alt view image 7 of 12 - ASUS PRIME B450M-A AM4 AMD B450 USB 3.1 HDMI Micro ATX AMD Motherboard

Alt view image 8 of 12 - ASUS PRIME B450M-A AM4 AMD B450 USB 3.1 HDMI Micro ATX AMD Motherboard

Alt view image 9 of 12 - ASUS PRIME B450M-A AM4 AMD B450 USB 3.1 HDMI Micro ATX AMD Motherboard

Alt view image 10 of 12 - ASUS PRIME B450M-A AM4 AMD B450 USB 3.1 HDMI Micro ATX AMD Motherboard

Alt view image 11 of 12 - ASUS PRIME B450M-A AM4 AMD B450 USB 3.1 HDMI Micro ATX AMD Motherboard

Alt view image 12 of 12 - ASUS PRIME B450M-A AM4 AMD B450 USB 3.1 HDMI Micro ATX AMD Motherboard

Shop All ASUS Products | Visit Smith's Computer Market Store

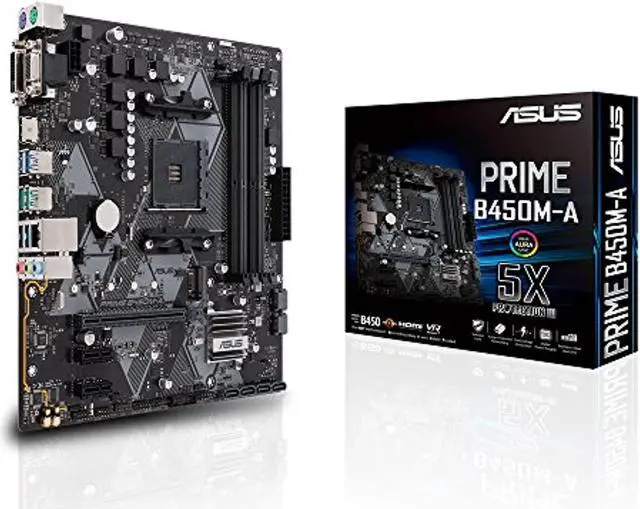

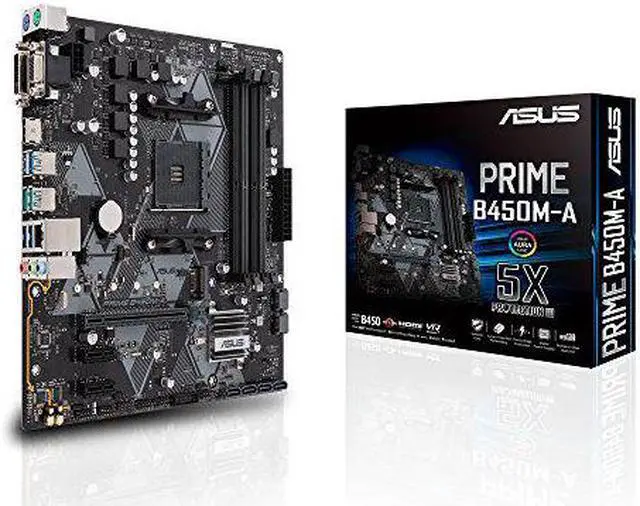

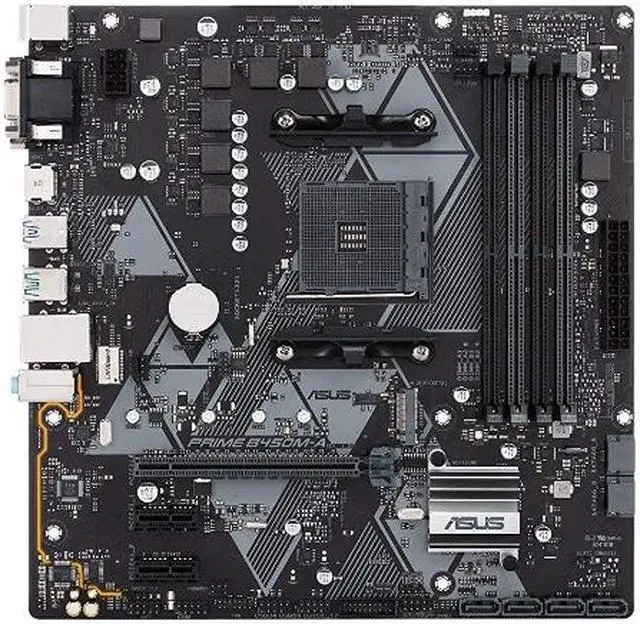

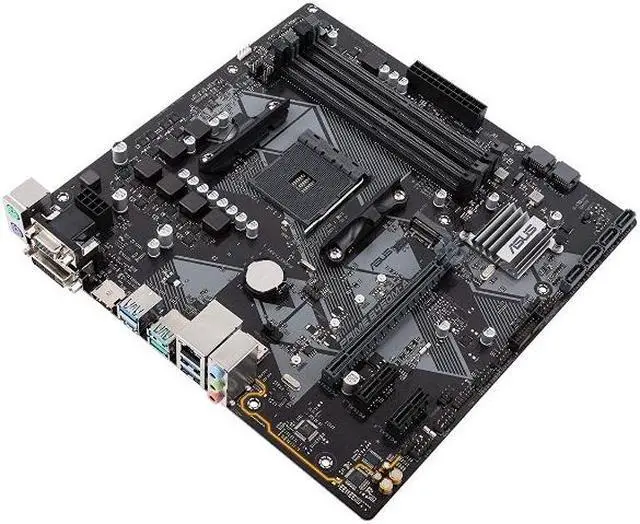

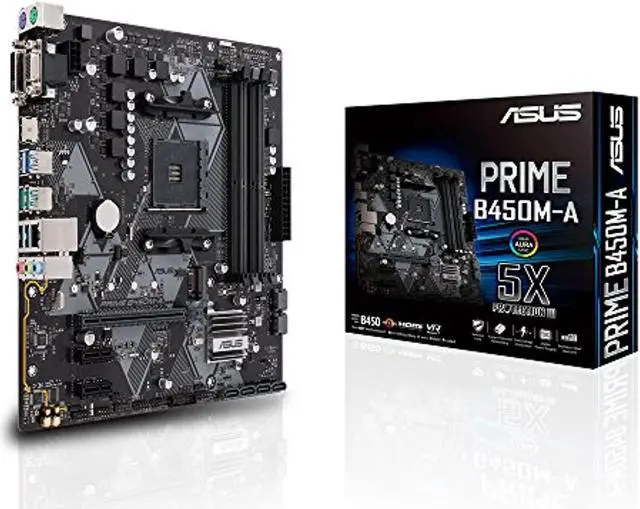

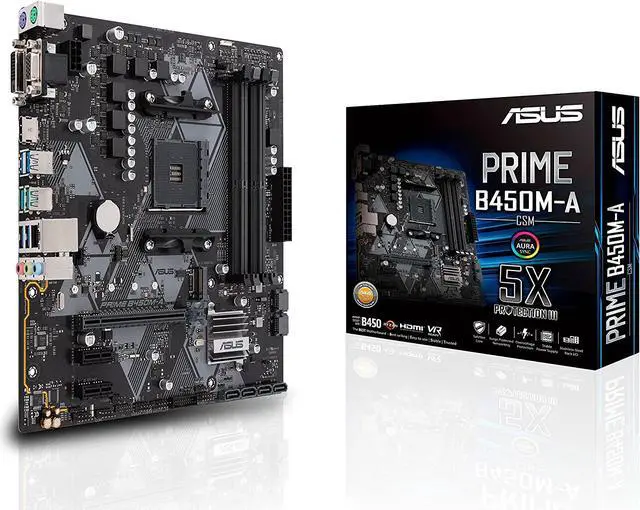

ASUS PRIME B450M-A AM4 AMD B450 USB 3.1 HDMI Micro ATX AMD Motherboard

(1) Write a Review

AMD B450
AM4 socket for AMD Ryzen 2nd Generation / Ryzen with Radeon Vega Graphics / Ryzen 1st Generation Processors
* Refer to www.asus.com for the AMD CPU support list.
DDR4 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133
* Refer to www.asus.com for the Memory QVL (Qualified Vendors List).

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (1)

Any questions? Our AI beta will help you find out quickly.

Try me now

ASUS PRIME B450M-A - Motherboard - micro ATX - Socket AM4 - AMD B450 - USB 3.1 Gen 1, USB 3.1 Gen 2 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)

Model
Brand	ASUS
Model	PRIME B450M-A

Supported CPU
CPU Socket Type	AM4
CPU Type	AM4 socket for AMD Ryzen 2nd Generation / Ryzen with Radeon Vega Graphics / Ryzen 1st Generation Processors * Refer to www.asus.com for the AMD CPU support list.

Chipsets
Chipset	AMD B450

Memory
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 * Refer to www.asus.com for the Memory QVL (Qualified Vendors List).
Maximum Memory Supported	64GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 3.0 x16	AMD Ryzen 2nd Generation / Ryzen 1st Generation Processors 1 x PCIe 3.0/2.0 x16 (x16 mode) AMD Ryzen with Radeon Vega Graphics Processor 1 x PCIe 3.0/2.0 x16 (x8 mode)* * Support NVMe PCIe RAID.
PCI Express x1	2 x PCI Express 2.0 x1 slots

Storage Devices
Serial ATA (SATA)	AMD B450 chipset: 4 x SATA 6Gb/s port(s) AMD Ryzen 2nd Generation / Ryzen with Radeon Vega Graphics / Ryzen 1st Generation Processors: 2 x SATA 6Gb/s port(s)
M.2	AMD Ryzen 2nd Generation / Ryzen with Radeon Vega Graphics / Ryzen 1st Generation Processors: 1 x M.2 socket 3 with M Key, Type 2242/2260/2280/22110 (PCIE 3.0 x4 and SATA modes) storage devices support* * The M.2 Socket shares bandwidth with the SATA_5/6 ports, and therefore the SATA_5/6 ports cannot be used when an M.2 device is installed.
SATA RAID	0/1/10

Onboard Video
Onboard Video Chipset	Integrated Graphics in the AMD Ryzen with Radeon Vega Graphics Processors Multi-VGA output support: HDMI, DVI-D, D-Sub ports - Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz

Onboard Audio
Audio Chipset	Realtek ALC887
Audio Channels	8 Channels * Use a chassis with HD audio module in the front panel to support an 8-channel audio output.

Onboard LAN
LAN Chipset	Realtek RTL8111H
Max LAN Speed	1Gbps

Rear Panel Ports

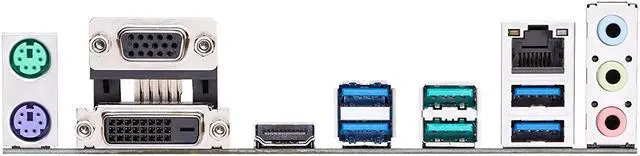

Back I/O Ports	1 x D-Sub / 1 x DVI-D / 1 x HDMI / 1 x LAN (RJ45) / 2 x PS/2 / 2 x USB 3.1 Gen 2 Type-A / 3 x Audio Jacks / 4 x USB 3.1 Gen 1
PS/2	1 x PS/2 keyboard (purple) 1 x PS/2 mouse port (green)
Video Ports	1 x DVI-D port 1 x D-Sub port
HDMI	1 x HDMI
RJ45	1 x RJ45
USB 3.1	2 x USB 3.1 Gen 2 ports 4 x USB 3.1 Gen 1 ports
Audio Ports	3 Ports

Internal I/O Connectors
Onboard USB	1 x USB 3.1 Gen 1 (up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
Other Connectors	1 x Aura RGB Strip Header 1 x TPM header 1 x COM port(s) connector(s) 1 x CPU Fan connector(s) (1 x 4-pin) 2 x Chassis Fan connector(s) (2 x 4-pin) 1 x S/PDIF out header(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x Speaker connector

Physical Spec
Form Factor	Micro ATX
LED Lighting	RGB
Dimensions (W x L)	9.6" x 9.5"
Power Pin	1 x 24-pin EATX Power connector 1 x 8-pin ATX 12V Power connector

Features
Features	Special Features: ASUS 5X Protection III: - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI+ VRM: 6 Phase digital power design ASUS Exclusive Features: - AI Suite 3 - Ai Charger ASUS Quiet Thermal Solution: - Stylish Fanless Design Heat-sink solution - ASUS Fan Xpert 2+ ASUS EZ DIY: - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - Multi-language BIOS ASUS Q-Design: - ASUS Q-Slot - ASUS Q-DIMM BIOS: 128MB Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, F3 My Favorite, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control Operating System: Windows 10 64-bit

Packaging

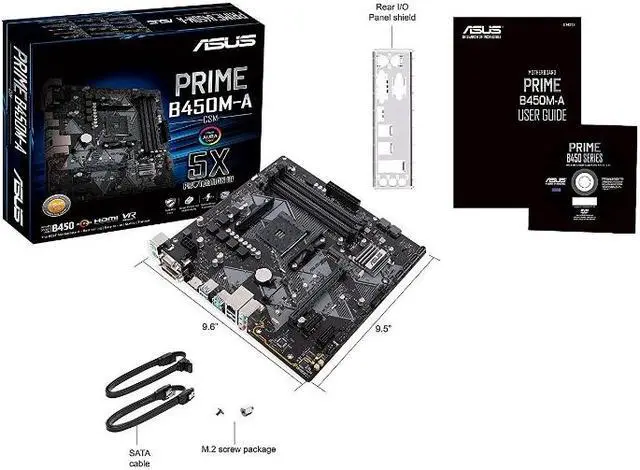

Package Contents	Accessories: User's manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD
