What kind of power supply would be compatible with this motherboard?

750 watt, such as a Corsair would be plenty, as long as you do not install a large power hungry GPU card.

Is the size of the ASUS PRIME B650M-A AX II R motherboard standard?

The motherboard has a Micro ATX form factor with dimensions of 9.6 x 9.6 inches.

How many SATA ports does the ASUS PRIME B650M-A AX II R motherboard have?

The ASUS PRIME B650M-A AX II R motherboard has 8 SATA 6Gb/s ports.

does it have bluetooth?

Yes, it supports Bluetooth v5.2.

Out of stock

$168^.99

Price alert

Add to wish list(Found on 25 wish lists)

Sold by Newegg

Shipped by Newegg

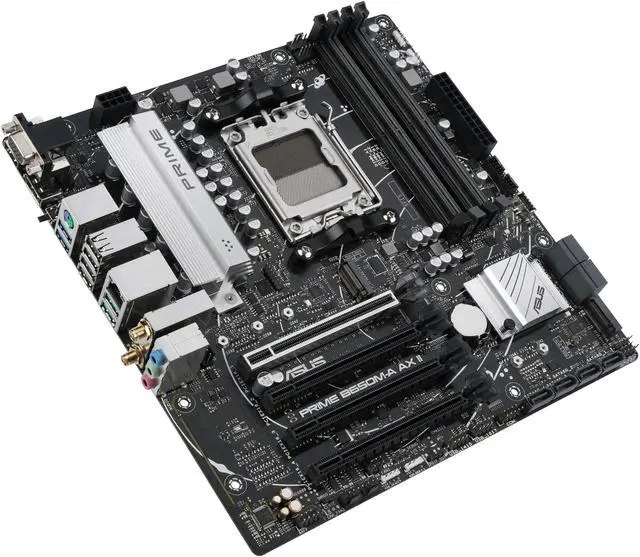

Main image of ASUS Prime B650M-A AX II AMD B650(Ryzen 7000) Micro-ATX motherboard(DDR5 6400+(OC) , PCIe 5.0 M.2 support, 2.5Gb Ethernet, Wi-Fi 6, DisplayPort, HDMI,USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C, BIOS FlashBack, CEC Tier II ready)

Alt view image 2 of 6 - ASUS Prime B650M-A AX II AMD B650(Ryzen 7000) Micro-ATX motherboard(DDR5 6400+(OC) , PCIe 5.0 M.2 support, 2.5Gb Ethernet, Wi-Fi 6, DisplayPort, HDMI,USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C, BIOS FlashBack, CEC Tier II ready)

Alt view image 3 of 6 - ASUS Prime B650M-A AX II AMD B650(Ryzen 7000) Micro-ATX motherboard(DDR5 6400+(OC) , PCIe 5.0 M.2 support, 2.5Gb Ethernet, Wi-Fi 6, DisplayPort, HDMI,USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C, BIOS FlashBack, CEC Tier II ready)

Alt view image 4 of 6 - ASUS Prime B650M-A AX II AMD B650(Ryzen 7000) Micro-ATX motherboard(DDR5 6400+(OC) , PCIe 5.0 M.2 support, 2.5Gb Ethernet, Wi-Fi 6, DisplayPort, HDMI,USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C, BIOS FlashBack, CEC Tier II ready)

Alt view image 5 of 6 - ASUS Prime B650M-A AX II AMD B650(Ryzen 7000) Micro-ATX motherboard(DDR5 6400+(OC) , PCIe 5.0 M.2 support, 2.5Gb Ethernet, Wi-Fi 6, DisplayPort, HDMI,USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C, BIOS FlashBack, CEC Tier II ready)

Alt view image 6 of 6 - ASUS Prime B650M-A AX II AMD B650(Ryzen 7000) Micro-ATX motherboard(DDR5 6400+(OC) , PCIe 5.0 M.2 support, 2.5Gb Ethernet, Wi-Fi 6, DisplayPort, HDMI,USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C, BIOS FlashBack, CEC Tier II ready)

Customer images

Shop All ASUS Products

ASUS Prime B650M-A AX II AMD B650(Ryzen 7000) Micro-ATX motherboard(DDR5 6400+(OC) , PCIe 5.0 M.2 support, 2.5Gb Ethernet, Wi-Fi 6, DisplayPort, HDMI,USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C, BIOS FlashBack, CEC Tier II ready)

(9)(2) Write a Review

Option: PRIME B650M-A AX II

ROG STRIX B650E-F GAMING WIFI
TUF GAMING B650M-PLUS WIFI
TUF GAMING B650-PLUS WIFI
ROG STRIX B650-A GAMING WIFI
PRIME B650M-A AX II
TUF GAMING B650-E WIFI
TUF GAMING B650M-E WIFI
PRIME B650-PLUS WIFI
ROG STRIX B650E-I
B650E MAX GAMING WIFI W
B650E MAX GAMING WIFI
TUF GAMING B650E-PLUS
TUF GAMING B650E-E WIFI

AMD AM5 Socket: Ready for AMD Ryzen 7000 Series Desktop Processors.
Ultrafast Connectivity: DDR5 6400+(OC) Wi-Fi 6, M.2 PCIe 5.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C.
ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking.
Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+.
Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware.
CEC Tier II ready.
Memory:DDR5 - 6400+(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)
/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory*

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (9)

Model
Brand	ASUS
Model	PRIME B650M-A AX II
Part Number	90MB1ED0-M0AAY0

Supported CPU
CPU Socket Type	AM5
CPU Type	Supports AMD Ryzen 7000 Series Desktop Processors* * Refer to www.asus.com for CPU support list.

Chipsets
Chipset	AMD B650

Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	, DDR5 6400+(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory*
Maximum Memory Supported	256GB
Channel Supported	Dual Channel
ECC Supported	Yes
Buffer Supported	Un-buffered
Memory Feature	Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO™) OptiMem II * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Expansion Slots
PCI Express 4.0 x16	AMD Ryzen 7000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x16 mode) 1 x PCIe 4.0 x16 slot (supports x1 mode) AMD B650 Chipset 2 x PCIe 4.0 x16 slots (support x1 mode)

Storage Devices
Serial ATA (SATA)	8 x SATA 6Gb/s
M.2	AMD Ryzen 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD B650 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
SATA RAID	* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. ** The SATA6G_E12/E34 ports cannot support RAID.

Onboard Audio
Audio Chipset	Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Audio Channels	7.1 Channels

Onboard LAN
Max LAN Speed	1 x Realtek 2.5Gb Ethernet
Wireless LAN	Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band
Bluetooth	Bluetooth v5.2

Rear Panel Ports

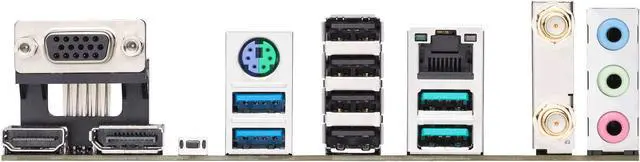

Back I/O Ports	2 x USB 3.2 Gen 2 ports (2 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x VGA port 1 x HDMI® port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack™ button 1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors
Onboard USB	1 x USB 3.2 Gen 1 connector (supports USB Type-C ) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other Connectors	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 8 x SATA 6Gb/s ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header

Physical Spec
Form Factor	Micro ATX
Dimensions (W x L)	9.6" x 9.6"
Power Pin	1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector

Software Feature
Windows 11	Supported

Features
Features	ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED core - Q-Slot ASUS Thermal Solution - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED Aura Sync - Aura RGB header - Addressable Gen 2 headers

Packaging

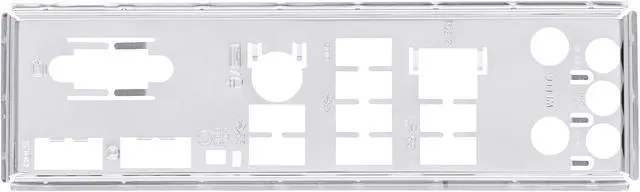

Package Contents	Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x I/O Shield 1 x Screw package for M.2 SSD Documentation 1 x User guide

Additional Information
Date First Available	January 17, 2023
