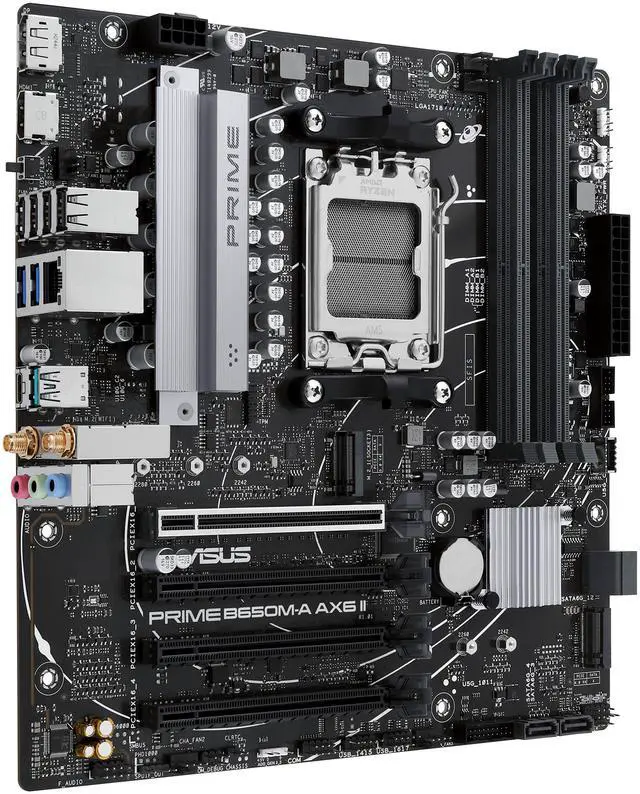

ASUS PRIME B650M-A AX6 II-GSI AM5 Micro ATX DDR5, PCIe 5.0 M.2 support, Wi-Fi 6, Motherboard

OPEN BOX

Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
AM5 Socket for AMD Ryzen™ Desktop Processors
Ultrafast Connectivity: Wi-Fi 6, M.2 PCIe 5.0, rear USB 10Gbps Type-A & Type-C® ports, front USB 5Gbps Type-C®
ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware
Two-way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
CEC Tier II ready

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

The Open Box Product Disclaimer applies to this product. Please note that this product is non-returnable and non-refundable.

Overview

Specs

Any questions? Our AI beta will help you find out quickly.

Try me now

Model
Brand	ASUS
Model	PRIME B650M-A AX6 II-GSI

Supported CPU
CPU Socket Type	AM5
CPU Type	Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series

Chipsets
Chipset	AMD B650

Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	Up to DDR5 7600+(OC)
Maximum Memory Supported	192GB
Channel Supported	Dual Channel
ECC Supported	Yes
Buffer Supported	Un-buffered
Memory Feature	DDR5 7600+(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory* Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO) * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Expansion Slots
PCI Express 4.0 x16	AMD Ryzen 9000 & 7000 Series Desktop Processors* 1 x PCIe 4.0 x16 slot (supports x16 mode) 3 x PCIe 4.0 x16 slots (support x1 mode) AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) 3 x PCIe 4.0 x16 slots (support x1 mode)* Specifications vary by CPU types. * PCIEX16_4 slot will be disabled with some 8000 Series processors.

Storage Devices
Serial ATA (SATA)	4 x SATA 6Gb/s
M.2	AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD B650 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
SATA RAID	AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.

Onboard Audio
Audio Chipset	Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Audio Channels	7.1 Channels

Rear Panel Ports

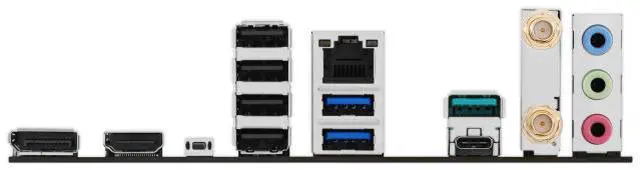

Back I/O Ports	2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x VGA port 1 x HDMI port 1 x Wi-Fi Module 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack button

Internal I/O Connectors
Onboard USB	1 x USB 5Gbps connector (supports USB Type-C) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other Connectors	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin System Panel header

Physical Spec
Form Factor	Micro ATX
Dimensions (W x L)	9.6" x 9.6"
Power Pin	1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector

Software Feature
BIOS Feature	256 Mb Flash ROM, UEFI AMI BIOS
Windows 11	Supported

Features
Features	ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED Aura Sync - Addressable Gen 2 headers

Additional Information
First Listed on Newegg	July 11, 2025
