ASUS PRIME B660-PLUS D4 LGA 1700 (Intel 12th & 13th Gen) ATX Motherboard (PCIe 4.0, DDR4, 3xM.2 slots, 2.5Gb LAN, rear USB 3.2 Gen 2x2 Type-C, front USB 3.2 Gen 1 Type-C)

Name: ASUS PRIME B660-PLUS D4 ATX Intel Motherboard
Brand: ASUS
SKU: N82E16813119543
Price: 184.19 USD
Availability: InStock
Rating: 4 (182 reviews)

(182)(22) Write a Review

Option: PRIME B660-PLUS D4

PRIME B660-PLUS D4
PRIME B660M-A D4
PRIME B660M-A WIFI D4
PRO B660M-C D4-CSM
PROART B660-CREATOR D4
ROG STRIX B660-A GAMING WIFI D4
ROG STRIX B660-I GAMING WIFI
TUF GAMING B660M-PLUS WIFI D4

Intel LGA 1700 socket: Ready for 12th & 13th Gen Intel Core processors and Windows 11. BIOS update may be required to boot the 13th gen Intel Core desktop processors
Ultrafast connectivity: PCIe 4.0 slots, three M.2 slots, rear USB 3.2 Gen 2x2 Type-C, front USB 3.2 Gen 1 Type-C, Realtek 2.5Gb Ethernet and Thunderbolt 4 support
Comprehensive cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (182)

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
Read full details
CONTACT

Return Policies

Return for refund within: 30 days
Return for replacement within: 30 days
This item is covered by roboshine Return Policy

Manufacturer Contact Info

For a directory of all our manufacturers, please click below.
Manufacturers Directory

CPU Socket Type	LGA 1700 * Designed with dual mounting holes compatible with both Intel LGA1700 and LGA1200 cooling brackets.
CPU Type	Supports 13th / 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors* May require a BIOS update to boot the 13th gen Intel® Core™ desktop processors. Visit: https://www.asus.com/news/oujwh1old5n6oglf/ Refer to www.asus.com for CPU support list.
Supported CPU Technologies	Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0* * Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 5000(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4000(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133* *Actual Memory frequency support depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported	128GB
Channel Supported	Dual Channel

PCI Express 4.0 x16	1 x PCI Express 4.0 x16 * Actual support may vary by CPU.
PCI Express 3.0 x16	1 x PCI Express 3.0 x16 * Supports x4 mode.
PCI Express x1	2 x PCIe 3.0 x1

Serial ATA (SATA)	4 x SATA 6Gb/s
M.2	Intel 12th Gen Processors: M.2_1 slot (Key M), type 2242/2260/2280 - Intel 12th Gen processors support PCIe 4.0 x4 mode. Intel B660 Chipset: M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)* M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) * Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.
Intel Optane Ready	Yes
SATA RAID	0/1/5/10

Audio Chipset	Realtek 7.1 Surround Sound High Definition Audio CODEC* * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Audio Channels	7.1 Channels

Best Sellers

Meet Your Seller

ASUS PRIME B660-PLUS D4 LGA 1700 (Intel 12th & 13th Gen) ATX Motherboard (PCIe 4.0, DDR4, 3xM.2 slots, 2.5Gb LAN, rear USB 3.2 Gen 2x2 Type-C, front USB 3.2 Gen 1 Type-C)

Learn more about the ASUS PRIME B660-PLUS D4

Customer Reviews of the ASUS PRIME B660-PLUS D4

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

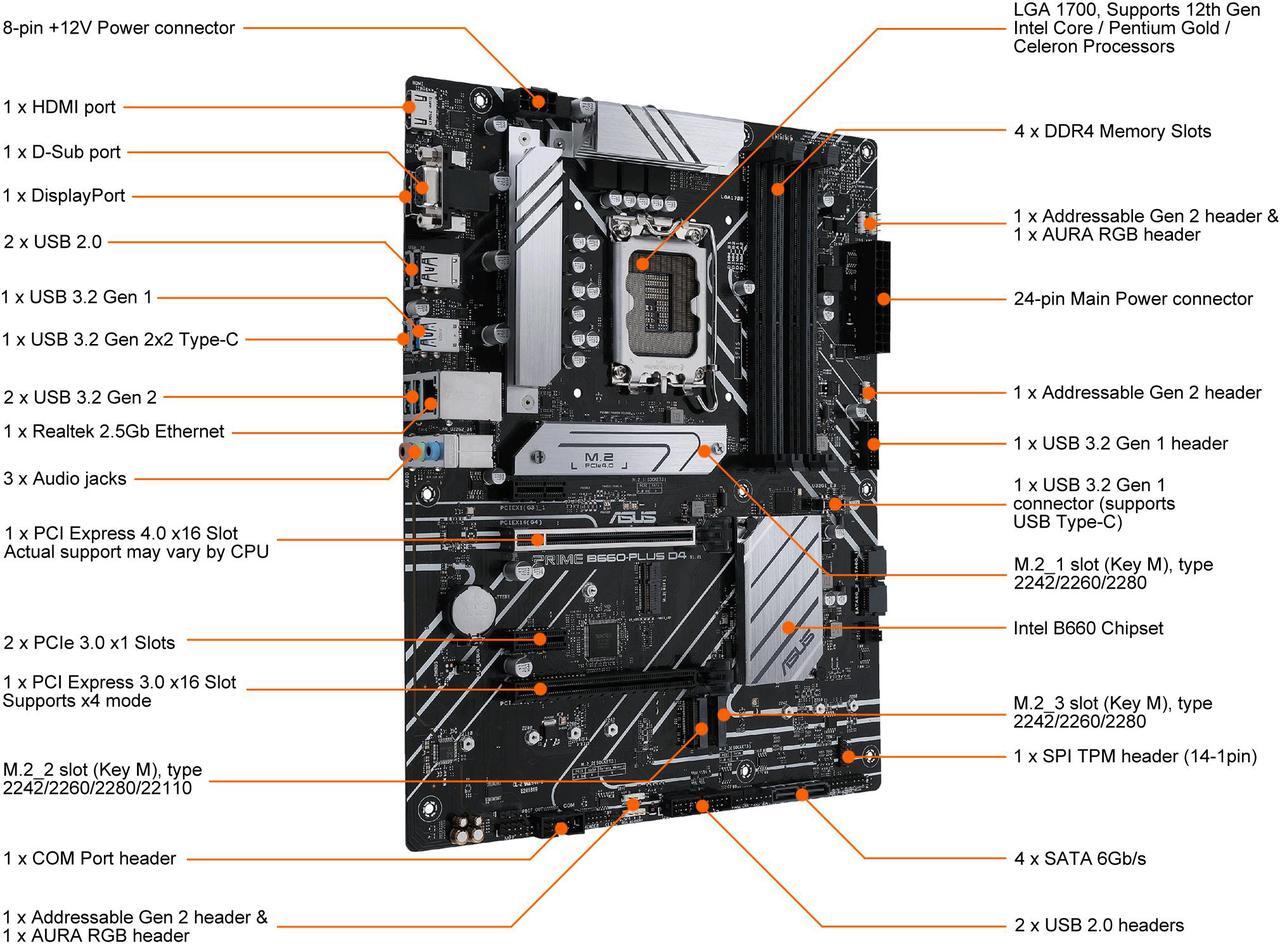

Onboard USB	1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Other Connectors	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Miscellaneous 3 x Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x M.2 slot (Key E) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt header

Form Factor	ATX
LED Lighting	RGB

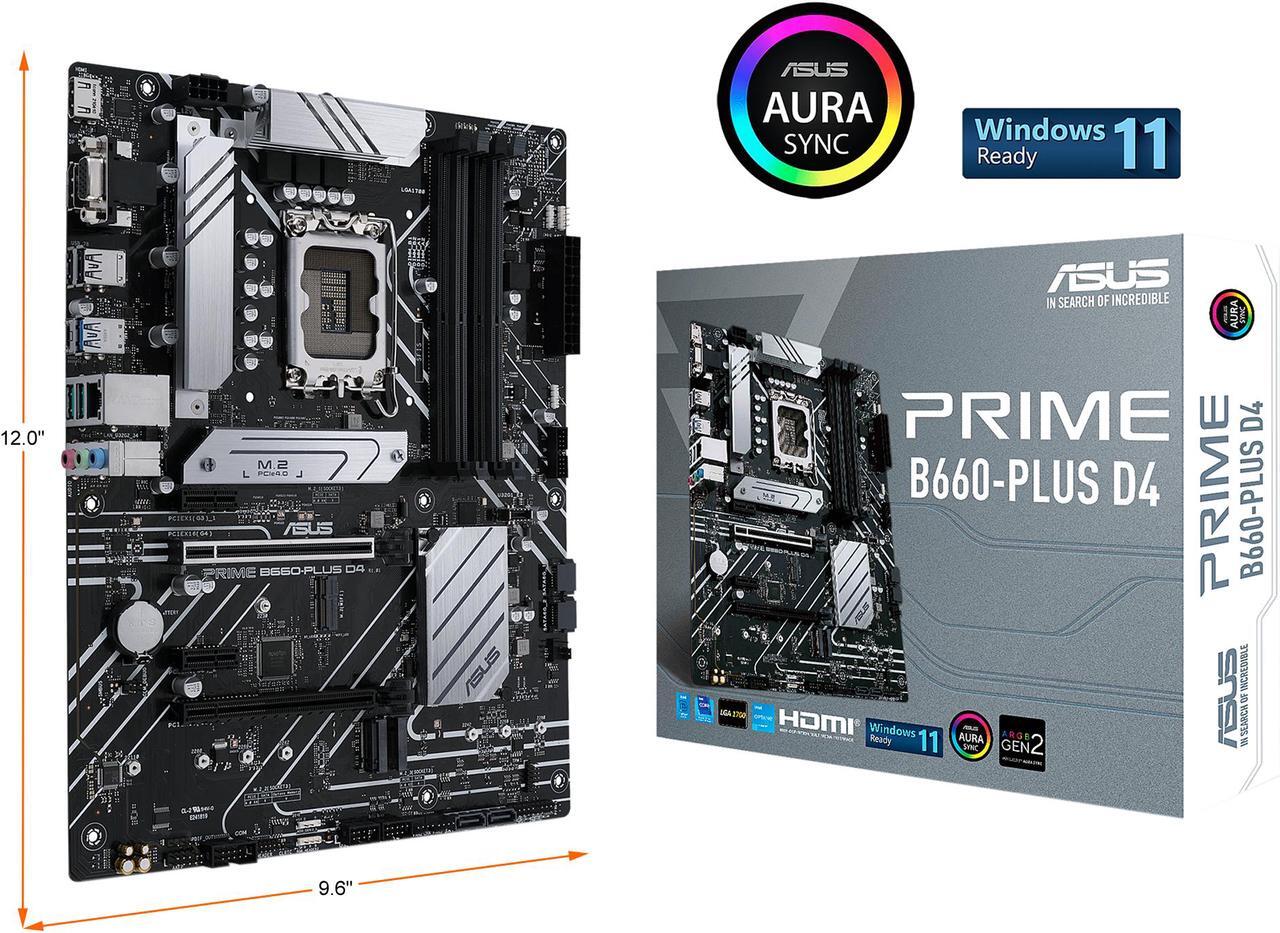

Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector

Onboard LAN
LAN Chipset	Realtek 2.5Gb Ethernet
Max LAN Speed	2.5Gbps
