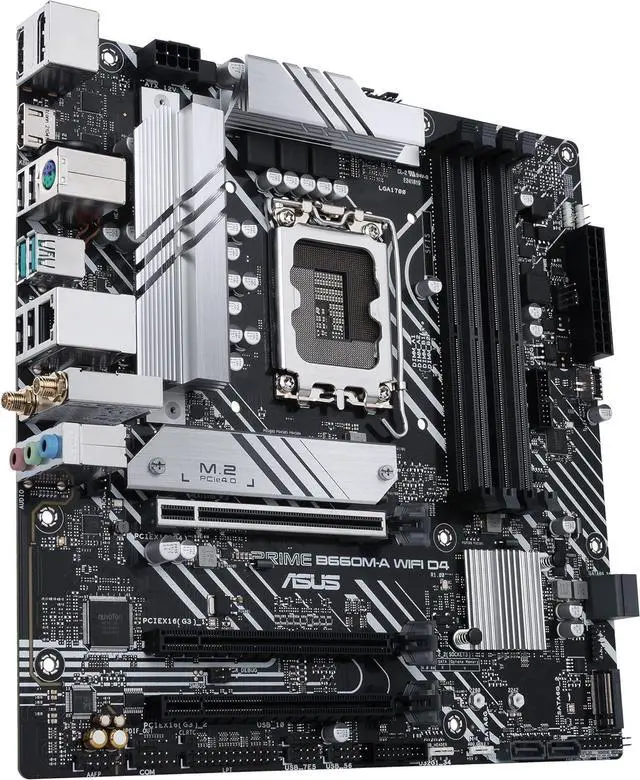

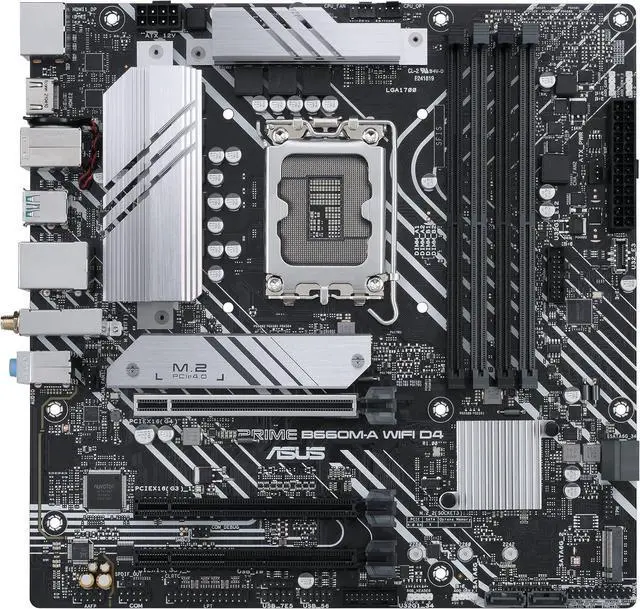

Main image of ASUS PRIME B660M-A WIFI D4 LGA 1700 (Intel 12th & 13th Gen) mATX Motherboard (PCIe 4.0, Intel Wi-Fi 6, DDR4, 2xM.2 slots, 1Gb LAN, DP, 2x HDMI, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C)

Alt view image 2 of 8 - ASUS PRIME B660M-A WIFI D4 LGA 1700 (Intel 12th & 13th Gen) mATX Motherboard (PCIe 4.0, Intel Wi-Fi 6, DDR4, 2xM.2 slots, 1Gb LAN, DP, 2x HDMI, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C)

Alt view image 3 of 8 - ASUS PRIME B660M-A WIFI D4 LGA 1700 (Intel 12th & 13th Gen) mATX Motherboard (PCIe 4.0, Intel Wi-Fi 6, DDR4, 2xM.2 slots, 1Gb LAN, DP, 2x HDMI, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C)

Alt view image 4 of 8 - ASUS PRIME B660M-A WIFI D4 LGA 1700 (Intel 12th & 13th Gen) mATX Motherboard (PCIe 4.0, Intel Wi-Fi 6, DDR4, 2xM.2 slots, 1Gb LAN, DP, 2x HDMI, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C)

Alt view image 5 of 8 - ASUS PRIME B660M-A WIFI D4 LGA 1700 (Intel 12th & 13th Gen) mATX Motherboard (PCIe 4.0, Intel Wi-Fi 6, DDR4, 2xM.2 slots, 1Gb LAN, DP, 2x HDMI, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C)

Alt view image 6 of 8 - ASUS PRIME B660M-A WIFI D4 LGA 1700 (Intel 12th & 13th Gen) mATX Motherboard (PCIe 4.0, Intel Wi-Fi 6, DDR4, 2xM.2 slots, 1Gb LAN, DP, 2x HDMI, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C)

Alt view image 7 of 8 - ASUS PRIME B660M-A WIFI D4 LGA 1700 (Intel 12th & 13th Gen) mATX Motherboard (PCIe 4.0, Intel Wi-Fi 6, DDR4, 2xM.2 slots, 1Gb LAN, DP, 2x HDMI, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C)

Alt view image 8 of 8 - ASUS PRIME B660M-A WIFI D4 LGA 1700 (Intel 12th & 13th Gen) mATX Motherboard (PCIe 4.0, Intel Wi-Fi 6, DDR4, 2xM.2 slots, 1Gb LAN, DP, 2x HDMI, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C)

Shop All ASUS Products | Visit Polytopia Store

ASUS PRIME B660M-A WIFI D4 LGA 1700 (Intel 12th & 13th Gen) mATX Motherboard (PCIe 4.0, Intel Wi-Fi 6, DDR4, 2xM.2 slots, 1Gb LAN, DP, 2x HDMI, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C)

REFURBISHED

Be the first to review this product...

Intel LGA 1700 socket: Ready for 12th & 13th Gen Intel Core processors and Windows 11. BIOS update may be required to boot the 13th gen Intel Core desktop processors
Ultrafast connectivity: PCIe 4.0, Intel Wi-Fi 6, Intel 1 Gb Ethernet, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C
ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
Comprehensive cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Intel LGA 1700 socket: Ready for 12th & 13th Gen Intel Core processors and Windows 11. BIOS update may be required to boot the 13th gen Intel Core desktop processors
Ultrafast connectivity: PCIe 4.0, Intel Wi-Fi 6, Intel 1 Gb Ethernet, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C
ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
Comprehensive cooling: VRM heatsink, M. 2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+

Model
Brand	ASUS
Model	PRIME B660M-A WIFI D4

Supported CPU
CPU Socket Type	LGA 1700 * Dedicated LGA1700 mounting bracket is required.
CPU Type	Supports 13th / 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors* May require a BIOS update to boot the 13th gen Intel® Core™ desktop processors. Visit: https://www.asus.com/news/oujwh1old5n6oglf/ Refer to www.asus.com for CPU support list.
Supported CPU Technologies	Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0* * Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipsets
Chipset	Intel B660

Onboard Video
Onboard Video Chipset	Supported only by CPU with integrated graphic

Memory

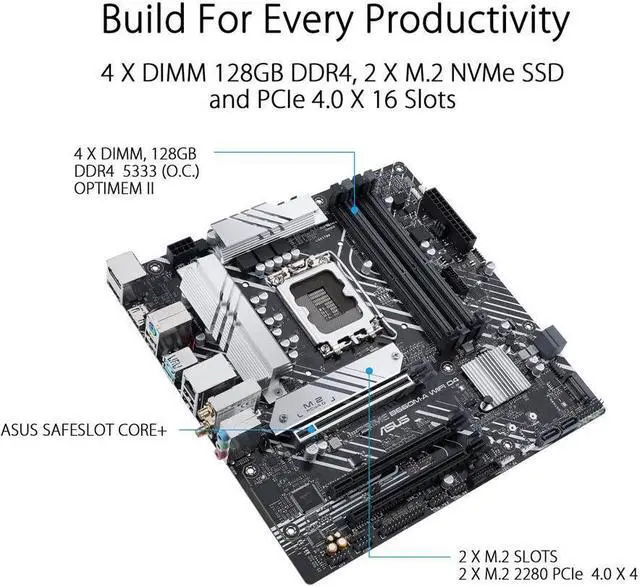

Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 5333(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4000(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 * * Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported	128GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 4.0 x16	1 x PCI Express 4.0 x16 * Actual support may vary by CPU.
PCI Express 3.0 x16	2 x PCI Express 3.0 x16

Storage Devices
Serial ATA (SATA)	4 x SATA 6Gb/s
M.2	Intel 12th Gen Processors: M.2_1 slot (Key M), type 2242/2260/2280 - Intel 12th Gen processors support PCIe 4.0 x4 mode. Intel B660 Chipset * M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)* * Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.
Intel Optane Ready	Yes
SATA RAID	0/1/5/10

Onboard Audio
Audio Channels	7.1 Channels* * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Onboard LAN
Max LAN Speed	1Gbps
Wireless LAN	Wi-Fi 6 802.11 a/b/g/n/ac/ax
Bluetooth	Bluetooth 5.2

Rear Panel Ports

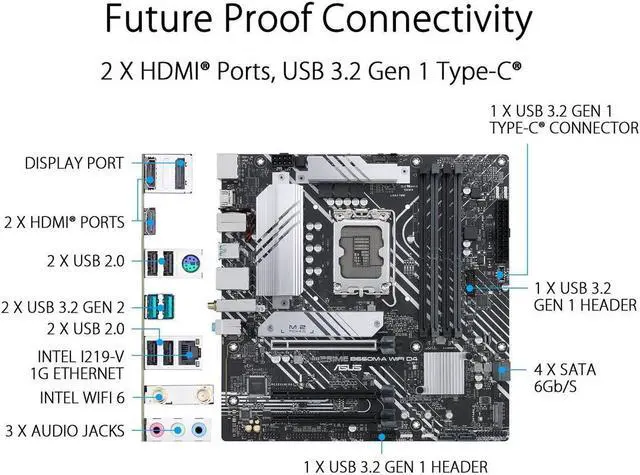

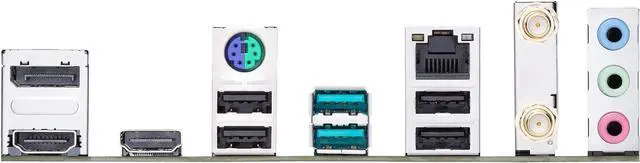

Back I/O Ports	2 x USB 3.2 Gen 2 ports (2 x Type-A ) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 2 x HDMI ports 1 x Wi-Fi Module 1 x Intel 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors
Onboard USB	2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 2 x USB 2.0 headers support additional 4 USB 2.0 ports 1 x USB 2.0 header support 1 USB 2.0 port

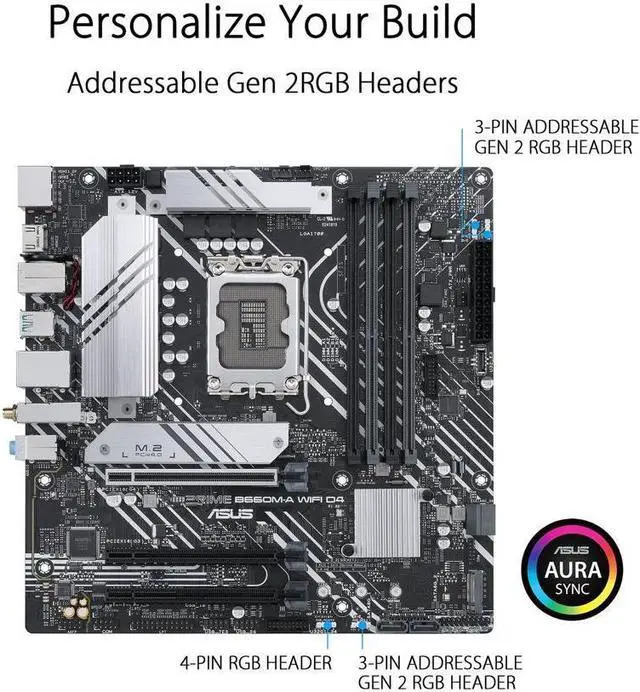

Other Connectors	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan header Miscellaneous 3 x AURA Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x LPT header 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function

Software Feature
Windows 11	Supported

Physical Spec
Form Factor	Micro ATX
LED Lighting	RGB
Dimensions (W x L)	9.6" x 9.6"
Power Pin	1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector

Features
Features	Special Features: ASUS 5X PROTECTION III - DIGI+ VRM - Enhanced DRAM Overcurrent Protection - ESD Guards - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool AURA Sync - AURA RGB header - Addressable Gen 2 RGB headers Software Features: ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - FanXpert 2+ AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM ASUS CPU-Z MyAsus Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode BIOS: 128 Mb Flash ROM, UEFI AMI BIOS Manageability: WOL by PME, PXE Operating System: Windows 11 64-bit, Windows 10 64-bit

Packaging

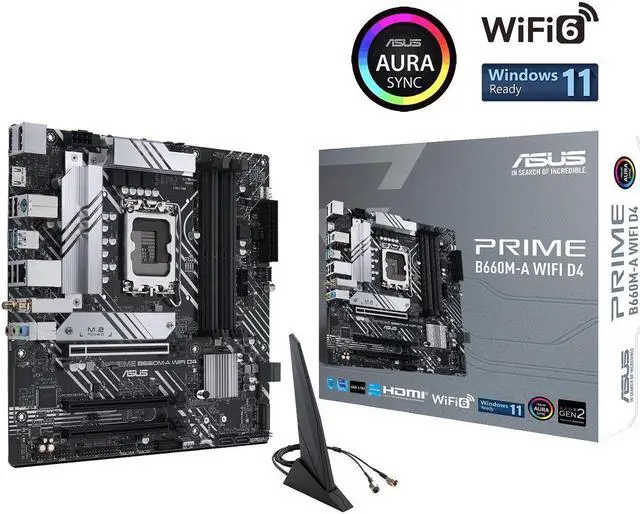

Package Contents	Accessories: Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x I/O Shield 1 x M.2 Rubber Package 1 x M.2 SSD screw package Installation Media 1 x Support DVD Documentation 1 x User manual
