AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
AMD B840 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 3.0 x4 mode)
SATA RAID
AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10. *RAID 5 Function is only supported by AMD Ryzen 9000 series CPU.
Onboard Audio
Audio Channels
Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Onboard LAN
Max LAN Speed
2.5Gbps
Wireless LAN
Wi-Fi 802.11 ax
Bluetooth
Bluetooth 5.3
Rear Panel Ports
Back I/O Ports

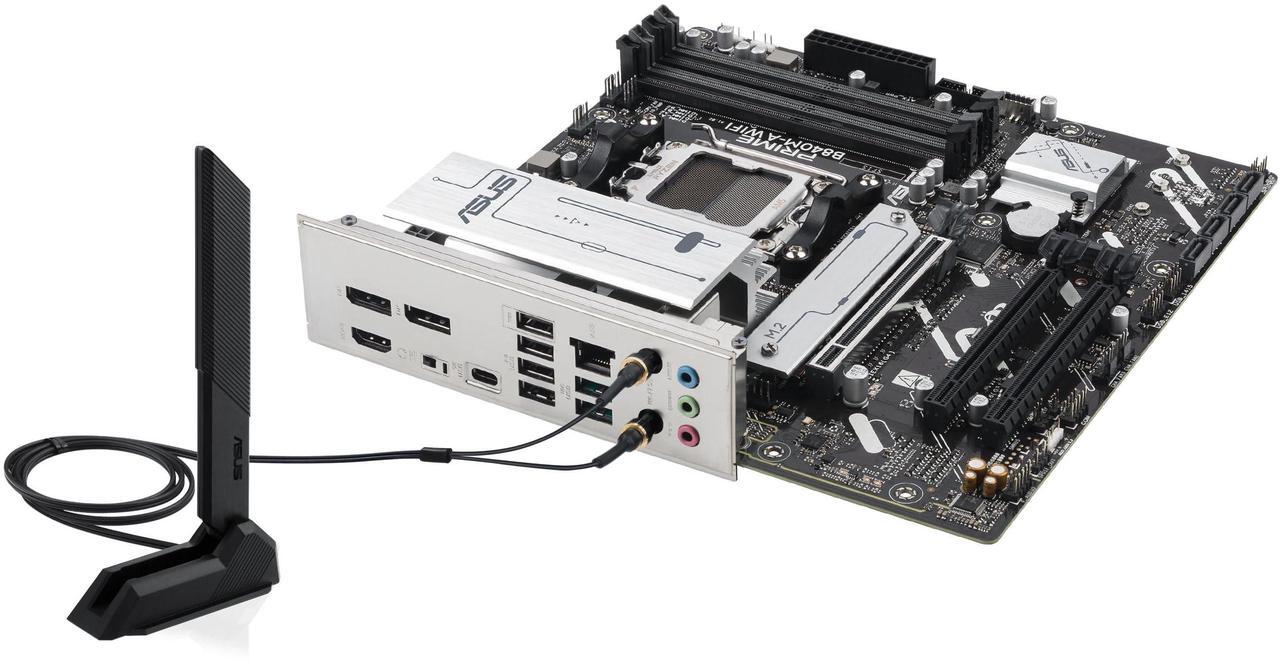

2 x USB 10Gbps ports (2 x Type-A) 1 x USB 5Gbps port (1 x USB Type-C) 4 x USB 2.0 ports (4 x Type-A) 2 x DisplayPort 1 x HDMI port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack button
Internal I/O Connectors
Onboard USB
1 x USB 5Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other Connectors
Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers
Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin Front System Panel header
Physical Spec
Form Factor
Micro ATX
Dimensions (W x L)
9.6" x 9.6"
Power Pin
1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector
Software Feature
BIOS Feature
256 Mb Flash ROM, UEFI AMI BIOS
Software
ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving ASUS DriverHub ASUS GlideX TurboV Core ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey
Windows 11
Windows 11, Windows 10 64-bit
Features
Features
ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage protection - SafeSlot Core+ - Stainless-steel back I/O ASUS Q-Design - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - Pre-mounted I/O shield Aura Sync - Addressable Gen 2 headers
Packaging
Package Contents
Cables 2 x SATA 6Gb/s cables

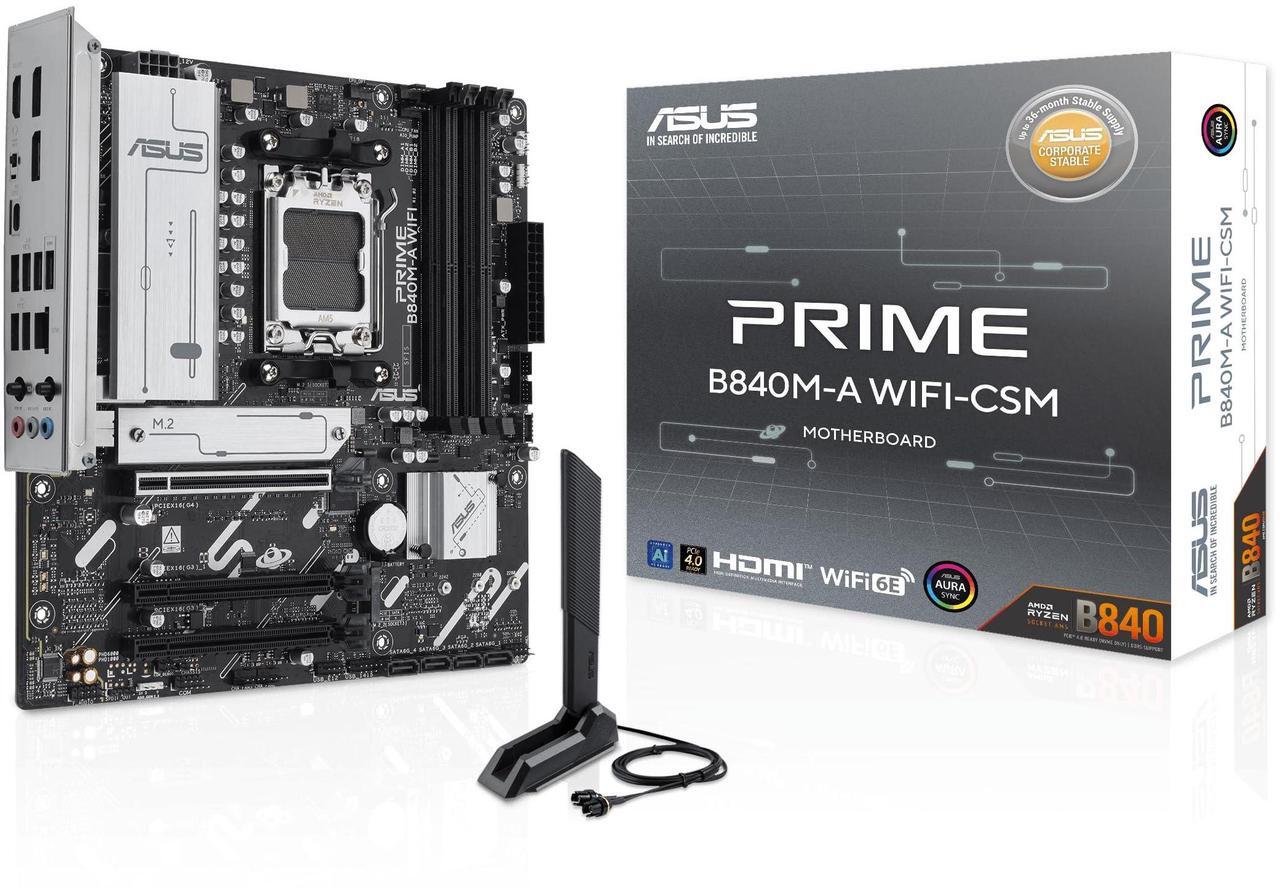

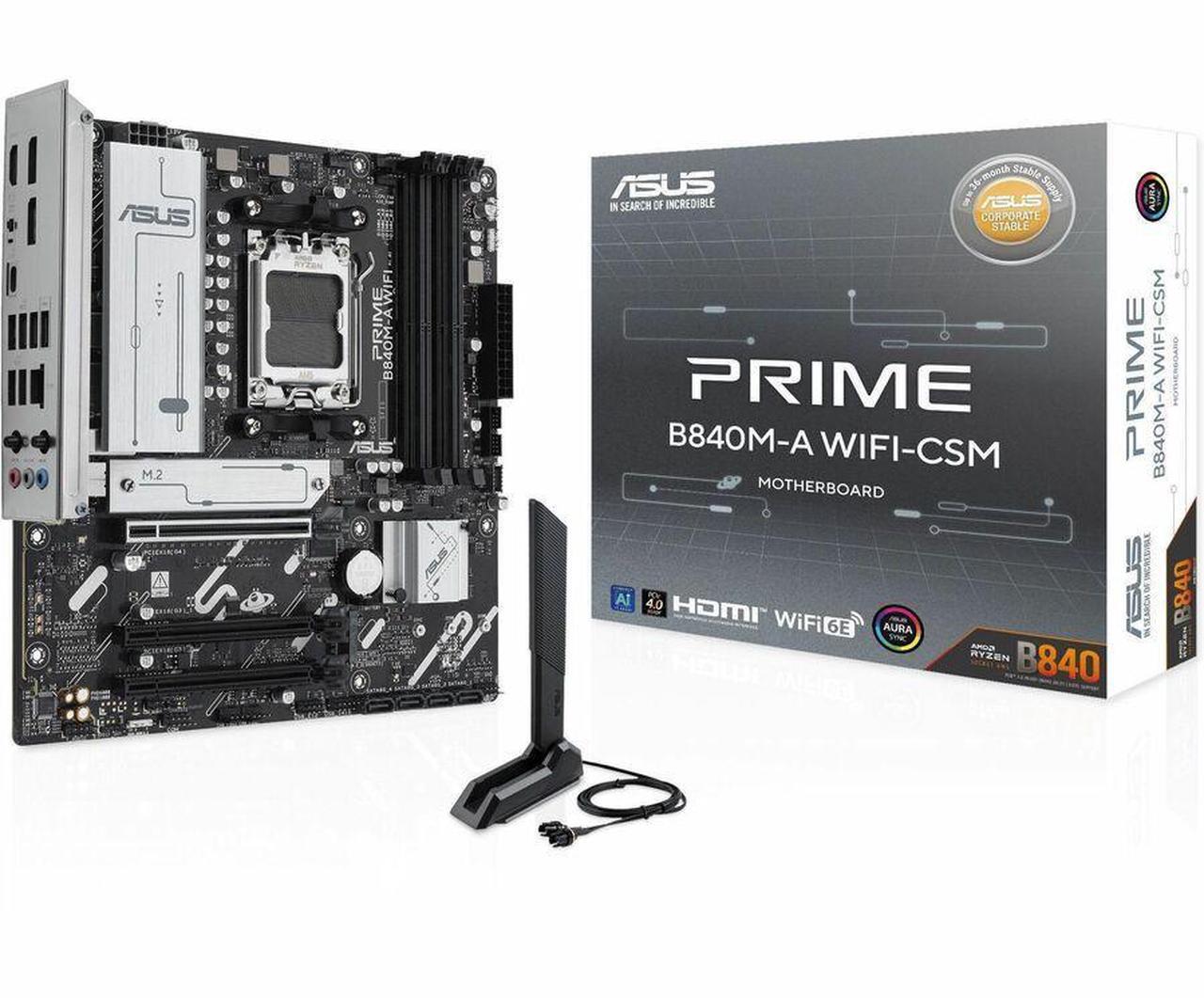

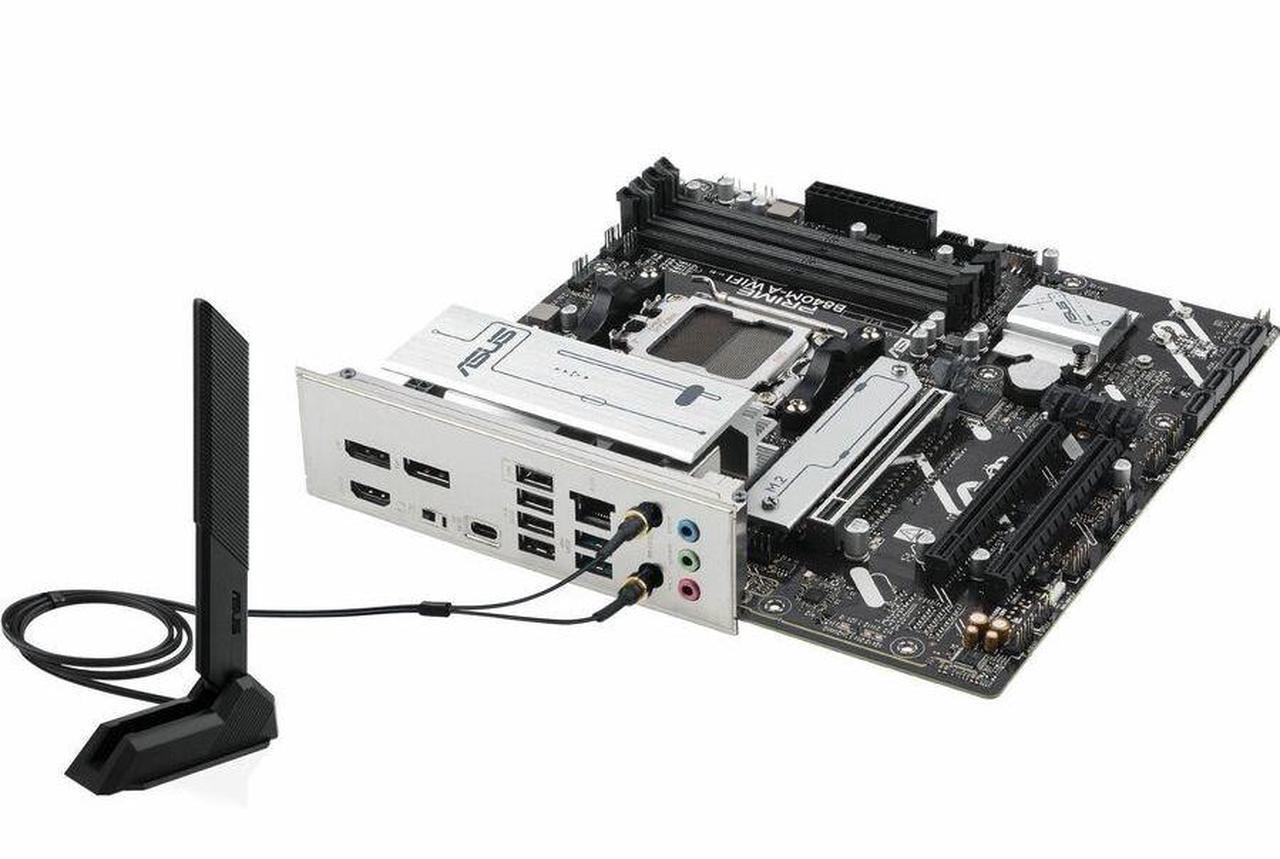

Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x M.2 rubber package 3 x Screw packages for M.2 SSD
Documentation 1 x Quick start guide
Additional Information
Date First Available
May 23, 2025
