Learn more about the ASUS PRIME H410M-E
Model
Brand
ASUS
Model
PRIME H410M-E

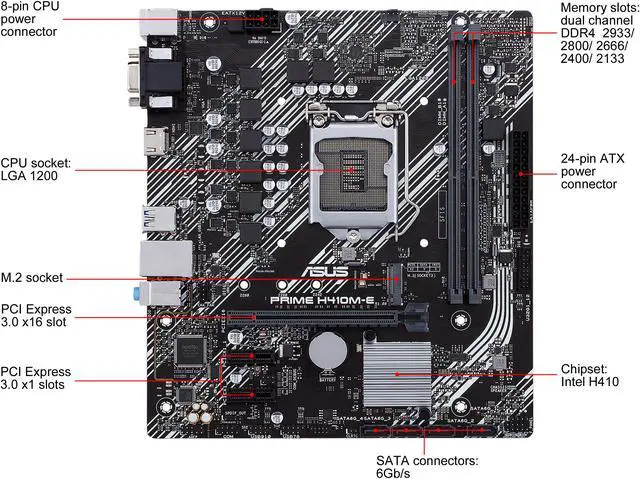

Supported CPU
CPU Socket Type
LGA 1200
CPU Type
Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors * * Refer to www.asus.com for CPU support list
Supported CPU Technologies
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipsets
Chipset
Intel H410
Onboard Video
Onboard Video Chipset
Integrated Graphics Processor * 1 x D-Sub 1 x HDMI 1.4b * Graphics specifications may vary between CPU types.
Memory
Number of Memory Slots
2x288pin (DDR4)
Memory Standard
DDR4 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory * * 10th Gen Intel Core i9/i7 CPUs support 2933/ 2800/ 2666/ 2400/ 2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported
64GB
Channel Supported
Dual Channel
Expansion Slots
PCI Express 3.0 x16
1 x PCIe 3.0 x16 (x16 mode)
PCI Express x1
2 x PCIe 3.0 x1
Storage Devices
Serial ATA (SATA)
4 x SATA 6Gb/s
M.2
1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)*1 *1 When a device in SATA mode is installed on the M.2 socket, SATA6G_2 port cannot be used.
Onboard Audio
Audio Chipset
Realtek ALC887
Audio Channels
7.1 Channels * A chassis with an HD audio module in the front panel is required to support 7.1-channel audio output.
Onboard LAN
LAN Chipset
Realtek RTL8111H
Max LAN Speed
1Gbps
Rear Panel Ports
Back I/O Ports

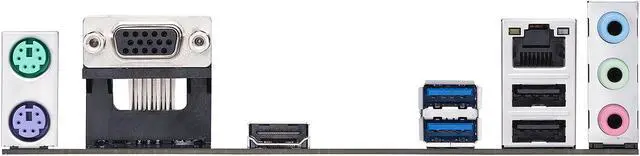

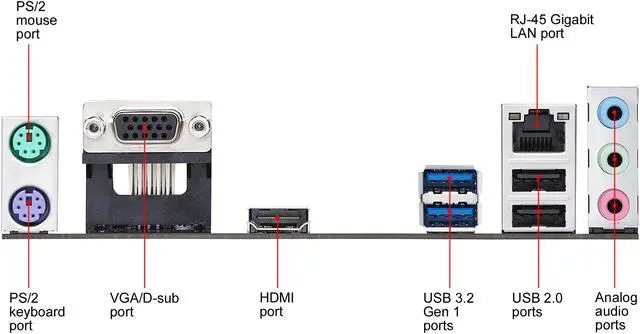

1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.2 Gen 1 Type-A 2 x USB 2.0 3 x Audio jack(s)
Internal I/O Connectors
Onboard USB
1 x USB 3.2 Gen 1 (up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
Other Connectors
1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x COM port(s) connector(s) 1 x S/PDIF out header(s) 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x Speaker connector
Software Feature
Windows 11
Supported
Physical Spec
Form Factor
Micro ATX
Dimensions (W x L)
8.9" x 8.0"
Power Pin
1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors
Features
Features
Software Features: ASUS Exclusive Software Armoury Crate AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert - EZ update ASUS CPU-Z AI Charger DAEMON Tools Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
ASUS Special Features: ASUS 5X PROTECTION III - ASUS DIGI+ VRM - ASUS LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot Core - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-Slot ASUS Thermal Solution - Aluminum heatsink design
BIOS: 128MB Flash ROM, UEFI AMI BIOS
Manageability: WOL by PME, PXE
Operating System: Windows 10 64-bit
Packaging
Package Contents

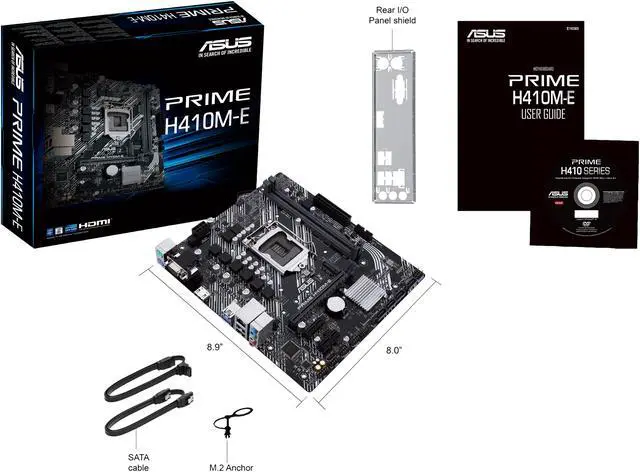

Accessories: I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Anchor 1 x Supporting DVD User manual
Additional Information
Date First Available
May 18, 2023
