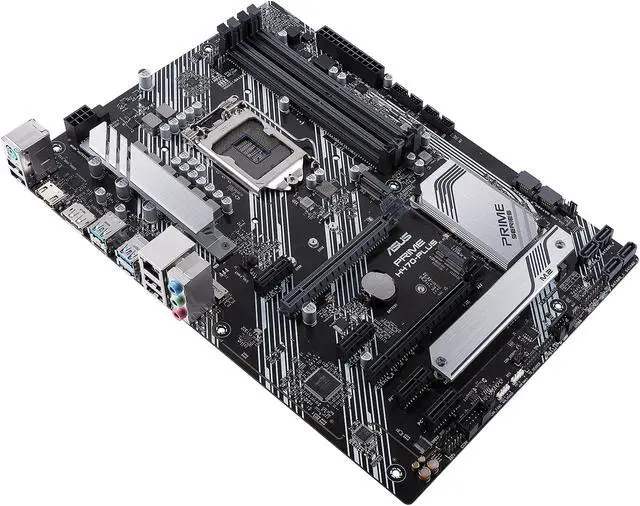

ASUS PRIME H470-PLUS/CSM LGA 1200 Intel H470 ATX Intel Motherboard

Name: ASUS PRIME H470-PLUS/CSM LGA 1200 ATX Intel Motherboard
Brand: ASUS
SKU: N82E16813119303
Rating: 4 (7 reviews)

(7) Write a Review

Intel H470
Intel Socket LGA1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors
DDR4 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered memory

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (7)

See all Q & A

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's 30-Day Return Policy.
Read full return policy for details.

CPU Socket Type	LGA 1200
CPU Type	Intel Socket LGA1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors* * Refer to www.asus.com for CPU support list.
Supported CPU Technologies	Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered memory* * For 10th Gen Intel processors, only Core i9/i7 CPUs support 2933/ 2800/ 2666/ 2400/ 2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported	128GB
Channel Supported	Dual Channel

PCI Express 3.0 x16	Intel 10th Gen Processors 1 x PCIe 3.0 x16 slot (supports x16 mode) Intel H470 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode)
PCI Express x1	4 x PCIe 3.0 x1 slots
Other Slots	M.2 slot (Key E) (Wi-Fi module is sold separately)

Serial ATA (SATA)	6 x SATA 6Gb/s
M.2	M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports SATA & PCIe 3.0 x2 mode)* * When a device in SATA mode is installed on the M.2_2 socket, SATA6G_2 port cannot be used.
Intel Optane Ready	Yes
SATA RAID	0/1/5/10

Audio Chipset	Realtek ALC887
Audio Channels	7.1 Channels * A chassis with an HD audio module in the front panel is required to support 7.1-channel audio output.

ASUS PRIME H470-PLUS/CSM LGA 1200 Intel H470 ATX Intel Motherboard

Learn more about the ASUS PRIME H470-PLUS/CSM

Customer Reviews of the ASUS PRIME H470-PLUS/CSM

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Onboard USB	2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 3 USB 2.0 ports
Other Connectors	Fan and cooling related 1 x 4-pin CPU Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Miscellaneous 1 x AURA Addressable Gen 2 header 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3pin System Panel header with Chassis intrude function 1 x Thunderbolt header

Form Factor	ATX
LED Lighting	RGB
Power Pin	1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector

Onboard LAN
LAN Chipset	Realtek RTL8111H
Max LAN Speed	1Gbps
