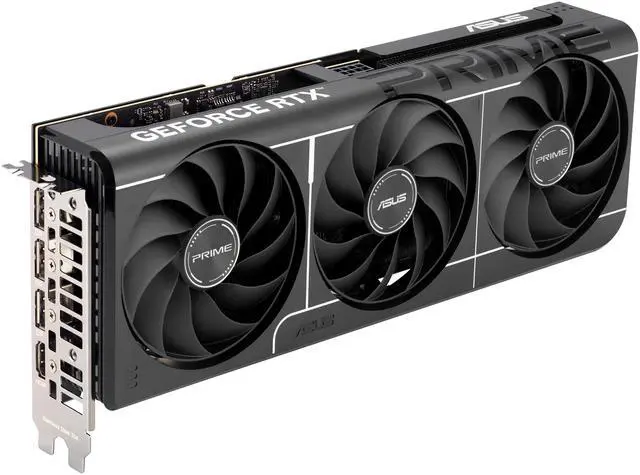

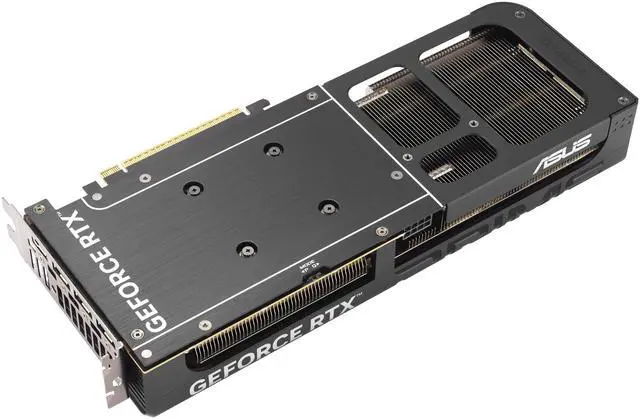

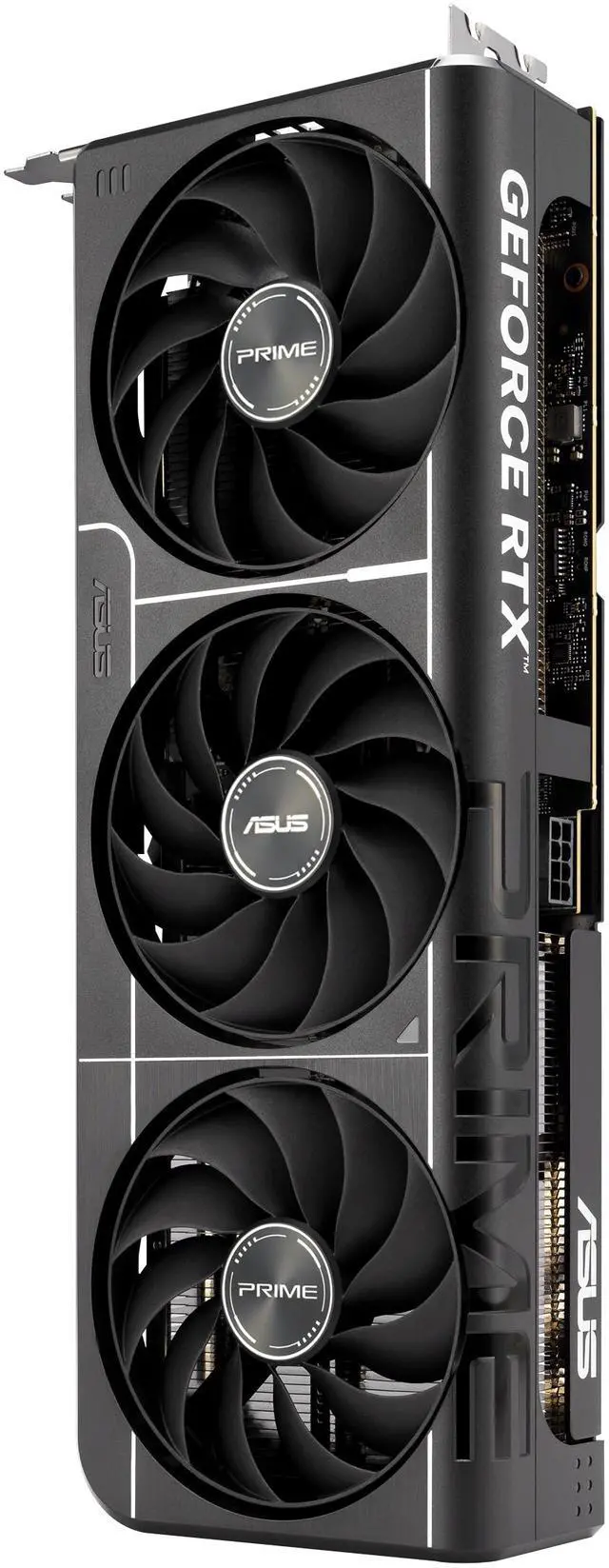

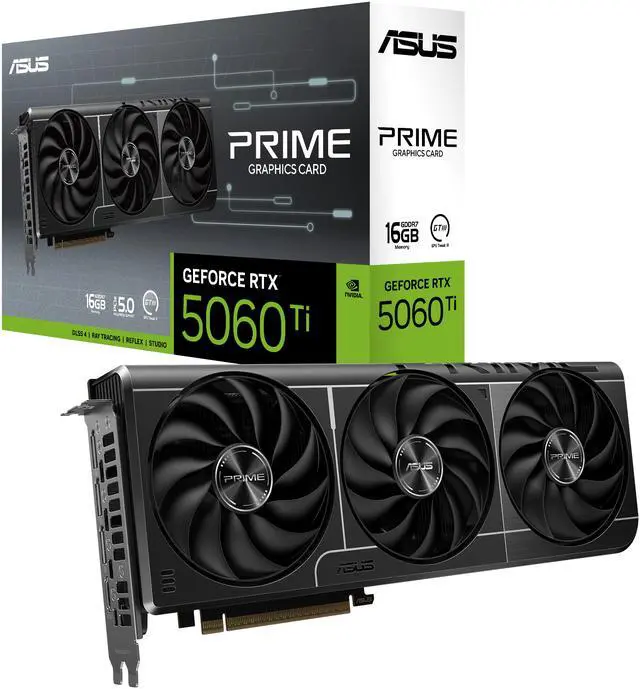

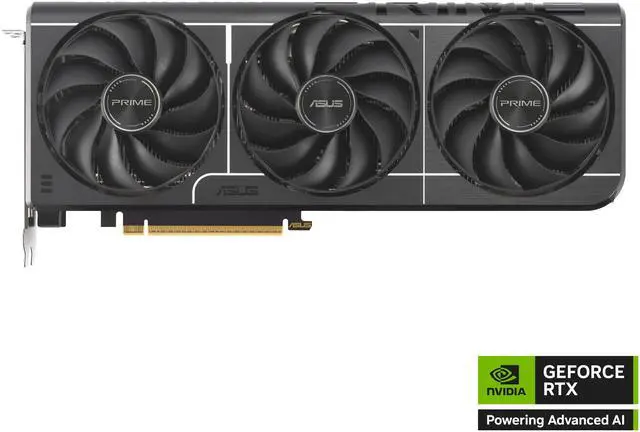

Learn more about the ASUS PRIME-RTX5060TI-16G
Model| Brand | ASUS |
|---|
| Series | PRIME |
|---|
| Model | PRIME-RTX5060TI-16G |
|---|
| Part Number | 90YV0MH3-M0AA00 |
|---|
Interface| Interface | PCI Express 5.0 x8 |
|---|
Chipset| Chipset Manufacturer | NVIDIA |
|---|
| GPU Series | NVIDIA GeForce RTX 50 Series |
|---|
| GPU | GeForce RTX 5060 Ti |
|---|
| Architecture | Blackwell |
|---|
| CUDA Cores | 4608 Cores |
|---|
Memory| Effective Memory Clock | 28 Gbps |
|---|
| Memory Size | 16GB |
|---|
| Memory Interface | 128-Bit |
|---|
| Memory Type | GDDR7 |
|---|
3D API| DirectX | DirectX 12 Ultimate |
|---|
| OpenGL | OpenGL 4.6 |
|---|

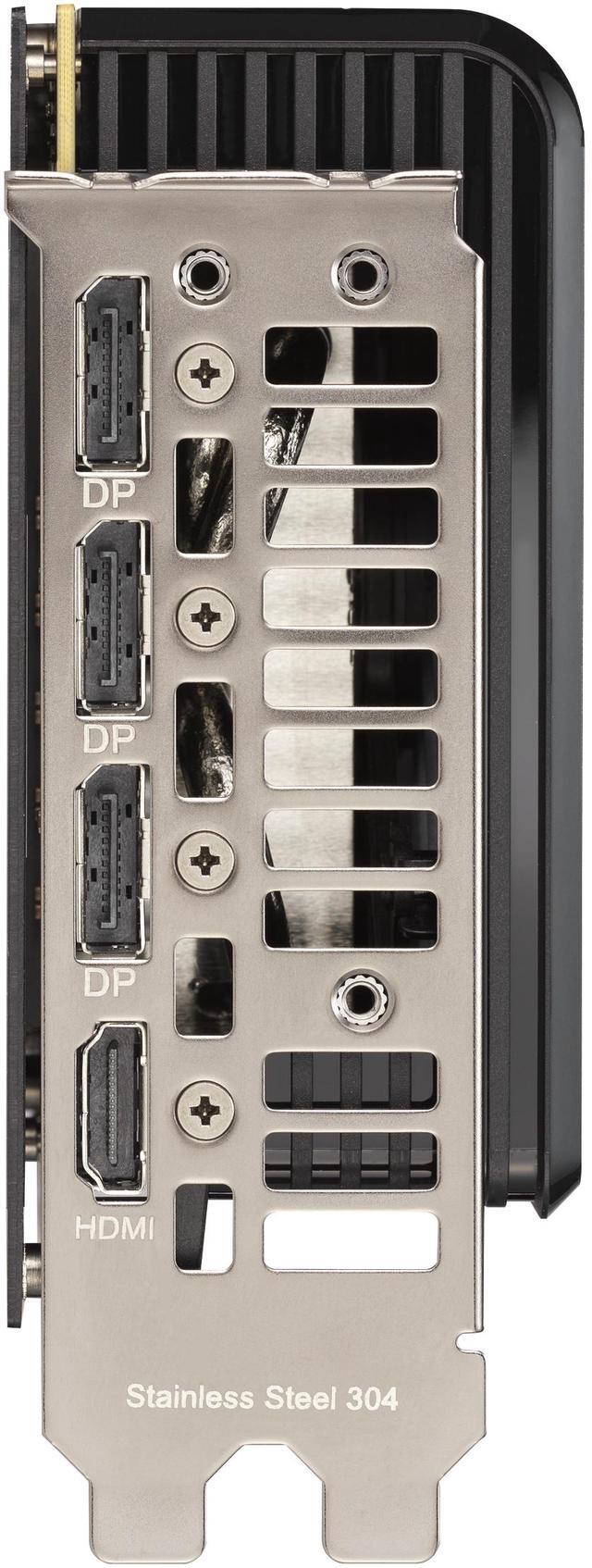

Ports| Multi-Monitor Support | 4 |
|---|
| HDMI | 1 x HDMI 2.1b |
|---|
| DisplayPort | 3 x DisplayPort 2.1b |
|---|
Details| Color | Black |
|---|
| Max Resolution | 7680 x 4320 |
|---|
| CrossFireX Support | No |
|---|
| SLI Support | No |
|---|
| Virtual Reality Ready | Yes |
|---|

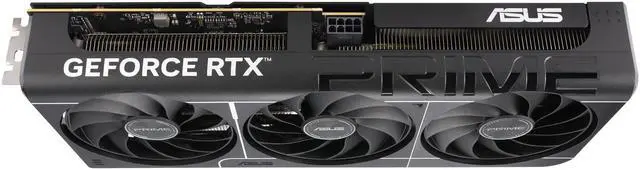

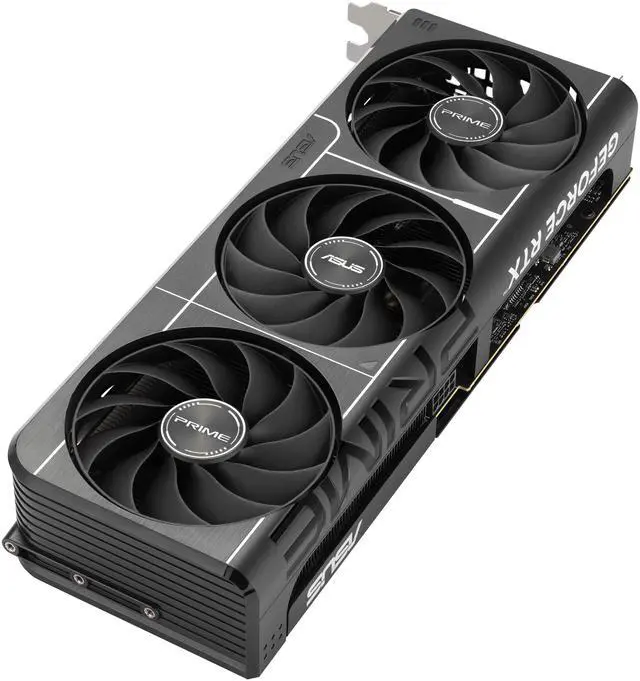

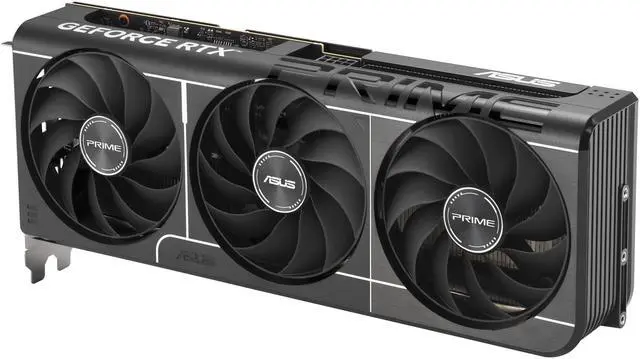

| Cooler | Triple Fans |
|---|
| Recommended PSU Wattage | 550W |
|---|
| Power Connector | 8-Pin |
|---|
Features| Features | • AI Performance: 758 AI TOPS • Powered by the NVIDIA Blackwell architecture and DLSS 4 • SFF-Ready Enthusiast GeForce Card • Axial-tech fans feature a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure • 2.5-slot design allows for greater build compatibility while maintaining cooling performance • Dual-ball fan bearings last up to twice as long as standard sleeve bearings • 0dB technology lets you enjoy light gaming in relative silence • Dual BIOS switch lets you toggle between Quiet and Performance BIOS profiles • Auto-Extreme manufacturing process for precision and reliability • GPU Tweak III software provides intuitive performance tweaking, advanced thermal control, and system monitoring |
|---|
Form Factor & Dimensions| Form Factor | ATX |
|---|
| Max GPU Length | 304 mm |
|---|
| Card Dimensions (L x H) | 304 x 120 x 50 mm 11.96 x 4.72 x 1.97 inch |
|---|
| Slot Width | 2.5 Slots |
|---|
Additional Information| First Listed on Newegg | April 15, 2025 |
|---|
