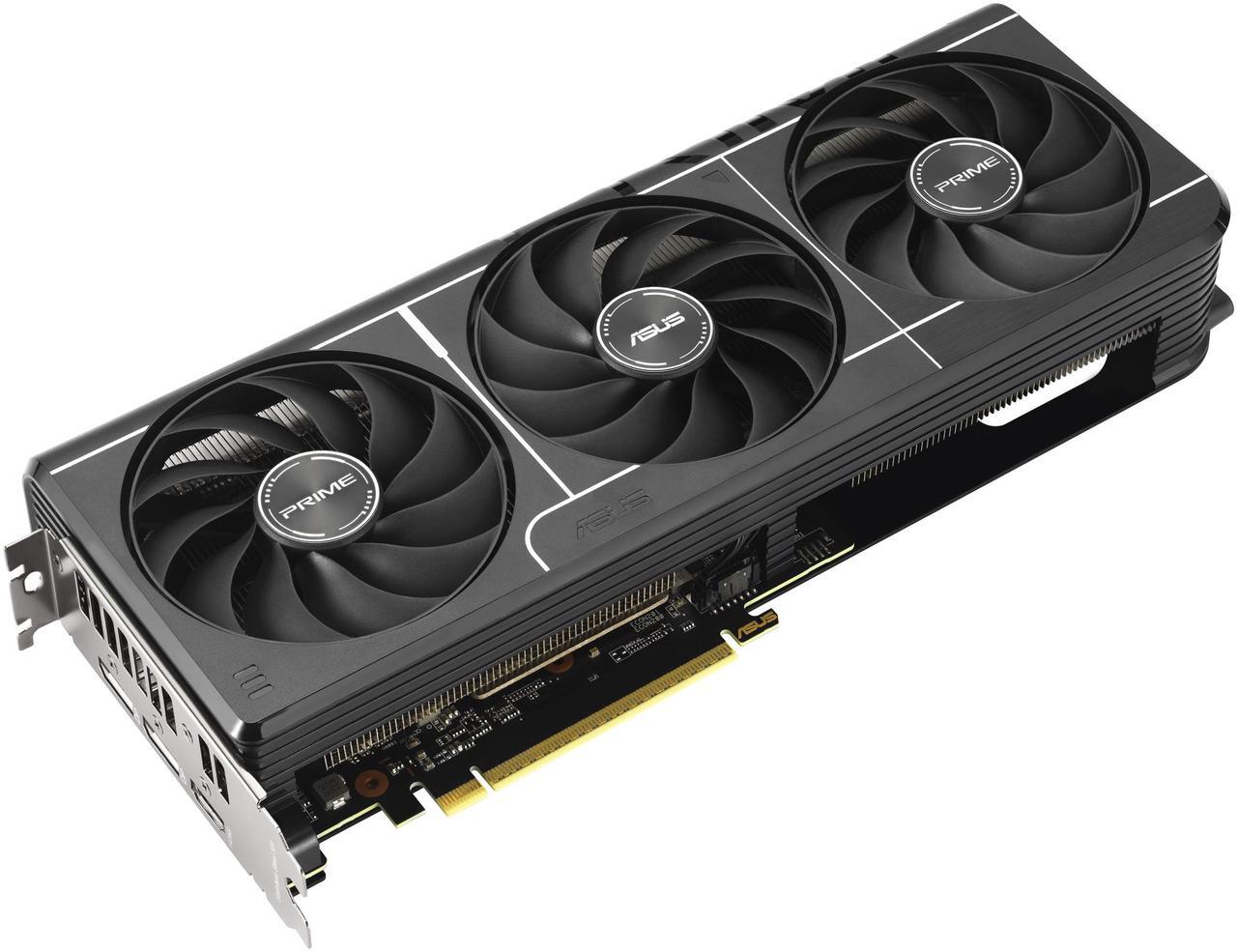

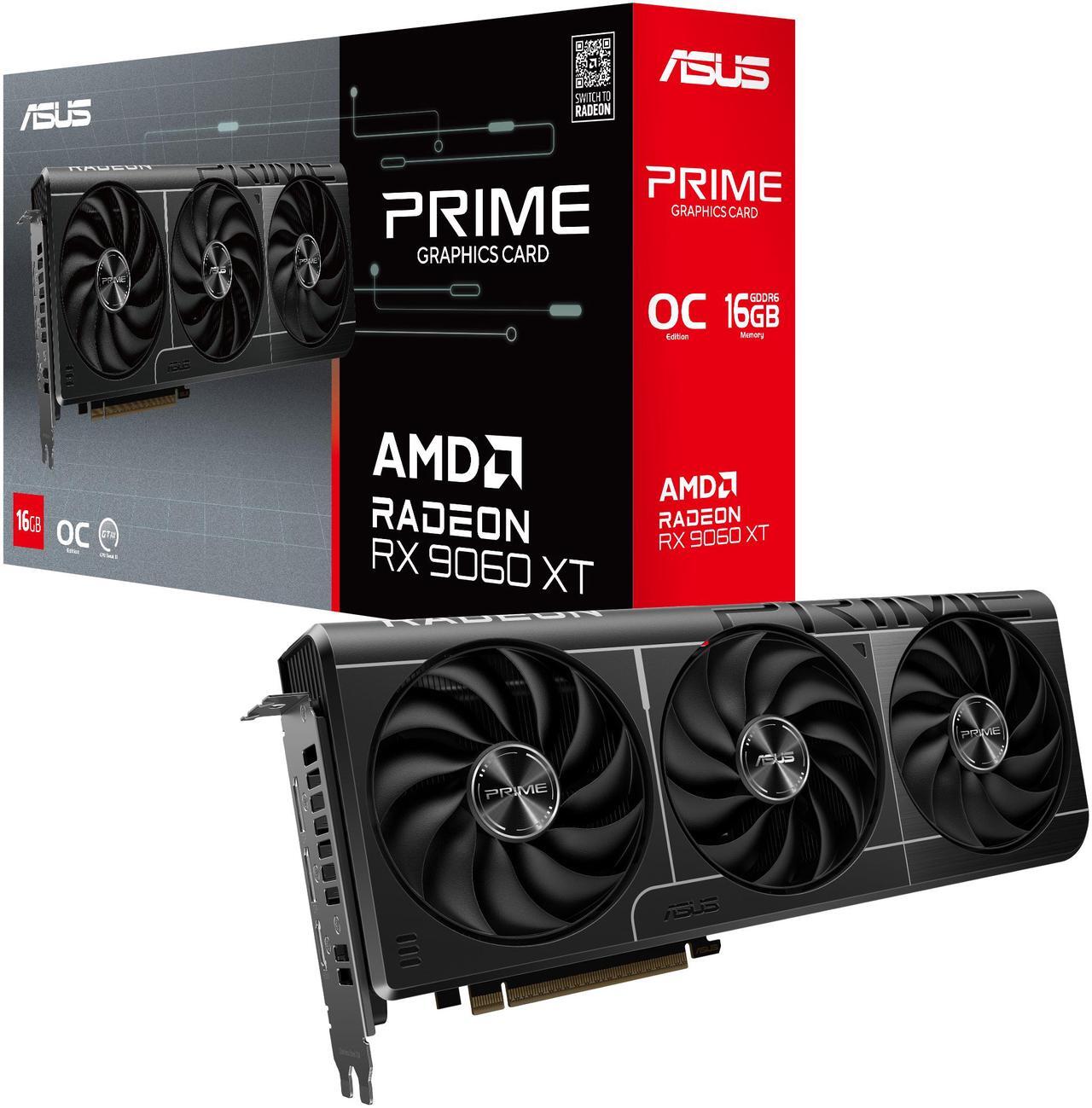

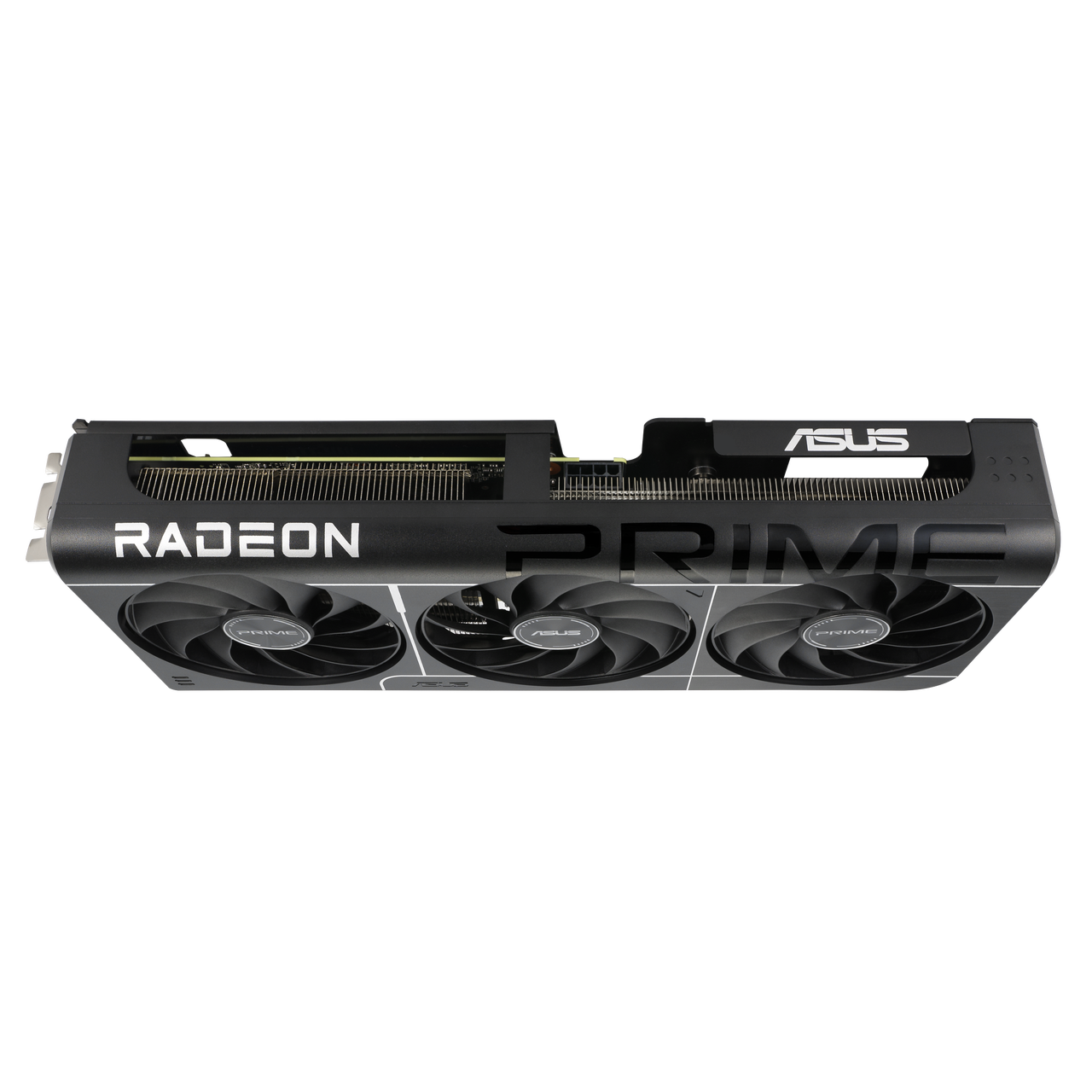

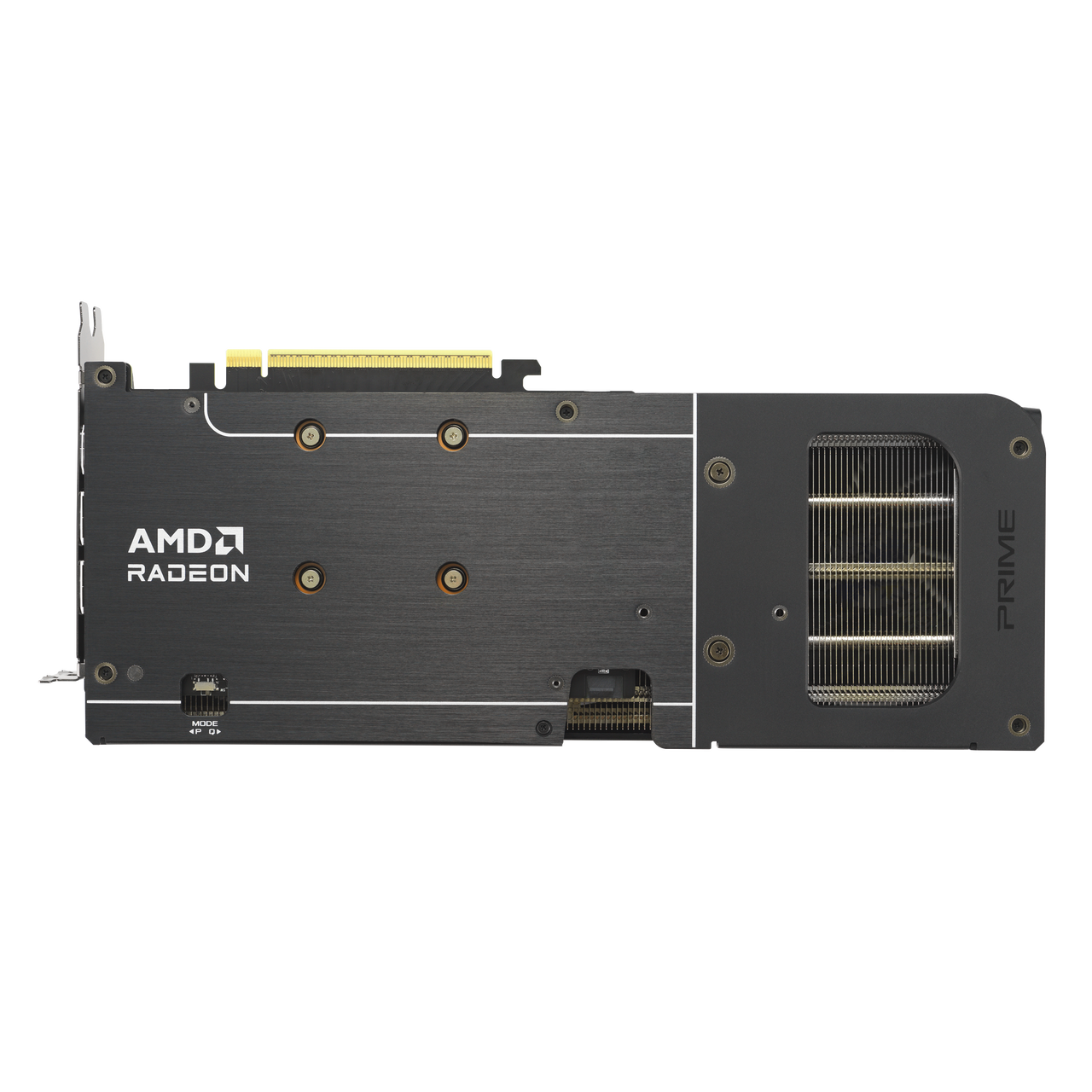

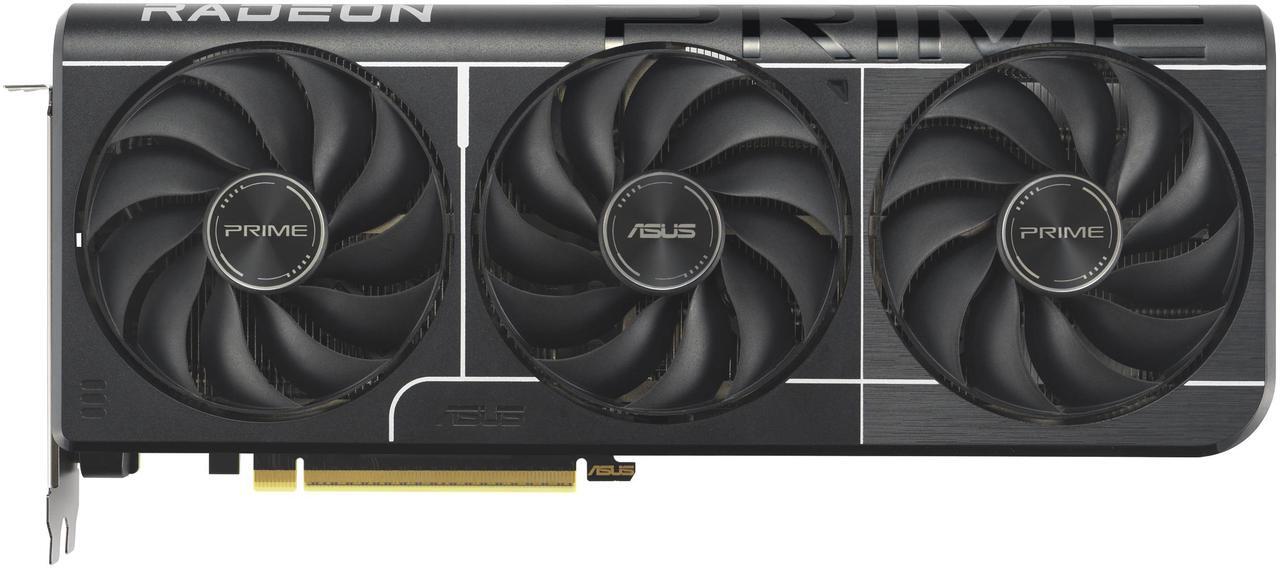

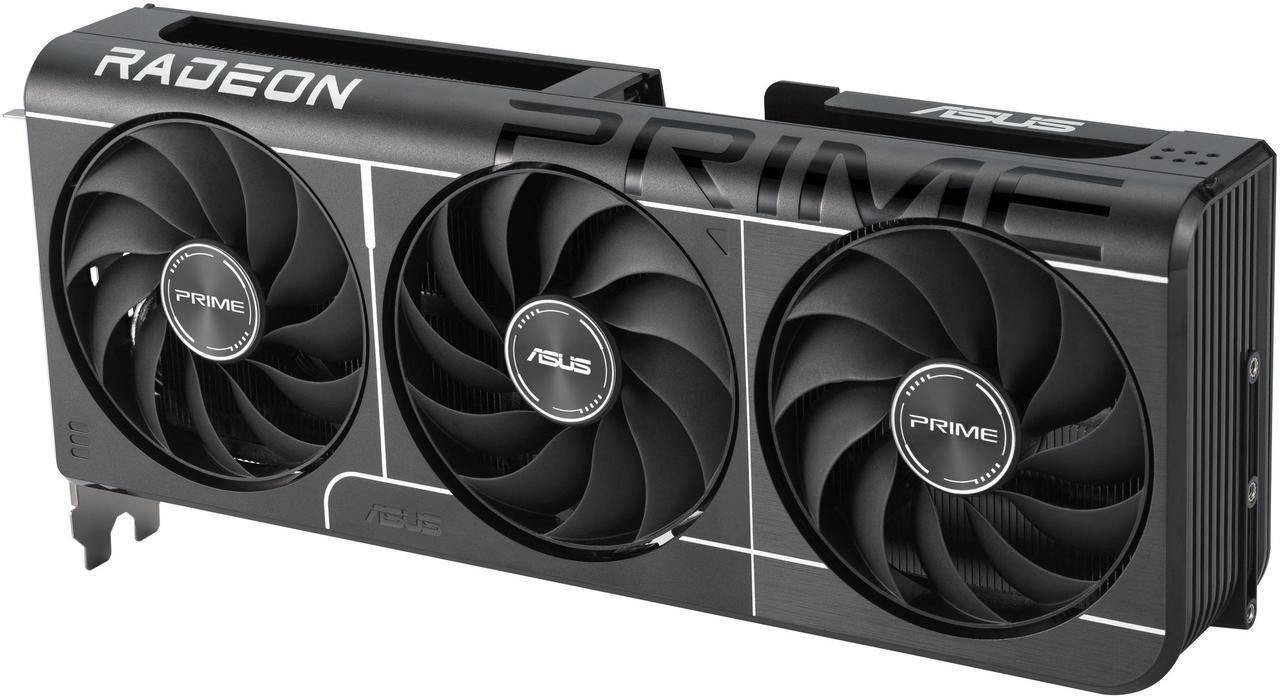

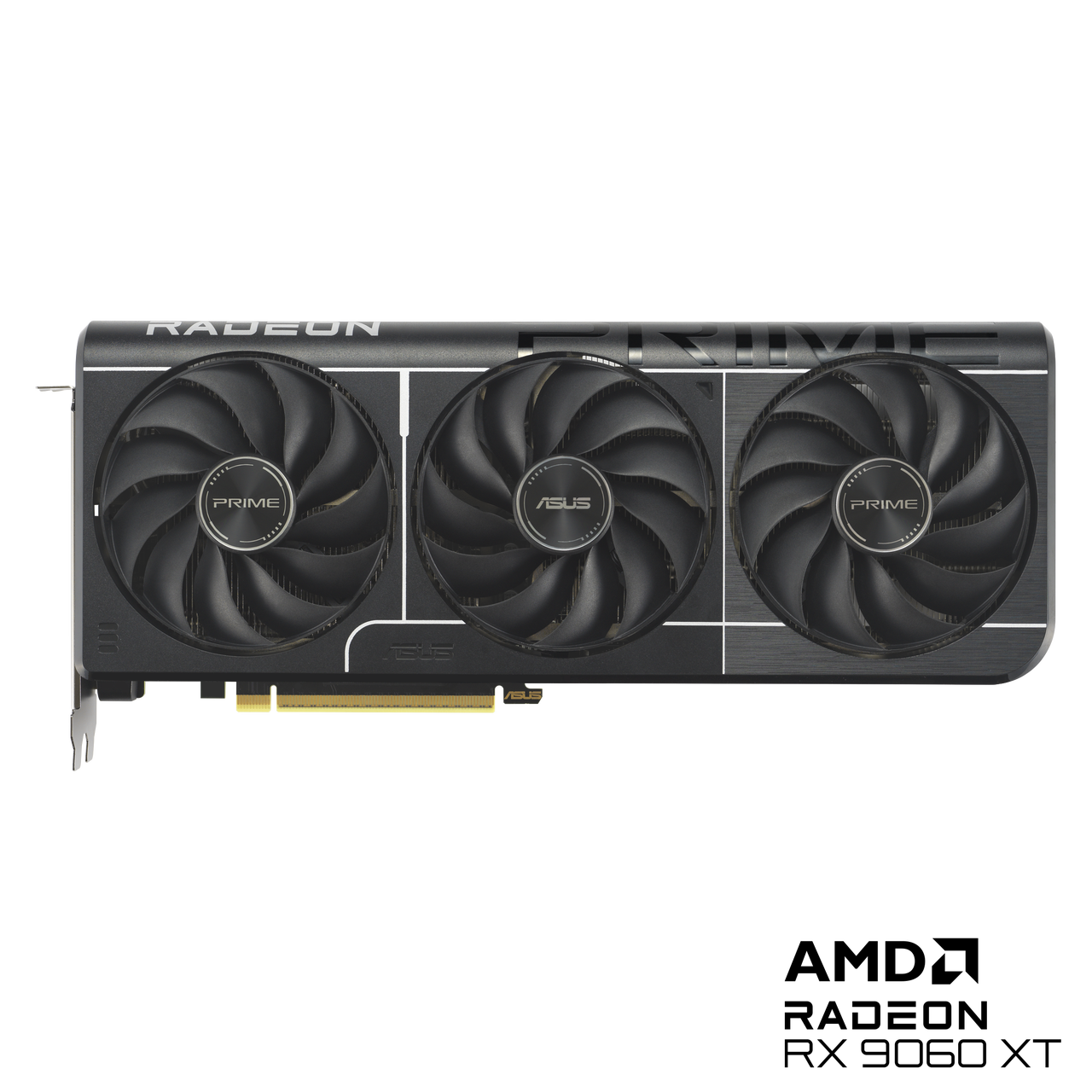

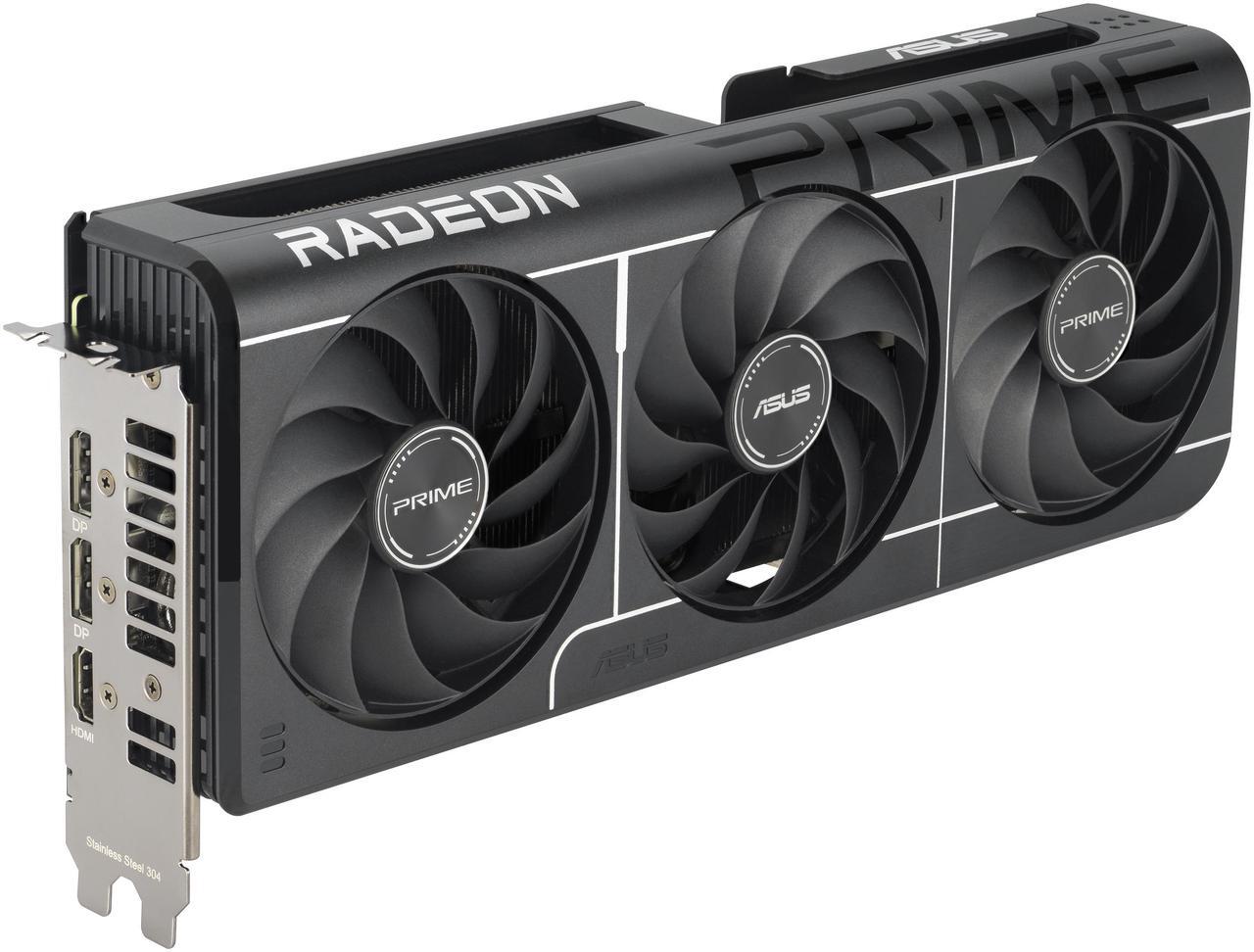

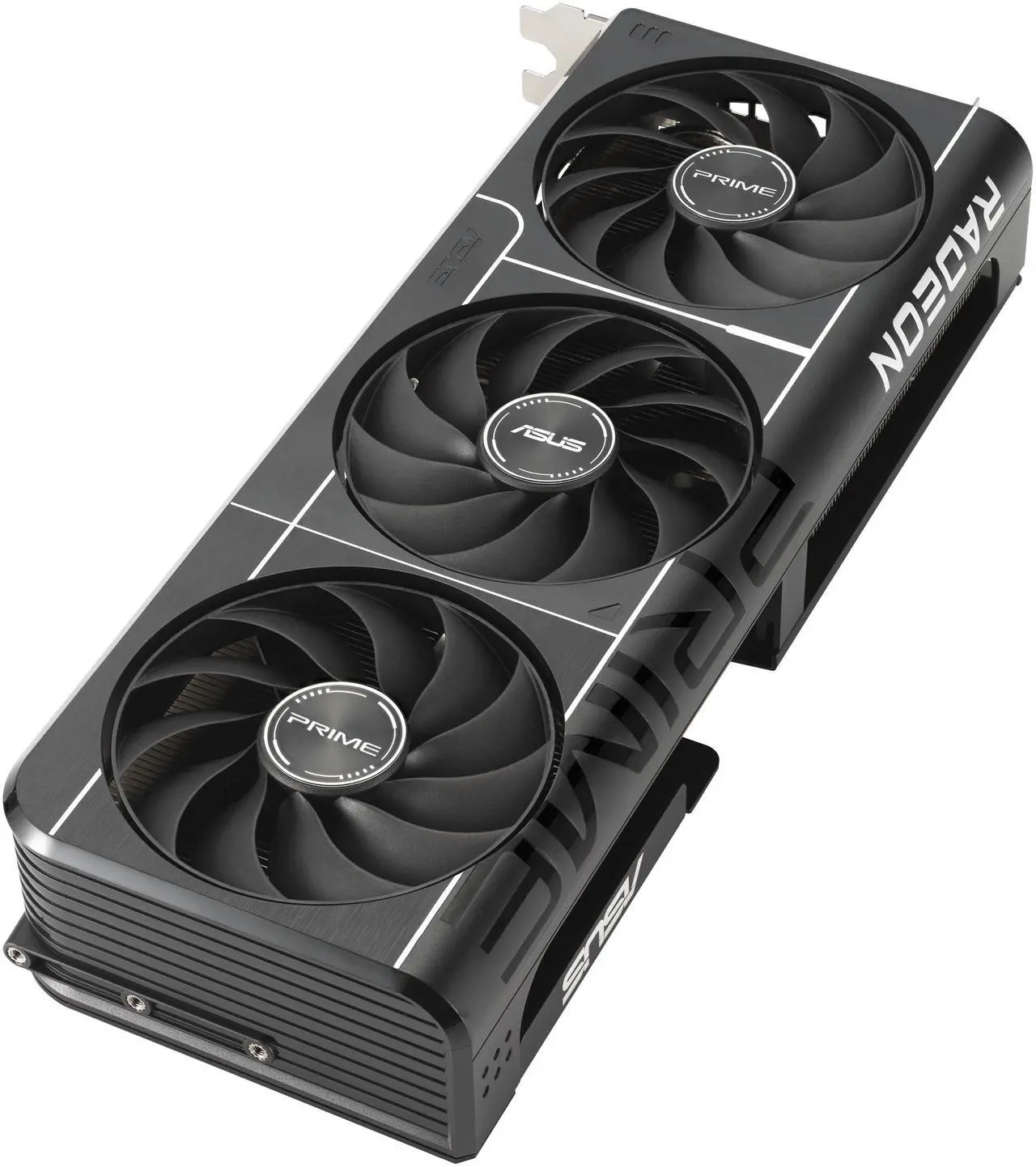

Learn more about the ASUS PRIME-RX9060XT-O16G
ModelBrand | ASUS |
---|
Series | PRIME |
---|
Model | PRIME-RX9060XT-O16G |
---|
Part Number | 90YV0LF1-M0AA00 |
---|
InterfaceInterface | PCI Express 5.0 x16 |
---|
ChipsetChipset Manufacturer | AMD |
---|
GPU Series | AMD Radeon RX 9000 Series |
---|
GPU | Radeon RX 9060 XT |
---|
Architecture | RDNA 4 |
---|
Stream Processors | 2048 Stream Processors |
---|
MemoryEffective Memory Clock | 20 Gbps |
---|
Memory Size | 16GB |
---|
Memory Interface | 128-Bit |
---|
Memory Type | GDDR6 |
---|
3D APIDirectX | DirectX 12 Ultimate |
---|
OpenGL | OpenGL 4.6 |
---|
PortsMulti-Monitor Support | 3 |
---|

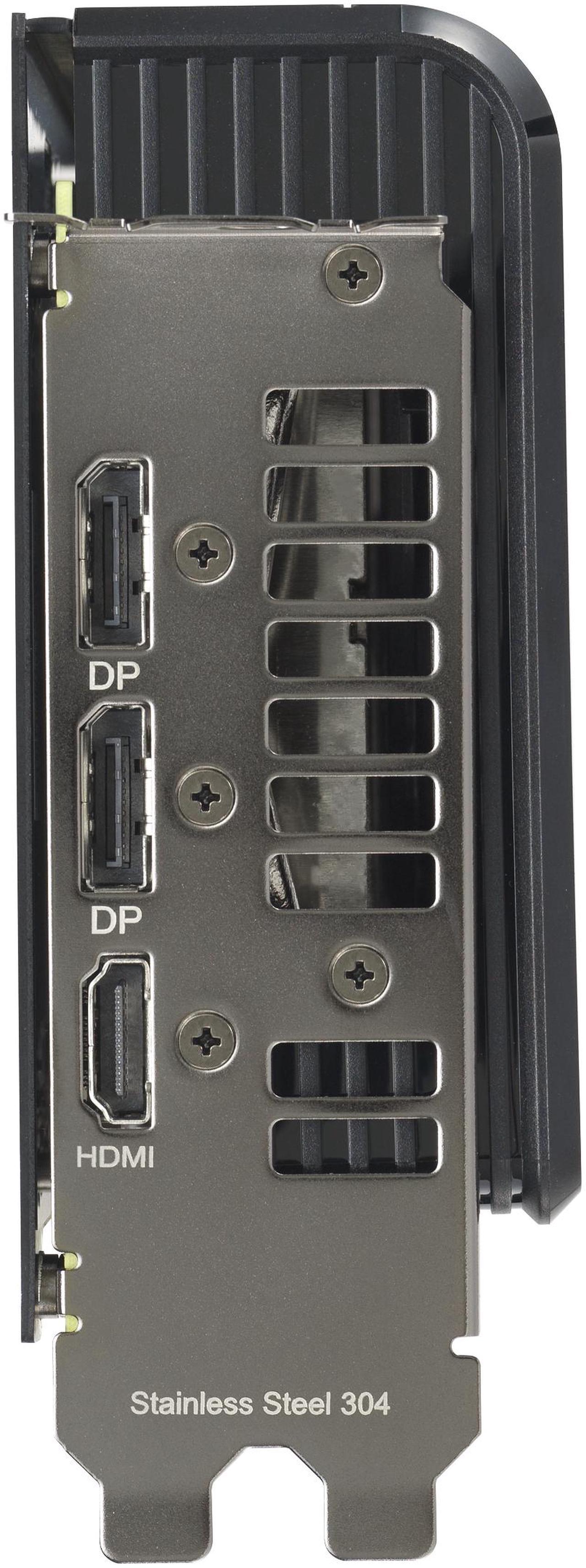

HDMI | 1 x HDMI 2.1b |
---|
DisplayPort | 2 x DisplayPort 2.1a |
---|
DetailsMax Resolution | 7680 x 4320 |
---|
CrossFireX Support | No |
---|
SLI Support | No |
---|
Virtual Reality Ready | Yes |
---|

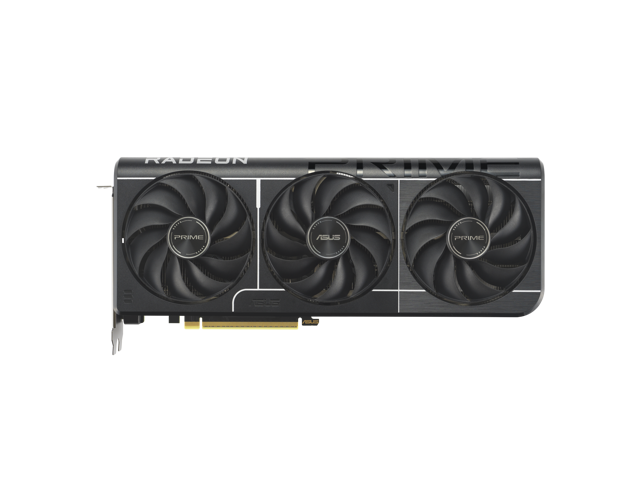

Cooler | Triple Fans |
---|
Recommended PSU Wattage | 550W |
---|
Power Connector | 8-Pin |
---|
HDCP Ready | Yes |
---|
Form Factor & DimensionsForm Factor | ATX |
---|
Max GPU Length | 304 mm |
---|
Card Dimensions (L x H) | 304 x 126 x 50mm |
---|
Slot Width | 2.5 Slots |
---|
PackagingPackage Contents | 1 x Thank you card 1 x Speedsetup Manual |
---|
Additional InformationDate First Available | June 05, 2025 |
---|
