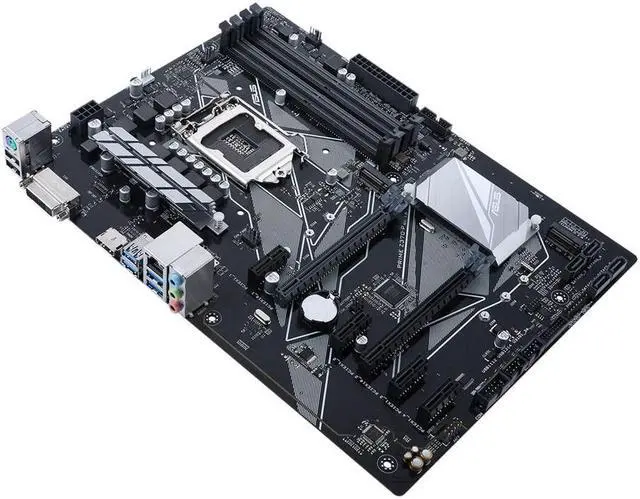

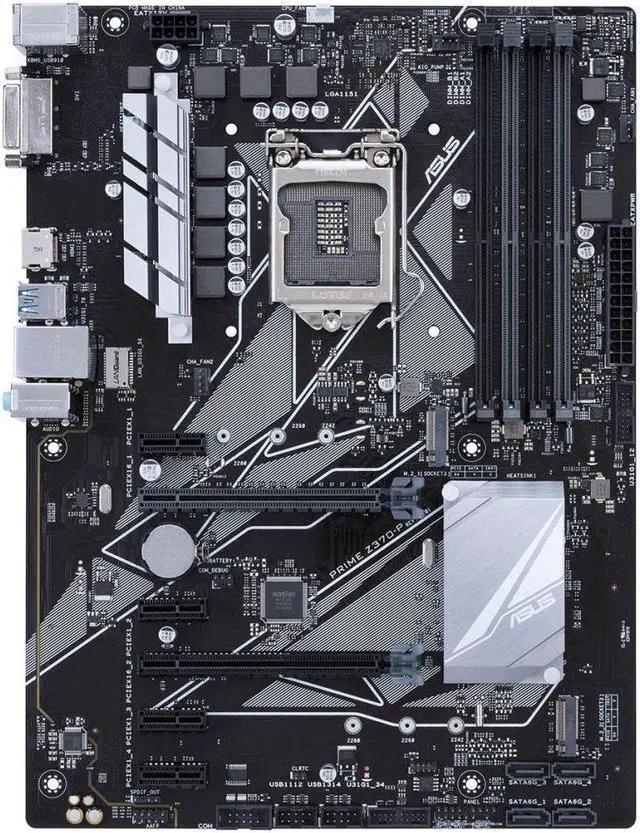

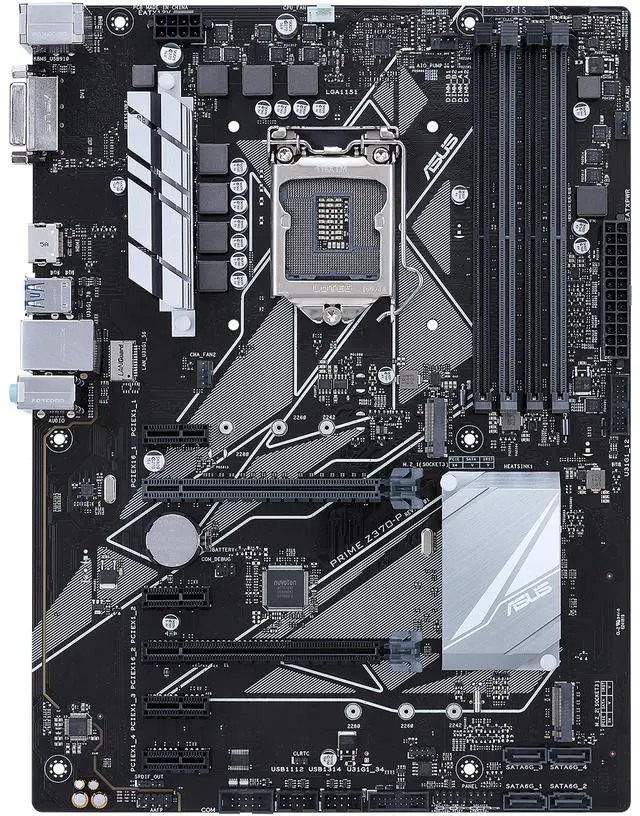

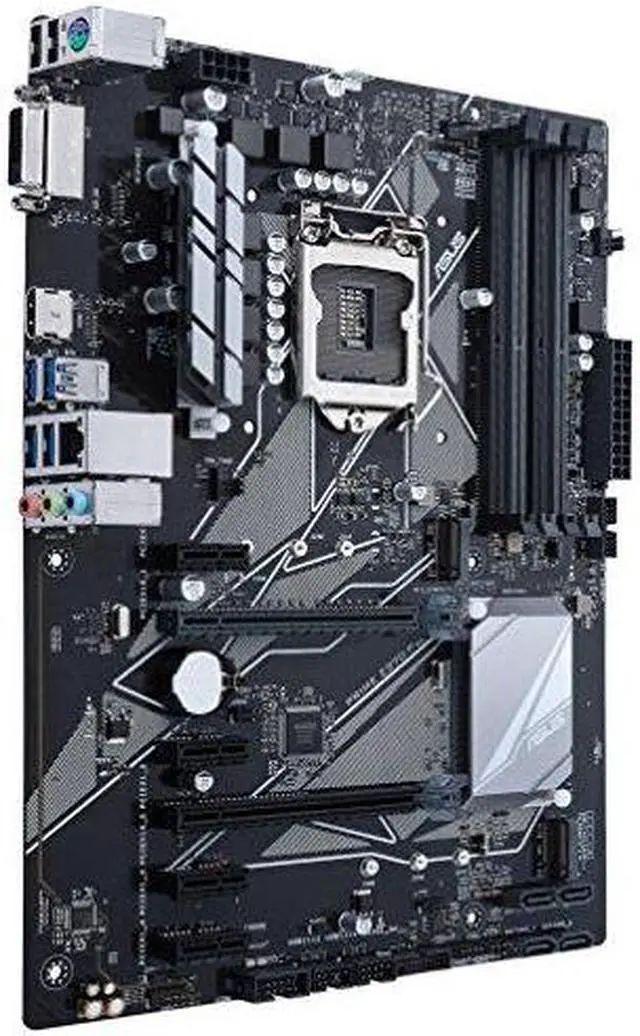

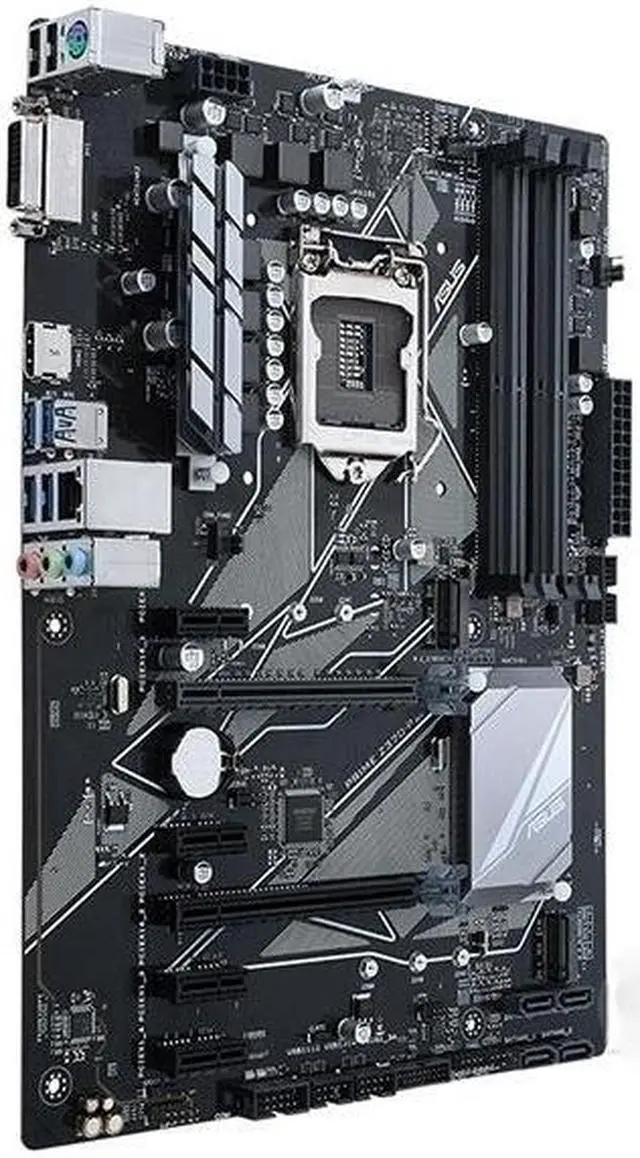

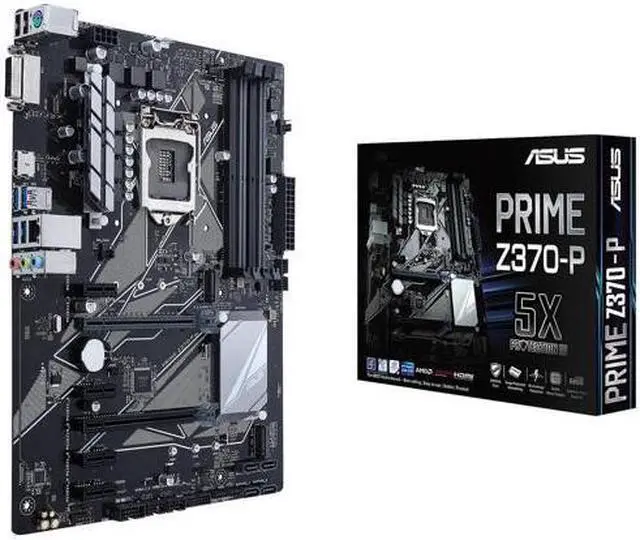

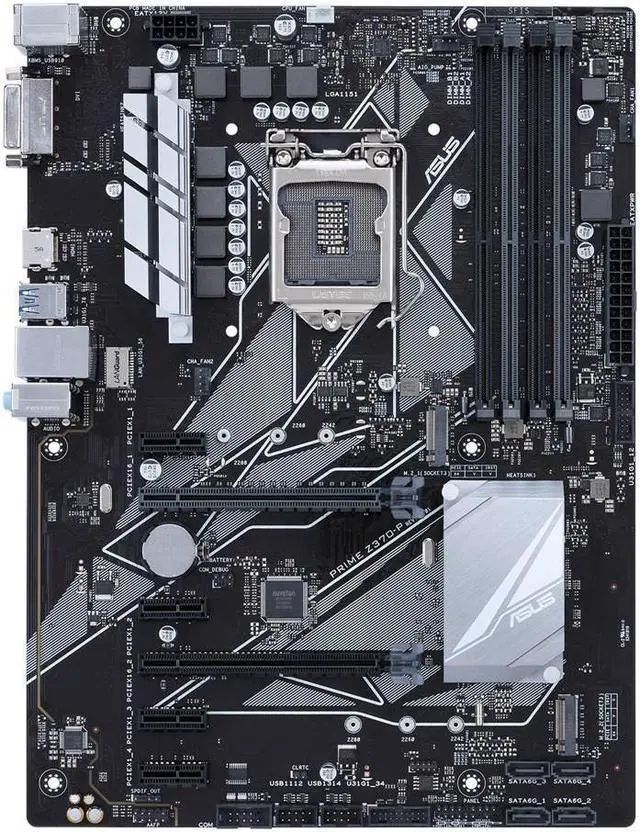

ASUS PRIME Z370-P LGA1151 DDR4 HDMI DVI M. 2 Z370 ATX Motherboard with USB 3.1 for 8th Generation Intel Core Processors
Learn more about the ASUS Prime Z370-P
Model
Brand
ASUS
Model
Prime Z370-P
Supported CPU
CPU Socket Type
LGA 1151 (300 Series)
CPU Type
Core i7 / i5 / i3 (8th Gen, LGA1151)
Supported CPU Technologies
Turbo Boost Technology 2.0
Chipsets
Chipset
Intel Z370
Onboard Video
Onboard Video Chipset
Supported only by CPU with integrated graphic
Memory
Number of Memory Slots
4x288pin (DDR4)
Memory Standard
DDR4 2666
Maximum Memory Supported
64GB
Channel Supported
Dual Channel
Expansion Slots
PCI Express 3.0 x16
2 x PCI Express 3.0 x16
PCI Express x1
4 x PCI Express x1
Storage Devices
Serial ATA (SATA)
4 x SATA 6Gb/s
M.2
2 x M.2
SATA RAID
0/1/5/10
Onboard Audio
Audio Chipset
Realtek ALC887
Audio Channels
8 Channels
Onboard LAN
LAN Chipset
Realtek 8111H
Max LAN Speed
1Gbps
Rear Panel Ports

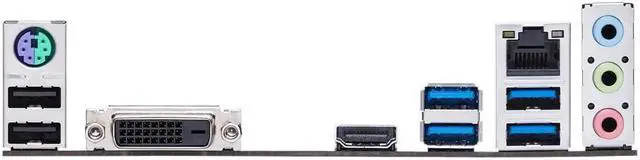

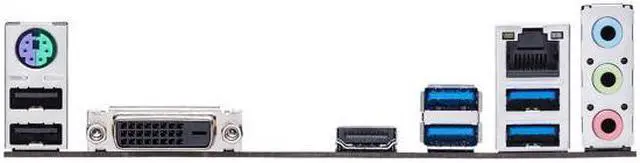

Back I/O Ports
1 x HDMI / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 2.0/1.1 / 4 x USB 3.1 Gen 2 Type-A
PS/2
1 x PS/2 keyboard/mouse port
Video Ports
DVI
HDMI
1 x HDMI
RJ45
1 x RJ45
USB 3.1
4 x USB 3.1
USB 1.1/2.0
2 x USB 2.0
Audio Ports
3 Ports
Internal I/O Connectors
Onboard USB
4 x USB 3.1 + 4 x USB 2.0
Other Connectors
1 x 4-pin CPU Fan connector for both 3-pin (DC mode) and 4-pin (PWM mode) CPU coolers control*2 x 4-pin Chassis Fan connectors for 3-pin (DC mode) and 4-pin (PWM mode) coolers control*1 x AIO PUMP connector1 x Front panel audio connector (AAFP)1 x System panel connector1 x S/PDIF out header1 x COM Header1 x Clear CMOS jumper* By default, the CPU/Chassis Q-Fan control setting is set to Auto mode, which detects the CPU and chassis fans installed and changes the control mode automatically.
Physical Spec
Form Factor
ATX
Dimensions (W x L)
12.0" x 8.9"
Power Pin
24 Pin
Features
Features
Multi-GPU Support:Supports AMD CrossFireX TechnologyASUS Special Features:ASUS 5X PROTECTION III- ASUS SafeSlot Core: Fortified PCIe with solid soldering- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!- ASUS Overvoltage Protection: World-class circuit-protecting power design- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!- ASUS DIGI+ VRM: 7 Phase digital power designSuperb PerformanceM.2 onboard- The latest transfer technologies with up to 32Gb/s data transfer speedsASUS Fan Xpert 4 Core- Advanced fan and liquid controls for ultimate cooling and quietnessASUS EPU- EPUUEFI BIOS- Most advanced options with fast response timeGaming ScenarioAudio Features - Audio that roars on the battlefieldASUS Exclusive Features- ASUS Ai Charger- ASUS AI Suite 3EZ DIYUEFI BIOS EZ Mode- featuring friendly graphics user interface- ASUS O.C. Tuner- ASUS CrashFree BIOS 3- ASUS EZ Flash 3Q-Design- ASUS Q-DIMM- ASUS Q-SlotASUS Quiet Thermal Solution:Quiet Thermal Design:- ASUS ASUS Fan Xpert 4 Core- Stylish Fanless Design: PCH Heat-sink & MOS Heat-sinkASUS Exclusive Overclocking Features:Precision Tweaker 2:- vCore: Adjustable CPU Core voltage at 0.005V increment- iGPU: Adjustable CPU Graphics voltage at 0.005V increment- vCCIO: Adjustable Analog and Digital I/O voltage at 0.005V increment- vCCSA: Adjustable CPU System Agent voltage at 0.1V increment- vDRAM Bus: 160-step Memory voltage control- vPCH: 3-step Chipset voltage controlSFS (Stepless Frequency Selection)- BCLK/PCIE frequency tuning from 98MHz up to 538MHz at 0.1MHz incrementOverclocking Protection:- ASUS C.P.R. (CPU Parameter Recall)Operating System Support:Windows 10 (64-bit)
Packaging
Package Contents

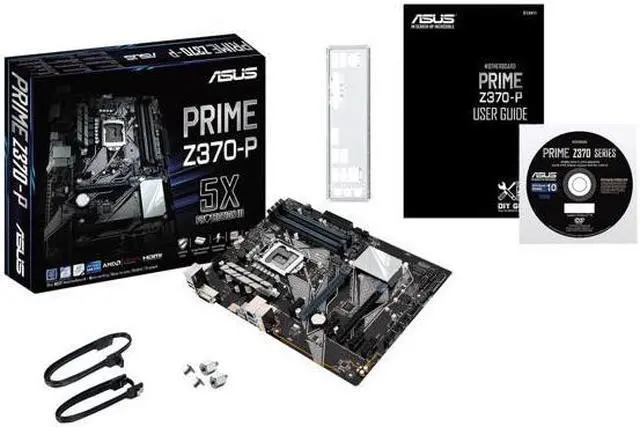

Accessories:2 x SATA 6Gb/s cables1 x IO Shield1 x M.2 Screw Package1 x Support DVD1 x User's manual
