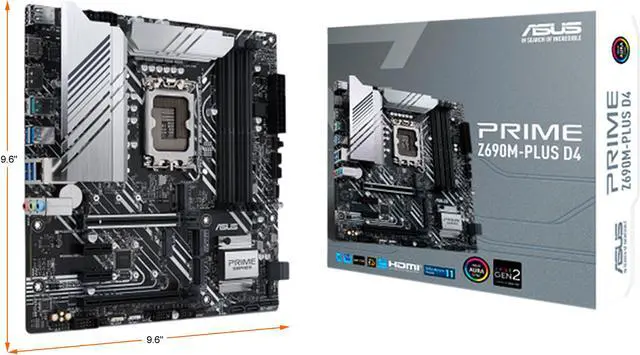

Main image of ASUS PRIME Z690M-PLUS D4 LGA 1700 Intel Z690 SATA 6Gb/s Micro ATX Intel Motherboard

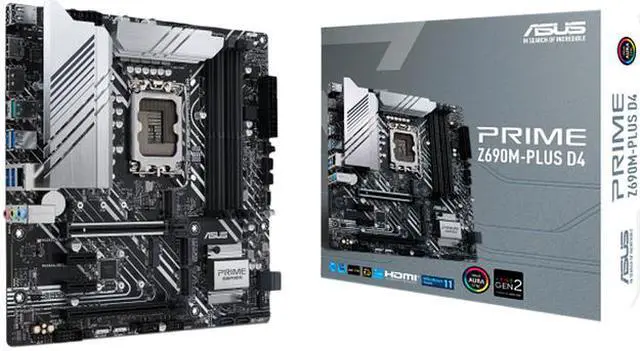

Alt view image 2 of 2 - ASUS PRIME Z690M-PLUS D4 LGA 1700 Intel Z690 SATA 6Gb/s Micro ATX Intel Motherboard

Shop All ASUS Products | Visit Roboshine Store

ASUS PRIME Z690M-PLUS D4 LGA 1700 Intel Z690 SATA 6Gb/s Micro ATX Intel Motherboard

Intel Z690
Supports 12th Gen Intel Core / Pentium Gold / Celeron Processors
DDR4 5333(OC) / 5133(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
Read full details
CONTACT

Return Policies

Return for refund within: 30 days
Return for replacement within: 30 days
This item is covered by roboshine Return Policy

Manufacturer Contact Info

For a directory of all our manufacturers, please click below.
Manufacturers Directory

CPU Socket Type	LGA 1700 * Designed with dual mounting holes compatible with both Intel LGA1700 and LGA1200 cooling brackets.
CPU Type	Supports 13th / 12th Gen Intel Core, Pentium Gold, Celeron Processors* * Refer to www.asus.com for CPU support list.
Supported CPU Technologies	Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0* * Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 5333(OC) / 5133(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 *Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported	128GB
Channel Supported	Dual Channel

PCI Express 5.0 x16	1 x PCI Express 5.0 x16 * Actual support may vary by CPU.
PCI Express 4.0 x16	1 x PCI Express 4.0 x16 * Supports x4 mode.
PCI Express x1	2 x PCIe 3.0 x1

Serial ATA (SATA)	4 x SATA 6Gb/s
M.2	Intel 12th Gen Processors: M.2_1 slot (Key M), type 2242/2260/2280 - Intel 12th Gen processors support PCIe 4.0 x4 mode. Intel Z690 Chipset:* M.2_2 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) * Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.
Intel Optane Ready	Yes
SATA RAID	0/1/5/10

Onboard USB	1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Other Connectors	Fan and cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x M.2 slot (Key E) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt header

Meet Your Seller

ASUS PRIME Z690M-PLUS D4 LGA 1700 Intel Z690 SATA 6Gb/s Micro ATX Intel Motherboard

Learn more about the ASUS PRIME Z690M-PLUS D4

Customer Reviews of the ASUS PRIME Z690M-PLUS D4

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Form Factor	Micro ATX
LED Lighting	RGB
Dimensions (W x L)	9.6" x 9.6"
Power Pin	1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector
