Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Onboard LAN
LAN Chipset
Intel I219LM
Max LAN Speed
1Gbps
Wireless LAN
M.2 slot only (Key E, CNVi & PCIe)* *Wi-Fi module is sold separately.
Rear Panel Ports

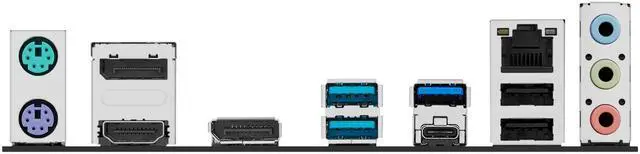

Back I/O Ports
1 x USB 10Gbps port (1 x USB Type-C) 2 x USB 10Gbps ports (2 x Type-A) 1 x USB 5Gbps port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A ) 2 x DisplayPort 1 x HDMI port 1 x PS/2 keyboard (purple) port 1 x PS/2 mouse (green) port 1 x Intel 1Gb Ethernet 3 x Audio jacks
Internal I/O Connectors
Onboard USB
1 x USB 10Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 header supports 4 additional USB 2.0 ports
Other Connectors
Fan and Cooling Related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers
Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrude header 2 x COM Port headers 1 x Front Panel Audio header (AAFP) 1 x COM debug header 1 x DIS ME CPU 1 x DIS ME PCH 1 x LPT header 1 x Mono-Out Audio header (with Amp IC) 1 x M.2 slot (Key E) 1 x Speaker header 1 x 10-1 System Panel header
Software Feature
BIOS Feature
256 Mb Flash ROM
Software
ASUS Exclusive Software IT Management software supported - ASUS Control Center Express(ACCE)
Windows 11
Windows 11 (22H2 & later), Windows 10 64-bit(21H2 & later)
Physical Spec
Form Factor
Micro ATX
Dimensions (W x L)
9.6" x 9.6"
Power Pin
1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector
Features
Features
ASUS EZ DIY - Box Headers Bespoke Motherboard Design & Business Focused Features - Q-LED Core - ASUS Self Recovering BIOS - ASUS Event Log - ASUS MyHotkey - ASUS DriverHub - BIOS EZ Deploy - ASUS Commercial BIOS kit - Anti-Moisture - 24/7 Reliability - Overcurrent Protection TXT support TPM IC onboard
Packaging

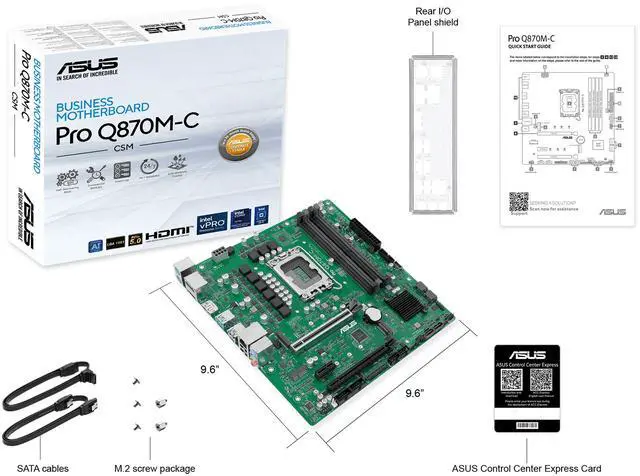

Package Contents
Cables 2 x SATA 6Gb/s cables

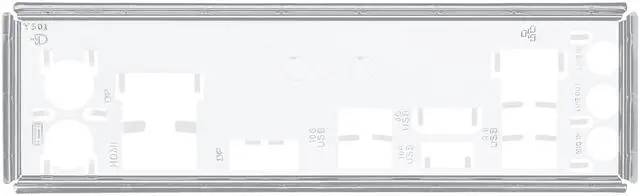

Miscellaneous 1 x Screw package for M.2 SSD 1 x I/O Shield 1 x M.2 Key E screw package
Documentation 1 x ACC Express Activation Key Card 1 x Quick start guide
Additional Information
Date First Available
July 24, 2025
