What are the connectivity options available on the ASUS Pro WS W890-SAGE motherboard?

The motherboard features ultrafast connectivity options including 7 PCIe 5.0 x16 slots, Realtek 10Gb LAN, Intel 2.5Gb LAN, 4 M.2 slots, 2 SlimSAS connectors, USB4, and USB 20Gbps Type-C.

What type of CPU socket does the ASUS Pro WS W890-SAGE motherboard support?

The ASUS Pro WS W890-SAGE motherboard supports the Intel LGA 4710-2 socket for Intel Xeon 600 Processors.

$944^.99

Free 91-day Returns

Limit 99999 per customer.

Sold by Newegg

Shipped by Newegg

Price alert

Add to Wish List

Best Sellers

TheKeyKey.

Top Rated

4.6 (582 total ratings)

$1,050^.49
+ FREE SHIPPING

Deal Targets

Hot Seller

3.2 (2,130 total ratings)

$1,115^.84
+ $14.99 Shipping

PC Power Tech

Top Rated

4.3 (676 total ratings)

$1,581^.00
+ FREE SHIPPING

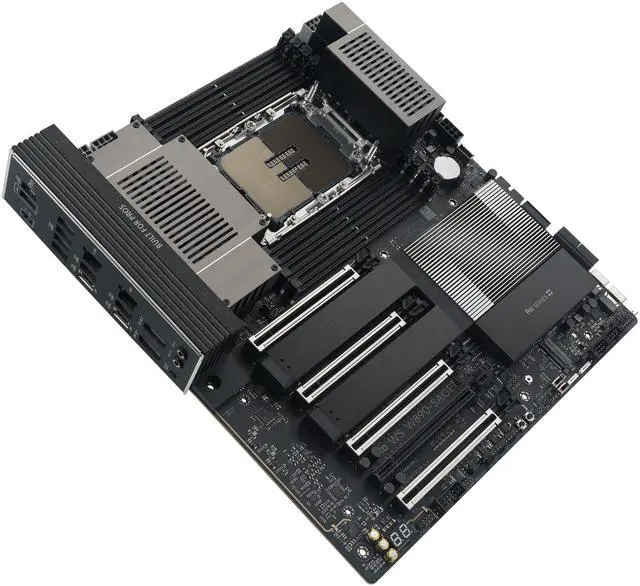

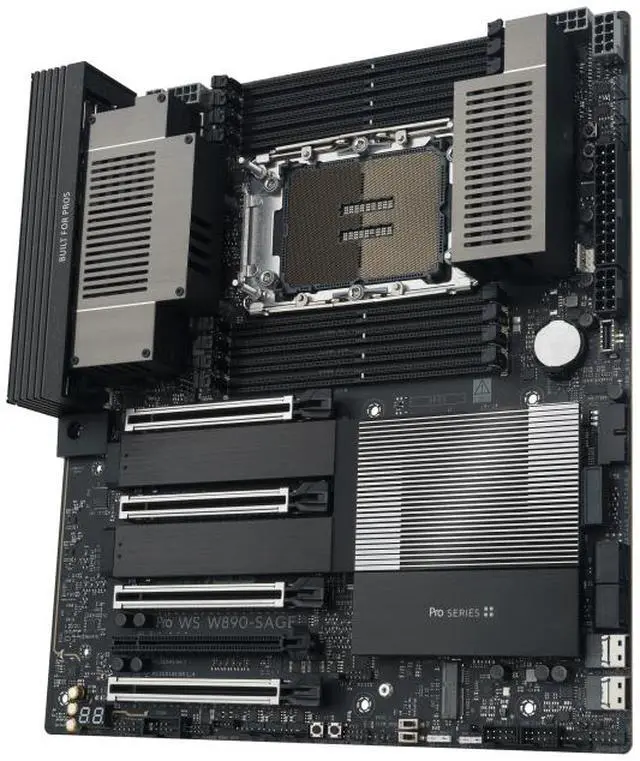

Main image of ASUS Pro WS W890-SAGE Intel W890 (LGA 4710-2) CEB workstation motherboard, PCIe 5.0 x16, M.2, SlimSAS, 10Gb+2.5Gb LAN, ready for IPMI Expansion Card, 12+(2+2)+1+2 stages, USB4, USB 20Gbps Type-C

Alt view image 2 of 2 - ASUS Pro WS W890-SAGE Intel W890 (LGA 4710-2) CEB workstation motherboard, PCIe 5.0 x16, M.2, SlimSAS, 10Gb+2.5Gb LAN, ready for IPMI Expansion Card, 12+(2+2)+1+2 stages, USB4, USB 20Gbps Type-C

Shop All ASUS Products

ASUS Pro WS W890-SAGE Intel W890 (LGA 4710-2) CEB workstation motherboard, PCIe 5.0 x16, M.2, SlimSAS, 10Gb+2.5Gb LAN, ready for IPMI Expansion Card, 12+(2+2)+1+2 stages, USB4, USB 20Gbps Type-C

Be the first to review this product...

Option:

ASUS Pro WS W890-SAGE CEB workstation Motherboard
$944.99
ASUS Pro WS W890-SAGE CEB workstation Motherboard
TEAMGROUP CTCMD5128G6000HC30FQC01 T-Create Master 128GB kits(32GBx4) DDR5 6000 (PC5-48000) Overclock ECC RDIMM CL30 1.4V Dual-rank Server Memory HYNIX IC
$6,254.98Combo Savings $150.00

Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
Intel LGA 4710-2 socket: Ready for Intel Xeon 600 Processors for Workstation
CPU and memory overclocking: The performance of ECC R-DIMM DDR5 memory (2DPC) is further enhanced by the exclusive NitroPath DRAM technology
Ultrafast connectivity: 7 PCIe 5.0 x16 slots, Realtek 10Gb LAN and Intel 2.5Gb LAN, 4 M.2, 2 SlimSAS, and USB4 and USB 20Gbps Type-C
Server-grade IPMI remote management: Hardware and software-level with ASUS IPMI expansion card support, plus a real-time monitoring and management software - ASUS Control Center Express
Robust power and thermal design: 12+(2+2)+1+2 power stages, multiple 8-pin and CPU/PCIe power connectors for dual PSU operation, thorough cooling for VRM, chipset, and M.2
Trusted stability: Highly compatible with the latest technologies with solid QVL list and tested for 24/7 operation, validated for extensive compatibility

Overview

Specs

Reviews

See all Q & A

Any questions? Ask Celeste^SM will help you find out quickly.

Try me now

Best Seller Ranking	#14 in Workstation Motherboards

Model
Brand	ASUS
Model	Pro WS W890-SAGE
Part Number	90MB1MW0-M0AAY0

Supported CPU
CPU Socket Type	LGA 4710-2
CPU Socket Type	LGA 4710
CPU Type	Xeon 600 (LGA4710)

Chipsets
Chipset	Intel W890

Memory
Number of Memory Slots	8x288pin (DDR5)
Channel Supported	Quad Channel
Memory Performance Profile	Intel XMP 3.0
ECC Supported	Yes
Memory Feature	DDR5, ECC Registered DIMM (RDIMM), 3DS-RDIMM, and Multiplexed Combined Rank DIMM (MRDIMM)

Expansion Slots
PCI Express 5.0 x16	Intel Xeon 690/670/650/630 Series Processors* 4 x PCIe 5.0 x16 slots (supports x16 mode) ** CXL (Compute Express Link) is supported in PCIEX16(G5)_1, PCIEX16(G5)_2, PCIEX16(G5)_3, and PCIEX16(G5)_4
PCI Express 4.0 x16	Intel W890 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)

Storage Devices
M.2	Intel Xeon 690/670/650/630 Series Processors* M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
Serial ATA (SATA)	4 x SATA 6Gb/s

Onboard Audio
Audio Channels	Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback* Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers - Unique de-pop circuit * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

Onboard LAN
Max LAN Speed	10Gbps + 2.5Gbps

External Ports
Back I/O Ports	2 x USB4 (40Gbps) ports (2 x USB Type-C) 6 x USB 10Gbps ports (6 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x Realtek 10Gb Ethernet 1 x Intel 2.5Gb Ethernet 2 x Audio jacks 1 x BIOS FlashBack button 1 x Clear CMOS button 2 x DP IN ports

Internal Connectors
Onboard USB	1 x USB 20Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other Connectors	Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 5 x 4-pin Chassis Fan headers 1 x W_PUMP+ header 1 x 4-pin VRM Fan header (with VRM fan onboard) Power Related 1 x 24-pin Main Power connector 1 x 4-pin to 24-pin Main Power connectors 2 x 8-pin +12V CPU Power connector 2 x 8-pin PCIe to CPU power connectors 1 x 8-pin PCIe Power connector Miscellaneous 2 x Addressable RGB Gen 2 header(s) 1 x Chassis Intrusion header 1 x COM Port header 1 x CPU Over voltage jumper 1 x FlexKey button 1 x Front Panel Audio header (F_AUDIO) 1 x M.2 slot (Key E) 1 x ReTry button 2 x RSVD header(s)/switch(es) 1 x Safe Boot button 1 x Slow Mode switch 1 x Start button 1 x 10-1 pin Front Panel System header 1 x VROC header 1 x Thermal Sensor header

Physical Spec
Form Factor	CEB
Dimensions (W x L)	12.0" x 11.0"

Software Feature
BIOS Feature	512 Mb Flash ROM, UEFI AMI BIOS(text-based)

Features
Features	ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - PCIe Slot Q-Release Slim (with PCIe SafeSlot) - Q-Code - Q-Connector - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - Steel backplate - VRM heatsink design - Fan-based active cooling design for VRM heatsink ASUS EZ DIY - Backplate - BIOS FlashBack button - BIOS FlashBack LED - Clear CMOS button - Dual DIMM clips - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Addressable RGB Gen 2 headers Bespoke Motherboard Design & Business Focused Features - 24/7 reliability - Overcurrent protection

Packaging
Package Contents	Cables 2 x SATA 6Gb/s cables 1 x Thermistor cable pack 1 x DisplayPort cable 1 x 4-pin to 24-pin adapter cable for ATX power connector Additional Cooling Kit 1 x detachable VRM/memory fan bracket kit Miscellaneous 1 x Q-connector 2 x M.2 Q-Slide package 2 x M.2 backplate rubber packages 1 x Screw package for M.2 Key E 1 x E2A CPU carrier (for Intel Xeon 690 Series Processors) 1 x E2B CPU carrier (for Intel Xeon 670/650/630 Series Processors) Documentation 1 x ACC Express activation key card 1 x Quick start guide

Additional Information
First Listed on Newegg	May 05, 2026

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
