what power supply in the world do I need to even run this thing on idle let alone try to run a game without tripping every breaker in my house?

This is not the motherboard for gaming. This chipset is for AMD Threadripper Pro Chipsets. These are way more expensive and not designed for gaming. You need a motherboard designed for the AMD Ryzen line. If you’re set on using this for gaming (not recommended) you will want at least 1500W, I would look at Seasonic or any platinum rated PSUs

Would this run large excel and googlesheet documents faster? Currently running I7-13700F with 16gb of memory, but seems to bog down even though CPU utilization is 20% and Mem is 62%. Plus I noticed AMD doesn't have a Gen5 mobo for the new SSD coming out. I'd imagine that'd help throughput a ton.

The ASUS Pro WS WRX80E-SAGE SE WIFI II motherboard supports AMD Ryzen Threadripper PRO Series Processors and can accommodate up to 2TB of DDR4 memory in an eight-channel configuration. This high memory capacity and advanced CPU support could potentially improve performance for large Excel and Google Sheet documents. Additionally, the motherboard offers ultrafast connectivity with multiple M.2 PCIe 4.0 slots and USB 3.2 Gen 2x2 Type-C ports, which can help enhance data throughput.

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list(Found on 29 wish lists)

Sold by Newegg

Shipped by Newegg

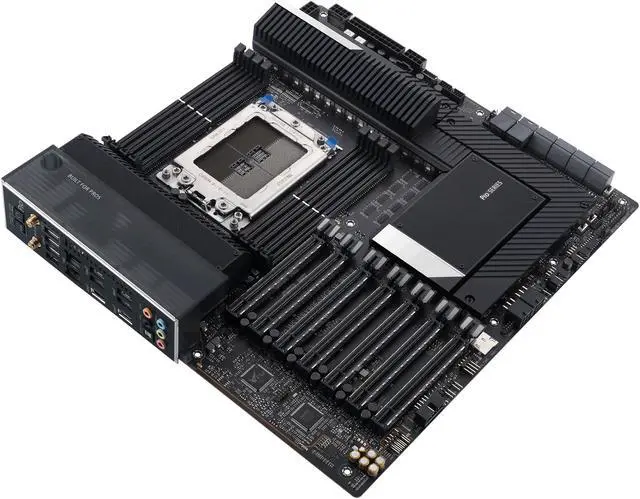

Main image of ASUS Pro WS WRX80E-SAGE SE WIFI II AMD WRX80 Ryzen Threadripper PRO EATX workstation motherboard with Intel dual 10 G LAN, USB 3.2 Gen 2x2 Type-C port, 7 x PCIe 4.0 x16 slots, 3 x M.2 PCIe 4.0, ASMB9-iKVM, 2 x U.2 and 16 power stages

Alt view image 2 of 6 - ASUS Pro WS WRX80E-SAGE SE WIFI II AMD WRX80 Ryzen Threadripper PRO EATX workstation motherboard with Intel dual 10 G LAN, USB 3.2 Gen 2x2 Type-C port, 7 x PCIe 4.0 x16 slots, 3 x M.2 PCIe 4.0, ASMB9-iKVM, 2 x U.2 and 16 power stages

Alt view image 3 of 6 - ASUS Pro WS WRX80E-SAGE SE WIFI II AMD WRX80 Ryzen Threadripper PRO EATX workstation motherboard with Intel dual 10 G LAN, USB 3.2 Gen 2x2 Type-C port, 7 x PCIe 4.0 x16 slots, 3 x M.2 PCIe 4.0, ASMB9-iKVM, 2 x U.2 and 16 power stages

Alt view image 4 of 6 - ASUS Pro WS WRX80E-SAGE SE WIFI II AMD WRX80 Ryzen Threadripper PRO EATX workstation motherboard with Intel dual 10 G LAN, USB 3.2 Gen 2x2 Type-C port, 7 x PCIe 4.0 x16 slots, 3 x M.2 PCIe 4.0, ASMB9-iKVM, 2 x U.2 and 16 power stages

Alt view image 5 of 6 - ASUS Pro WS WRX80E-SAGE SE WIFI II AMD WRX80 Ryzen Threadripper PRO EATX workstation motherboard with Intel dual 10 G LAN, USB 3.2 Gen 2x2 Type-C port, 7 x PCIe 4.0 x16 slots, 3 x M.2 PCIe 4.0, ASMB9-iKVM, 2 x U.2 and 16 power stages

Alt view image 6 of 6 - ASUS Pro WS WRX80E-SAGE SE WIFI II AMD WRX80 Ryzen Threadripper PRO EATX workstation motherboard with Intel dual 10 G LAN, USB 3.2 Gen 2x2 Type-C port, 7 x PCIe 4.0 x16 slots, 3 x M.2 PCIe 4.0, ASMB9-iKVM, 2 x U.2 and 16 power stages

Shop All ASUS Products

ASUS Pro WS WRX80E-SAGE SE WIFI II AMD WRX80 Ryzen Threadripper PRO EATX workstation motherboard with Intel dual 10 G LAN, USB 3.2 Gen 2x2 Type-C port, 7 x PCIe 4.0 x16 slots, 3 x M.2 PCIe 4.0, ASMB9-iKVM, 2 x U.2 and 16 power stages

(2) Write a Review

AMD sWRX8 socket: Ready for AMD Ryzen Threadripper PRO Series Processors.
Ultrafast connectivity: USB 3.2 Gen 2x2 Type-C port, 10 x USB 3.2 Gen 2 ports, 3 x M.2 PCIe 4.0, HYPER M.2 x16 Gen 4 card, and Intel® X550-AT2 dual 10Gb Ethernet, WiFi 6E.
ASMB9-iKVM remote management: BMC chip to provide intelligence for its IPMI architecture for out-of-band management to enhance hardware-level control for improved IT efficiency.
Powerful performance: 16 power stages, multi-GPU support, and R-DIMM memory support.
Trusted stability: Tested for 24/7 dependability, validated for solid compatibility, and equipped with SafeSlot for ultimate security.
Memory: 8 x DIMM, Max. 2048GB, DDR4 Non-ECC and ECC Unbuffered DIMM,
8 x DIMM, Max. 2048GB, DDR4 ECC R-DIMM and LR-DIMM,
8 Channel Memory Architecture.
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (2)

Any questions? Our AI beta will help you find out quickly.

Try me now

Model
Brand	ASUS
Model	Pro WS WRX80E-SAGE SE WIFI II
Part Number	90MB1E60-M0AAY0

Supported CPU
CPU Socket Type	sWRX8
CPU Type	AMD Ryzen Threadripper PRO Series Processors* * Refer to www.asus.com for CPU support list.

Chipsets
Chipset	AMD WRX80

Memory
Number of Memory Slots	8x288pin (DDR4)
Memory Standard	DDR4 3200
Maximum Memory Supported	2TB
Channel Supported	Eight Channel
ECC Supported	Yes
Registered	Yes
Buffer Supported	Un-buffered
Memory Feature	* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.

Expansion Slots
PCI Express 4.0 x16	AMD Ryzen Threadripper PRO Series Processors 7 x PCIe 4.0/3.0 x16 slots* * Support PCIe bandwidth bifurcation for RAID on CPU function.

Storage Devices
Serial ATA (SATA)	8 x SATA 6Gb/s
M.2	AMD Ryzen Threadripper PRO Series Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) U.2_1 slot supports U.2 NVMe device and up to 4 SATA devices* AMD WRX80 Chipset M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) U.2_2 slot supports U.2 NVMe device and up to 4 SATA devices* *The U.2_1 slot shares bandwidth with M.2_2, U.2_2 slot shares bandwidth with M.2_3. When M.2_2 slot is being populated, U.2_1 slot will be disabled. When M.2_3 slot is being populated, U.2_2 slot will be disabled. Each U.2 slots can support up to 4 SATA devices via a transfer cable. the cable is perchased seperately.

Onboard Audio
Audio Chipset	Realtek ALC4080
Audio Channels	Realtek ALC4080 7.1 Surround Sound High Definition Audio CODEC - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback Audio Features - Audio Shielding - Power pre-regulator reduces power input noise to ensure consistent performance - Rear optical S/PDIF out port - Premium audio capacitors - Dedicated audio PCB layers - Unique de-pop circuit

Onboard LAN
LAN Chipset	Intel X550-AT2
Max LAN Speed	10Gbps
Wireless LAN	Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* * WiFi 6E 6GHz regulatory may vary between countries. ** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
Bluetooth	Bluetooth v5.3

Rear Panel Ports
Back I/O Ports	1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C) 9 x USB 3.2 Gen 2 port(s) (8 x Type-A+ 1 x USB Type-C) 1 x Wi-Fi Module 2 x Intel 10Gb Ethernet ports 5 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button

Internal I/O Connectors
Onboard USB	1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Other Connectors	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 6 x 4-pin Chassis Fan headers 1 x VRM heatsink Fan header 1 x Chipset Fan header Storage related 3 x M.2 slots (Key M) 8 x SATA 6Gb/s ports 2 x U.2 slots BMC Related 1 x BMC switch 1 x IPMI switch 1 x Messange LED header 1 x Micro SD card socket 2 x LAN LED headers 1 x Location LED header 1 x Location button header 1 x PSU_SMB header 1 x SMART_PSU switch 1 x VGA switch 1 x VGA header 1 x VPP_I2C header Miscellaneous 1 x COM Port header 1 x FlexKey button 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x Start button 1 x 20-3 pin System Panel header with Chassis intrude function 1 x RTC Battery header 1 x Thermal Sensor header

Physical Spec
Form Factor	Extended ATX
Dimensions (W x L)	12.2" x 13.0"
Power Pin	1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors 2 x 6-pin PCIe Power connector 1 x 8-pin PCIe Power connector

Software Feature
Windows 11	Supported

Features
Features	ASUS Q-Design - M.2 Q-Latch - Q-Code - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - Clear CMOS button - ProCool II - Pre-mounted I/O shield - SafeSlot Bespoke Motherboard Design & Business Focused Features - Event Log in ASMB9-iKVM - 24/7 Reliability - Overcurrent Protection ASUS Exclusive Software Armoury Crate ASUS CPU-Z ASMB9-iKVM for KVM-over-Internet DTS:X Ultra Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode

Packaging
Package Contents	Cables 6 x SATA 6Gb/s cables 1 x VGA cable Miscellaneous 1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas 1 x Hyper M.2 X16 Gen 4 Card 4 x M.2 SSD screw packages for Hyper M.2 X16 Gen 4 Card 3 x Q Latch 7 x M.2 Rubber Packages 1 x Q-connector Documentation 1 x User guide

Additional Information
First Listed on Newegg	January 17, 2023

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's 30-Day Return Policy. Read full return policy for details.
