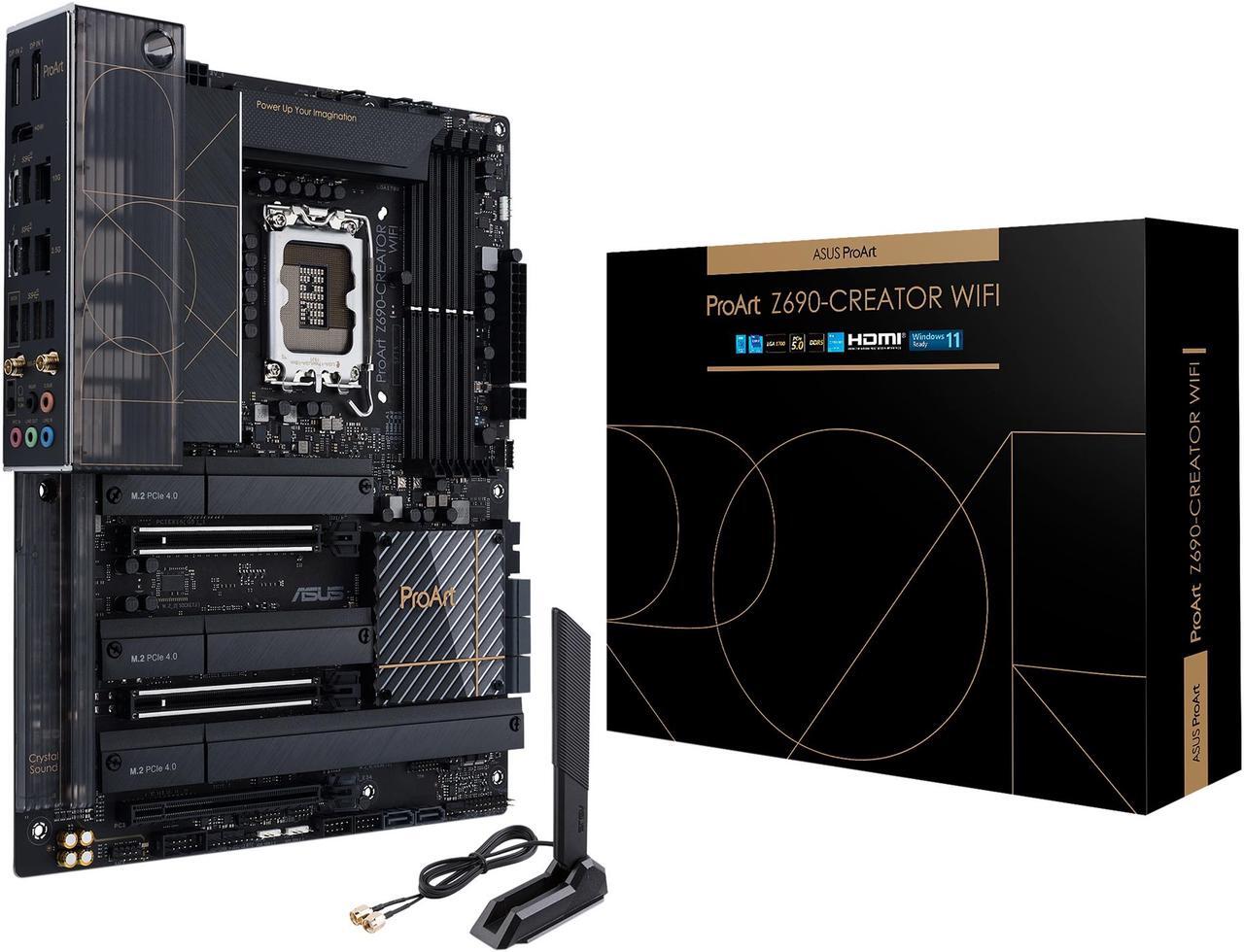

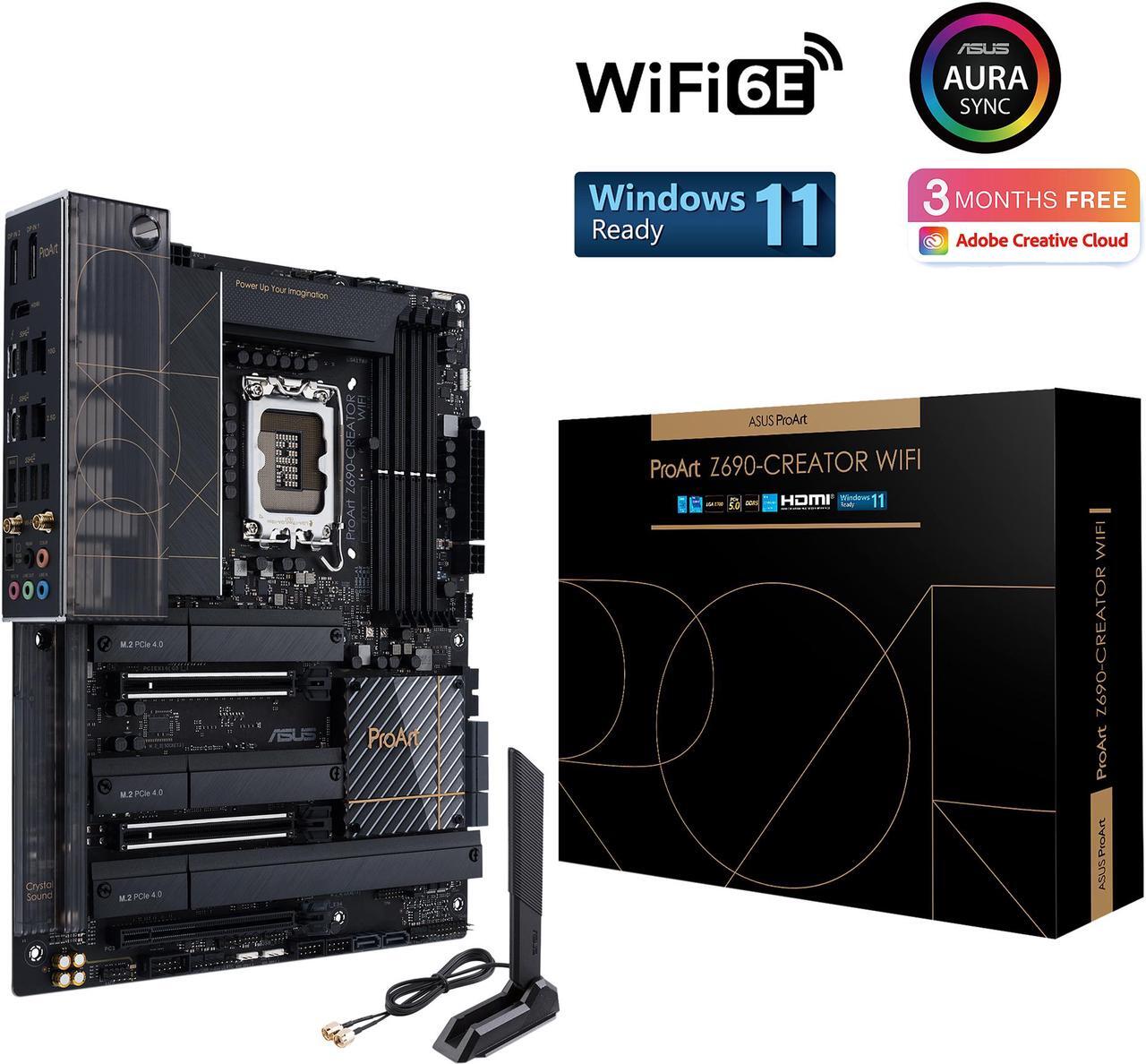

Main image of ASUS ProArt Z690-Creator WiFi 6E LGA 1700(Intel® 12th&13th Gen) ATX content creator motherboard(PCIe 5.0,DDR5,2x Thunderbolt™ 4 Type-C ports,10G&2.5G LAN,4xM.2/NVMe SSD,front panel USB 3.2 Gen2x2 Type-C ports with 60W fast charging support)

Alt view image 2 of 7 - ASUS ProArt Z690-Creator WiFi 6E LGA 1700(Intel® 12th&13th Gen) ATX content creator motherboard(PCIe 5.0,DDR5,2x Thunderbolt™ 4 Type-C ports,10G&2.5G LAN,4xM.2/NVMe SSD,front panel USB 3.2 Gen2x2 Type-C ports with 60W fast charging support)

Alt view image 3 of 7 - ASUS ProArt Z690-Creator WiFi 6E LGA 1700(Intel® 12th&13th Gen) ATX content creator motherboard(PCIe 5.0,DDR5,2x Thunderbolt™ 4 Type-C ports,10G&2.5G LAN,4xM.2/NVMe SSD,front panel USB 3.2 Gen2x2 Type-C ports with 60W fast charging support)

Alt view image 4 of 7 - ASUS ProArt Z690-Creator WiFi 6E LGA 1700(Intel® 12th&13th Gen) ATX content creator motherboard(PCIe 5.0,DDR5,2x Thunderbolt™ 4 Type-C ports,10G&2.5G LAN,4xM.2/NVMe SSD,front panel USB 3.2 Gen2x2 Type-C ports with 60W fast charging support)

Alt view image 5 of 7 - ASUS ProArt Z690-Creator WiFi 6E LGA 1700(Intel® 12th&13th Gen) ATX content creator motherboard(PCIe 5.0,DDR5,2x Thunderbolt™ 4 Type-C ports,10G&2.5G LAN,4xM.2/NVMe SSD,front panel USB 3.2 Gen2x2 Type-C ports with 60W fast charging support)

Alt view image 6 of 7 - ASUS ProArt Z690-Creator WiFi 6E LGA 1700(Intel® 12th&13th Gen) ATX content creator motherboard(PCIe 5.0,DDR5,2x Thunderbolt™ 4 Type-C ports,10G&2.5G LAN,4xM.2/NVMe SSD,front panel USB 3.2 Gen2x2 Type-C ports with 60W fast charging support)

Alt view image 7 of 7 - ASUS ProArt Z690-Creator WiFi 6E LGA 1700(Intel® 12th&13th Gen) ATX content creator motherboard(PCIe 5.0,DDR5,2x Thunderbolt™ 4 Type-C ports,10G&2.5G LAN,4xM.2/NVMe SSD,front panel USB 3.2 Gen2x2 Type-C ports with 60W fast charging support)

Shop All ASUS Products | Visit Corn Electronics Store

ASUS ProArt Z690-Creator WiFi 6E LGA 1700(Intel® 12th&13th Gen) ATX content creator motherboard(PCIe 5.0,DDR5,2x Thunderbolt™ 4 Type-C ports,10G&2.5G LAN,4xM.2/NVMe SSD,front panel USB 3.2 Gen2x2 Type-C ports with 60W fast charging support)

Used - Like New

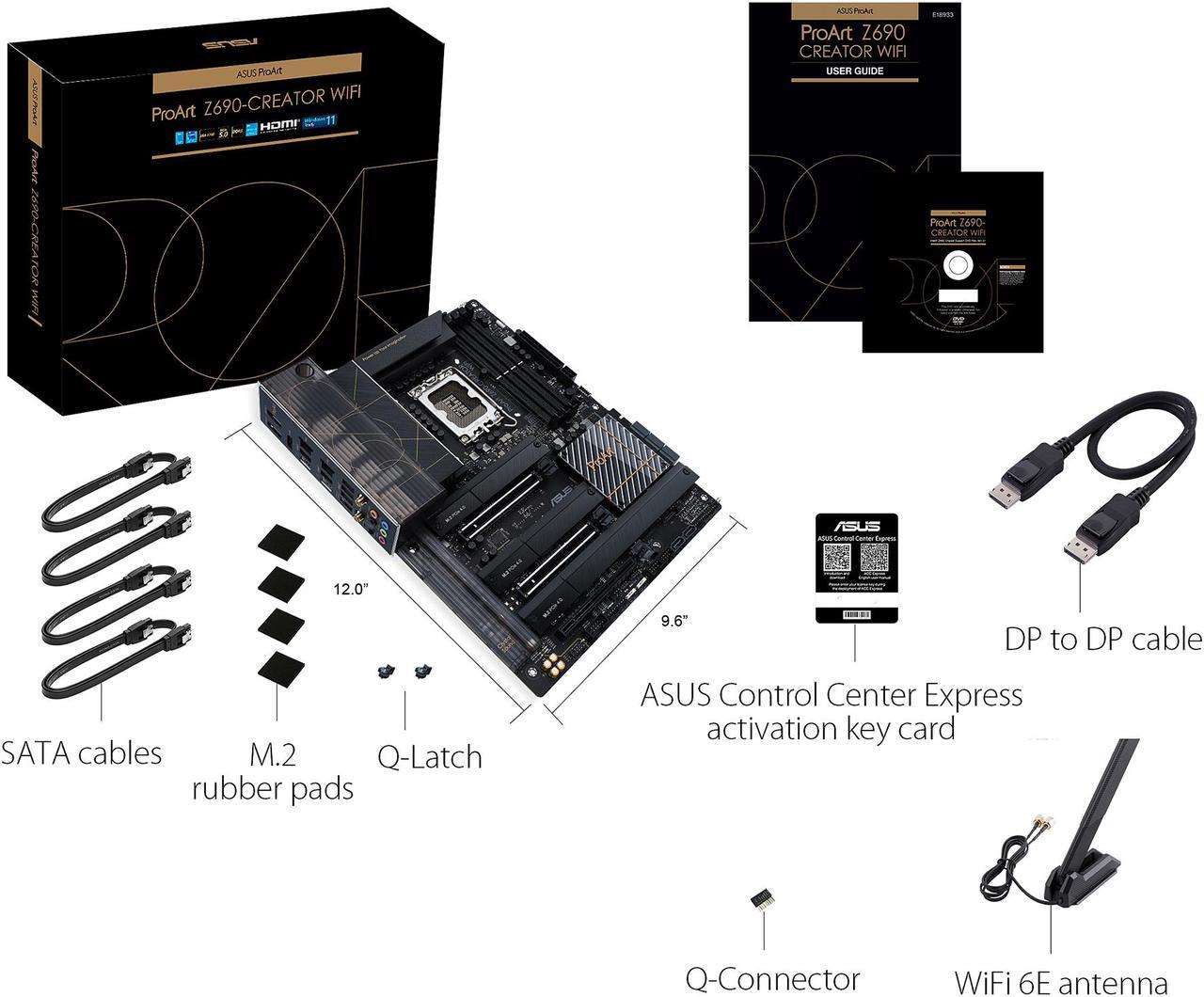

Comes with I/O shield and WiFi antenna, no other accessories.

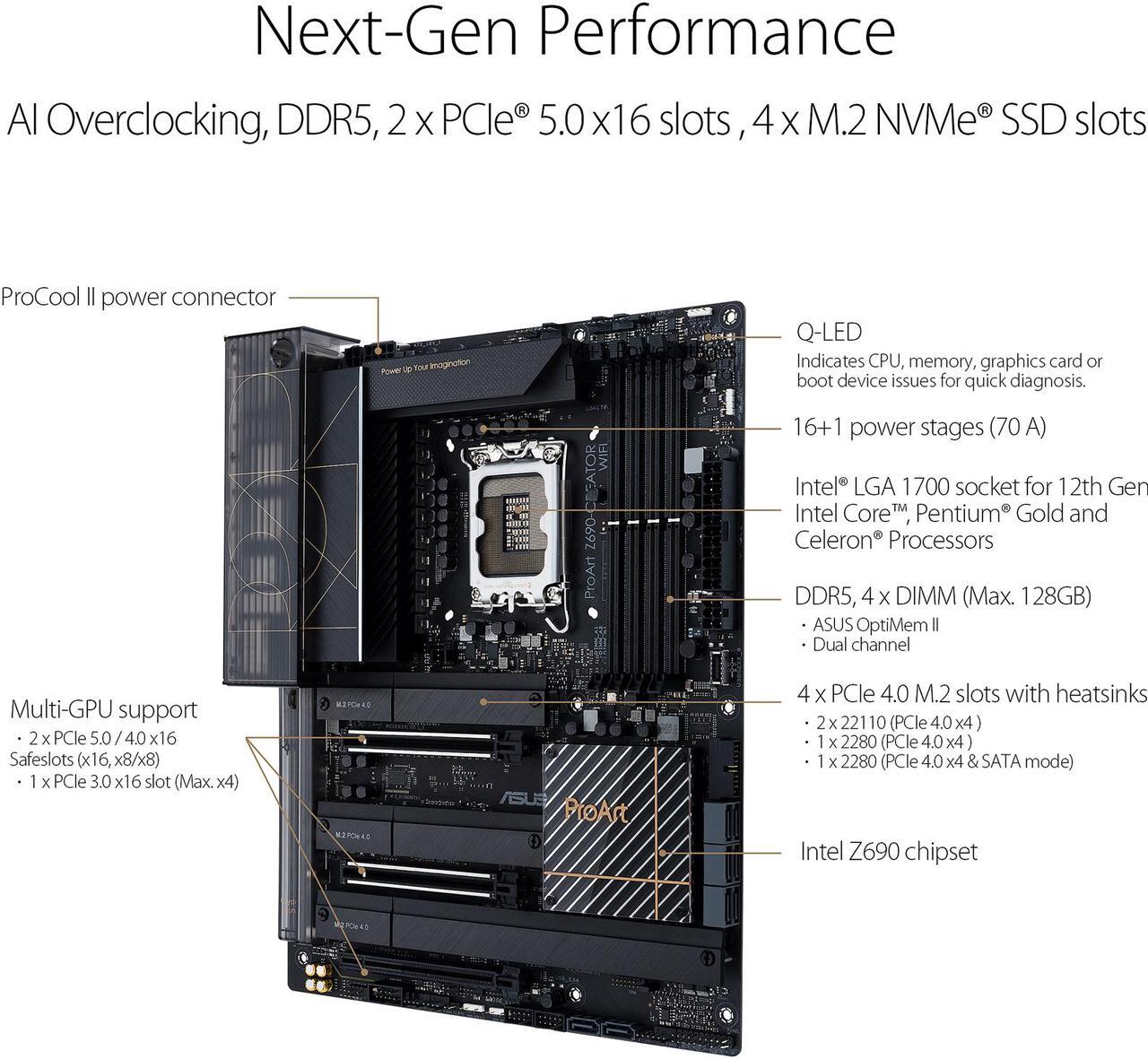

Intel® LGA 1700 socket: Ready for 12th&13th Gen Intel® Core™ processors and Windows 11, support PCIe 5.0 and DDR5
Robust performance: 16+1 power stages, ProCool II power connector, high-quality alloy chokes and durable capacitors

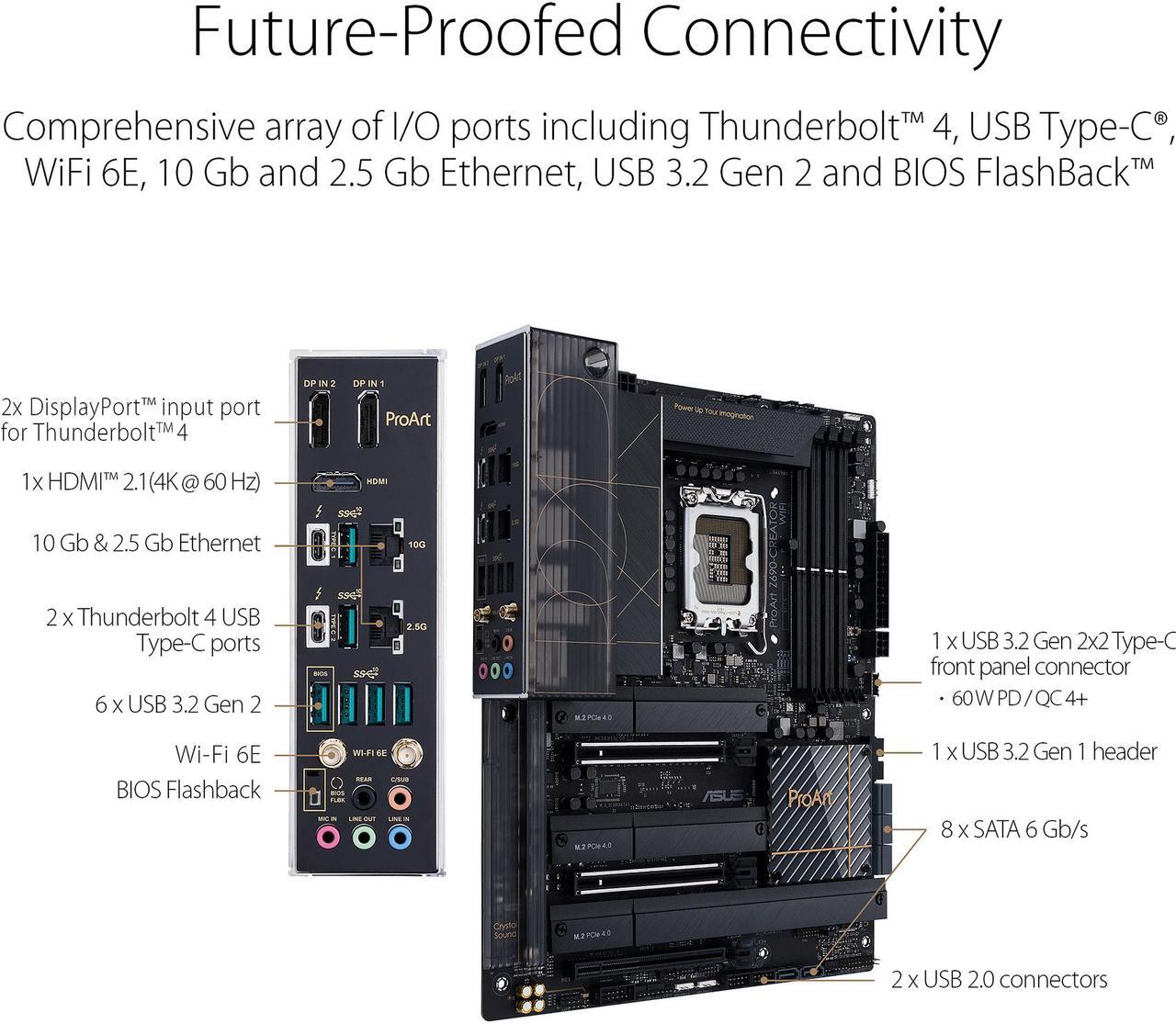

Extensive connectivity: Dual Thunderbolt 4 Type-C ports, 10 Gb & 2.5 Gb onboard Ethernet, WiFi 6E, 4x M.2 slots and front panel USB 3.2 Gen2x2 Type-C port with 60W fast charging support
Advanced security: USB port management, software blacklisting and Regedit on/off controls via ASUS Control Center Express
ProArt gives you more: Two-Way AI Noise Cancelation for clear online communication, and ProArt Creator Hub.
All ASUS Z690 Motherboards designed with dual mounting holes compatible with both Intel LGA1700 and LGA1200 cooling brackets
Supports 13th gen Intel® Core™ desktop processors.
*May require a BIOS update to boot the 13th gen Intel® Core™ desktop processors. Visit: https://www.asus.com/news/oujwh1old5n6oglf/

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
CONTACT

Return Policies

Return for refund within: 30 days
Return for replacement within: 30 days
This item is covered by Corn Electronics Return Policy

Manufacturer Contact Info

For a directory of all our manufacturers, please click below.
Manufacturers Directory

CPU Socket Type	LGA 1700 * Designed with dual mounting holes compatible with both Intel LGA1700 and LGA1200 cooling brackets.
CPU Type	Supports 13th / 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors* May require a BIOS update to boot the 13th gen Intel® Core™ desktop processors. Visit: https://www.asus.com/news/oujwh1old5n6oglf/ Refer to www.asus.com for CPU support list.
Supported CPU Technologies	Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0* * Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Number of Memory Slots	4x288pin (DDR5)
Memory Standard	DDR5 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 5000(OC) / 4800 * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
Maximum Memory Supported	256GB
Channel Supported	Dual Channel

PCI Express 5.0 x16	2 x PCI Express 5.0 x16 * Actual support may vary by CPU.
PCI Express 3.0 x16	1 x PCI Express 3.0 x16 * Supports Intel Optane Memory H Series on PCH-attached PCIE slot.

Serial ATA (SATA)	8 x SATA 6Gb/s ports* * M.2_4 slot shares bandwidth with SATA6G_5~8. SATA6G5~8 will be suspended once either a SATA or NVMe device is detected at M.2_4.
M.2	Intel 12th Gen Processors: M.2_1 slot (Key M), type 2242/2260/2280/22110 - Intel 12th Gen processors support PCIe 4.0 x4 mode. Intel Z690 Chipset:** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) * Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. ** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.
Intel Optane Ready	Yes
SATA RAID	0/1/5/10

Audio Chipset	Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC
Audio Channels	7.1 Channels

LAN Chipset	Marvell AQtion 10Gb Ethernet
Second LAN Chipset	Intel 2.5Gb Ethernet
Max LAN Speed	10Gbps + 2.5Gbps
Wireless LAN	Wi-Fi 6E 802.11 a/b/g/n/ac/ax
Bluetooth	Bluetooth 5.2

Onboard USB	1 x USB 3.2 Gen 2x2 (support(s) USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
Other Connectors	Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 5 x 4-pin Chassis Fan header(s) Miscellaneous 3 x Addressable Gen 2 header(s) 1 x AURA RGB header(s) 1 x Clear CMOS header 1 x COM Port header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x M.2 slot (Key E) 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x RTC Battery header 1 x Thermal Sensor header

Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector

Model
Brand	ASUS
Model	ProArt Z690-CREATOR WIFI

Item#: 9SIA4REKEH4419
