ASUS ROG Crosshair VIII Dark Hero AM4 AMD X570S SATA 6Gb/s ATX AMD Motherboard

Model Brand ASUS Series ROG Model Crosshair VIII Dark Hero Supported CPU CPU Socket Type AM4 CPU Type AMD AM4 Socket for AMD Ryzen 5000 Series/4000 G-Series/3000 Series/3000 G-Series/2000 Series/2000 G-Series Desktop Processors * Refer to www. asus. com for CPU support list Chipsets Chipset AMD X570 Memory Number of Memory Slots 4×288pin Memory Standard AMD Ryzen 5000 Series/3000 Series Desktop Processors DDR4 4866(O. C)/ 4800(O. C. )/ 4666(O. C. )/ 4600(O. C)/ 4400(O. C)/ 4266(O. C. )/ 4133(O. C. )/ 4000(O. C. )/ 3866(O.

C. )/ 3733(O. C. )/ 3600(O. C. )/ 3466(O. C. )/ 3400(O. C. )/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400(O. C. )/ 2133 MHz Non-ECC, Un-buffered Memory AMD Ryzen 4000 G-Series Desktop Processors DDR4 5100(O. C)/ 5000(O. C)/ 4866(O. C)/ 4800(O. C. )/ 4600(O. C)/ 4400(O. C)/ 4266(O. C. )/ 4133(O. C. )/ 4000(O. C. )/ 3866(O. C. )/ 3733(O. C. )/ 3600(O. C. )/ 3466(O. C.

)/ 3400(O. C. )/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory AMD Ryzen 2000 Series Processors DDR4 3600(O. C. )/ 3466(O. C. )/ 3400(O. C. )/ 3200(O. C. )/ 3000(O. C. )/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory AMD Ryzen 3000 G-Series/2000 G-Series Processors DDR4 3200(O. C. )/ 3000(O. C. )/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory ECC Memory (ECC mode) support varies by CPU. * Refer to www. asus.

com for the Memory QVL (Qualified Vendors Lists). Maximum Memory Supported 128GB Channel Supported Dual Channel Expansion Slots PCI Express 4.0 x16 AMD Ryzen 5000 Series/3000 Series Desktop Processors 2 x PCIe 4.0 x16 (x16 or dual x8) AMD Ryzen 4000 G-Series/2000 Series Processors 2 x PCIe 3.0 x16 (x16 or dual x8) AMD Ryzen 3000 G-Series/2000 G-Series Processors 1 x PCIe 3.0 x16 (x8 mode) AMD X570 chipset 1 x PCIe 4.0 x16 PCI Express 3.0 x16 1 x PCI Express 3.0 x16 PCI Express x16 None PCI Express x1 1 x PCIe 4.0 x1 Storage Devices SATA 6Gb/s 8 x SATA 6Gb/s M. 2 AMD Ryzen 5000 Series/3000
Series Desktop Processors: 1 x M. 2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support AMD Ryzen 4000 G-Series/3000 G-Series/2000 Series/2000 G-Series Desktop Processors: 1 x M. 2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x4 mode)
AMD X570 chipset: 1 x M. 2_2 socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 4.0 x4 and SATA modes) storage devices support SATA RAID 0/1/10 Onboard Audio Audio Chipset ROG SupremeFX Surround Sound High Definition Audio CODEC Audio Channels 7.1 Channels Onboard LAN LAN Chipset Realtek RTL8125-CG Second LAN Chipset Intel I211-AT Max LAN Speed 10/100/1000/2500Mbps + 10/100/1000Mbps Wireless LAN Intel Wi-Fi 6 AX200 2x2 Wi-Fi 6 ( 802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO Supports up to 2.4G bps max data rate Supports dual band frequency 2.4 /5

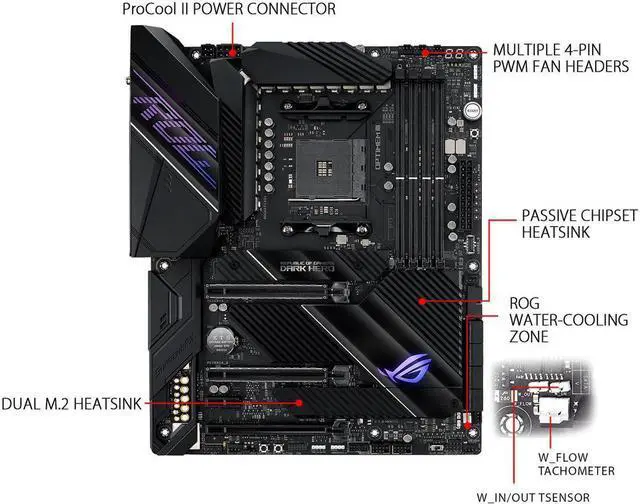

GHz Supports channel bandwidth: HT20/HT40/HT80/HT160 Supports PCIe interface Bluetooth Bluetooth v 5.1 * * BT 5.1 function will be ready in Windows 10 build 19041 or later. Rear Panel Ports Back I/O Ports 1 x Optical S/PDIF out 1 x Clear CMOS button (s) 1 x BIOS FlashBack Button (s) 1 x Anti-surge 2.5G LAN (RJ45) port Anti-surge LAN (RJ45) port 1 x ASUS Wi-Fi Module 5 x Gold-plated audio jacks 4 x USB 3.2 Gen 1 (up to 5Gbps) ports 8 x USB 3.2 Gen 2 (up to 10Gbps) ports HDMI 1 x HDMI USB 3.1 4 x USB 3.1 USB 3.0 4 x USB 3.0 Internal I/O Connectors Onboard USB 2 x USB 2.0 connector (s) support (s) additional 4 USB 2.0 port (s) 1 x USB 3.2 Gen 2 (up to 10Gbps) connector 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports Other Connectors 1 x CPU Fan connector (s) 1 x CPU OPT Fan connector (s) 3 x Chassis Fan connector (s) 1 x AIO_PUMP connector 1 x H_AMP fan connector 1 x W_PUMP+ connector 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 1 x Node Connector (s) 2 x Aura RGB Strip Headers 2 x Addressable Gen 2 header (s) 1 x TPM connector (s) 1 x Front panel audio connector (s) (AAFP) 1 x Slow Mode switch (es) 1 x Reset button (s) 1 x LN2 Mode jumper (s) 1 x Safe Boot button 1 x ReTry button 1 x System panel connector 1 x T_Sensor Connector 1 x Start button 1 x Speaker connector Physical Spec Form Factor ATX LED Lighting RGB Dimensions (W x L) 12.0" x 9.6" Power Pin 1 x 24-pin EATX Power connector (s) 1 x 8-pin ATX 12V Power connector (s) 1 x 4-pin ATX 12V Power connector (s) Windows 11 Compatibility Windows 11 Supported Features
Features Multi-GPU Support: AMD Ryzen 5000 Series/4000 G-Series/3000 Series/2000
Series Desktop Processors: Supports NVIDIA 2-Way SLI Technology Supports AMD 3-Way CrossFireX Technology AMD Ryzen 3000
G-Series/2000 G-Series Desktop Processors: Supports AMD 2-Way CrossFireX
Technology Special Features:

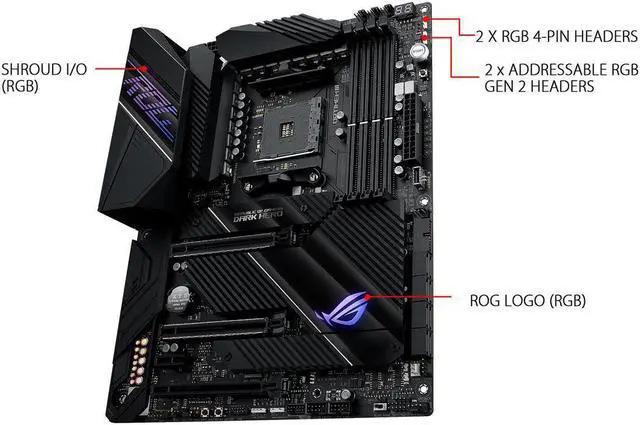

AURA: - Aura RGB Strip Headers - Addressable Gen 2
Header ASUS EZ DIY: - ASUS USB BIOS FlashBack ASUS Q-Design: - ASUS Q-Code - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM -
ASUS Q-Connector BIOS: 256MB Flash ROM, UEFI AMI BIOS, PnP, WfM 2.0, SM BIOS 3.2, ACPI 6.2
Manageability: WOL, PXE
Operating System: Windows 10 64-bit

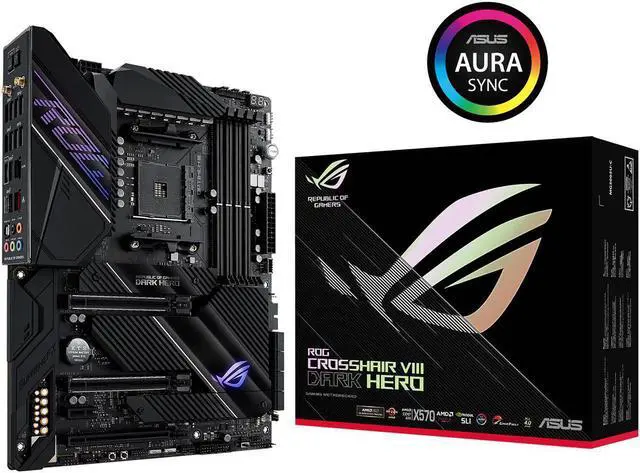

Packaging Package Contents Accessories: User's manual 4 x SATA 6Gb/s cable (s) 1 x Supporting DVD 1 x ROG big sticker 1 x Q-Connector 1 x Wi-Fi Antenna (s) 1 x Extension Cable for RGB strips (80cm) 1 x Extension cable for Addressable LED 1 x ROG coaster (s) 1 x ROG Thank you card 1 x M. 2 SSD screw package (s)
