Question 1

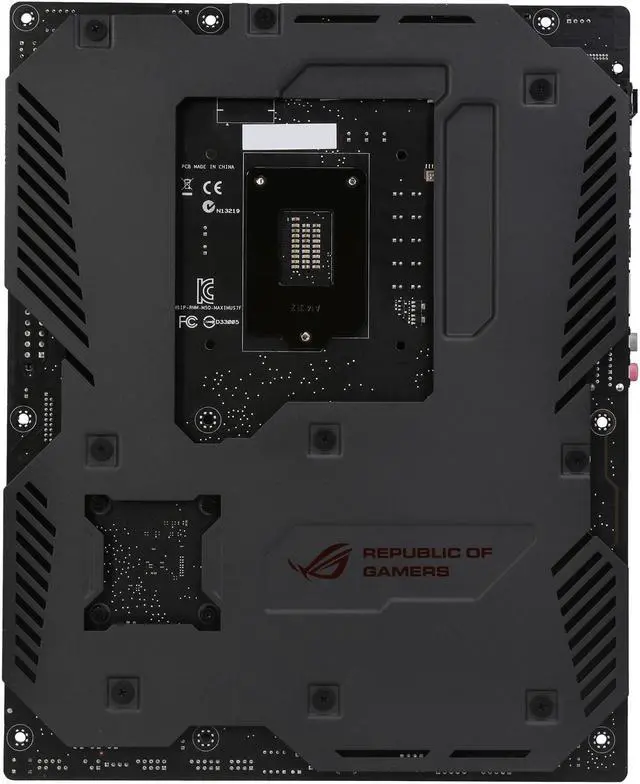

Please  Tell  me about the black armor, that is plastic or metal?

Accepted Answer

Thick, quality powder coated, metal w/ design stamped into it. Installing the board into my NZXT H440 case from newegg was a little tight, however the sheer industrial design of the amour made it very reassuring.

Question 2

Is there any motherboards out there that are better than this?  I am using 3 gtx 980s and my processor is (i7-4770k 3.50GHZ).

Accepted Answer

Regardless of the motherboard, Your 4770k is going to be a massive bottleneck.  if i where you, i would go for an x99Cipset / Motherboard, like the ASUS X99 Deluxe, and a Hexa-core or Octa-core processor. or else, the 3 980s wont be able to live up to their full potential, and it would honestly be a waste of money. Just my advice, and honestly, this is an awesome motherboard.

Question 3

I noticed while looking at the board that it has an 8 pin power connector, yet it also has a 4 pin connector right next to it.  Do both of these need to be plugged in or is one a primary and the other a secondary?

Accepted Answer

There's some ambiguity to be found in the official documentation.  The manual refers to them as EATX12V_1 (8pin) and EATX12V_2 (4pin).  Lower on the page, it says "... do not forget to connect the 4-pin/8-pin EATX12 V power plug".  My take on it is that you can use one or the other.  I have both connected.  I don't recall why I did that, but I haven't experienced a single issue in the six months since my system was built.

Question 4

does this motherboard support 8-core processors?

Accepted Answer

Supports anything with socket LGA1150 or compatible socket.

Question 5

Can you run 3 980ti's on this board with a i7 4790k? I dont understand the whole 16x8x8 or 16x8x4 pcie number. Im so confused. I just got this board and am totally bummed right now.

Accepted Answer

yes you can run 3 980's, the 16x8x8 means in those three pcie slots they will use 16 lanes in the first 8 in the second and 8 in the third if they are all in use at the same time. this is why sli and crossfire do not give you a full 100% increase in power and instead give 50% or less for 2 cards (usually 8x8)

Question 6

This is  the new in box right?

Accepted Answer

i'm not sure, But if newegg they sell the open box or refurbished so they will be saying very clear. some body know about this can your guys help him/her please !

Brand	ASUS
Series	ROG
Model	MAXIMUS VII FORMULA

CPU Type	Celeron / Core i3 / Core i5 / Core i7 / Intel Core 4th Gen (LGA 1150) / Intel Core 5th Gen (LGA 1150) / Pentium / Xeon (LGA1150)
Supported CPU Technologies	Turbo Boost Technology 2.0

Number of Memory Slots	4x240pin
Memory Standard	DDR3 3300(O.C.)/3200(O.C.) /3100(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1600/1333
Maximum Memory Supported	32GB
Channel Supported	Dual Channel

PCI Express 3.0 x16	2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
PCI Express 2.0 x16	1 (x4 mode)
PCI Express x1	3 x PCI Express x1
Mini Card Slots	1 x mini-PCIe 2.0 x1

Serial ATA (SATA)	Intel Z97 4 x SATA 6Gb/s port(s), red ASMedia ASM1061 controller 2 x SATA 6Gb/s port(s), red
SATA Express	Intel Z97 1 x SATA Express port, compatible with 2 x SATA 6.0 Gb/s ports ASMedia SATA Express controller 1 x SATA Express port, compatible with 2 x SATA 6.0 Gb/s ports
M.2	1 x M.2 Socket 3, , with M Key, type 2260 storage devices support (both SATA & PCIE mode)
SATA RAID	0/1/5/10

ASUS ROG MAXIMUS VII FORMULA Intel Z97 HDMI USB 3.0 ATX Intel Gaming Motherboard

Learn more about the ASUS MAXIMUS VII FORMULA

Customer Reviews of the ASUS MAXIMUS VII FORMULA

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

LAN Chipset	Intel I218V
Max LAN Speed	1Gbps
Wireless LAN	Wi-Fi 802.11a/b/g/n/ac Supports dual band frequency 2.4/5 GHz
Bluetooth	Bluetooth V4.0

PS/2	1
HDMI	1 x HDMI
DisplayPort	1 x DisplayPort
USB 3.0	6 x USB 3.0
USB 1.1/2.0	2 x USB 2.0
S/PDIF Out	1 x Optical
Audio Ports	6 Ports

Onboard USB	1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
Other Connectors	1 x CPU Fan connector(s) (1 x 4 -pin) 1 x CPU OPT Fan connector(s) (1 x 4 -pin) 6 x Chassis Fan connector(s) (6 x 4 -pin) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Q-Connector) 1 x MemOK! button(s) 10 x ProbeIt Measurement Points 1 x Thermal sensor connector(s) 1 x Power-on button(s) 1 x Reset button(s) 1 x mPCIe Combo III connector(s) 1 x ROG extension (ROG_EXT) header(s) 1 x KeyBot Button 1 x Sonic SoundStage Button

Physical Spec
Form Factor	ATX
Dimensions (W x L)	12" x 9.6"
Power Pin	24 Pin
