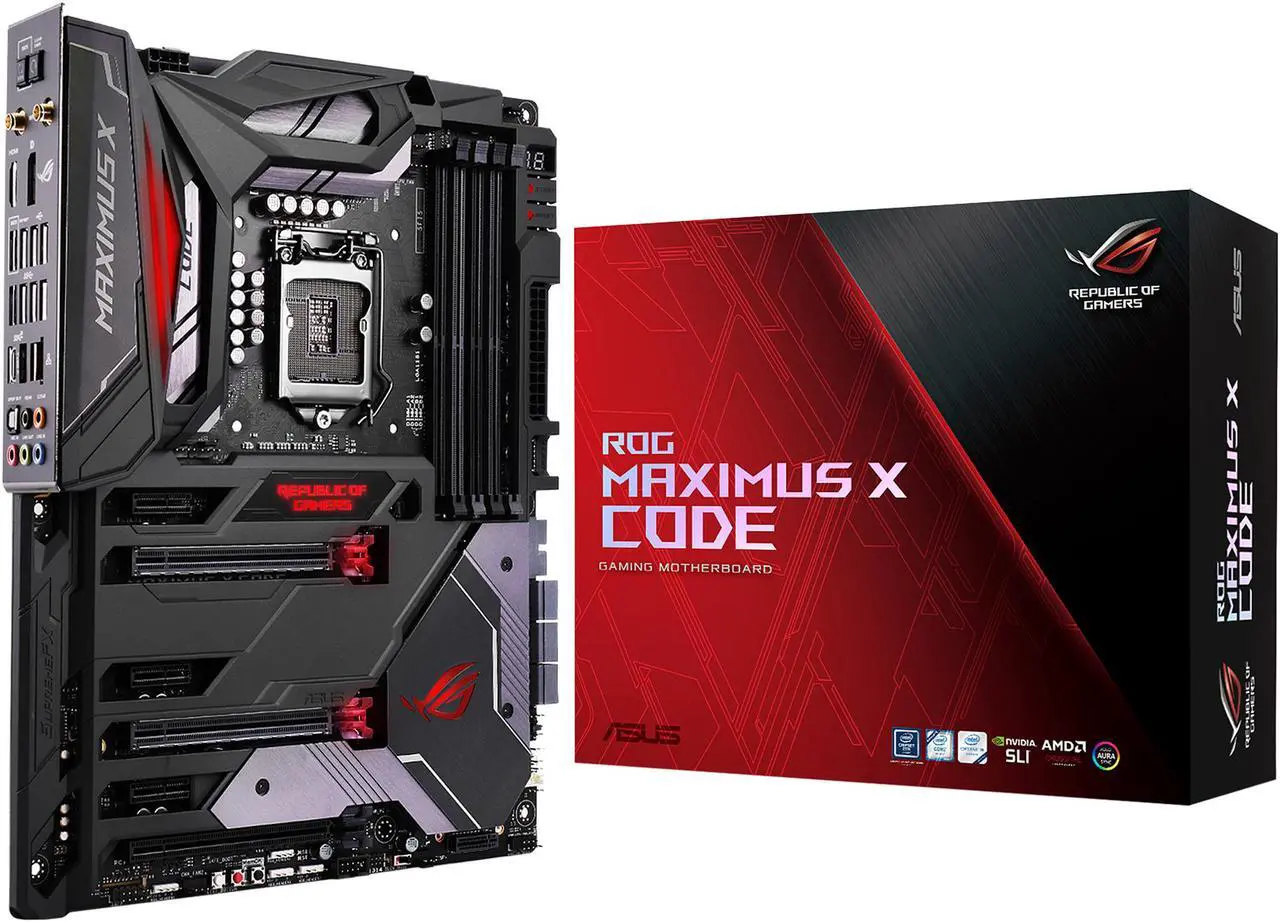

Main image of ASUS ROG Maximus X Code LGA 1151 (300 Series) Intel Z370 ATX Intel Motherboard

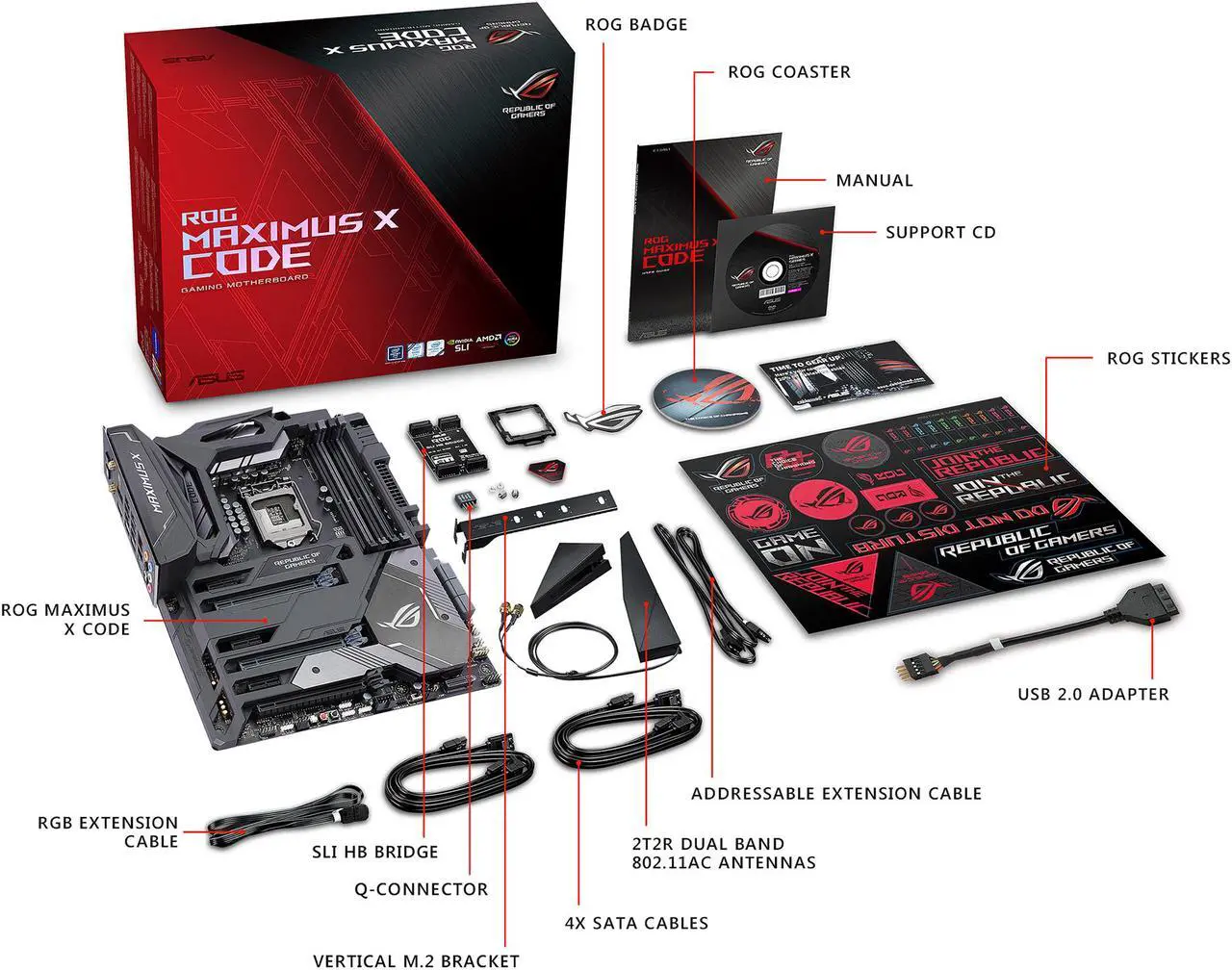

Alt view image 2 of 7 - ASUS ROG Maximus X Code LGA 1151 (300 Series) Intel Z370 ATX Intel Motherboard

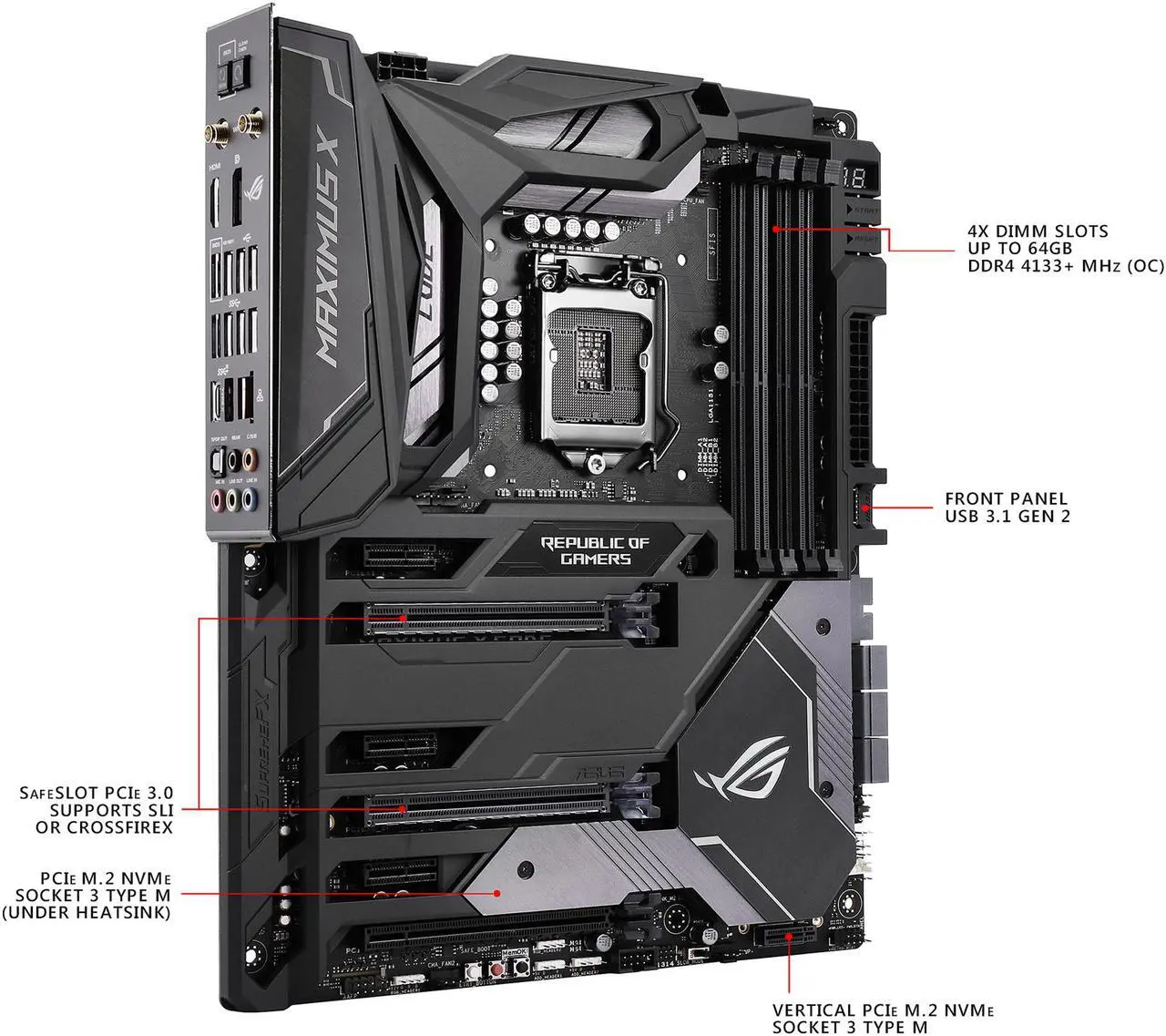

Alt view image 3 of 7 - ASUS ROG Maximus X Code LGA 1151 (300 Series) Intel Z370 ATX Intel Motherboard

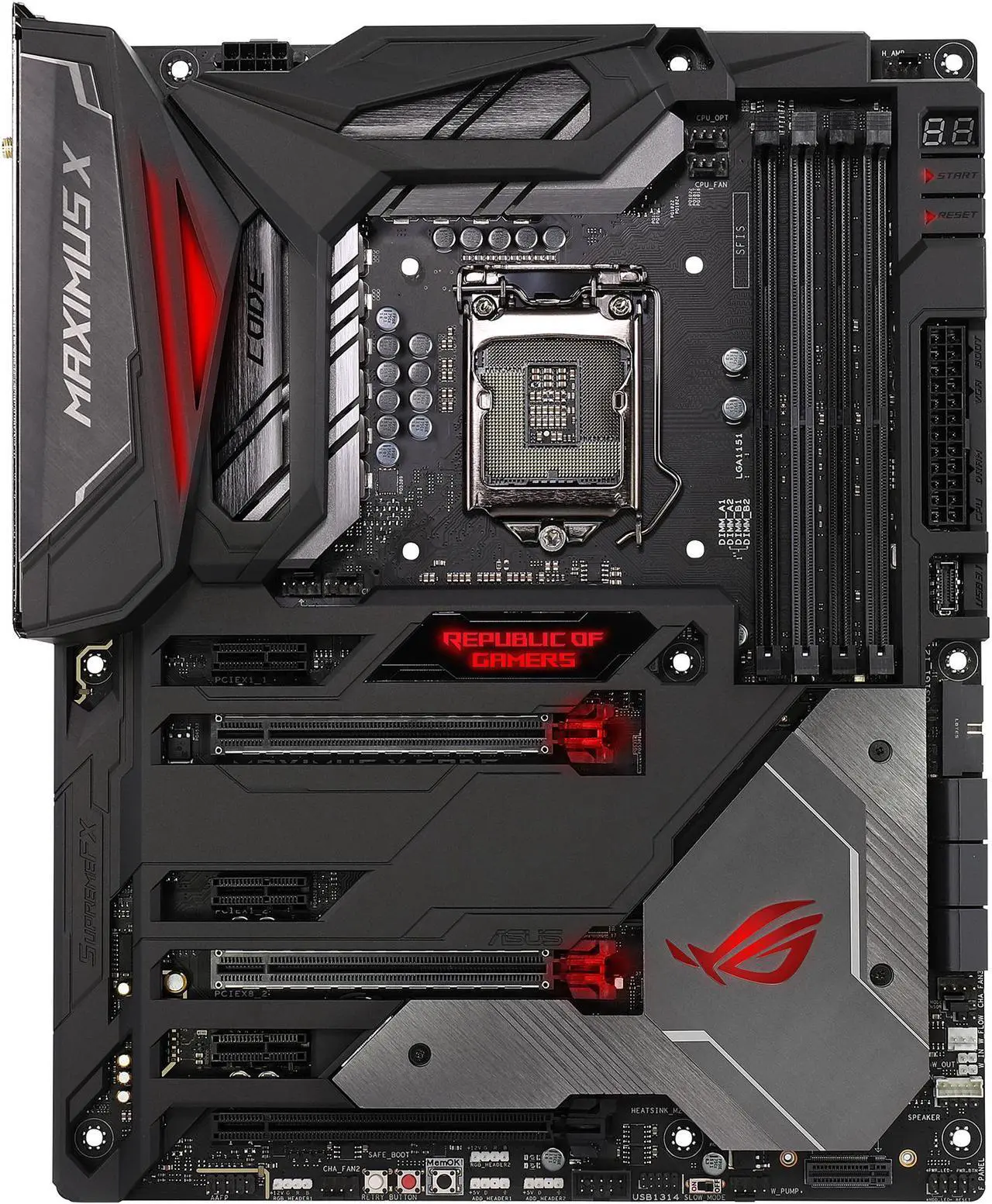

Alt view image 4 of 7 - ASUS ROG Maximus X Code LGA 1151 (300 Series) Intel Z370 ATX Intel Motherboard

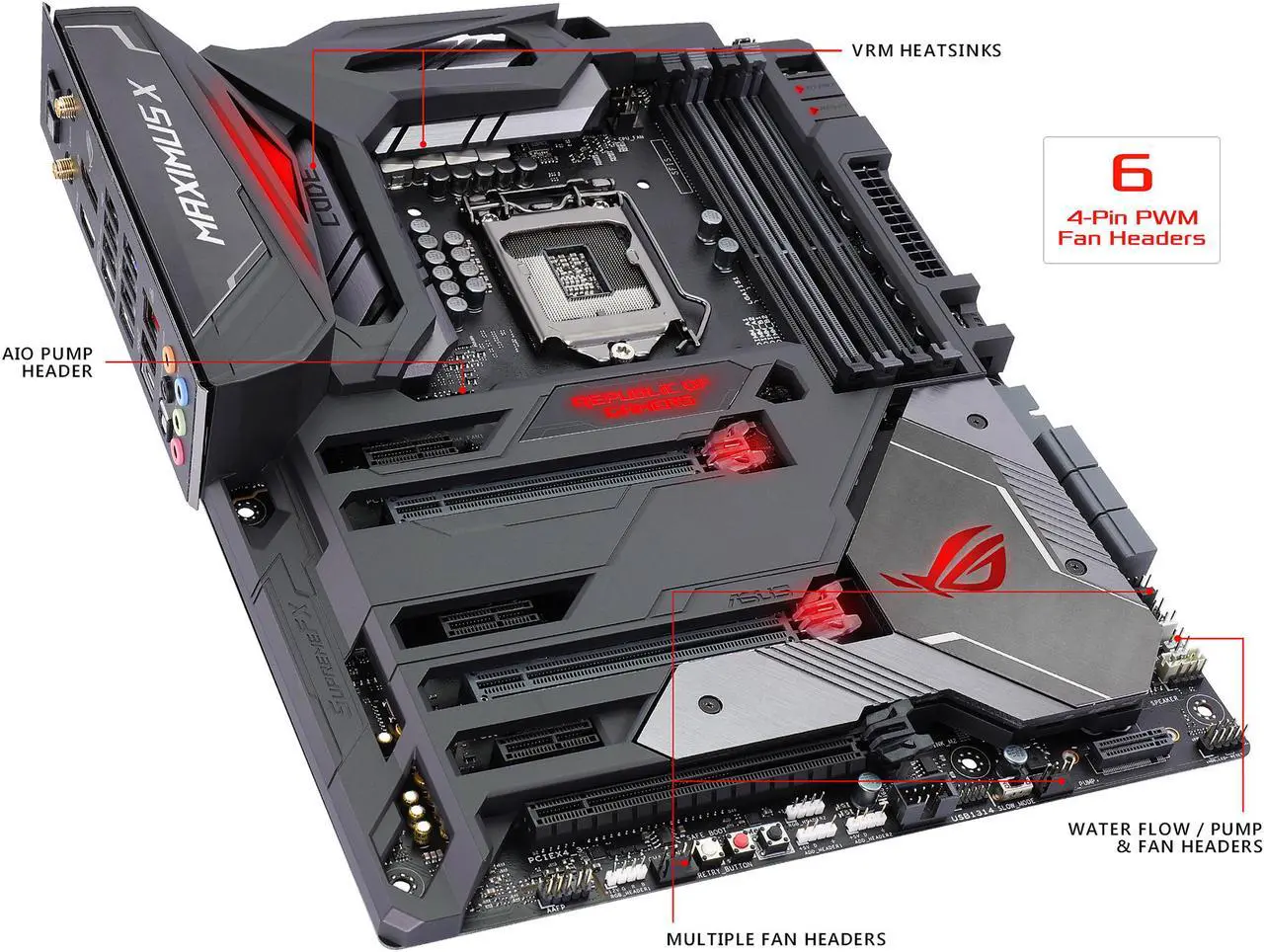

Alt view image 5 of 7 - ASUS ROG Maximus X Code LGA 1151 (300 Series) Intel Z370 ATX Intel Motherboard

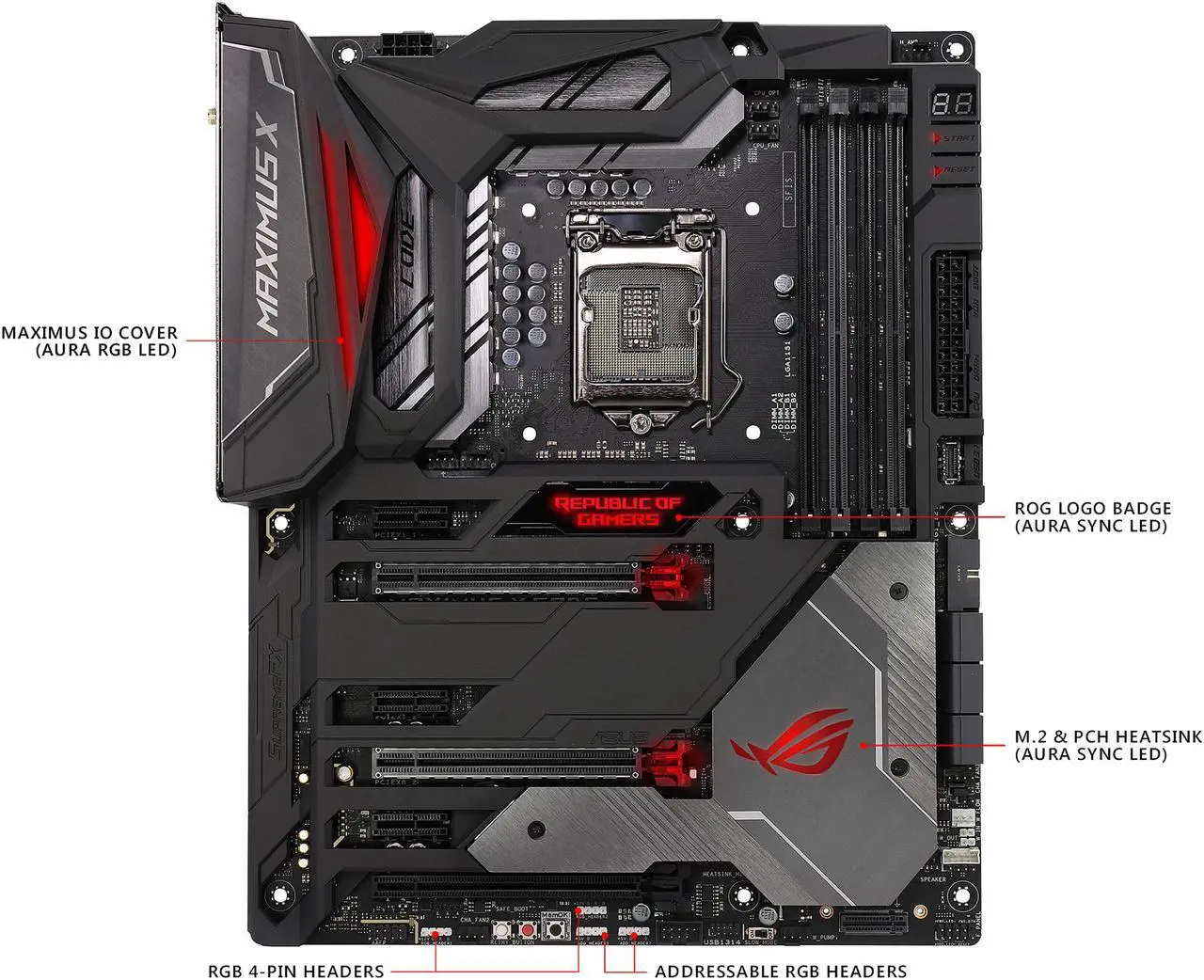

Alt view image 6 of 7 - ASUS ROG Maximus X Code LGA 1151 (300 Series) Intel Z370 ATX Intel Motherboard

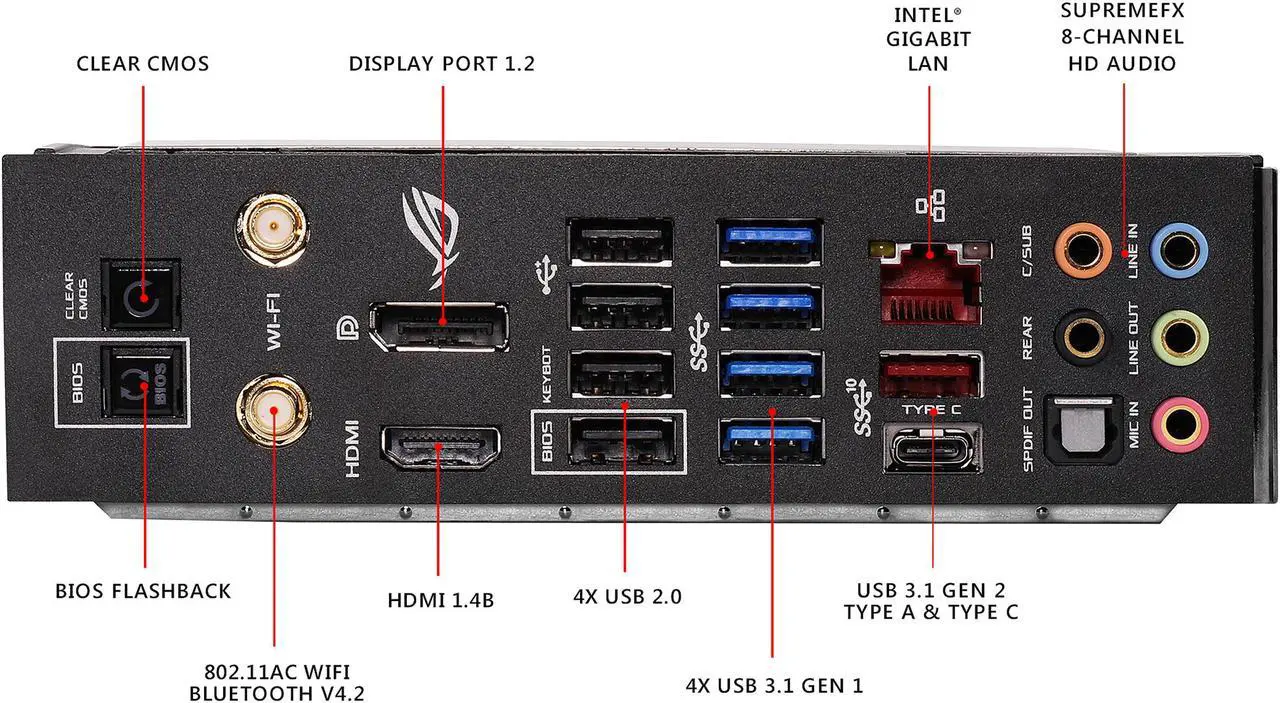

Alt view image 7 of 7 - ASUS ROG Maximus X Code LGA 1151 (300 Series) Intel Z370 ATX Intel Motherboard

Shop All ASUS Products

ASUS ROG Maximus X Code LGA 1151 (300 Series) Intel Z370 ATX Intel Motherboard

Name: ASUS ROG Maximus X Code LGA 1151 (300 Series) ATX Intel Motherboard
Brand: ASUS
SKU: N82E16813119045
Rating: 4 (31 reviews)

(31) Write a Review

Intel Z370
Intel Socket 1151 9th/8th Gen Intel Core, Pentium Gold and Celeron Processors
DDR4 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666(O.C.)/ 2400(O.C.)/ 2133

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (31)

Any questions? Our AI beta will help you find out quickly.

Try me now

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
Read full details

Return Policies

Return for refund within: Non-refundable

Return for replacement within: 30 days

This item is covered by Newegg.com's Replacement Only Return Policy. Read full return policy for details.

CPU Socket Type	LGA 1151 (300 Series)
CPU Type	Intel Socket 1151 9th/8th Gen Intel Core, Pentium Gold and Celeron Processors * Not backward compatible with older generation of LGA 1151 CPUs. * Refer to www.asus.com for CPU support list.
Supported CPU Technologies	Supports Intel Turbo Boost Technology 2.0 * The Intel Turbo Boost Technology 2.0 support depends on the CPU types.

Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666(O.C.)/ 2400(O.C.)/ 2133* * Hyper DIMM support is subject to the physical characteristics of individual CPUs. ** Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported	64GB
Channel Supported	Dual Channel

PCI Express 3.0 x16	2 x PCIe 3.0/2.0 x16 (x16, x8/x8, or x8/x4+x4) 1 x PCIe 3.0/2.0 x16 (x4 mode, black) * * The PCIe x4_3 slot shares bandwidth with PCIex1_3. The PCIe x4_3 is default set at x2 mode.
PCI Express x1	3 x PCIe 3.0/2.0 x1

Serial ATA (SATA)	6 x SATA 6Gb/s
M.2	1 x M.2 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode)* 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x4 mode)** * When the M.2_1 Socket 3 is operating in SATA mode, SATA port 1 will be disabled. ** When the M.2_2 Socket 3 is operating in PCIe 3.0 x4 mode, SATA ports 5 and 6 will be disabled.
Intel Optane Ready	Yes
SATA RAID	0/1/5/10

Audio Chipset	ROG SupremeFX High Definition Audio CODEC S1220
Audio Channels	8 Channels

ASUS ROG Maximus X Code LGA 1151 (300 Series) Intel Z370 ATX Intel Motherboard

Learn more about the ASUS Maximus X Code

Customer Reviews of the ASUS Maximus X Code

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

LAN Chipset	Intel I219-V
Max LAN Speed	1Gbps
Wireless LAN	Wi-Fi 802.11 a/b/g/n/ac Supports dual band frequency 2.4/5 GHz Supports MU-MIMO
Bluetooth	Bluetooth V4.2

Onboard USB	1 x USB 3.1 Gen 2 front panel connector 1 x USB 3.1 Gen 1 (up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
Other Connectors	2 x Aura Addressable Strip Header(s) 2 x Aura RGB Strip Headers 1 x CPU Fan connector(s) (1 x 4-pin) 1 x CPU OPT Fan connector(s) (1 x 4-pin) 3 x Chassis Fan connector(s) (3 x 4-pin) 1 x H_AMP fan connector 1 x W_PUMP+ connector (1 x 4-pin) 1 x AIO_PUMP connector (1 x 4-pin) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Q-Connector) 1 x MemOK! button(s) 1 x Slow Mode switch(es) 1 x Reset button(s) 1 x LN2 Mode jumper(s) 1 x Safe Boot button 1 x ReTry button 1 x EXT_Fan header 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 1 x Thermal sensor connector 1 x Start button

Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s)
