Why don't the ports have thunderbolt?

It does have Thunderbolt 3 header on motherboard itself (only Maximus Extreme and WS Pro have it. In order to utilize it though you will need to buy separate add-on PCIe based card that installs into PCIe x4 slot and gets connected by special cable with this header. As an example Asus ThunderboltEX 3 card.

Will this ASUS ROG Maximus XI Extreme LGA 1151 motherboard fit in an HP Omen x case? I note on the Asus web site it is called a EATX form factor. Whats the difference between EATX and ATX?

e atx mobo stands for extended atx which is a bigger board than atx so look at case details make sure the case u buy is an e-atx computer case

When will there be a WiFi version?

It has WiFi and comes with an antenna.

If you were doing SLI with this, would you need a 3 slot or a 4 slot bridge?

A 2-way SLI would require a 3-way bridge or 2-way bridge that is long enough to get to the third PCI-E slot from the second. I think the distance between slots 2 and 3 is 60mm.

$316^.41

Free 30-day Returns

Limit 99999 per customer.

Ships from Hong Kong.

Price alert

Add to wish list

Sold by Volcanic electron

Top Rated

4 (121 seller ratings)

Shipped by Volcanic electron

Best Sellers

roboshine

Top Rated

4.5 (150 total ratings)

$469^.00
+ FREE SHIPPING

Meet Your Seller

Volcanic electron

See Seller Store

Get Educated

Make informed decisions with expert advice. Learn More

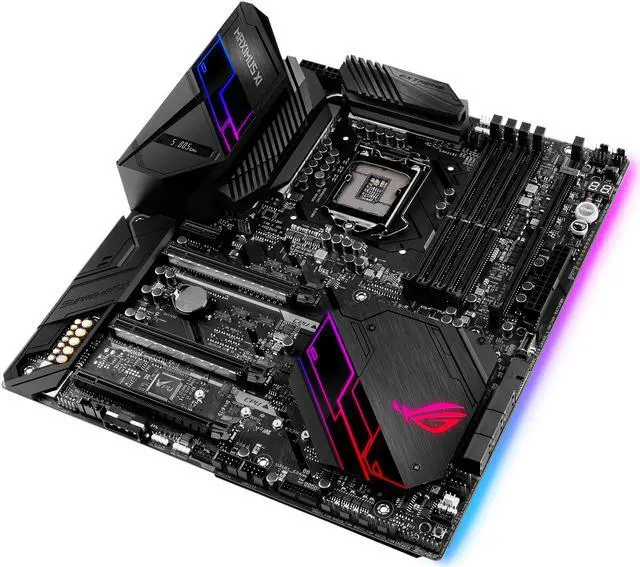

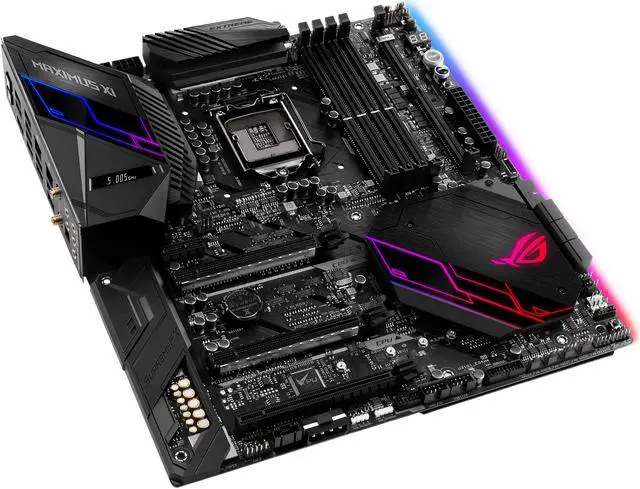

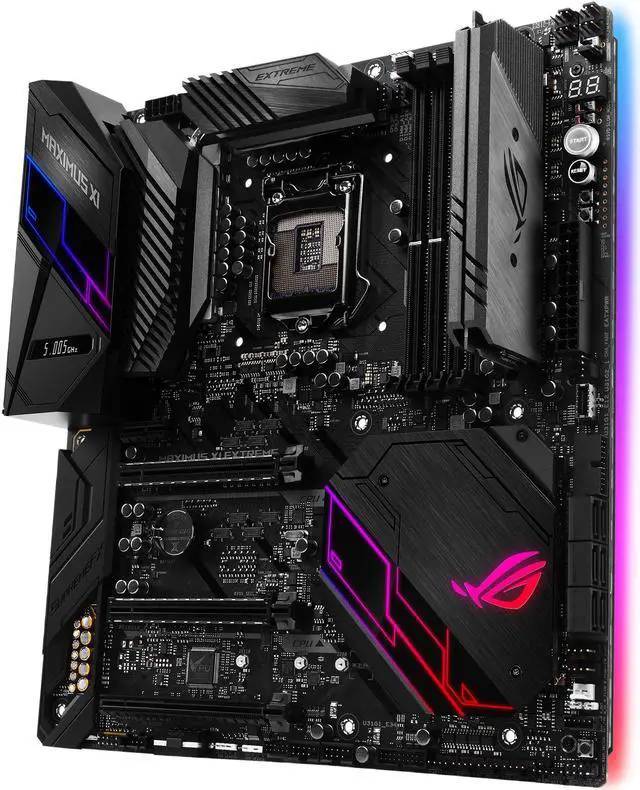

Main image of ASUS ROG Maximus XI Extreme LGA 1151 (300 Series) Intel Z390 HDMI USB 3.1 Extended ATX Intel Motherboard

Alt view image 2 of 16 - ASUS ROG Maximus XI Extreme LGA 1151 (300 Series) Intel Z390 HDMI USB 3.1 Extended ATX Intel Motherboard

Alt view image 3 of 16 - ASUS ROG Maximus XI Extreme LGA 1151 (300 Series) Intel Z390 HDMI USB 3.1 Extended ATX Intel Motherboard

Alt view image 4 of 16 - ASUS ROG Maximus XI Extreme LGA 1151 (300 Series) Intel Z390 HDMI USB 3.1 Extended ATX Intel Motherboard

Alt view image 5 of 16 - ASUS ROG Maximus XI Extreme LGA 1151 (300 Series) Intel Z390 HDMI USB 3.1 Extended ATX Intel Motherboard

Alt view image 6 of 16 - ASUS ROG Maximus XI Extreme LGA 1151 (300 Series) Intel Z390 HDMI USB 3.1 Extended ATX Intel Motherboard

Alt view image 7 of 16 - ASUS ROG Maximus XI Extreme LGA 1151 (300 Series) Intel Z390 HDMI USB 3.1 Extended ATX Intel Motherboard

Alt view image 8 of 16 - ASUS ROG Maximus XI Extreme LGA 1151 (300 Series) Intel Z390 HDMI USB 3.1 Extended ATX Intel Motherboard

Alt view image 9 of 16 - ASUS ROG Maximus XI Extreme LGA 1151 (300 Series) Intel Z390 HDMI USB 3.1 Extended ATX Intel Motherboard

Alt view image 10 of 16 - ASUS ROG Maximus XI Extreme LGA 1151 (300 Series) Intel Z390 HDMI USB 3.1 Extended ATX Intel Motherboard

Alt view image 11 of 16 - ASUS ROG Maximus XI Extreme LGA 1151 (300 Series) Intel Z390 HDMI USB 3.1 Extended ATX Intel Motherboard

Alt view image 12 of 16 - ASUS ROG Maximus XI Extreme LGA 1151 (300 Series) Intel Z390 HDMI USB 3.1 Extended ATX Intel Motherboard

Alt view image 13 of 16 - ASUS ROG Maximus XI Extreme LGA 1151 (300 Series) Intel Z390 HDMI USB 3.1 Extended ATX Intel Motherboard

Alt view image 14 of 16 - ASUS ROG Maximus XI Extreme LGA 1151 (300 Series) Intel Z390 HDMI USB 3.1 Extended ATX Intel Motherboard

Alt view image 15 of 16 - ASUS ROG Maximus XI Extreme LGA 1151 (300 Series) Intel Z390 HDMI USB 3.1 Extended ATX Intel Motherboard

Alt view image 16 of 16 - ASUS ROG Maximus XI Extreme LGA 1151 (300 Series) Intel Z390 HDMI USB 3.1 Extended ATX Intel Motherboard

Customer images

Shop All ASUS Products | Visit Volcanic electron Store

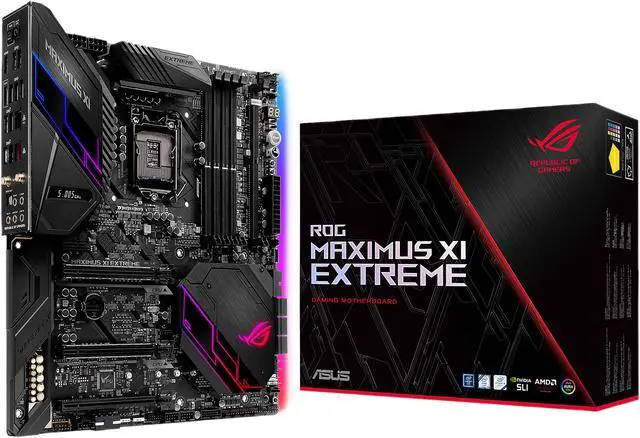

ASUS ROG Maximus XI Extreme LGA 1151 (300 Series) Intel Z390 HDMI USB 3.1 Extended ATX Intel Motherboard

(1,164)(38) Write a Review

Option: ROG Maximus XI Extreme

Prime Z390-A
Prime Z390-P
ROG Maximus XI Apex
ROG Maximus XI Code
ROG Maximus XI Extreme
ROG Maximus XI Formula
ROG Maximus XI Gene
ROG Maximus XI Hero (Wi-Fi)
ROG Strix Z390-E Gaming
ROG Strix Z390-F Gaming
ROG Strix Z390-H Gaming
ROG Strix Z390-I Gaming
TUF Z390-Plus Gaming
TUF Z390-Plus Gaming (Wi-Fi)
TUF Z390M-Pro Gaming (Wi-Fi)
WS Z390 PRO

Intel Z390
Intel Socket 1151 for 9th/8th Gen Intel Core, Pentium Gold and Celeron processors
DDR4 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (1,164)

Any questions? Our AI beta will help you find out quickly.

Try me now

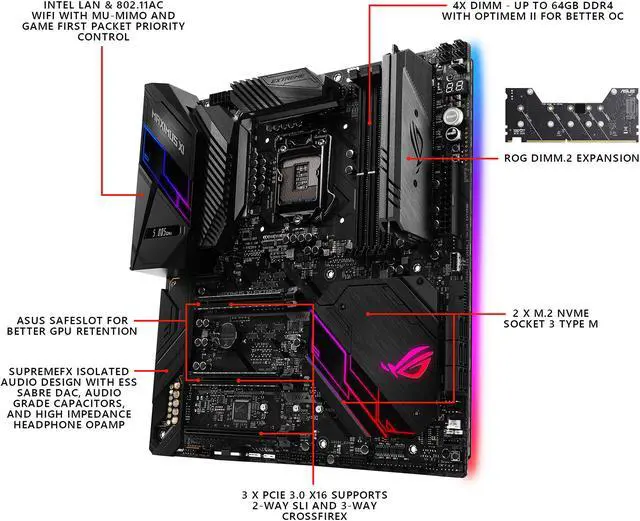

Intel Z390 EATX gaming motherboard with 802.11ac W-Fi, ROG DIMM.2 dual M.2 expansion card, Aura Sync RGB LED, DDR4 4400MHz, four M.2, SATA 6Gbps, HDMI and USB 3.1 Gen 2
- LGA1151 socket: Ready for 9th/8th Generation Intel® Core™ desktop processors.
- ROG Eco-System: ASUS-exclusive Aura Sync RGB lighting, including headers for both standard and addressable RGB strips
- Perfected cooling: Dedicated water-cooling zones, M.2 heatsink and flexible fan controls.

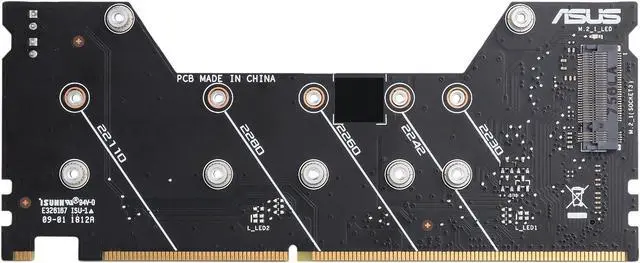

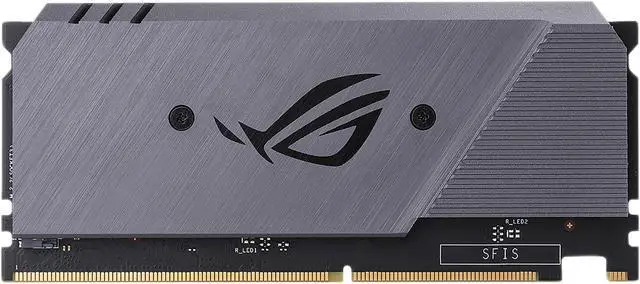

- ROG DIMM.2: Vertically-installed dual-M.2 expansion card with heatsink for maximum cooling and performance.
- 5-Way Optimization: Automated system-wide tuning, providing AI overclocking and cooling profiles tailor-made for your rig.
- Gaming connectivity: Aquantia 5G LAN and Intel Gigabit Ethernet onboard, four M.2, USB 3.1 Gen 2, Intel 2x2 802.11ac Wi-Fi with MU-MIMO support, LANGuard and GameFirst
- Gaming audio: High-fidelity sonics that draw you deeper into the action, with SupremeFX and Sonic Studio III
- Gaming durability: ROG patented pre-mounted I/O shield, ASUS SafeSlot, and premium components for maximum durability
ENVISION YOUR DREAM MACHINE
Maximus XI Extreme unleashes the power of the latest Intel Z390 platform for the best gaming experiences. With optimized overclocking, high-speed memory support and comprehensive water and fan cooling controls, Maximus XI Extreme delivers ultimate performance combined with efficient, reliable operation. A blacked-out aesthetic and Aura Sync RGB lighting provide striking, customizable styling for a gaming system with the looks to match its formidable power.
THRILLING PERFORMANCE
We've rethought and refined every aspect of Maximus XI Extreme to provide the foundation for extreme gaming systems that deliver the highest performance with efficient cooling. Featuring premium components, multiple fan headers, four M.2 slots, high speed memory support and onboard 5G Ethernet, Maximus XI Extreme is ready to take your gaming experience to new heights.
CONTROL YOUR RIG
Maximus XI Extreme is packed with intuitive and flexible tools that let you customize every aspect of your system to deliver the performance and features you want. Take advantage of 5-Way Optimization for intelligent, automatic overclocking or enjoy full manual control via comprehensive BIOS settings. Together with customizable audio profiles and tools to optimize storage and networking performance, Maximus XI Extreme gives you the ability to create an expertly tuned machine with minimal effort.
PERSONALIZED FOR YOU
In addition to extraordinary performance, Maximus XI Extreme provides extensive styling and customization options to let you build a system that truly stands apart. With a LiveDash OLED panel for displaying system stats and custom graphics and AURA RGB lighting that synchronizes with a vast ecosystem of compatible products, Maximus XI Extreme is primed for endless personalization.
THE POWER OF INTEL
Ready for Socket 1151 for 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors
This motherboard supports Socket 1151 for 9th Gen and 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors, with integrated graphics, memory and PCI Express controllers to support onboard graphics output with dedicated chipsets, dual-channel (4-DIMM) DDR4 memory and 16 PCI Express 3.0/2.0 lanes for great performance.

Model
Brand	ASUS
Series	ROG
Model	Maximus XI Extreme

Supported CPU
CPU Socket Type	LGA 1151 (300 Series)
CPU Type	Intel Socket 1151 for 9th/8th Gen Intel Core, Pentium Gold and Celeron processors * Not backward compatible with older generation of LGA 1151 CPUs * Refer to www.asus.com for CPU support list
Supported CPU Technologies	Supports Intel Turbo Boost Technology 2.0 * The Intel Turbo Boost Technology 2.0 support depends on the CPU types.

Chipsets
Chipset	Intel Z390

Onboard Video
Onboard Video Chipset	Integrated Graphics Processor - Intel UHD Graphics support VGA output support: HDMI port - Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz

Memory
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported	64GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 3.0 x16	Socket 1151 for 9th/8th Gen Intel Core, Pentium Gold and Celeron processors 2 x PCIe 3.0/2.0 x16 (x16 or dual x8) Intel Z390 Chipset 1 x PCIe 3.0/2.0 x16 (max at x4 mode) * * When SATA56 is enabled, PCIE x16_3 will run at x2 mode.
PCI Express x1	1 x PCIe 3.0/2.0 x1

Storage Devices
Serial ATA (SATA)	6 x SATA 6Gb/s
M.2	Socket 1151 for 9th/8th Gen Intel Core, Pentium Gold and Celeron processors: 1 x ROG DIMM.2 Module support (CPU_DIMM.2), with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x4 mode)* Intel Z390 Chipset: 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x4 mode)** 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x4 mode) * The DIMM.2 Slots (M.2_1/2) are disabled by default. Please adjust BIOS settings to enable DIMM.2 Slots. ** When M.2_1 socket 3 is operating in SATA mode, SATA port 2 will be disabled.
Intel Optane Ready	Yes
SATA RAID	0/1/5/10

Onboard Audio
Audio Chipset	ROG SupremeFX High Definition Audio CODEC S1220
Audio Channels	8 Channels * Due to limitations in HDA bandwidth, 32-Bit / 192 kHz is not supported for 8-Channel audio.

Onboard LAN
LAN Chipset	1 x Aquantia AQC111C 5G LAN
Second LAN Chipset	Intel I219V
Max LAN Speed	5Gbps + 1Gbps
Wireless LAN	Intel Wireless-AC 9560 Wi-Fi 802.11 a/b/g/n/ac Supports dual band frequency 2.4/5 GHz Supports MU-MIMO Supports channel bandwidth: HT20/HT40/HT80/HT160
Bluetooth	Bluetooth 5.0

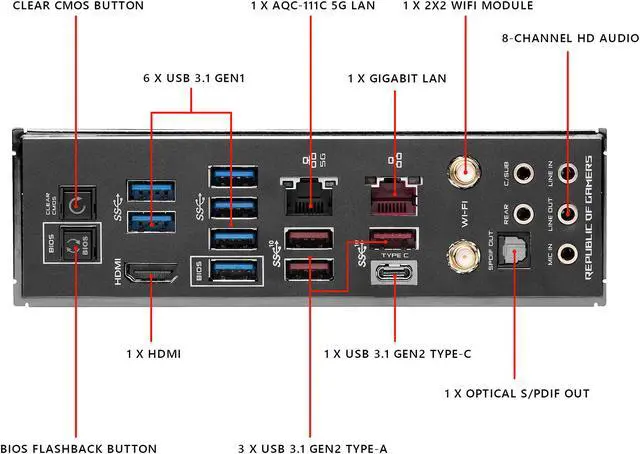

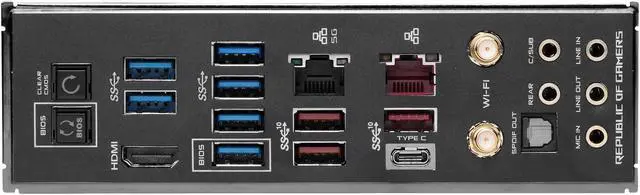

Rear Panel Ports
HDMI	1 x HDMI
RJ45	1 x LAN (RJ45) port(s) 1 x AQC-111C 5G LAN port
USB 3.1	3 x USB 3.1 Gen 2 (3 x Type-A) 6 x USB 3.1 Gen 1
USB Type-C	1 x USB 3.1 Gen 2 (USB Type-C)
S/PDIF Out	1 x Optical
Audio Ports	5 x LED-illuminated audio jacks
Antenna Connectors	1 x ASUS Wi-Fi Module

Internal I/O Connectors
Onboard USB	1 x USB 3.1 Gen 2 front panel connector 2 x USB 3.1 Gen 1 (up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
Other Connectors	1 x W_PUMP+ 1 1 x W_PUMP+ 2 1 x WB_SENSOR 2 x Aura Addressable Strip Header(s) 2 x Aura RGB Strip Headers 1 x CPU Fan connector(s) (1 x 4-pin) 1 x CPU OPT Fan connector(s) (1 x 4-pin) 2 x Chassis Fan connector(s) (2 x 4-pin) 1 x Thunderbolt header(s) 1 x Front panel audio connector(s) (AAFP) 1 x 5-pin EXT_FAN (Extension Fan) connector 1 x MemOK! II switch(es) 1 x Slow Mode switch(es) 9 x ProbeIt Measurement Points 1 x Reset button(s) 1 x BIOS Switch button(s) 1 x Node Connector(s) 1 x LN2 Mode jumper(s) 1 x Safe Boot button 1 x ReTry button 1 x System panel connector 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 1 x Thermal sensor connector 1 x Start button 1 x RSVD Switch 8 x Radiator Fan Headers

Physical Spec
Form Factor	Extended ATX
LED Lighting	RGB
Dimensions (W x L)	12.0" x 10.9"
Power Pin	1 x 24-pin EATX Power connector(s) 2 x 8-pin EATX 12V Power connectors 1 x 4-pin EZ_PLUG Power connector(s)

Features
Features	Multi-GPU Support: Supports NVIDIA 2-Way SLI Technology Supports AMD 3-Way CrossFireX Technology ROG Exclusive Features: ReTry Button Start Button Reset Button Extreme Engine Digi+: - MicroFine Alloy Chokes - 10K Black Metallic Capacitors - OptiMOS MOSFET Mem TweakIt Extreme Tweaker ROG Exclusive Software - Mem Tweakit - RAMCache III - RAMDisk - CPU-Z - GameFirst V - Sonic Studio III + Sonic Studio Link - Sonic Radar III Special Features: ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5: - 5-Way Optimization tuning key perfectly consolidates TPU Insight, EPU Guidance, DIGI+ VRM, Fan Expert 4, and Turbo App AURA: - Aura Lighting Control - Aura RGB Strip Headers - Aura Lighting Effects Synchronization with compatible ASUS ROG devices - Aura Addressable Strip Header(s) ASUS Exclusive Features: - USB BIOS Flashback - MemOK! II - AI Suite 3 - Ai Charger - Pre-mounted I/O Shield - ASUS NODE: hardware control interface ASUS EZ DIY: - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 ASUS Q-Design: - ASUS Q-Code - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector Overclocking Protection: - ASUS C.P.R. (CPU Parameter Recall) MemOK! II OptiMem II BIOS: 2 x 128MB Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, SM BIOS 3.1, ACPI 6.1 Manageability: WOL, PXE Operating System: Windows10 64-bit

Packaging

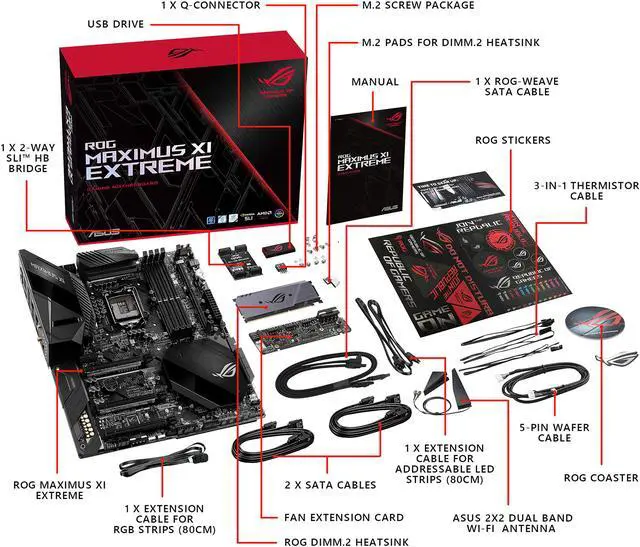

Package Contents	Accessories: User's manual 1 x ROG logo plate sticker 4 x SATA 6Gb/s cable(s) 3 x M.2 Screw Package 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11 a/b/g/n/ac compliant) 1 x Fan Extension Card (3 x 4-pin fan out) 1 x Fan Extension card screw pack 1 x Fan Extension card cable 1 x SLI HB BRIDGE (2-WAY-M) 1 x ROG big sticker 1 x Q-Connector 1 x Extension Cable for RGB strips (80cm) 1 x Extension cable for Addressable LED 1 x USB drive with utilities and drivers 1 x ROG coaster(s) 2 x ROG weave SATA 6G cable
