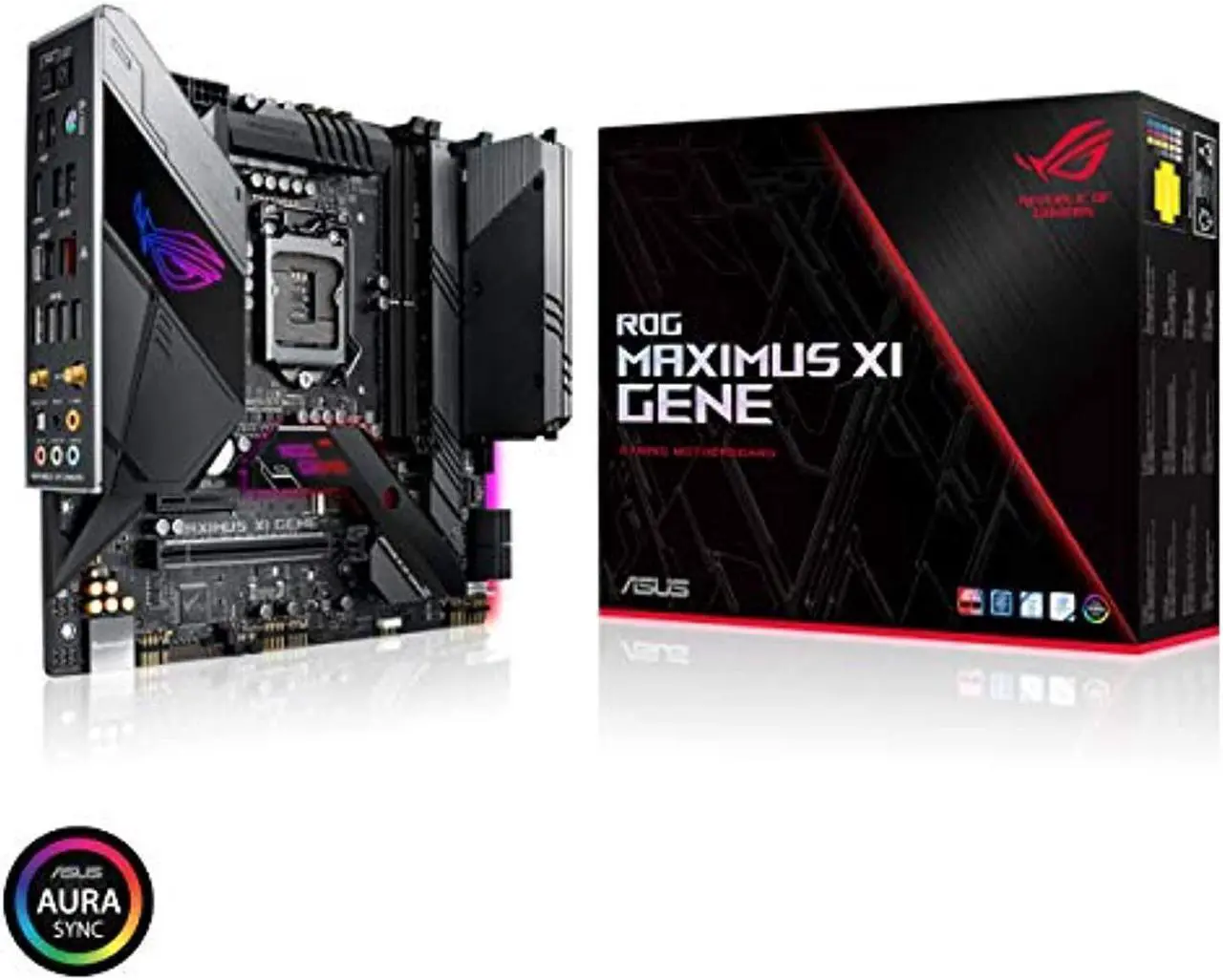

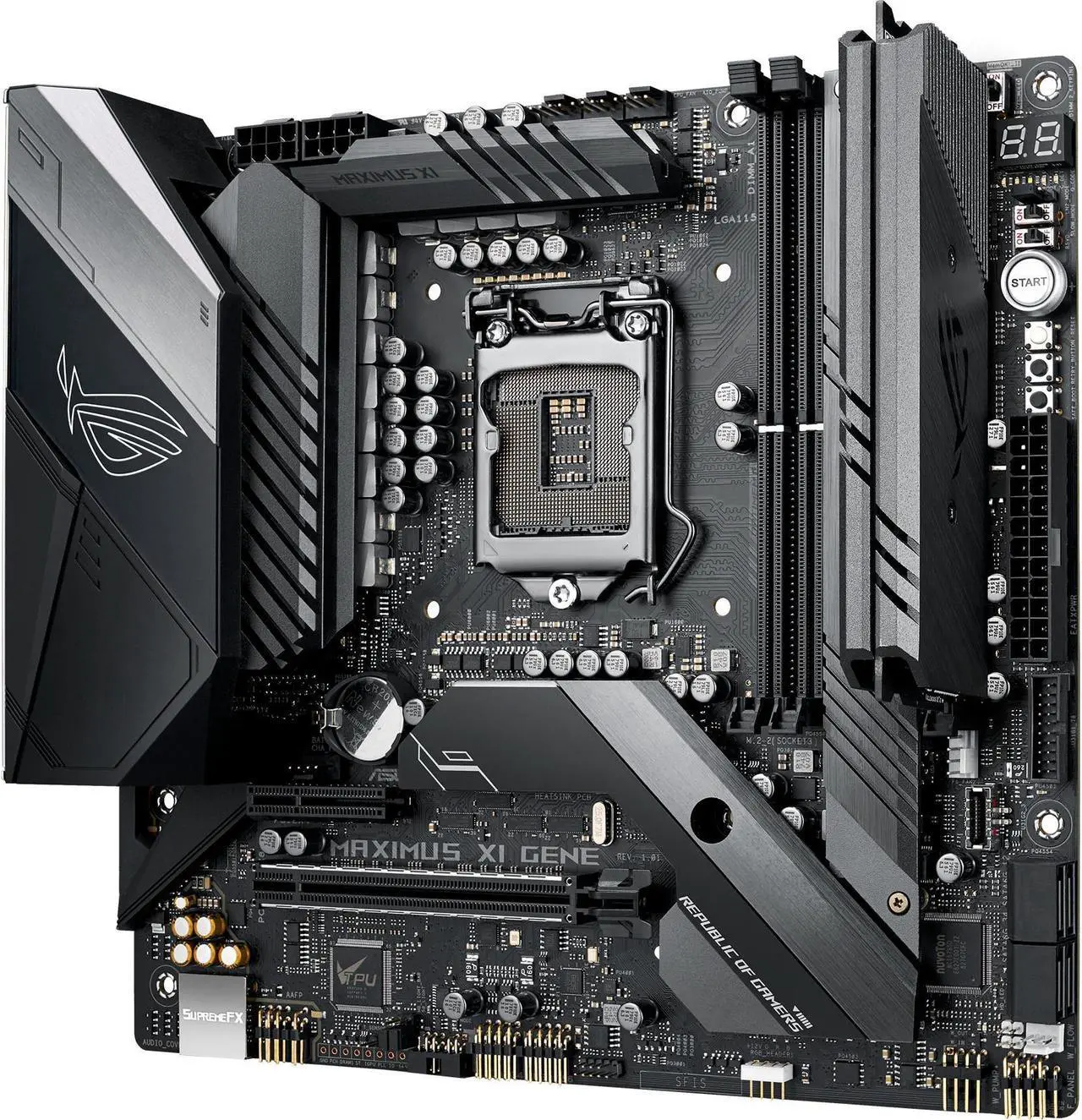

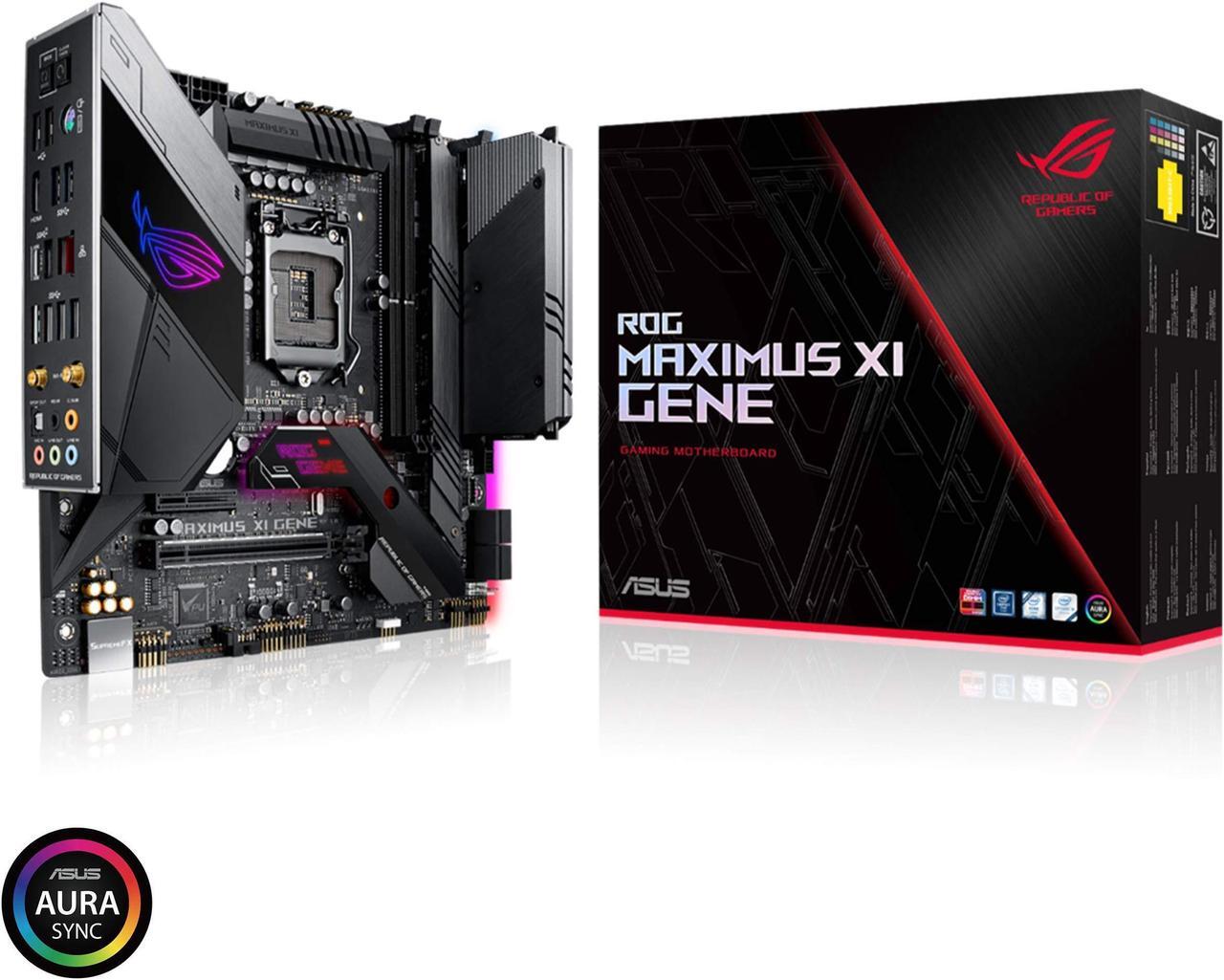

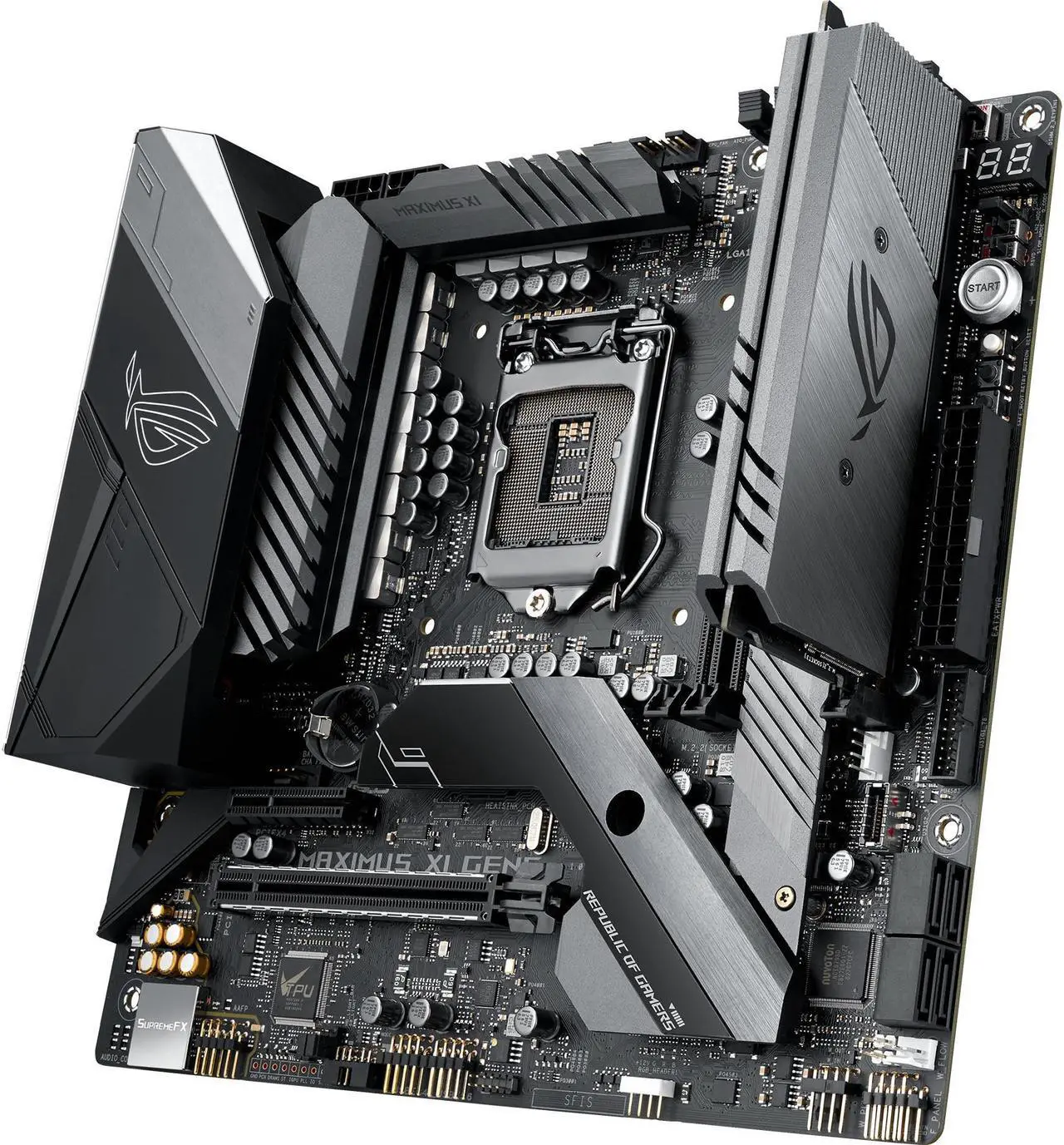

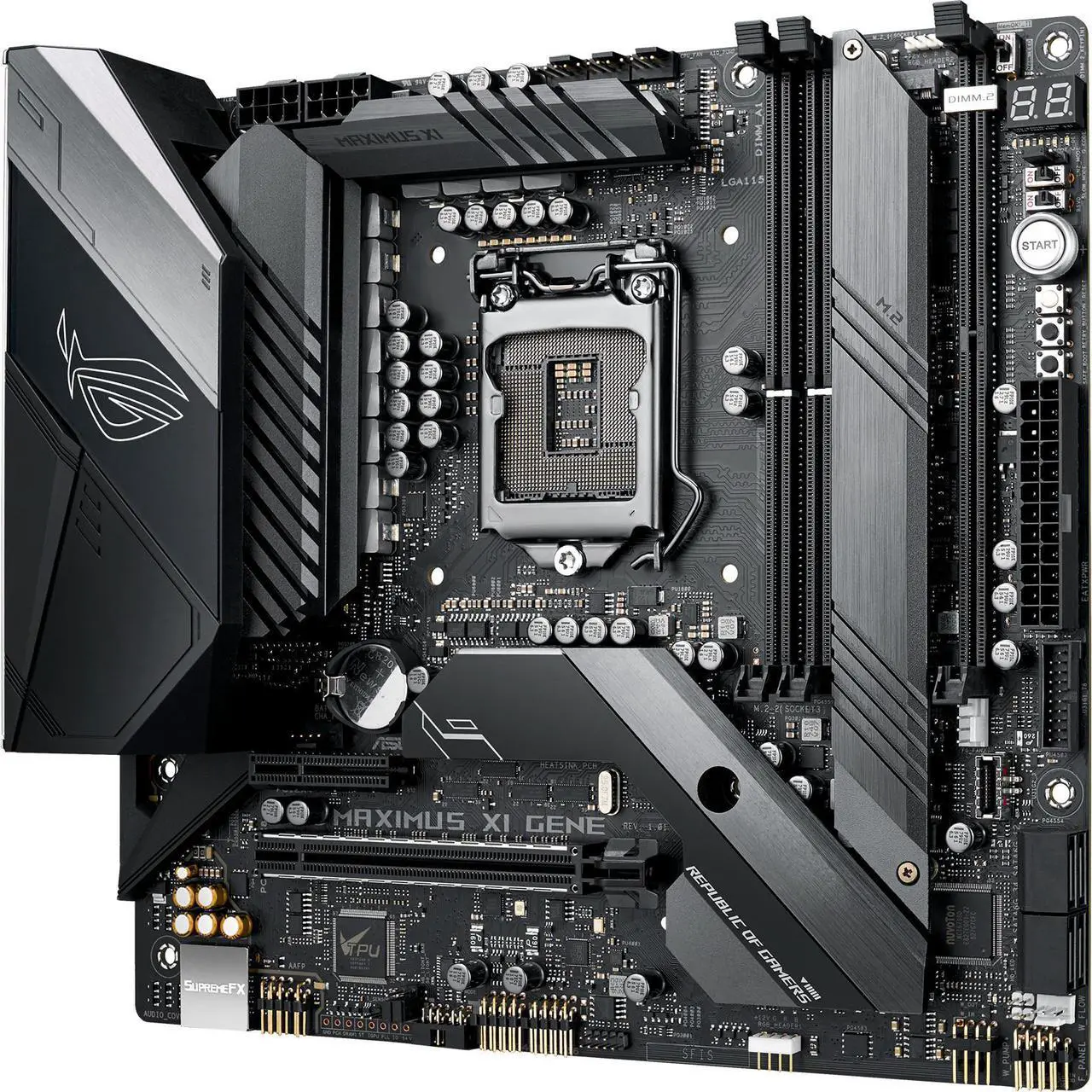

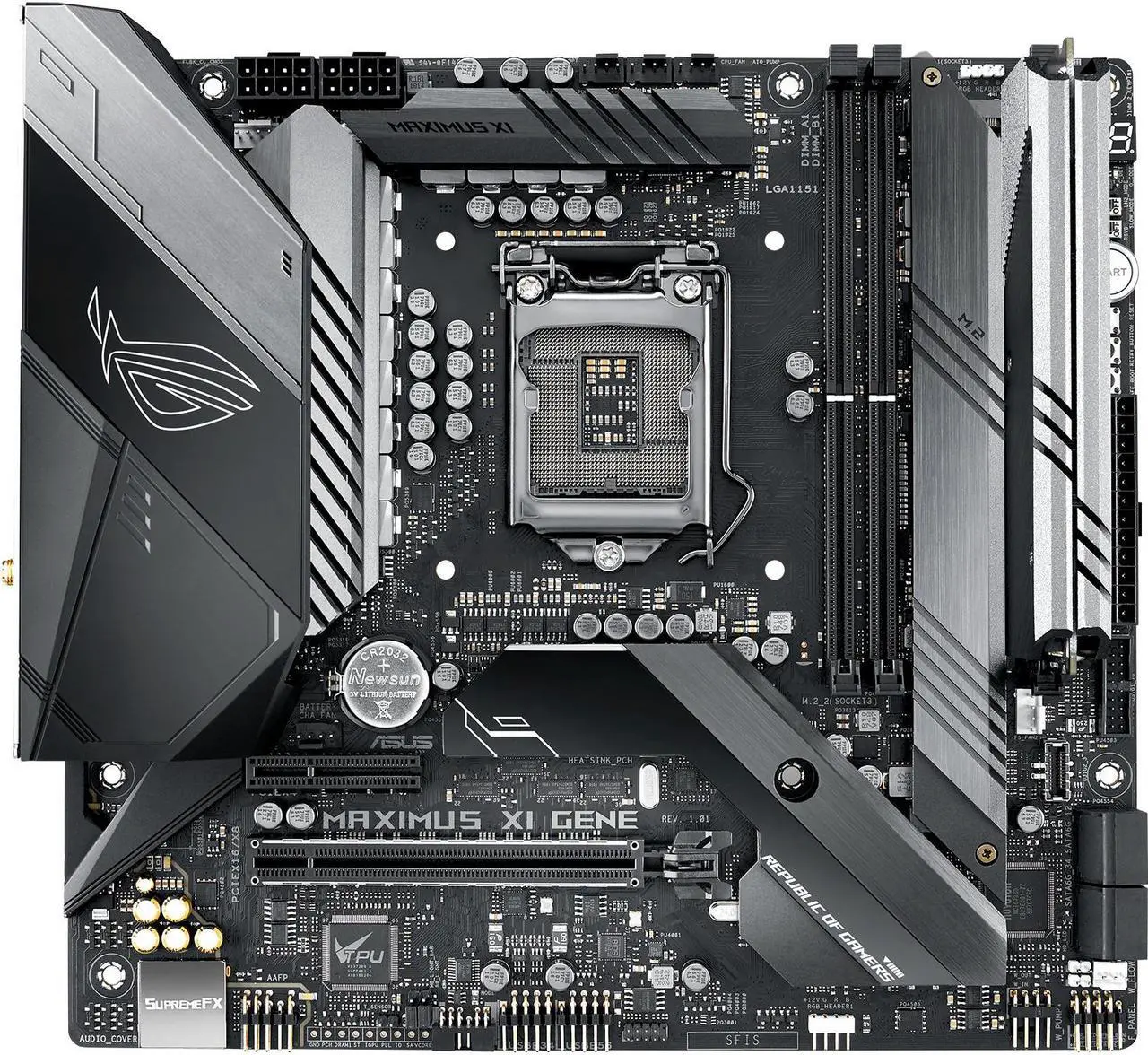

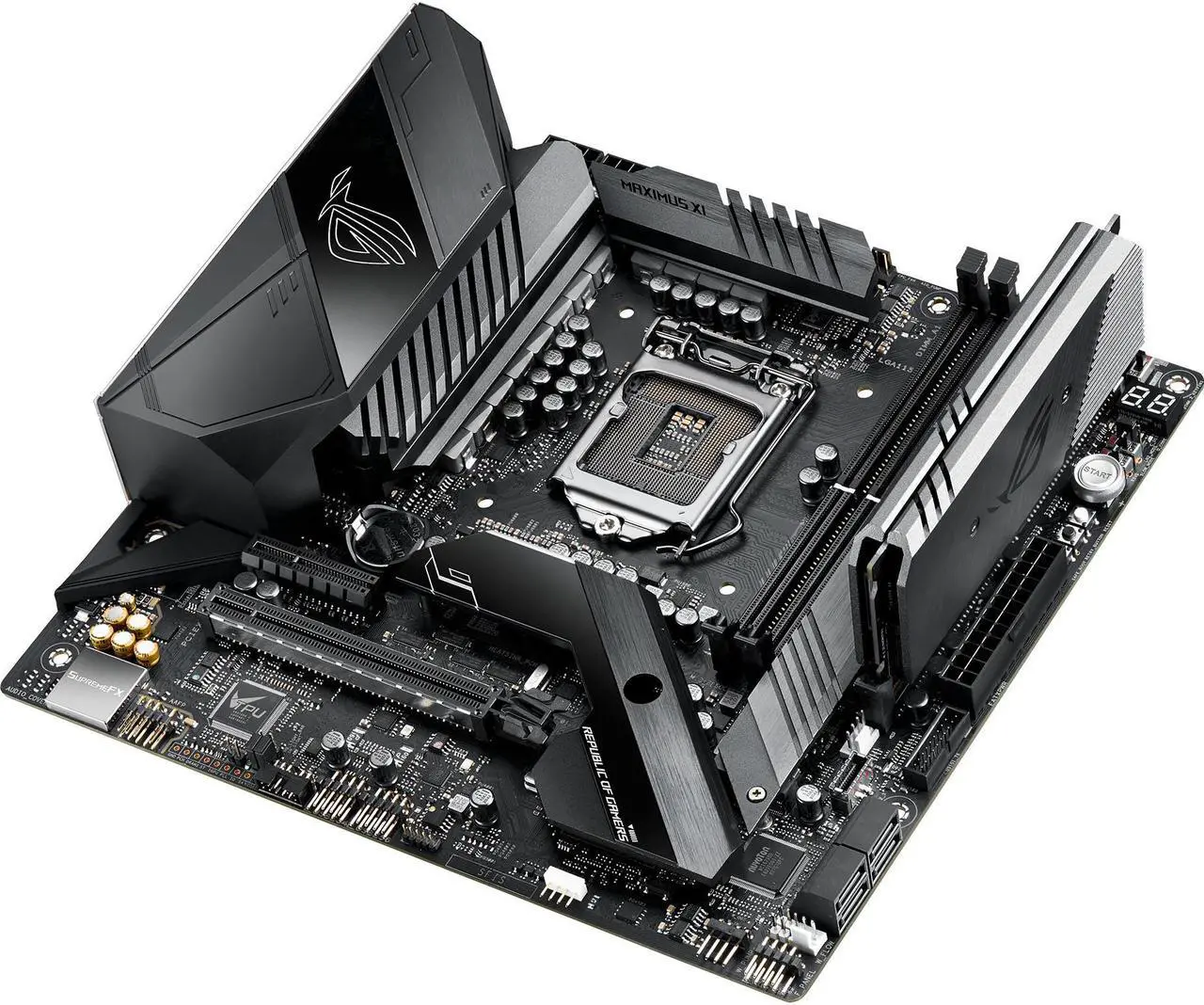

ASUS ROG MAXIMUS XI GENE Motherboard
ASUS MAXIMUS XI GENE lets you configure big for your SFF mATX gaming rig. Intel 9th/8th generation Core processor, two DDR4 memory modules with up to 64 GB capacity, four M.2 SSDs can be installed for beast horsepower. Comprehensive support for airflow and liquid cooling solutions lets you tailor a cooling portfolio to keep all components cool. You can do manual overclocking and tuning, or turn to AI overclocking. No matter the way, you can enjoy cranked-up performance with accompanied stylish RGB lighting.
THRILLING PERFORMANCE
WORLD RECORDS SMASHED
With its optimized layout, high-quality components, and ability to withstand the rigors of sub-zero operation with liquid-nitrogen (LN2) and helium (LHe), Maximus XI Gene has already smashed 10 world records and scored 11 global first-places in the 8-core CPU category.
* World records and global first-place positions were verified on 19 Oct 2018, and are recorded at HWBOT.org.

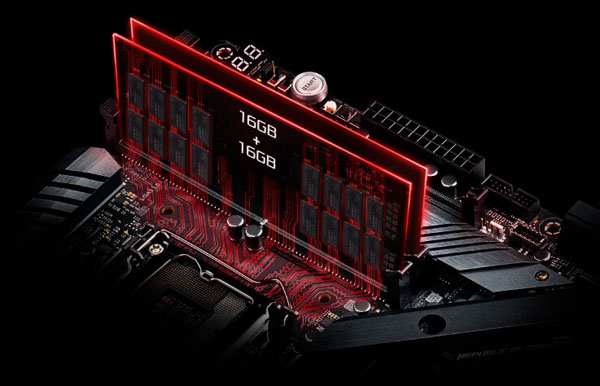

DOUBLE-CAPACITY DIMM SUPPORT
Maximus XI Gene features a unique memory-trace design that supports up to 32GB per slot for a total memory capacity of 64GB. With double-capacity UDIMM modules, Maximus XI Gene delivers four-DIMM memory capacity in a compact, dual-DIMM design. The acclaimed ROG firmware offers the necessary tweaks to ensure stability while maximizing memory performance. Maximus XI Gene supports DDR4 4800 MHz.
BUILT FOR OVERCLOCKING
ROG Maximus XI Gene features a dedicated onboard clock generator that supplies dynamic reference clocks to the CPU cores and major subdomains, giving you the freedom to coax every MHz of headroom from the system.
It also comes with an overclocker's toolkit with hardware-level controls to aid your overclocking experience, including a Pause switch to halt the system, Safe Boot and ReTry buttons, an LN2 mode jumper to aid POST at sub-zero temperatures and a Slow mode switch. Combined, they're quick and easy time-savers designed to help you break more records.
1. MEMOK! II
DRAM Auto Training Switch.
2. QLED
4 LEDs to show current boot status.
3. LN2 Mode
Jumper to enable special options and functions for liquid-nitrogen (LN2) overclocking.
4. Pause Switch
Activate to pause the system and fine-tune OC parameters mid-benchmark.
5. Slow Mode Switch
Instantly reduces the CPU ratio to 8X to bypass finicky benchmark passages.
6. ReTry Button
One press instantly initiates a hard reset.
7. Safe Boot Button
Instantly reset the PC and boot directly in to a safe mode.
8. ProbeIt
Check the voltage via integrated measurement points.
COMPREHENSIVE COOLING ZONE
ROG Maximus XI Gene features the most comprehensive cooling controls ever, configurable via Fan Xpert 4 or the UEFI BIOS.
Multiple temperature sources
Each header can be set to monitor and react to three user-configurable thermal sensors, for workload based cooling. All easily managed by Fan Xpert 4 or UEFI.
4-pin PWM/DC fan
Every onboard header supports auto-detection of PWM or DC fans.
* W_PUMP+ and AIO PUMP are also PWM/DC controllable.
Water pump+
A dedicated header that can supply over 3A to high-performance PWM or DC water pumps.
AIO pump
An All-In-One header that supports auto-detection of PWM, DC fans and water pumps.
Full Speed
Three full speed fan headers for targeted airflow during extreme overclocking.
Water flow
Allows for constant monitoring of the flow rate of entire loop.
Water in/out
Allows for monitoring of temperature at the input/out of any component.
UNTHROTTLED TRANSFER SPEED
The Maximus XI Gene has provision for four M.2 drives to make the most of Intel's IRST options. Two ride our DIMM.2 module next to the memory slots, while two slot under the extended M.2 heatsink.
ROG DIMM.2 module is an innovative expansion card that allows two M.2 drives to be connected via a DDR4 interface. You can then add a metal heatsink , helping to control thermals for maximum performance while elevating the aesthetics.
CONTROL YOUR RIG
ROG provides the best firmware and utilities to give you complete control of your system. With powerful overclocking via the acclaimed UEFI BIOS or automatic 5-Way Optimization, audio profile tweaking and intuitive tools to optimize storage and networking performance, Maximus XI Gene comes with everything you need to customize your experience exactly how you want.

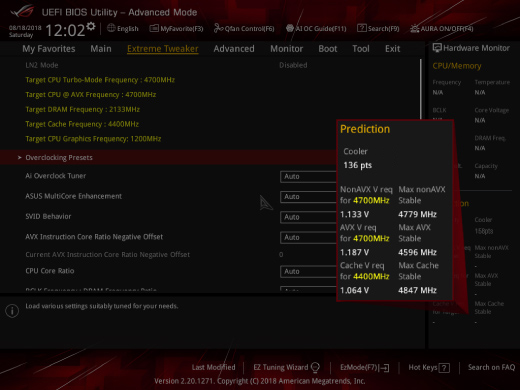

AI OVERCLOCKING
ASUS AI Overclocking makes automatic tuning faster and smarter than ever before. Available in Windows or directly through the UEFI, it profiles the CPU and cooling to predict the optimal configuration for each individual system.
5-WAY OPTIMIZATION
Take care of complex tuning with just one click. ASUS 5-Way Optimization is a system-wide tuning utility that overclocks the processor and tunes fan speeds to ensure the best balance between cooling and acoustics. The automated CPU tuning feature of 5-Way Optimization leverages the same onboard intelligence as AI Overclocking,but goes further by running a Prime95 based stress test to deliver a result that's well-tuned from the get-go.
UEFI BIOS
The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as comprehensive features for seasoned veterans.

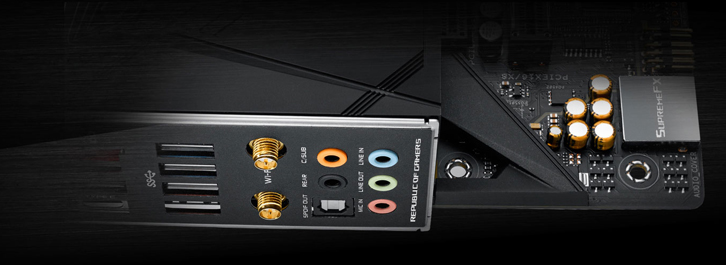

SupremeFX
Immerse yourself in sound with SupremeFX audio technology. Utilizing the S1220A codec, SupremeFX is the integrated-audio solution that's engineered to provide a flat frequency response for a neutral, detailed sound signature. And to ensure that pristine signature is perfectly preserved, the front-panel output is driven with ESS ES9023P digital-to-analog converter, delivering sonics with the scale and authority to create virtual worlds via your gaming headset.
SONIC RADAR III
Enjoy visualized audio detail that eliminates the need to crank up the volume. It's the perfect tool for practice rounds and tuning untrained ears.
SONIC STUDIO III
Explore a range of EQ options and one-click presets that allow you to tailor acoustics to suit personal preferences or the characteristics of your audio device, and make use of the new APO-injection technology apply your audio profiles to USB, HDMI and Bluetooth gear.

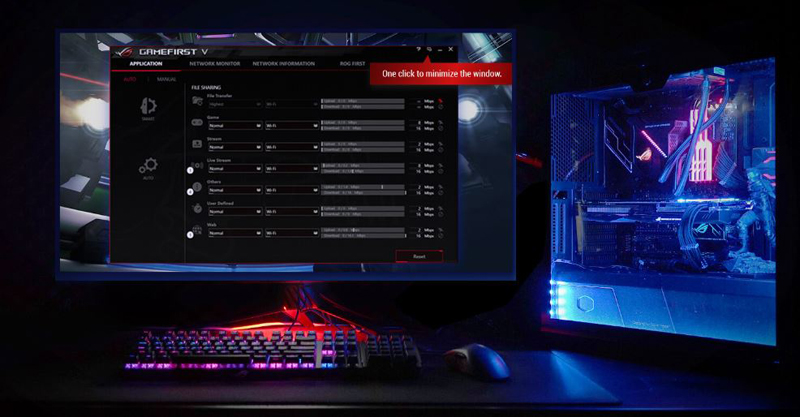

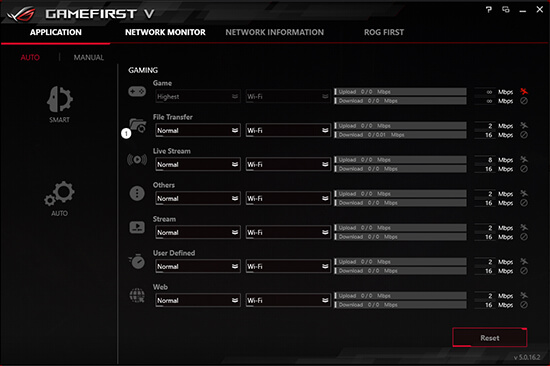

GAMEFIRST V
GameFirst V is the ROG-exclusive tool that optimizes network traffic for faster, lag-free online gaming. Team your gateways, keeps tabs on bandwidth-hogging apps and make adjustments on the fly.
ALL NEW STATUS OVERLAY

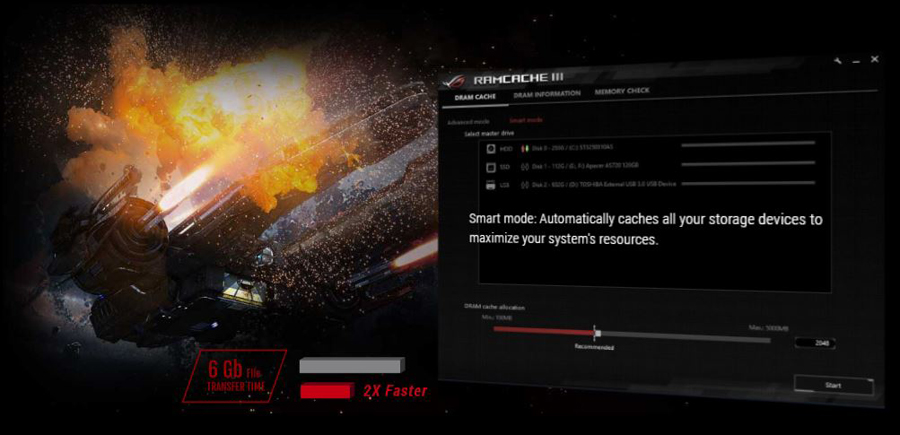

RAMCACHE III
RAMCache turns milliseconds into microseconds to boost game-load times. Fully compatible with the latest NVM Express storage options, its uniquely intelligent technology effectively caches an entire storage device so that favorite games and apps launch at breakneck speeds.

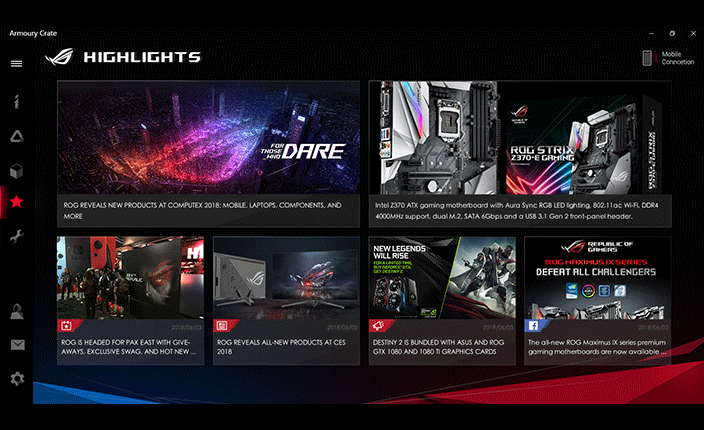

ARMOURY CRATE
The brand-new Armoury Crate portal keeps you updated with the latest drivers and BIOS releases. Its easy-to-use UI can be configured to show a variety of information, including security updates, bug patches, the latest ROG news, gaming events and special offers.

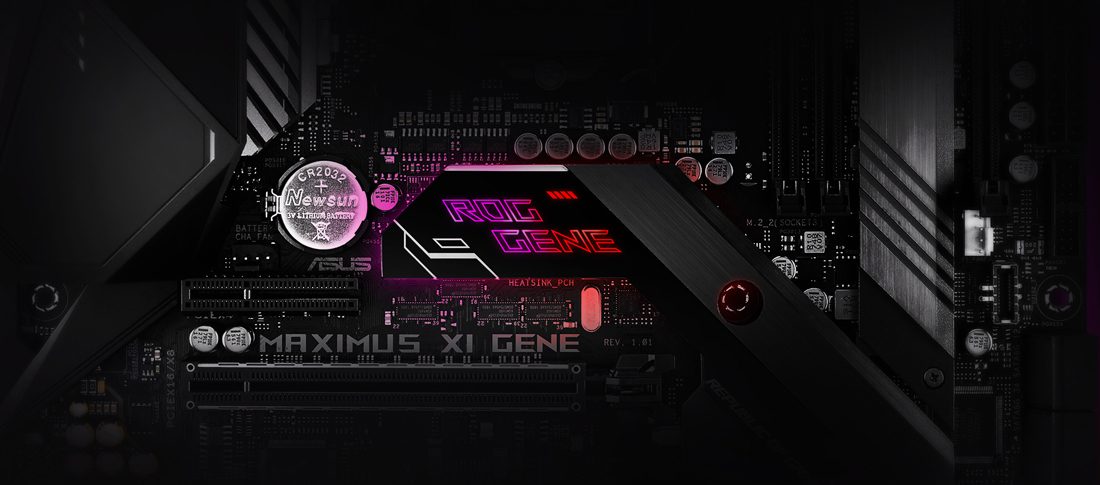

PERSONALIZED FOR YOU
ROG works extensively with industry partners and performs extensive testing to ensure Maximus XI Gene provides seamless compatibility with a wide range of graphics cards, DRAM modules, coolers, cases and other components and peripherals. Together with AURA RGB lighting that synchronizes with a vast ecosystem of compatible products, Maximus XI Gene is primed for endless personalization.
