how many usb 3.0 connectors? looking for a motherboard with 2 because my corsair 7000x case has 4 front panel 3.0 connectors and it comes with 2 cables to connect to the motherboard.

I looked up the cables that are included with your case and the 2 USB cables will connect to the USB 5 Gbps and USB 20 Gbps ports on the motherboard

if i istall SSD in M.2_1 slot will my geforce RTX 4090 only run at half speed?

Only if it is a gen 5 NVMe and you have it set to run at gen 5 PCIe speeds. If it is a gen 3 or 4 drive, I recommend installing in one of the other 4 M2 slots since they can't benefit from gen 5 speeds anyway (the other slots are gen 4).

$1,192^.93

Free 30-day Returns

Limit 99999 per customer.

Ships from Hong Kong.

Price alert

Add to wish list

Sold by roboshine

Top Rated

4.5 (152 seller ratings)

Shipped by roboshine

Meet Your Seller

roboshine

See Seller Store

Get Educated

Make informed decisions with expert advice. Learn More

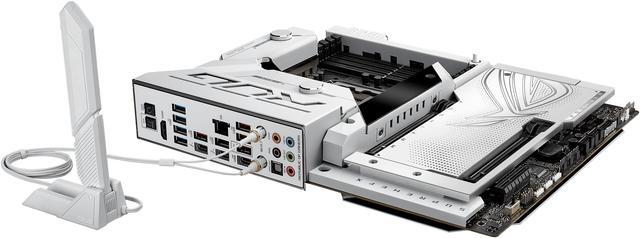

Main image of ASUS ROG MAXIMUS Z790 FORMULA LGA 1700(Intel®14th &13th&12th Gen) ATX gaming motherboard designed for water-cooling (HybridChill, ROG Water-Cooling Zone, 20+1+2 power stages, DDR5 with AEMP II & DIMM Flex,Wi-Fi 7 with ASUS WiFi Q-Antenna,

Alt view image 2 of 7 - ASUS ROG MAXIMUS Z790 FORMULA LGA 1700(Intel®14th &13th&12th Gen) ATX gaming motherboard designed for water-cooling (HybridChill, ROG Water-Cooling Zone, 20+1+2 power stages, DDR5 with AEMP II & DIMM Flex,Wi-Fi 7 with ASUS WiFi Q-Antenna,

Alt view image 3 of 7 - ASUS ROG MAXIMUS Z790 FORMULA LGA 1700(Intel®14th &13th&12th Gen) ATX gaming motherboard designed for water-cooling (HybridChill, ROG Water-Cooling Zone, 20+1+2 power stages, DDR5 with AEMP II & DIMM Flex,Wi-Fi 7 with ASUS WiFi Q-Antenna,

Alt view image 4 of 7 - ASUS ROG MAXIMUS Z790 FORMULA LGA 1700(Intel®14th &13th&12th Gen) ATX gaming motherboard designed for water-cooling (HybridChill, ROG Water-Cooling Zone, 20+1+2 power stages, DDR5 with AEMP II & DIMM Flex,Wi-Fi 7 with ASUS WiFi Q-Antenna,

Alt view image 5 of 7 - ASUS ROG MAXIMUS Z790 FORMULA LGA 1700(Intel®14th &13th&12th Gen) ATX gaming motherboard designed for water-cooling (HybridChill, ROG Water-Cooling Zone, 20+1+2 power stages, DDR5 with AEMP II & DIMM Flex,Wi-Fi 7 with ASUS WiFi Q-Antenna,

Alt view image 6 of 7 - ASUS ROG MAXIMUS Z790 FORMULA LGA 1700(Intel®14th &13th&12th Gen) ATX gaming motherboard designed for water-cooling (HybridChill, ROG Water-Cooling Zone, 20+1+2 power stages, DDR5 with AEMP II & DIMM Flex,Wi-Fi 7 with ASUS WiFi Q-Antenna,

Alt view image 7 of 7 - ASUS ROG MAXIMUS Z790 FORMULA LGA 1700(Intel®14th &13th&12th Gen) ATX gaming motherboard designed for water-cooling (HybridChill, ROG Water-Cooling Zone, 20+1+2 power stages, DDR5 with AEMP II & DIMM Flex,Wi-Fi 7 with ASUS WiFi Q-Antenna,

Customer images

Shop All ASUS Products | Visit Roboshine Store

ASUS ROG MAXIMUS Z790 FORMULA LGA 1700(Intel®14th &13th&12th Gen) ATX gaming motherboard designed for water-cooling (HybridChill, ROG Water-Cooling Zone, 20+1+2 power stages, DDR5 with AEMP II & DIMM Flex,Wi-Fi 7 with ASUS WiFi Q-Antenna,

(162)(40) Write a Review

Option: ROG MAXIMUS Z790 FORMULA

ROG MAXIMUS Z790 FORMULA
ROG MAXIMUS Z790 APEX ENCORE
ROG MAXIMUS Z790 DARK HERO
ROG STRIX Z790-E GAMING WIFI II
ROG STRIX Z790-F GAMING WIFI II
ROG STRIX Z790-A GAMING WIFI II

BIOS update may be required when used with some 14th generation Intel Core processors, visit ASUS support website for more information
Intel LGA 1700 Socket: Ready for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors
Robust Power Solution: 20+1+2 power stages with dual ProCool II power connectors, high-quality alloy chokes, and durable capacitors to support multi-core processors.
Latest M.2 Support: Onboard PCIe 5.0 M.2 slot and four PCIe 4.0 M.2 slots, all with substantial cooling solutions.
Abundant Connectivity: Dual Thunderbolt 4 USB Type-C ports, USB 20Gbps Type-C front-panel connector with Quick Charge 4+ up to 60W and USB Wattage Watcher, six additional USB 10Gbps ports, two PCIe 5.0 x16 SafeSlots, HDMI 2.1
High-Performance Networking: On-board Intel Wi-Fi 7 (802.11be) and Realtek 5 Gb Ethernet with ASUS LANGuard
Intelligent Control: ASUS-exclusive AI Over

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (162)

Model
Brand	ASUS
Series	ROG
Model	ROG MAXIMUS Z790 FORMULA
Part Number	90MB1FS0-M0AAY0

Supported CPU
CPU Socket Type	LGA 1700
CPU Type	Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipsets
Chipset	Intel Z790

Memory
Number of Memory Slots	4 x DIMM slots, max. 192GB, DDR5
Memory Standard	DDR5 8000 (OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory* Dual channel memory architecture Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile II (AEMP II) Supports DIMM Flex * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Maximum Memory Supported	256GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 5.0 x16	Intel® CoreTM Processors (14th & 13th & 12th Gen)* 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)**
Other Slots	Intel® Z790 Chipset 1 x PCIe 4.0 x4 slot * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). ** M.2_1 shares bandwidth with PCIEX16(G5)_2. When M.2_1 is enabled, PCIEX16(G5)_2 will be disabled and PCIEX16(G5)_1 will run x8 only. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Storage Devices
Serial ATA (SATA)	4 x SATA 6Gb/s
M.2	Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® CoreTM Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® Z790 Chipset M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. ** M.2_1 shares bandwidth with PCIEX16(G5)_2. When M.2_1 is enabled, PCIEX16(G5)_2 will be disabled and PCIEX16(G5)_1 will run x8 only.
SATA RAID	Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.

Onboard Audio
Audio Channels	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input - Supports up to 32-Bit/384 kHz playback on front panel Audio Features - SupremeFX Shielding Technology - ESS® ES9218 QUAD DAC - Gold-plated audio jacks - Rear optical S/PDIF out port - Premium audio capacitors * The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.

Onboard LAN
Max LAN Speed	1 x Realtek 5Gb Ethernet ASUS LANGuard
Wireless LAN	Intel® Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band* Support Wi-Fi 7 320MHz bandwidth, up to 5.76Gbps transfer rate. Bluetooth® v5.4**** * Compatible with Windows 11 or later. Wi-Fi 7 MLO(Multi-link Operation) full functions support will be ready in Windows 11 2024 Platform (Windows 11 24H2) or later. * Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. **** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
Bluetooth	Bluetooth® v5.4****

Rear Panel Ports

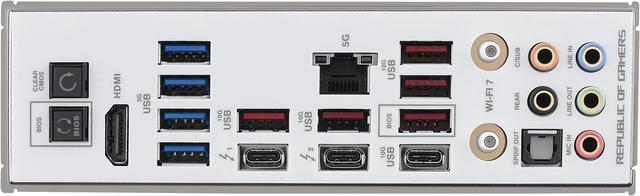

Back I/O Ports	2 x Thunderbolt™ 4 USB Type-C® ports 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C®) 4 x USB 5Gbps ports (4 x Type-A) 1 x HDMITM port 1 x Wi-Fi module 1 x Realtek 5Gb Ethernet port 5 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button

Internal I/O Connectors
Other Connectors	Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x W_PUMP+ header 1 x 2-pin Water In header 1 x 2-pin Water Out header 1 x 3-pin Water Flow header Power Related 1 x 24-pin main power connector 2 x 8-pin +12V power connectors 1 x 8-pin PCIe power connector Storage Related 5 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C® ) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Alteration PCIe mode switch 1 x Aura RGB header 1 x CPU over voltage jumper 1 x FlexKey button 1 x Front panel audio header (F_AUDIO) 1 x ReTry button 1 x Start button 1 x 10-1 pin system panel header 1 x Thermal sensor header

Software Feature
Windows 11	Windows® 11, Windows® 10 64-bit

Physical Spec
Form Factor	ATX
Dimensions (W x L)	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Features
Features	Extreme OC Kit - FlexKey button - ReTry button - Start button Extreme Engine Digi+ - 10K Black metallic capacitors - MicroFine alloy choke ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-Antenna - Q-Code - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - HybridChill VRM block - M.2 heatsink backplate - M.2 heatsink - Metal backplate - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - Clear CMOS button - CPU Socket lever protector - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Aura RGB header - Addressable Gen 2 headers OLED 2" Front Panel USB 20Gbps with Quick Charge 4+ Support - Support: up to 60W fast charging and USB Wattage Watcher* - Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A - Compatible with PD3.0 and PPS * To support 60W, please install the power cable to the 6-pin PCIe power connector or else only 27W will be supported.

Additional Information
First Listed on Newegg	September 01, 2024
