Question 1

i have a Intel core i7 930 Bloomfield socket 1366 LGA,  will this CPU work in the new rampage extreme board , i currently have rampage 3 extreme?

Accepted Answer

No. Your Intel processor is based on Intel's Socket 1366 LGA technology where the Intel processor has 1,366 pads providing 1,366 points of contact which interface with the appropriate connector on the motherboard which has 1,366 contact point pins which mate with the pads on the Intel processor. The ASUS ROG Rampage VI Extreme motherboard is based on Intel's Socket 2066 technology which has 700 more points of contact. If you purchase this motherboard then you're to have to purchase a compatible processor, too.

Question 2

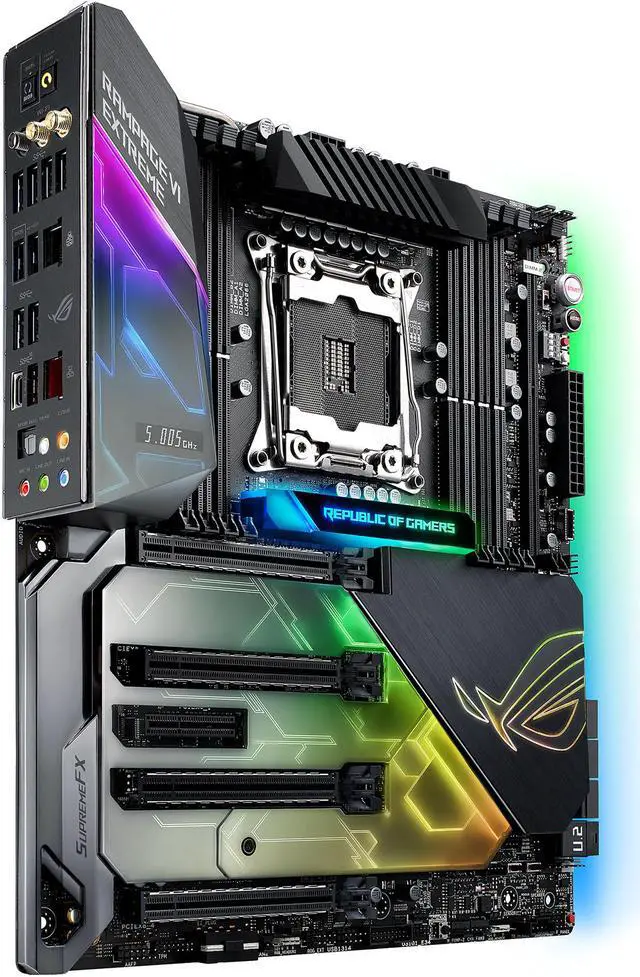

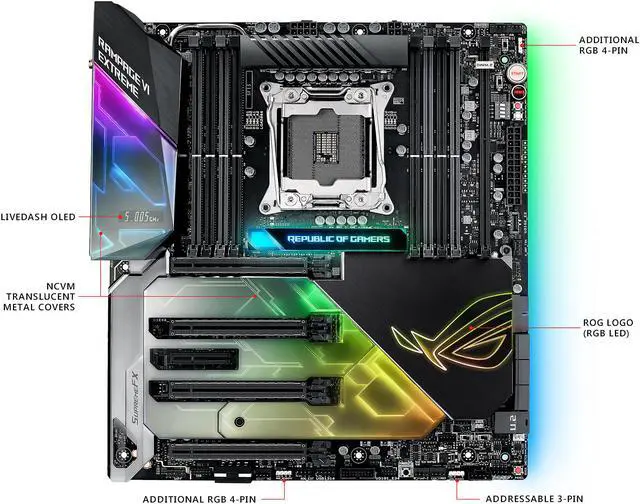

Does the panels light up like in the pictures?

Accepted Answer

Not only does it light up like the pictures, there's a little OLED display on the left if you look closely. You can set it to show current CPU speed, CPU temperature... or apparently whatever you want. Including setting your own text or a graphical logo.

I have the board, but I haven't tried playing with that little display yet...

Question 3

Will this board support the 7 new Skylake-X Refresh CPUs that Intel announced yesterday?  I chatted with ASUS support yesterday and they were not helpful.

Accepted Answer

" yes" that being said! What I've read so far is they support the 2066 socket, and the X299 chipset. Now does that mean a drop in well time will tell!! There was a leak about new MB with chipsets Z399 that might come along with this new generation. this is the bulk of what I can find out about your question! I hope it helps!

Question 4

is this board up gradable for future?

Accepted Answer

Well, not sure what upgrade your referring too! All the abilities are well documented! As for cooling there's EKWB, they make specialized components for this board! So to answer your question which ever high end components you use will be the upgrades! Just check the venders list to be sure your getting the components that will work with this board!! Vroc issues are well documented in forums for this board. Just choose wisely! You won't go wrong!! It's a amazing motherboard!

Question 5

Does it have space for a EVGA 1080 ti FTW3 graphic card in the last socket?

Accepted Answer

USE EITHER THE TOP SLOT OR THE 4TH SLOT BOTH HAVE PCI-E 16X8 SPEED - THE BOTTOM SLOT IS AN 8X4 PCI-E. REMEMBER THAT PCI-E LANE SHARING IS ASSIGNED TO DIFFERENT SLOTS DEPENDING WHAT FEATURES YOU USE. I WOULD RECOMMEND DOWNLOADING THE USER MANUAL AND MAKE SURE IT PROVIDE WHAT YOU NEED BEFORE YOUR PURCHASE

Question 6

So what all will i miss out on if I just get a 28 lane CPU?  I hear some of the M.2 slots turn off (which doesnt' sound right, 16x GPU, and the other 12 free lanes should go to the M.2 Slots.  2 M.2's only need 4 lanes each, total 8 lanes. so what all do i miss?

Accepted Answer

the Ultra.DIMM slot is right beside the CPU.  i have a hard time believing it's routed down to the chipset, then back up to the CPU.   There are 3 M.2 slots on this board.  1x by the chipset, 2x by the cpu.

Question 7

Does this motherboard support 4266 Hz Ram?

Accepted Answer

Hello
The MB book says 4200+ (O.C)  6 Core and up processors!
now Asus Dramm list shows two listings. G-skil, and Corsair both have a offering for 4200mhz  Ram. So to answer your question. Im not sure! Im useing 3600mhz ram from
G-Skil. I hope this helps!

Jeff

Question 8

Does it support 2 way SLI?

Accepted Answer

Be aware that current NVIDIA Pascal architecture only officially supports 2-way SLI.

3 and 4-way SLI will only function in selected applications with minimal to no game support!

Question 9

With the DIMM.2 module board having two M.2 slots and the motherboard having one, would this motherboard support three M.2 ssd's with the right CPU and hardware?

Accepted Answer

Yes. However, the maximum m.2 card length for the DIMM.2 module is 100mm. You could also purchase the ASUS Hyper M.2 X16 Card which supports four m.2 cards by itself. If you had four Intel (compatible) M.2 cards you could also use it in conjunction with VROC. The benefit seems to be the Hyper M.2 card can support transfer speeds of 128Gbps (PCIe x 16) vs the on the motherboard with 32Gbps (PCIe x 4 - DMI Limit). Also, the Hyper M.2 card says it was designed "specifically for VROC", so I'm not sure if that implies a limitation with compatibility of anything or if you "have" to use VROC if using the card...

Question 10

this thing sold out 30min after it was posted, when will it be re-stocked?

Accepted Answer

Your have to react when you receive a notification email.  I received email notification 9/26 and got mobo 9/29. Newegg policy has always been first come until product is gone. It sold out in 10 minutes on 9/26.

Brand	ASUS
Series	ROG
Model	ROG RAMPAGE VI EXTREME

CPU Socket Type	LGA 2066
CPU Type	Intel Core X-Series Processor 79xx, 78xx Series * Refer to www.asus.com for CPU support list
Supported CPU Technologies	Turbo Boost Technology 3.0 * The Intel Turbo Boost Technology 3.0 Support Depends on the CPU types.

Number of Memory Slots	8x288pin (DDR4)
Memory Standard	DDR4 4200(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666(O.C.)/ 2400(O.C.)/ 2133 * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). ** Hyper DIMM support is subject to the physical characteristics of individual CPUs.
Maximum Memory Supported	128GB
Channel Supported	Quad Channel

PCI Express 3.0 x16	4 x PCIe 3.0 x16 (x16, x16/x16, x16/x0/x16/x8, or x16/x8/x8/x8 mode with 44-LANE CPU; x16, x16/x8 or x8/x8/x8 mode with 28-LANE CPU) * * When M.2_2 (DIMM.2) is populated, PCIE x8_4 runs at x4 mode * The PCIE_X8_4 slot shares bandwidth with M.2_2 (DIMM.2)
PCI Express x4	1 x PCIe 3.0 x4 slot

Serial ATA (SATA)	6 x SATA 6Gb/s
M.2	Intel Core X-series Processors (6-core above): 1 x ROG DIMM.2 Module support (CPU_DIMM.2), M.2 X4 with M Key design, type 2230/2242/2260/2280/22110 storage devices support (Support PCIE SSD only)* 1 x ROG DIMM.2 Module support (PCH_DIMM.2), M.2 X4 with M Key design, type 2230/2242/2260/2280/22110 storage devices support (Support PCIE SSD only)** 1 x U.2 port, support PCIe 3.0 x4 NVM Express storage Intel X299 Chipset: 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode) * When M.2_1 (DIMM.2) comes from CPU, it will be shared with U.2 ** When M.2_1 (DIMM.2) comes from PCH, It will be shared with PCIe x4 slot.
SATA RAID	0/1/5/10

Meet Your Seller

ASUS ROG RAMPAGE VI EXTREME LGA 2066 Intel X299 SATA 6Gb/s USB 3.1 Extended ATX Intel Motherboard

Learn more about the ASUS ROG RAMPAGE VI EXTREME

Customer Reviews of the ASUS ROG RAMPAGE VI EXTREME

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Audio Chipset	ROG SupremeFX High Definition Audio CODEC S1220
Audio Channels	8 Channels

LAN Chipset	Aquantia AQC-107 10G LAN
Second LAN Chipset	Intel I219V
Max LAN Speed	10Gbps + 1Gbps
Wireless LAN	Wi-Fi 802.11 a/b/g/n/ac + WiGig 802.11 ad Supports dual band frequency 2.4/5 GHz Supports MU-MIMO Up to 4600 Mbps transfer speed
Bluetooth	v4.1

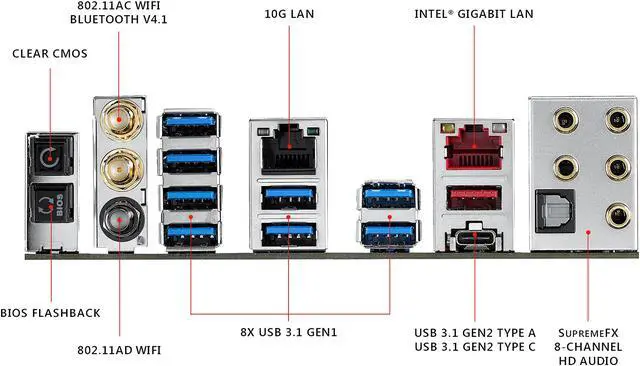

RJ45	1 x LAN (RJ45) port(s) 1 x Aquantia AQC-107 10G LAN port
USB 3.1	2 x USB 3.1 Gen 2 ports (1 x Type-C [black] and 1 x Type-A [red]) 8 x USB 3.1 Gen 1 ports [blue]
S/PDIF Out	1 x Optical
Audio Ports	5 x illuminated LED audio jacks

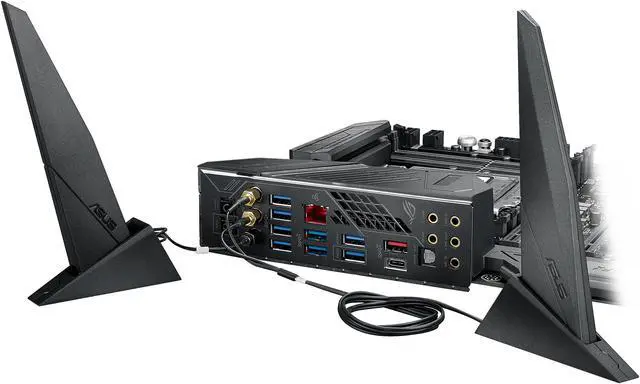

Antenna Connectors	1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac + WiGig 802.11 ad and Bluetooth v4.1)

Onboard USB	1 x USB 3.1 Gen 2 front panel connector 2 x USB 3.1 Gen 1 (up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)

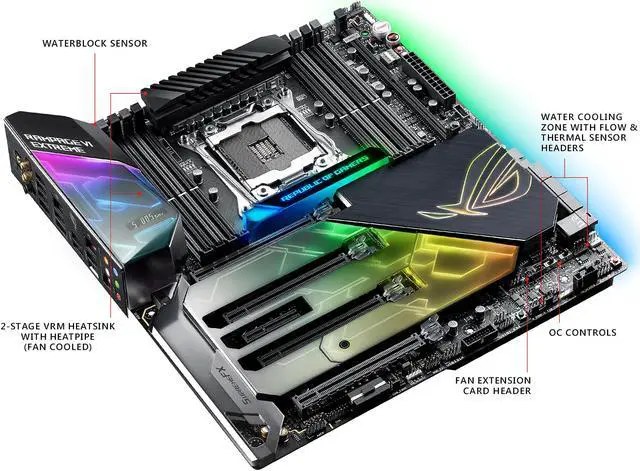

Other Connectors	1 x W_PUMP+ 1 1 x W_PUMP+ 2 1 x WB_SENSOR 1 x Aura Addressable Strip Header(s) 1 x Aura RGB Strip Headers 1 x TPM connector(s) 1 x VROC_HW_Key 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x H_AMP fan connector 1 x Thunderbolt header(s) 1 x Front panel audio connector(s) (AAFP) 1 x 5-pin EXT_FAN (Extension Fan) connector 1 x Slow Mode switch(es) 1 x ProbeIt Measurement Points 1 x BIOS Switch button(s) 1 x LN2 Mode jumper(s) 1 x ROG extension (ROG_EXT) header(s) 1 x Safe Boot button 1 x ReTry button 1 x System panel connector 1 x PCIe x16 lane switch 2 x T_Sensor Connector 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 1 x Start button

Form Factor	Extended ATX
LED Lighting	RGB
Dimensions (W x L)	12.0" x 10.9"
Power Pin	1 x 8-pin EATX 12V Power connector 1 x 4-pin EATX 12V_1 Power connector(s) 1 x 24-pin EATX Power connector(s)
