hi im a noob at pc building so dont judge my commentary is this motherboard Pci express x16 2.0?

Yes it is! I currently have a gtx 1080 on there

I've been looking through the asus motherboards as I am about to build my first pc and I looked at the prime and tuf motherboards and it got me thinking, how many fan headers does this strix motherboard have?

Not sure but i have 5 fans connected rn

I'm kind of new to buying motherboards, can anyone tell me what the maximum capacity really means in the overview? Is that the limit of MHz for RAM? Or am I overthinking it, because I'm thinking of getting 16gb of RAM at 3200 MHz.

Maximum RAM MHz allowed is 2400MHz. Your 3200MHz is compatible, but will only put out 2400MHz of speed. If you want the full 3200MHz, you may have to look into a Z170/270 motherboard or an x99 motherboard if you're using a 6-core CPU

$101^.89

Free 30-day Returns

Limit 99999 per customer.

Ships from China.

Price alert

Add to wish list

Sold by Smith's Computer Market

Top Rated

3.9 (133 seller ratings)

Shipped by Smith's Computer Market

Meet Your Seller

Smith's Computer Market

See Seller Store

Get Educated

Make informed decisions with expert advice. Learn More

Main image of ASUS ROG STRIX B250F GAMING LGA 1151 Intel B250 HDMI USB 3.1 USB 3.0 ATX Motherboards - Intel

Alt view image 2 of 7 - ASUS ROG STRIX B250F GAMING LGA 1151 Intel B250 HDMI USB 3.1 USB 3.0 ATX Motherboards - Intel

Alt view image 3 of 7 - ASUS ROG STRIX B250F GAMING LGA 1151 Intel B250 HDMI USB 3.1 USB 3.0 ATX Motherboards - Intel

Alt view image 4 of 7 - ASUS ROG STRIX B250F GAMING LGA 1151 Intel B250 HDMI USB 3.1 USB 3.0 ATX Motherboards - Intel

Alt view image 5 of 7 - ASUS ROG STRIX B250F GAMING LGA 1151 Intel B250 HDMI USB 3.1 USB 3.0 ATX Motherboards - Intel

Alt view image 6 of 7 - ASUS ROG STRIX B250F GAMING LGA 1151 Intel B250 HDMI USB 3.1 USB 3.0 ATX Motherboards - Intel

Alt view image 7 of 7 - ASUS ROG STRIX B250F GAMING LGA 1151 Intel B250 HDMI USB 3.1 USB 3.0 ATX Motherboards - Intel

Customer images

Shop All ASUS Products | Visit Smith's Computer Market Store

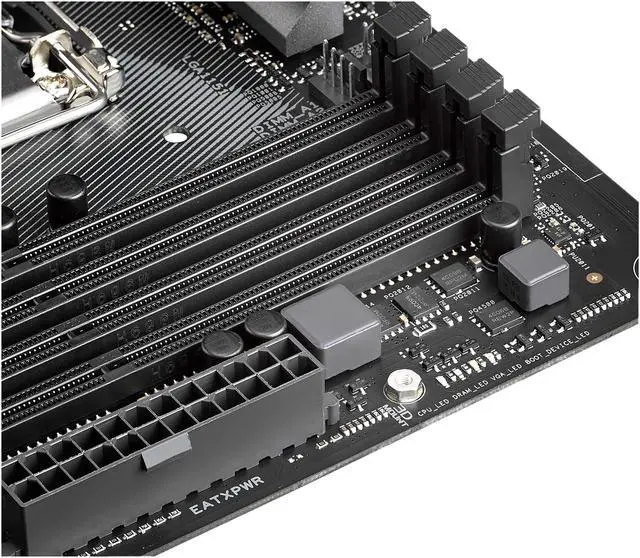

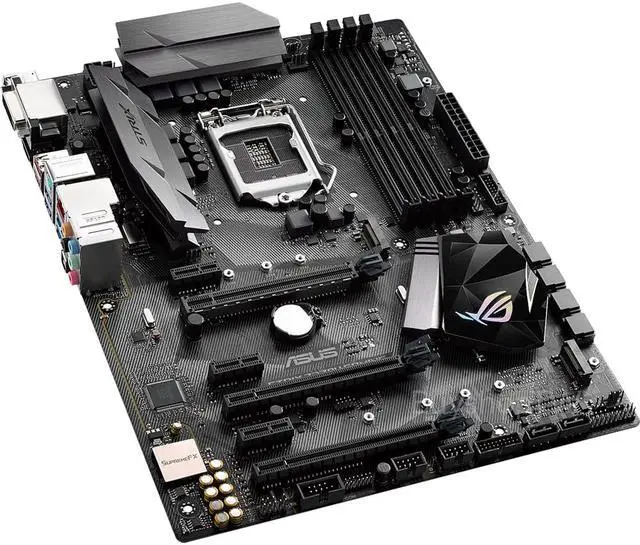

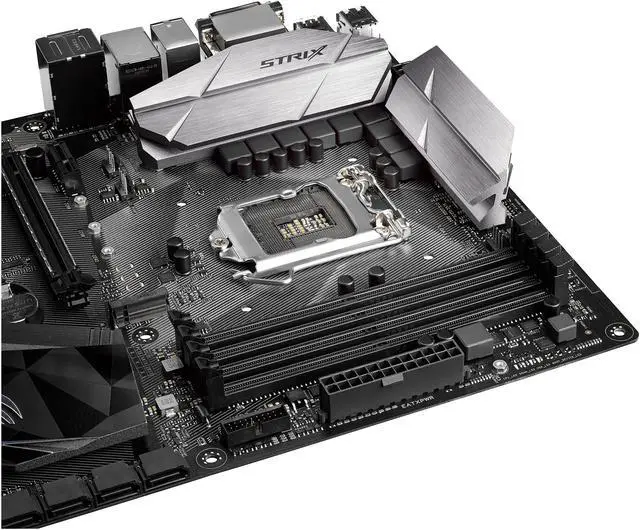

ASUS ROG STRIX B250F GAMING LGA 1151 Intel B250 HDMI USB 3.1 USB 3.0 ATX Motherboards - Intel

Used - Very Good

Option: STRIX B250F GAMING

STRIX B250F GAMING
STRIX Z270E GAMING
STRIX Z270F GAMING
STRIX Z270G GAMING
STRIX Z270I GAMING

Intel B250
Celeron / Core i3 / Core i5 / Core i7 / Intel Core 6th Gen (LGA 1151) / Intel Core 7th Gen (LGA 1151) / Pentium
DDR4 2400/2133

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Any questions? Our AI beta will help you find out quickly.

Try me now

Model
Brand	ASUS
Series	ROG
Model	STRIX B250F GAMING

Supported CPU
CPU Socket Type	LGA 1151
CPU Type	Celeron / Core i3 / Core i5 / Core i7 / Intel Core 6th Gen (LGA 1151) / Intel Core 7th Gen (LGA 1151) / Pentium
Supported CPU Technologies	Turbo Boost Technology 2.0 * Not Compatible with Intel 8th Gen CPUs

Chipsets
Chipset	Intel B250

Onboard Video
Onboard Video Chipset	Integrated Graphics Processor - Intel HD Graphics support Multi-VGA output support: HDMI/DVI-D/DisplayPort 1.2 ports - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz Maximum shared memory of 1024 MB Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider Supports up to 3 displays simultaneously DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays

Memory
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 2400/2133
Maximum Memory Supported	64GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 3.0 x16	1 x PCIe 3.0/2.0 x16 (x16 mode) 1 x PCIe 3.0/2.0 x16 (max at x4 mode) 1 1 PCIe x16_2 slot shares bandwidth with PCIe x1_2 and PCIe x1_3 slots. When PCIe x1_2 and PCIe x1_3 slots are occupied, PCIe x16_2 slot runs at x2 mode.
PCI Express x1	4 x PCIe 3.0/2.0 x1

Storage Devices
Serial ATA (SATA)	6 x SATA 6Gb/s
M.2	1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode) 2 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 3 2 The M.2_1 socket shares SATA_1 port when use M.2 SATA mode device. Adjust BIOS settings to use a SATA device. 3 The M.2_1 socket supports Intel Optane Technology. Intel Optane Technology only supported when using 7th Generation Intel Processors. Before using Intel Optane memory modules, ensure that you have updated your motherboard drivers and BIOS to the latest version from ASUS support website.

Onboard Audio
Audio Chipset	ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
Audio Channels	8 Channels

Onboard LAN
LAN Chipset	Intel I219-V
Max LAN Speed	1Gbps

Rear Panel Ports
Back I/O Ports	1 x DisplayPort / 1 x HDMI / 1 x Optical S/PDIF Out / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 3.0 / 4 x USB 2.0/1.1
PS/2	1 x PS/2 keyboard/mouse port
Video Ports	1 x DVI-D
HDMI	1 x HDMI
DisplayPort	1 x DisplayPort
USB 3.1	2 x USB 3.1 Type-A + Type-C
USB 3.0	2 x USB 3.0 (blue)
USB 1.1/2.0	4 x USB 2.0
S/PDIF Out	1 x Optical
Audio Ports	5 Ports

Internal I/O Connectors
Onboard USB	2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
Other Connectors	1 x AAFP connector 1 x RGB Header(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x System panel(s) (Chassis intrusion header is inbuilt) 1 x Clear CMOS jumper(s) 1 x 5-pin EXT_FAN(Extension Fan) connector 1 x ROG extension (ROG_EXT) header(s) 1 x 14-1 pin TPM connector 1 x COM port header 1 x T_Sensor Connector 3 x 3D Mount screw port(s)

Physical Spec
Form Factor	ATX
Dimensions (W x L)	12.0" x 9.6"
Power Pin	24 Pin

Features
Features	Multi-GPU Support: Supports AMD 2-Way CrossFireX Technology ROG Exclusive Features: ROG RAMCache II ROG CPU-Z ROG CloneDrive Overwolf GameFirst IV ROG Aura - Aura Lighting Control - Aura RGB Strip Headers Special Features: Gamer's Guardian: - DRAM Overcurrent Protection - Stainless Steel Back I/O - Highly Durable Components - DIGI+ VRM - SafeSlot ASUS Exclusive Features: - AI Suite 3 - Ai Charger - ESD Guards ASUS EZ DIY: - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS Q-Design: - ASUS Q-Shield - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM Gaming Aesthetics: - 3D printing friendly - AURA-RGB Lighting Performance Optimization: - DIGI + VRM - GPU Boost - Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control - AI Suite 3 M.2 Onboard (The latest transfer technologies with up to 32Gb/s data transfer speeds) BIOS: 128MB Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information. Manageability: WfM2.0, DMI3.0, WOL by PME, PXE Operating System: Windows 10 64-bit Windows 8.1 64-bit 7 Windows 7 32-bit 7 Windows 7 64-bit 7 7 Windows 8.1 64-bit and Windows 7 32/64-bit are only supported when using 6th Generation Intel Processors.

Packaging
Package Contents	Accessories: User's manual ASUS Q-Shield 4 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x ROG Strix stickers 1 x 10 in 1 ROG Cable Label(s) 1 x Extension Cable for RGB strips (80 cm) 1 x 3D printing mount package
