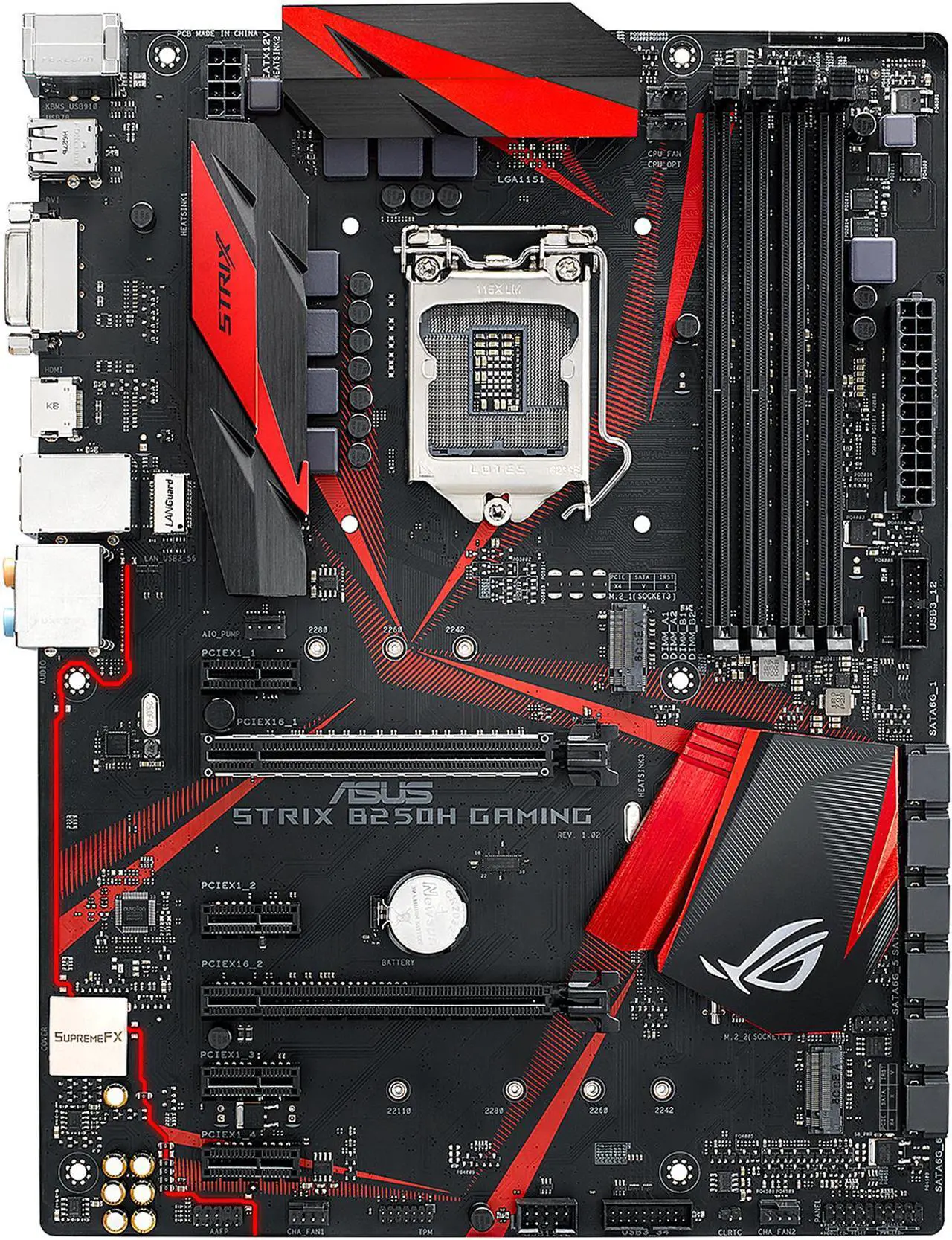

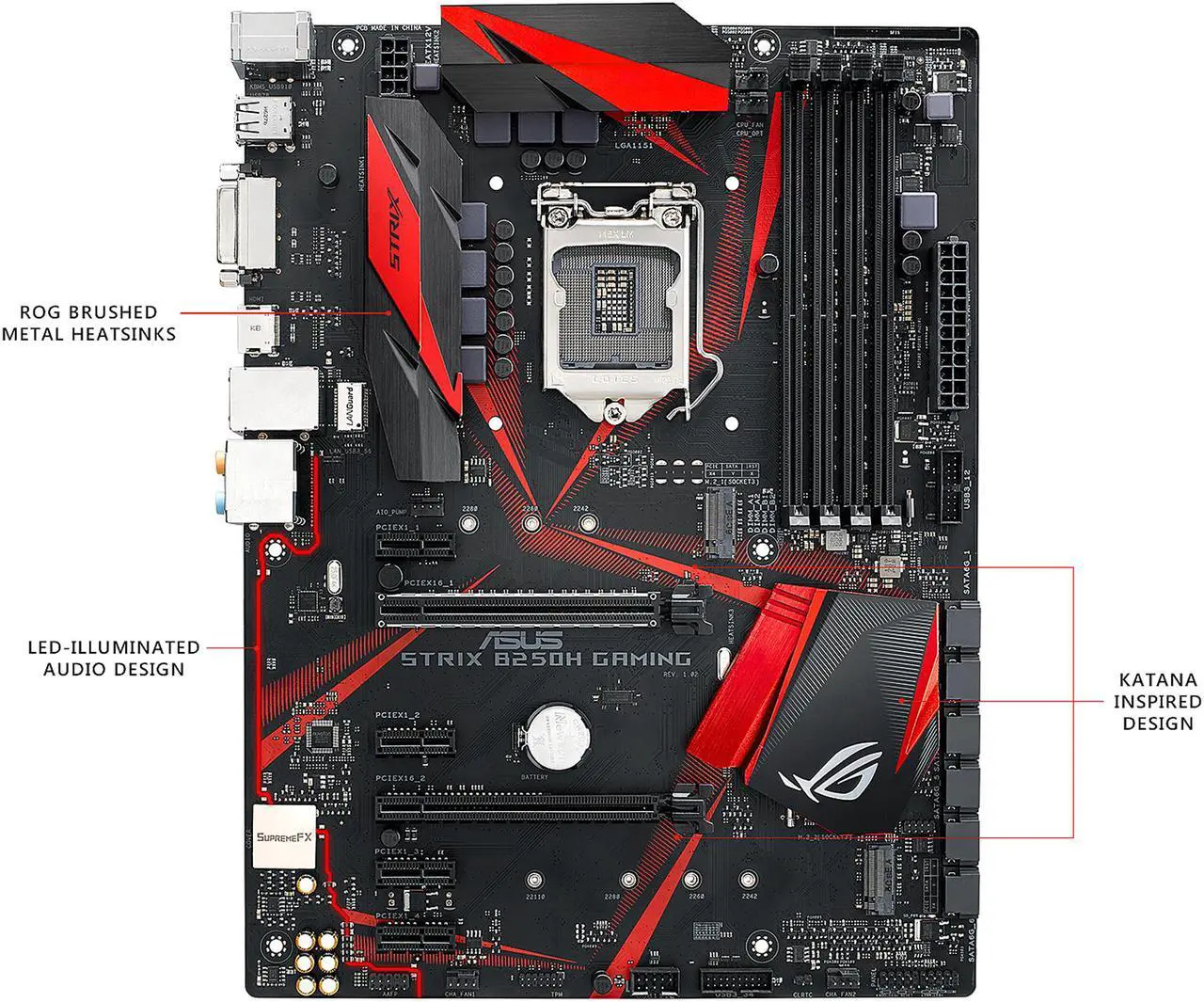

Built for gaming performance, the ROG STRIX B250H GAMING features Gamer's Guardian with patent-pending SafeSlot for hardware-level safeguards to increase component longevity and Fan Xpert 3 for dynamic system cooling. Dual M.2 and USB 3.1 deliver optimized data speeds, while 8-channel HD audio fully immerses you in every game.
Turbo Boost Technology 2.0 * Not Compatible with Intel 8th Gen CPUs
Chipsets
Chipset
Intel B250
Onboard Video
Onboard Video Chipset
Integrated Graphics Processor - Intel HD Graphics support Multi-VGA output support: HDMI/DVI-D ports - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 1024MB Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider

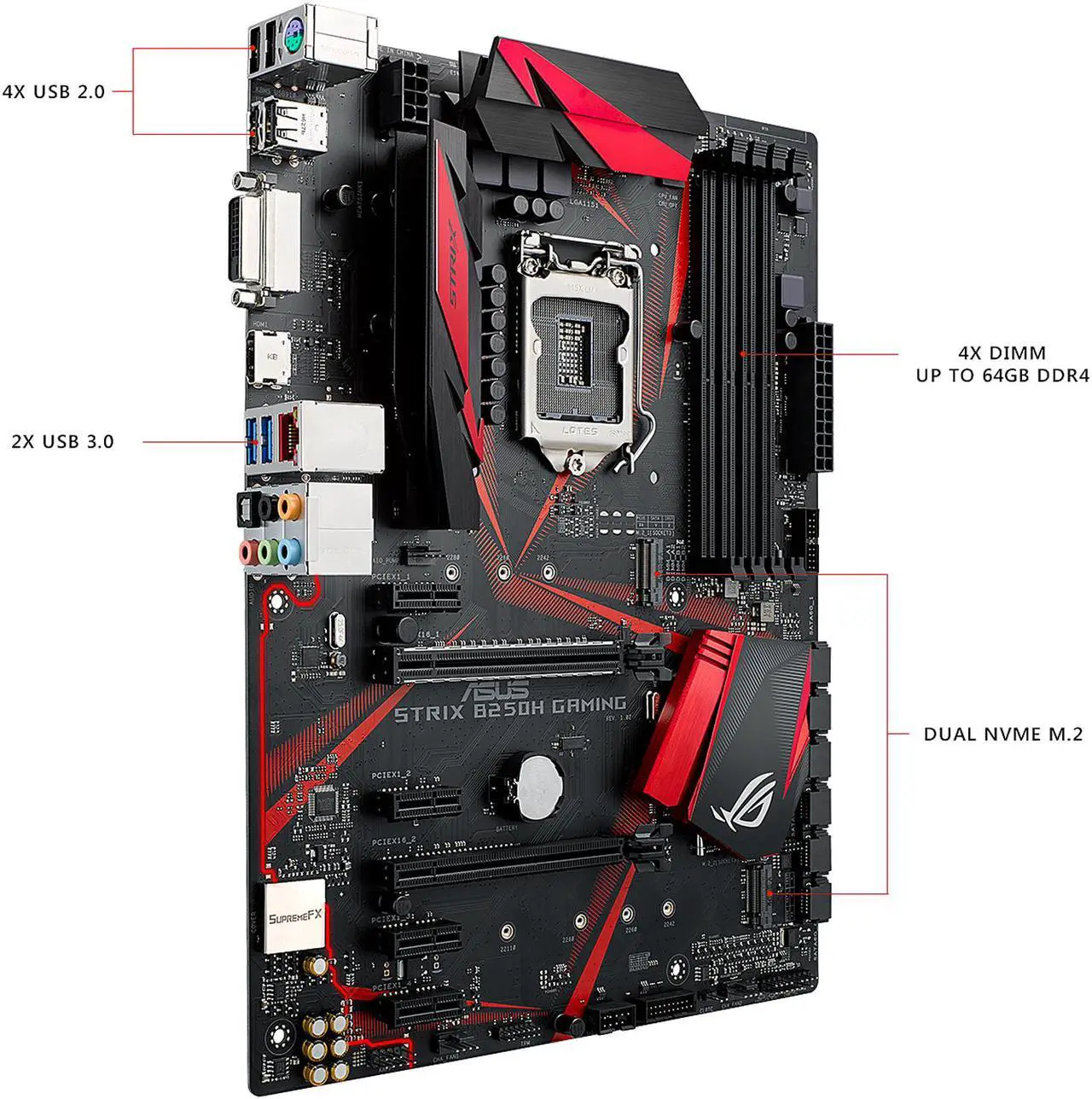

Memory
Number of Memory Slots
4x288pin (DDR4)
Memory Standard
DDR4 2400/ 2133 * Due to Intel chipset limitation, DDR4 2400 MHz memory frequency is only supported by 7th Gen Intel processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400 MHz. ** Due to Intel chipset limitation, DDR4 2133 MHz and higher memory modules on 6th Gen Intel processors will run at the maximum transfer rate of DDR4 2133 MHz.
Maximum Memory Supported
64GB
Channel Supported
Dual Channel
Expansion Slots
PCI Express 3.0 x16
1 x PCIe 3.0/2.0 x16 (x16 mode) 1 x PCIe 3.0/2.0 x16 (max at x4 mode) *1 *1 PCIe x16_2 slot shares bandwidth with PCIe x1_3 and PCIe x1_4 slots. When PCIe x1_3 and PCIe x1_4 slots are occupied, PCIe x16_2 slot runs at x2 mode.
PCI Express x1
4 x PCIe 3.0/2.0 x1
Storage Devices
Serial ATA (SATA)
6 x SATA 6Gb/s
M.2
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode) *2 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x4 mode) *3
*2 The M.2_1 socket shares SATA_1 port when using M.2 SATA mode device. Adjust BIOS settings to use a SATA device. M.2_1 slot shares bandwidth with PCIe x1_1 and PCIe x1_2 slots. When PCIe x1_1 and PCIe x1_2 slots are occupied, M.2_1 slot runs at x2 mode. *3 The M.2_2 socket supports Intel Optane Technology. Intel Optane Technology only supported when using 7th Generation Intel Processors. Before using Intel Optane memory modules, ensure that you have updated your motherboard drivers and BIOS to the latest version from ASUS support website.
Onboard Audio
Audio Chipset
ROG SupremeFX High Definition Audio CODEC S1220A
Audio Channels
8 Channels
Onboard LAN
LAN Chipset
Intel I219-V
Max LAN Speed
1Gbps

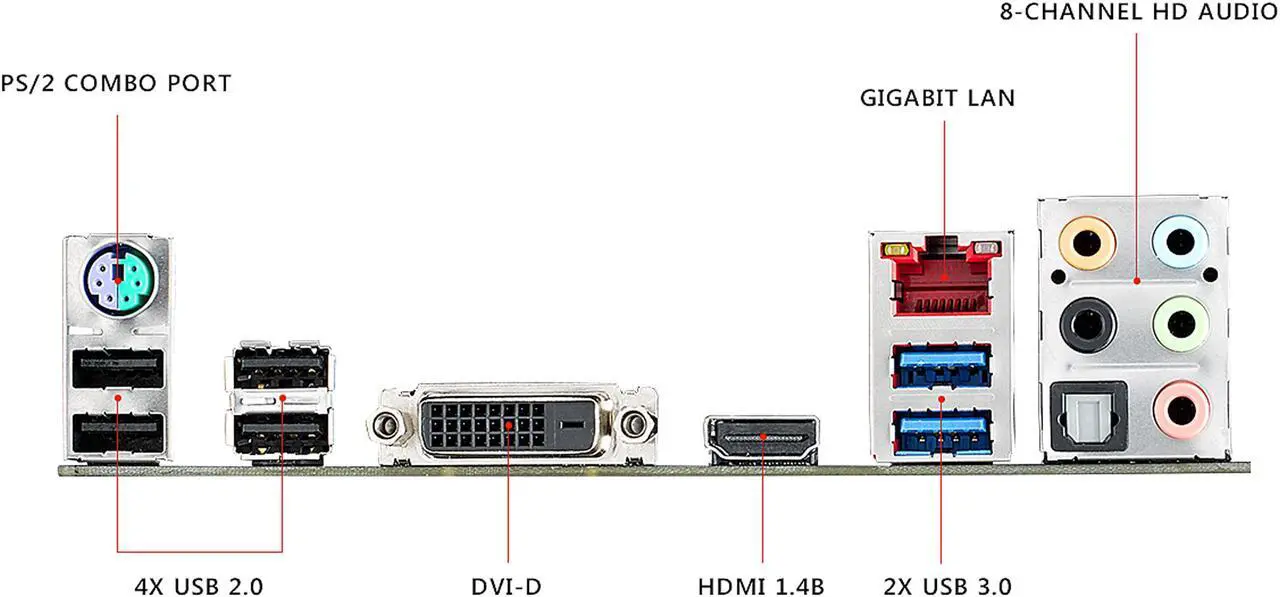

Rear Panel Ports
PS/2
1 x PS/2 keyboard/mouse port
Video Ports
1 x DVI-D
HDMI
1 x HDMI
RJ45
1 x RJ45
USB 3.1
2 x USB 3.1 Gen 1 (blue)
USB 1.1/2.0
4 x USB 2.0
S/PDIF Out
1 x Optical
Audio Ports
5 Ports
Internal I/O Connectors
Onboard USB
2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
Other Connectors

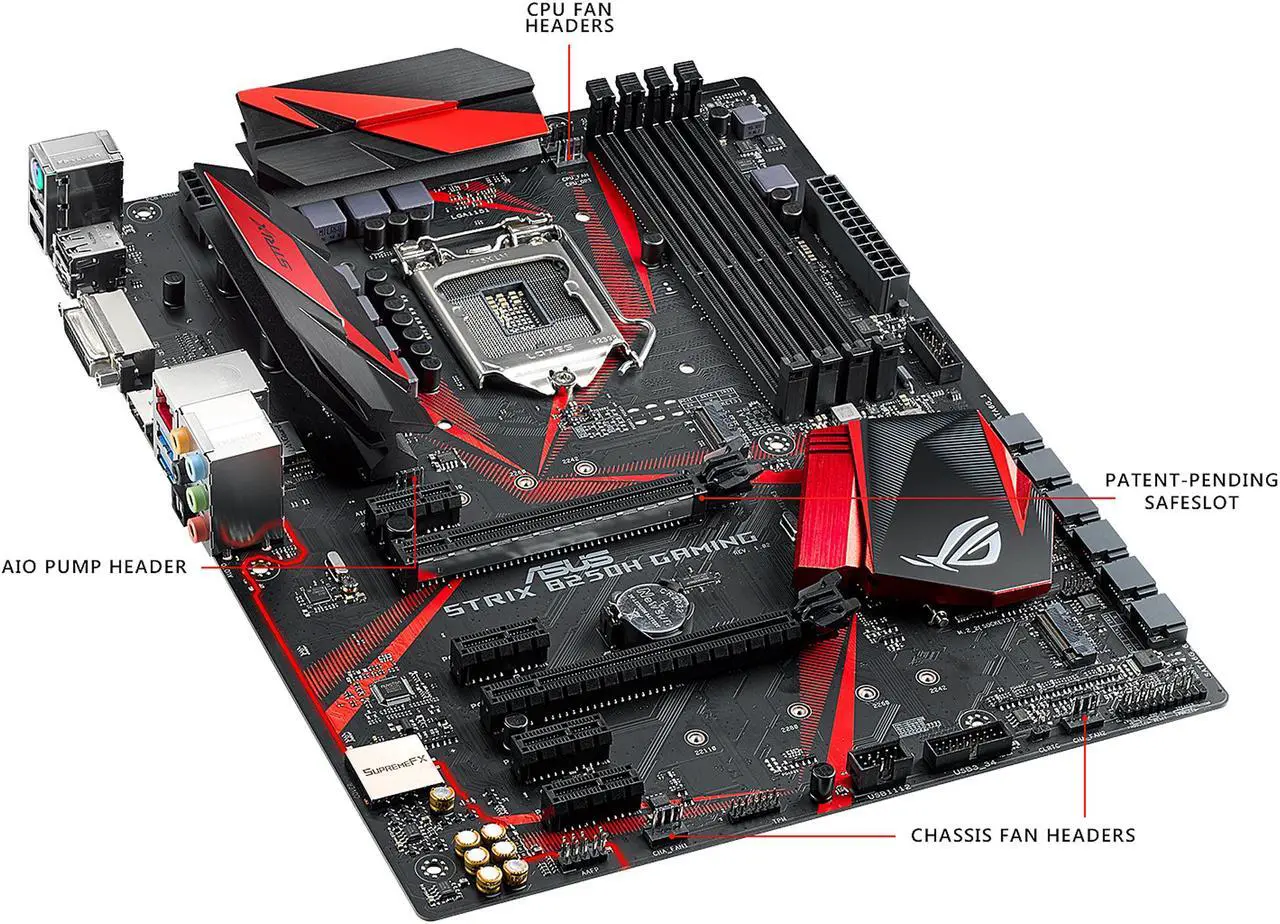

1 x AAFP connector 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x System panel(s) (Chassis intrusion header is inbuilt) 1 x Clear CMOS jumper(s) 1 x 14-1-pin TPM connector
Physical Spec
Form Factor
ATX
Dimensions (W x L)
12.0" x 9.2"
Power Pin
1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s)
ROG Exclusive Features: ROG RAMCache II ROG CPU-Z ROG CloneDrive Overwolf GameFirst IV
Special Features: Gamer's Guardian: - DRAM Overcurrent Protection - Stainless Steel Back I/O - Highly Durable Components - DIGI+ VRM - SafeSlot ASUS Exclusive Features: - AI Suite 3 - Ai Charger - ESD Guards ASUS EZ DIY: - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS Q-Design: - ASUS Q-Shield - ASUS Q-Slot - ASUS Q-DIMM Performance Optimization: - GPU Boost Fan Xpert 3 M.2 Onboard (The latest transfer technologies with up to 32Gb/s data transfer speeds)
BIOS: 128MB Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability: WfM2.0, DMI3.0, WOL by PME, PXE
Operating System: Windows 10 64-bit Windows 8.1 64-bit *6 Windows 7 32-bit *6 Windows 7 64-bit *6 *6 Windows 8.1 64-bit and Windows 7 32/64-bit are only supported when using 6th Generation Intel Processors.
Packaging
Package Contents

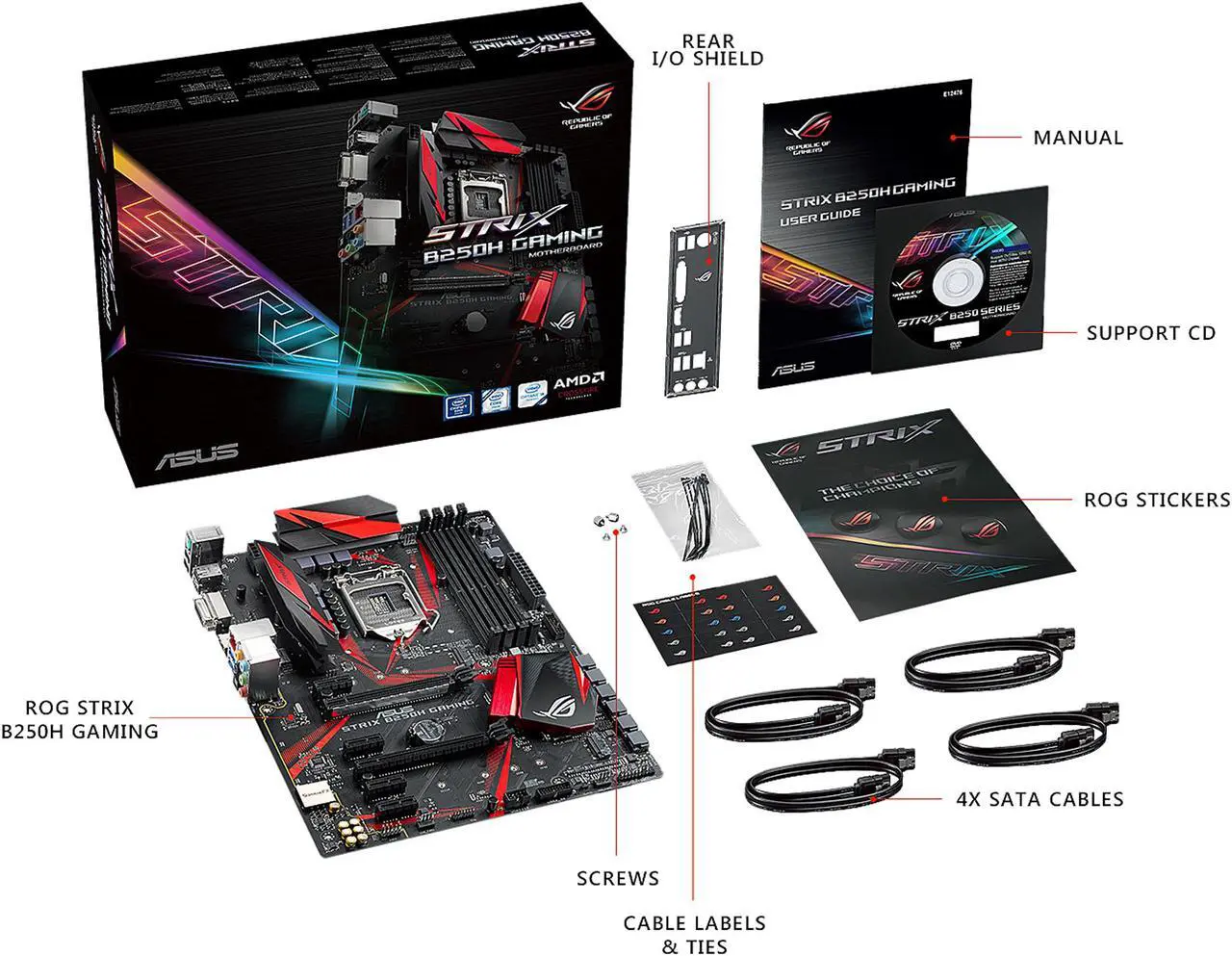

Accessories: User's manual ASUS Q-Shield 4 x SATA 6Gb/s cable(s) 2 x M.2 Screw Package 1 x Supporting DVD 1 x ROG Strix stickers 1 x Cable ties pack(s) 1 x 10 in 1 ROG Cable Label(s)
