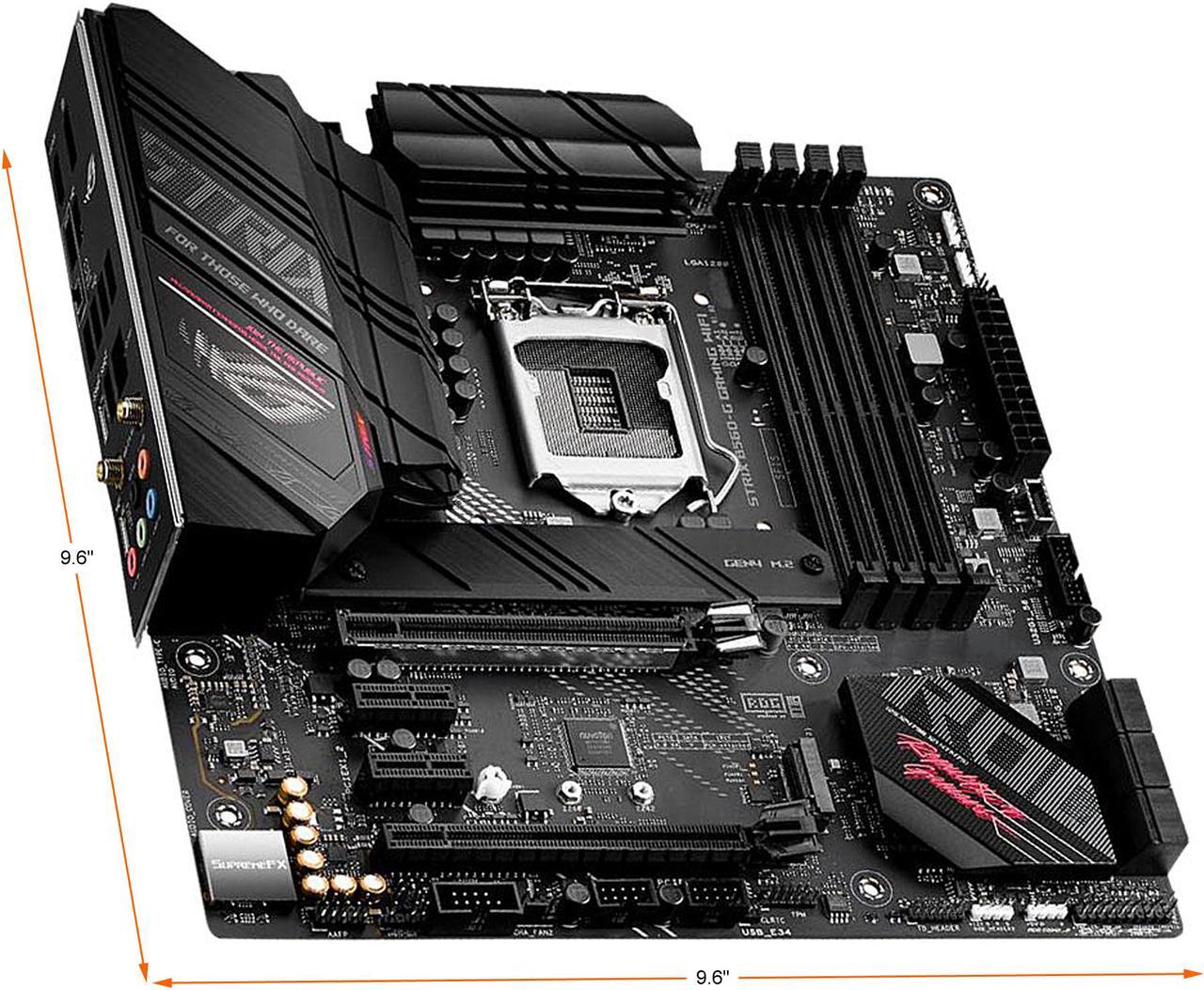

Main image of ASUS ROG STRIX B560-G GAMING WIFI LGA 1200 Intel B560 SATA 6Gb/s Micro ATX Intel Motherboard

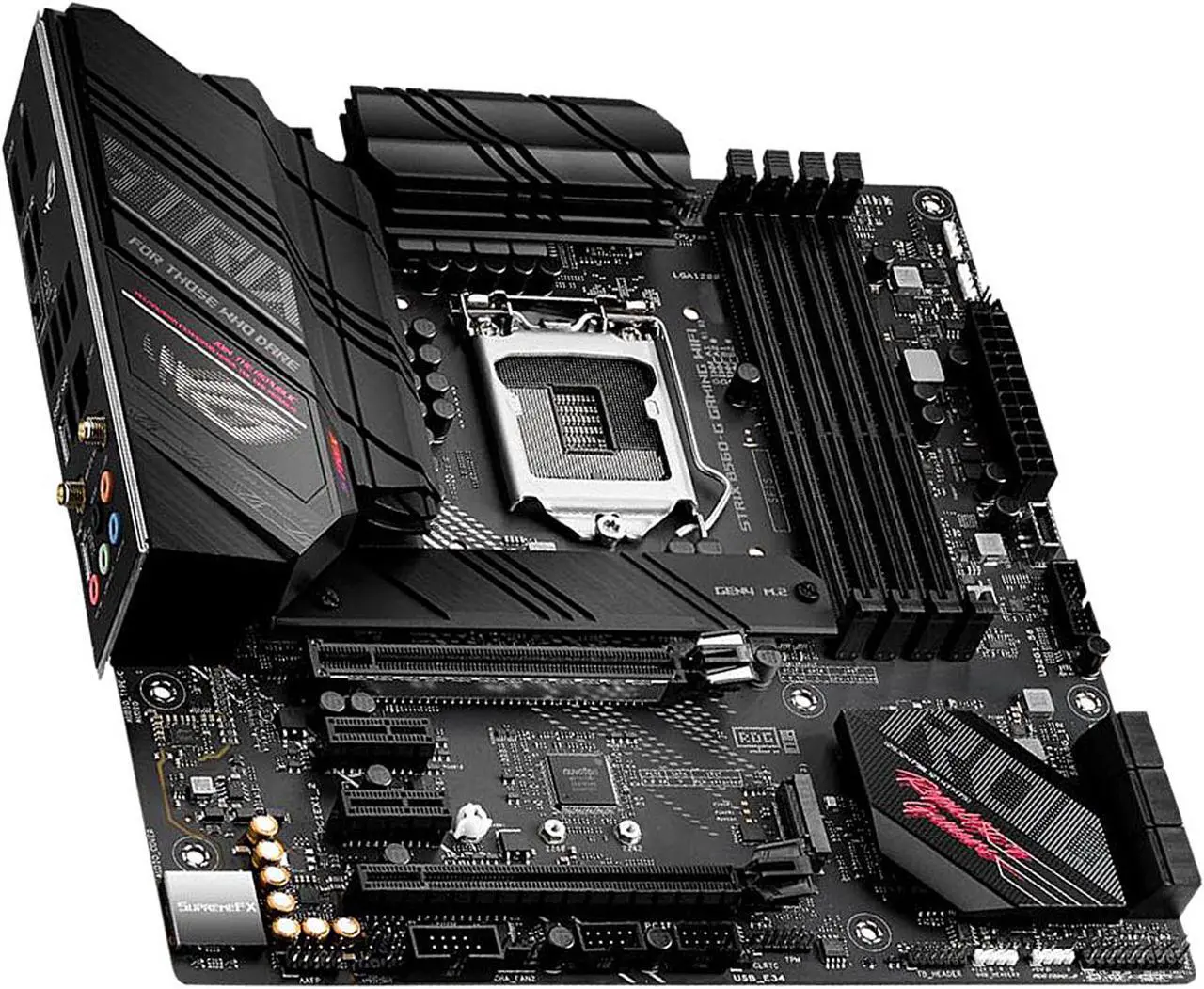

Alt view image 2 of 2 - ASUS ROG STRIX B560-G GAMING WIFI LGA 1200 Intel B560 SATA 6Gb/s Micro ATX Intel Motherboard

Shop All ASUS Products | Visit Roboshine Store

ASUS ROG STRIX B560-G GAMING WIFI LGA 1200 Intel B560 SATA 6Gb/s Micro ATX Intel Motherboard

Intel B560
Supports 11th / 10th Gen Intel Core Processors
Supports Intel Pentium Gold and Celeron Processors
DDR4 5000(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4000(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3333(OC) / 3200 / 2933 / 2800 / 2666 / 2400 / 2133

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
Read full details
CONTACT

Return Policies

Return for refund within: 30 days
Return for replacement within: 30 days
This item is covered by roboshine Return Policy

Manufacturer Contact Info

For a directory of all our manufacturers, please click below.
Manufacturers Directory

CPU Socket Type	LGA 1200
CPU Type	Supports 11th / 10th Gen Intel Core Processors* Supports Intel Pentium Gold and Celeron Processors* * Refer to www.asus.com for CPU support list.
Supported CPU Technologies	Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0* * Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 5000(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4000(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3333(OC) / 3200 / 2933 / 2800 / 2666 / 2400 / 2133* * 11th Gen Intel processors support 3200 / 2933 / 2800 / 2666 / 2400 / 2133 natively. * 10th Gen Intel i9 / i7 processors support 2933 / 2800 / 2666 / 2400 / 2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
Maximum Memory Supported	128GB
Channel Supported	Dual Channel

PCI Express 4.0 x16	1 x PCI Express 4.0 x16* * Actual support may vary by CPU.
PCI Express 3.0 x16	1 x PCI Express 3.0 x16* * Supports x4 mode.
PCI Express x1	2 x PCIe 3.0 x1

Serial ATA (SATA)	6 x SATA 6Gb/s
M.2	Intel 11th Gen Processors: M.2_1 slot (Key M), type 2242/2260/2280/22110 - Only Intel 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs. Intel B560 Chipset: M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)* * The M.2_2 share bandwidth with SATA6G_1. When M.2_2 runs at SATA mode, SATA6G_1 will be disabled.
Intel Optane Ready	To enable Intel Optane Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel Rapid Storage Technology.

Audio Chipset	ROG SupremeFX High Definition Audio CODEC S1220A
Audio Channels	7.1 Channels* * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

Best Sellers

Meet Your Seller

ASUS ROG STRIX B560-G GAMING WIFI LGA 1200 Intel B560 SATA 6Gb/s Micro ATX Intel Motherboard

Learn more about the ASUS STRIX B560-G GAMING WIFI

Customer Reviews of the ASUS STRIX B560-G GAMING WIFI

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

LAN Chipset	Intel I225-V
Max LAN Speed	2.5Gbps
Wireless LAN	Intel Wi-Fi 6 802.11a/b/g/n/ac/ax
Bluetooth	Bluetooth 5.0

Onboard USB	1 x USB 3.2 Gen 2 connector (support(s) USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
Other Connectors	Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin AIO Pump header(s) 2 x 4-pin Chassis Fan header(s) Miscellaneous 2 x AURA Addressable Gen 2 header(s) 2 x AURA RGB header(s) 1 x Clear CMOS header 1 x COM port 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1-pin) 1 x 20-3-pin System Panel header with Chassis intrude function 1 x Thunderbolt header 1 x S/PDIF Out header

Form Factor	Micro ATX
LED Lighting	RGB
Dimensions (W x L)	9.6" x 9.6"
Power Pin	1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector

Item#: 9SIBTK0KAU9684
