Do you need a GPU with this?

No. All the 7000 Ryzen CPUs come with integrated graphics on board.

Does anyone know how to parse out the PCIE bifurcation chart for this board on the Asus website? I'm not sure what I'm reading and the manual was no help.

When M.2_3 (The bottom left one.) is occupied with an SSD device, PCIEX16_1 will run x8.

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list(Found on 88 wish lists)

Sold by Newegg

Shipped by Newegg

Main image of ASUS ROG Strix B650E-E Gaming WiFi AMD B650 AM5 Ryzen™ Desktop 9000 8000 & 7000 ATX motherboard, 16+2 power stages, DDR5, 3x M.2 slot, PCIe® 5.0, WiFi 6E, 2.5G LAN, USB 3.2 Gen 2x2 Type-C®, Aura Sync)

Alt view image 2 of 6 - ASUS ROG Strix B650E-E Gaming WiFi AMD B650 AM5 Ryzen™ Desktop 9000 8000 & 7000 ATX motherboard, 16+2 power stages, DDR5, 3x M.2 slot, PCIe® 5.0, WiFi 6E, 2.5G LAN, USB 3.2 Gen 2x2 Type-C®, Aura Sync)

Alt view image 3 of 6 - ASUS ROG Strix B650E-E Gaming WiFi AMD B650 AM5 Ryzen™ Desktop 9000 8000 & 7000 ATX motherboard, 16+2 power stages, DDR5, 3x M.2 slot, PCIe® 5.0, WiFi 6E, 2.5G LAN, USB 3.2 Gen 2x2 Type-C®, Aura Sync)

Alt view image 4 of 6 - ASUS ROG Strix B650E-E Gaming WiFi AMD B650 AM5 Ryzen™ Desktop 9000 8000 & 7000 ATX motherboard, 16+2 power stages, DDR5, 3x M.2 slot, PCIe® 5.0, WiFi 6E, 2.5G LAN, USB 3.2 Gen 2x2 Type-C®, Aura Sync)

Alt view image 5 of 6 - ASUS ROG Strix B650E-E Gaming WiFi AMD B650 AM5 Ryzen™ Desktop 9000 8000 & 7000 ATX motherboard, 16+2 power stages, DDR5, 3x M.2 slot, PCIe® 5.0, WiFi 6E, 2.5G LAN, USB 3.2 Gen 2x2 Type-C®, Aura Sync)

Alt view image 6 of 6 - ASUS ROG Strix B650E-E Gaming WiFi AMD B650 AM5 Ryzen™ Desktop 9000 8000 & 7000 ATX motherboard, 16+2 power stages, DDR5, 3x M.2 slot, PCIe® 5.0, WiFi 6E, 2.5G LAN, USB 3.2 Gen 2x2 Type-C®, Aura Sync)

Customer images

Shop All ASUS Products

ASUS ROG Strix B650E-E Gaming WiFi AMD B650 AM5 Ryzen™ Desktop 9000 8000 & 7000 ATX motherboard, 16+2 power stages, DDR5, 3x M.2 slot, PCIe® 5.0, WiFi 6E, 2.5G LAN, USB 3.2 Gen 2x2 Type-C®, Aura Sync)

(34)(1) Write a Review

AMD B650E
Supports AMD Ryzen 7000 Series Desktop Processors * Refer to www.asus.com for CPU support list.
DDR5 6400+(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200 / 5000 / 4800

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (34)

Model
Brand	ASUS
Series	ROG
Model	ROG STRIX B650E-E GAMING WIFI
Part Number	90MB1BB0-M0AAY0

Supported CPU
CPU Socket Type	AM5
CPU Type	Supports AMD Ryzen 7000 Series Desktop Processors * Refer to www.asus.com for CPU support list.

Chipsets
Chipset	AMD B650E

Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	DDR5 6400+(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200 / 5000 / 4800
Maximum Memory Supported	256GB
Channel Supported	Dual Channel
ECC Supported	Yes
Buffer Supported	Un-buffered

Expansion Slots

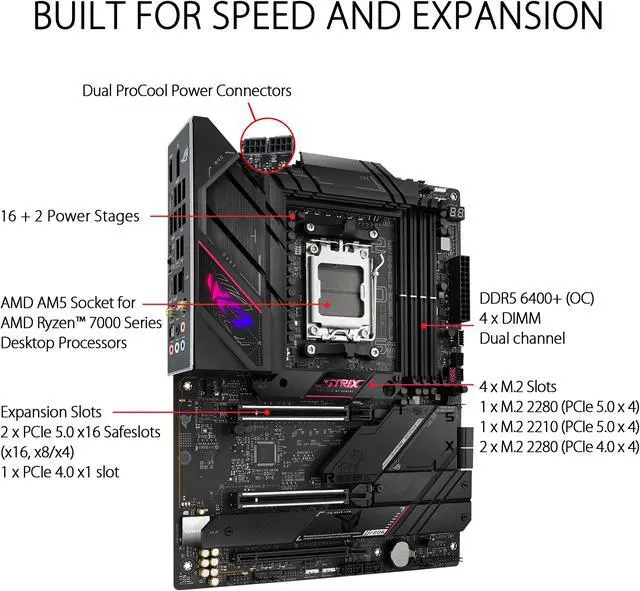

PCI Express 5.0 x16	2 x PCIe 5.0 x16 slots (supports x16 or x8/x4 modes)**
PCI Express 4.0 x16	1 x PCIe 4.0 x16 slot (supports x4 mode) * Please check PCIe bifurcation table in ASUS support site. ** When M.2_3 is occupied with SSD device, PCIEX16_1 will run x8 only.

Storage Devices
Serial ATA (SATA)	4 x SATA 6Gb/s
M.2	AMD Ryzen 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) AMD B650 Chipset M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) *AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10.

Onboard Audio
Audio Chipset	Realtek ALC4080

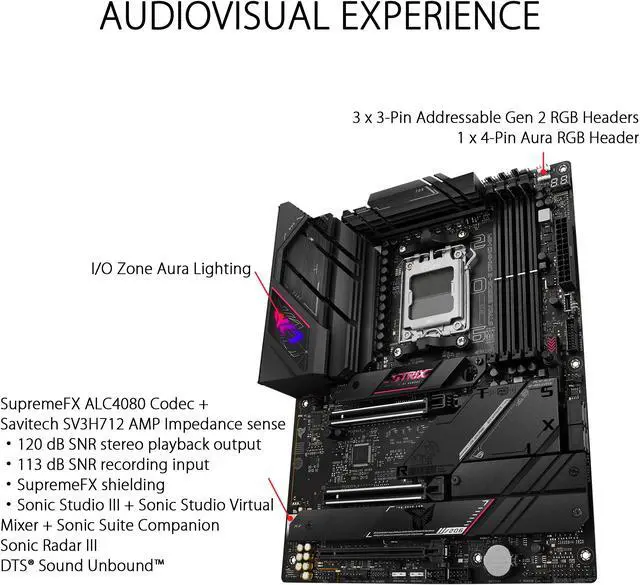

Audio Channels	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback Audio Features - Audio Shielding - Savitech SV3H712 AMP - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover

Onboard LAN
Max LAN Speed	1 x Intel 2.5Gb Ethernet ASUS LANGuard
Wireless LAN	Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band WiFi 6E 6GHz regulatory may vary between countries.
Bluetooth	Bluetooth v5.2

Rear Panel Ports

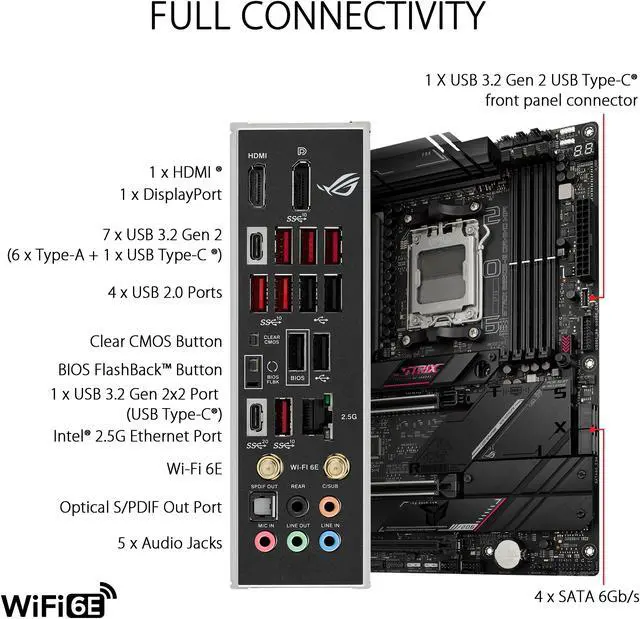

Back I/O Ports	1 x USB 3.2 Gen 2x2 port (1 x Type-C) 7 x USB 3.2 Gen 2 ports (6 x Type-A, 1 x USB Type-C) 4 x USB 2.0 ports 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Intel 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button

Internal I/O Connectors
Onboard USB	1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports

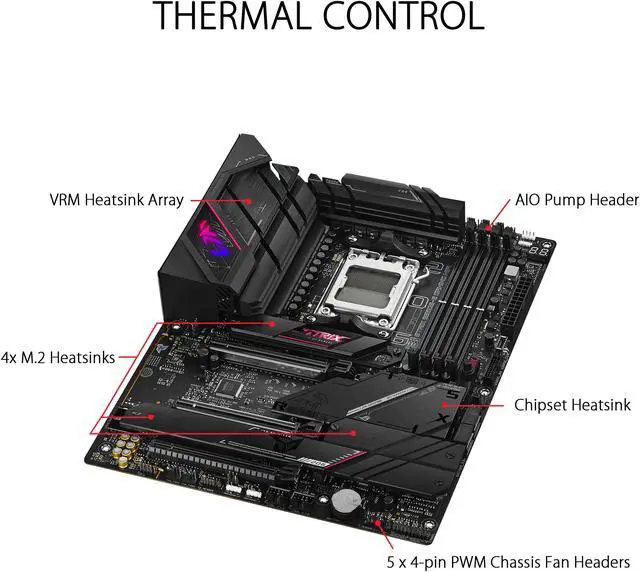

Other Connectors	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt header

Physical Spec
Form Factor	ATX
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin Main Power connector 2 x 8-pin +12V Power connector

Software Feature
Windows 11	Supported

Features
Features	Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsinks - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - Clear CMOS button - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - AURA RGB header - Addressable Gen 2 headers

Packaging

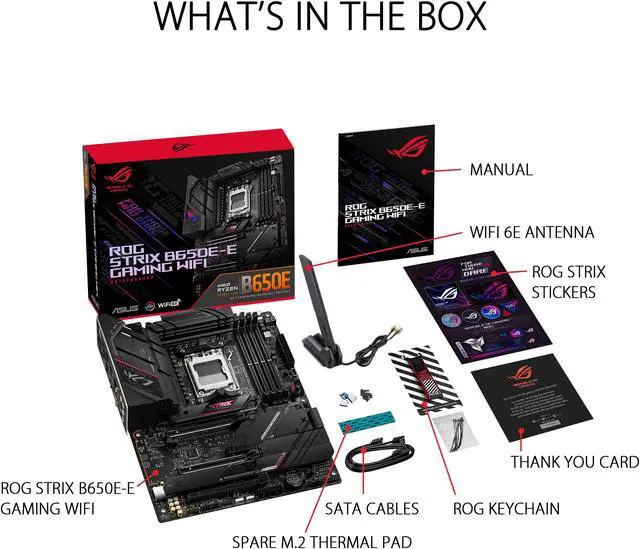

Package Contents	Cables 2 x SATA 6Gb/s cables Additional Cooling Kit 1 x Thermal pad for M.2 Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Cable ties pack 1 x M.2 Q-Latch package 1 x ROG key chain 1 x ROG Strix stickers 1 x ROG Strix thank you card 2 x Rubber Packages for M.2 Documentation 1 x User guide
