What extra parts come in the box for ASUS ROG Strix H370-F Gaming? I think I'm missing some parts.

The contents of the box are the H370-F motherboard, 4 SATA cables, 1 extension cable for RGB strips, 1 set of cable ties, 1 ROG sticker set and door hanger, 1 package containing standoffs and screws for both M.2 slots, 1 package containing standoffs and screws for 3D printing mount, the motherboard manual and support DVD This motherboard has a pre-installed I/O shield

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list

Sold by Newegg

Shipped by Newegg

Get Educated

Make informed decisions with expert advice. Learn More

Main image of ASUS ROG Strix H370-F Gaming LGA1151 (300 Series) DDR4 DP HDMI DVI M.2 ATX Motherboard with USB 3.1 Gen2

Alt view image 2 of 7 - ASUS ROG Strix H370-F Gaming LGA1151 (300 Series) DDR4 DP HDMI DVI M.2 ATX Motherboard with USB 3.1 Gen2

Alt view image 3 of 7 - ASUS ROG Strix H370-F Gaming LGA1151 (300 Series) DDR4 DP HDMI DVI M.2 ATX Motherboard with USB 3.1 Gen2

Alt view image 4 of 7 - ASUS ROG Strix H370-F Gaming LGA1151 (300 Series) DDR4 DP HDMI DVI M.2 ATX Motherboard with USB 3.1 Gen2

Alt view image 5 of 7 - ASUS ROG Strix H370-F Gaming LGA1151 (300 Series) DDR4 DP HDMI DVI M.2 ATX Motherboard with USB 3.1 Gen2

Alt view image 6 of 7 - ASUS ROG Strix H370-F Gaming LGA1151 (300 Series) DDR4 DP HDMI DVI M.2 ATX Motherboard with USB 3.1 Gen2

Alt view image 7 of 7 - ASUS ROG Strix H370-F Gaming LGA1151 (300 Series) DDR4 DP HDMI DVI M.2 ATX Motherboard with USB 3.1 Gen2

Shop All ASUS Products

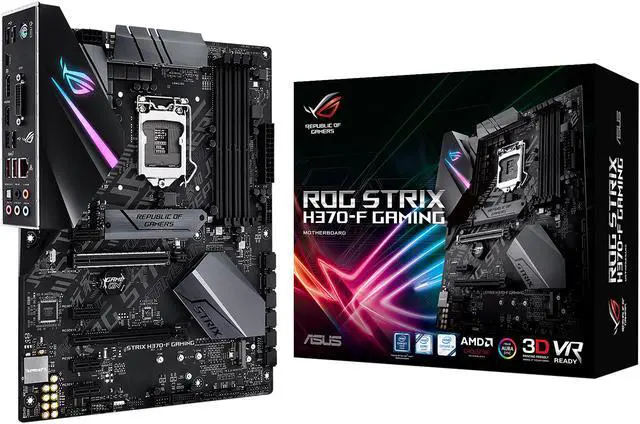

ASUS ROG Strix H370-F Gaming LGA1151 (300 Series) DDR4 DP HDMI DVI M.2 ATX Motherboard with USB 3.1 Gen2

(6) Write a Review

Designed exclusively for 8th generation Intel Core processors to maximize connectivity and speed with dual M.2 and Intel Optane Memory compatibility
ASUS OptiMem improves memory stability and performance by improving trace isolation between PCB layers to maintain signal integrity even at higher frequencies
Fan Xpert 4 with GPU temperature sensing allows for dynamic fan calibration and optimized system cooling while gaming

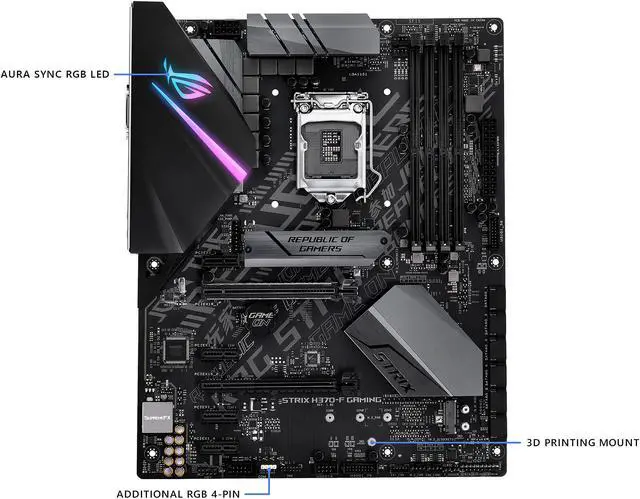

Unmatched personalization with ASUS exclusive Aura Sync RGB lighting and a 3D-printing friendly mount
Pre-mounted I/O shield ensures streamlined installation and represents ROG's attention to detail and quality

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (6)

Any questions? Our AI beta will help you find out quickly.

Try me now

Model
Brand	ASUS
Series	ROG
Model	Strix H370-F Gaming

Supported CPU
CPU Socket Type	LGA 1151 (300 Series)
CPU Type	8th generation Intel Core processors * Not backward compatible with older generation of LGA 1151 CPUs ** Refer to www.asus.com for Intel CPU support list
Supported CPU Technologies	Turbo Boost Technology 2.0 * The support of these features depends on the CPU types.

Chipsets
Chipset	Intel H370

Onboard Video
Onboard Video Chipset	Integrated Graphics Processor - Intel HD Graphics support Multi-VGA output support: DisplayPort/HDMI/DVI-D ports - Supports DisplayPort* with max. resolution 4096 x 2304@60Hz - Supports HDMI with max. resolution 4096 x 2160@24Hz / 2560 x 1600@60Hz - Supports DVI-D with max. resolution 1920 x 1200@60Hz Maximum shared memory of 1024MB * DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays

Memory
Memory Standard	DDR4 2666/ 2400/ 2133 * DDR4 2666MHz memory frequency is only supported by 8th Generation Intel 6-core processors. Higher memory modules will run at the maximum transfer rate of DDR4 2666MHz. ** Hyper DIMM support is subject to the physical characteristics of individual CPUs. Please refer to Memory QVL (Qualified Vendors List) for details.
Maximum Memory Supported	64GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 3.0 x16	8th Generation Intel Core Processor 1 x PCIe 3.0/2.0 x16 slot (supports x16) Intel H370 Chipset 1 x PCIe 3.0/2.0 x16 slot (max at x4 mode)
PCI Express x1	4 x PCIe 3.0/2.0 x1 slots

Storage Devices
Serial ATA (SATA)	6 x SATA 6Gb/s
M.2	1 x M.2_1 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x2 mode)* 1 x M.2_2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x4 mode) * The M.2_1 socket shares bandwidth with SATA6G_2 port when using M.2 SATA mode device. Adjust BIOS settings to use X2 mode (PCIE only).

Onboard Audio
Audio Chipset	ROG SupremeFX S1220A High Definition Audio CODEC
Audio Channels	8 Channels

Onboard LAN
LAN Chipset	Intel I219-V
Max LAN Speed	1Gbps

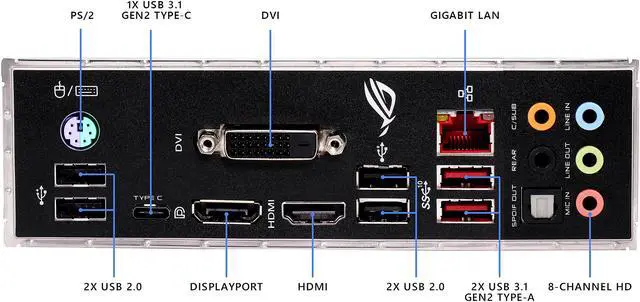

Rear Panel Ports
PS/2	1 x PS/2 keyboard/mouse port
Video Ports	1 x DVI port
HDMI	1 x HDMI
RJ45	1 x Anti-surge LAN (RJ45) port
DisplayPort	1 x DisplayPort
USB 3.1	3 x USB 3.1 gen2 ports (1 Type-C port [black] + 2 Type-A ports [red])
USB 1.1/2.0	4 x USB 2.0 ports [black]
S/PDIF Out	1 x Optical
Audio Ports	5 Ports

Internal I/O Connectors
Onboard USB	2 x USB 3.1 gen1 connectors support additional 4 x USB 3.1 gen1 ports 1 x USB 2.0 connectors support additional 2 x USB 2.0 ports
Other Connectors	1 x 4-Pin CPU_FAN connector 1 x 4-Pin CPU_OPT fan connector 1 x 4-Pin AIO_PUMP connector 2 x 4-Pin CHA_FAN connectors 1 x 4-Pin M.2_FAN connector 1 x 5-Pin EXT_FAN connector 1 x System panel connector 1 x Clear CMOS jumper 1 x T_SENSOR header 1 x TPM connector 1 x RGB_HEADER 1 x COM connector 1 x Front panel audio connector (AAFP)

Physical Spec
Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin EATX power connector 1 x 8-pin EATX 12V power connector

Features
Features	Multi-GPU Support: Supports AMD 2-Way CrossFireX Technology ROG Exclusive Features: Aura ROG RAMCache II ROG CPU-Z ROG CloneDrive ROG Overwolf ROG GameFirst IV* *ROG GameFirst IV is only available for Windows 10 64-bit ASUS Special Features: ASUS Exclusive Features: - AI Suite 3 - Ai Charger ASUS EZ DIY: - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 ASUS Q-Design: - ASUS Q-Shield - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM Gamer's Guardian - SafeSlot - DIGI+ VRM - DRAM Overcurrent Protection - ESD Guards on LAN, Audio, KBMS and USB ports - Highly Durable Components - Stainless Steel Back I/O BIOS: 1 x 128MB Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, Secure Erase, User Profile, F11 EZ RAID Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, F4 AURA ON/OFF and F9 Search Manageability: WOL, WOR, PXE Support DVD contents: Drivers EZ Update Anti-virus software (OEM version) ASUS Utilities Operating System Support: Windows 10 64-bit

Packaging

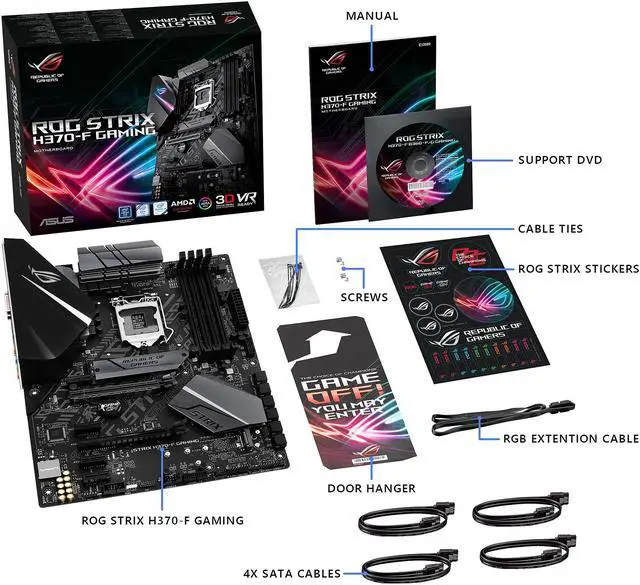

Package Contents	Accessories: User guide ROG motherboard support DVD 2 x 2-in-1 SATA 6Gb/s cables 1 x Extension Cable for RGB Strips 1 x Cable Ties set 1 x ROG Strix Series sticker 1 x ROG Strix Series Door Hanger 1 x M.2 Screws Package 1 x 3D Printing Mount Package

Additional Information
First Listed on Newegg	April 02, 2018

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's 30-Day Return Policy. Read full return policy for details.
