Learn more about the ASUS ROG-STRIX-RX5600XT-O6G-GAMING
Model| Brand | ASUS |
|---|
| Series | ROG STRIX |
|---|
| Model | ROG-STRIX-RX5600XT-O6G-GAMING |
|---|
Interface| Interface | PCI Express 4.0 |
|---|
Chipset| Chipset Manufacturer | AMD |
|---|
| GPU Series | AMD Radeon RX 5600 Series |
|---|
| GPU | Radeon RX 5600 XT |
|---|
| Boost Clock | OC mode: 1770 MHz Gaming mode: 1750 MHz |
|---|
| Stream Processors | 2304 Stream Processors |
|---|
Memory| Effective Memory Clock | 14 Gbps * Please find the guideline for VRAM OC Tool: https://www.asus.com/support/FAQ/1042818 |
|---|
| Memory Size | 6GB |
|---|
| Memory Interface | 192-Bit |
|---|
| Memory Type | GDDR6 |
|---|
Ports| Multi-Monitor Support | 4 |
|---|

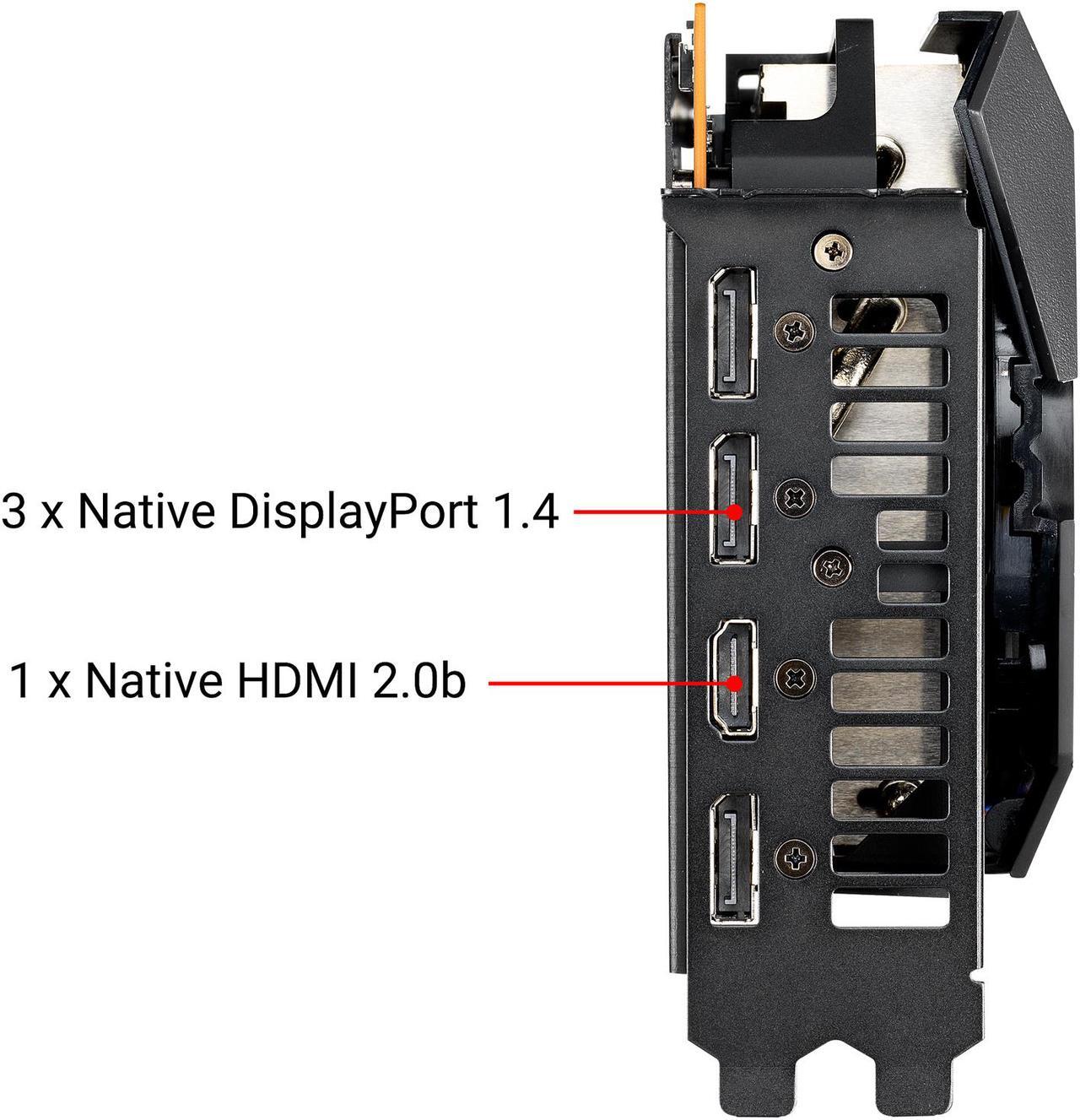

| HDMI | 1 x HDMI 2.0b |
|---|
| DisplayPort | 3 x DisplayPort 1.4 |
|---|
Details| Max Resolution | 7680 x 4320 |
|---|
| Virtual Reality Ready | Yes |
|---|
| Cooler | Triple Fans |
|---|
| Thermal Design Power | 160W |
|---|
| System Requirements | Recommended PSU: 450W |
|---|
| Recommended PSU Wattage | 450W |
|---|
| Power Connector | 1 x 6-Pin, 1 x 8-Pin |
|---|
| HDCP Ready | 2.3 |
|---|
Features| Features | OC Edition: GPU Boost Clock up to 1770 MHz (OC Mode) / up to 1750 MHz (Gaming Mode). Memory Clock up to 14 Gbps.
Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.
0dB technology lets you enjoy light gaming in relative silence.

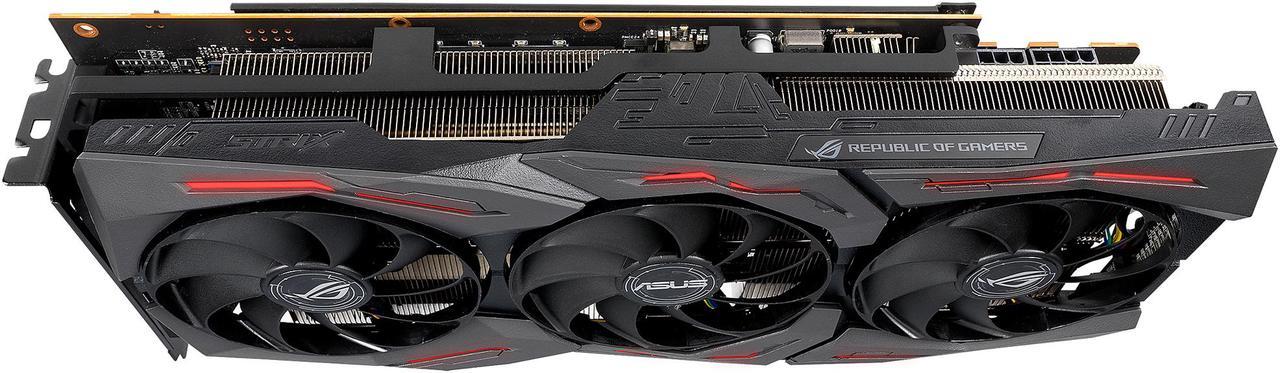

2.7-slot design expands cooling surface area to make the most of the three powerful Axial-tech fans.
Dual BIOS switch lets you toggle between Quiet and Performance BIOS profiles sans software.

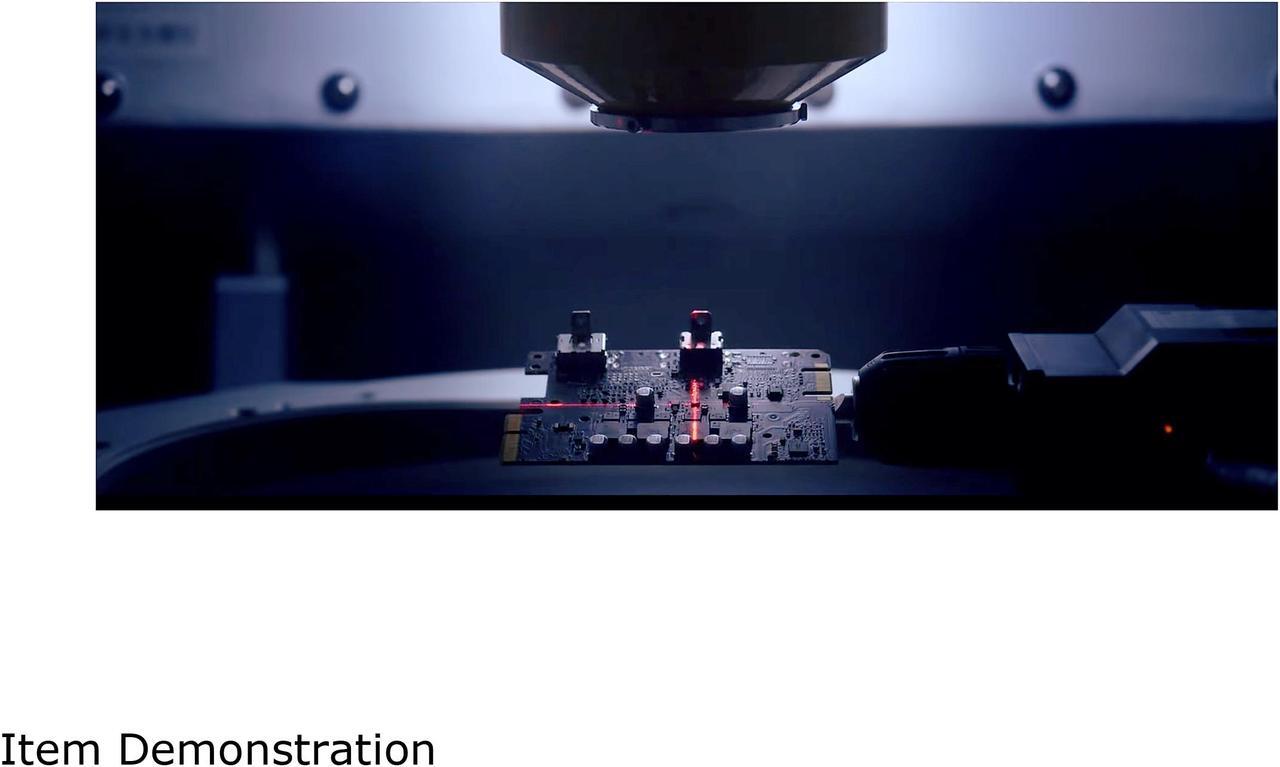

Auto-Extreme Technology uses automation to enhance reliability.

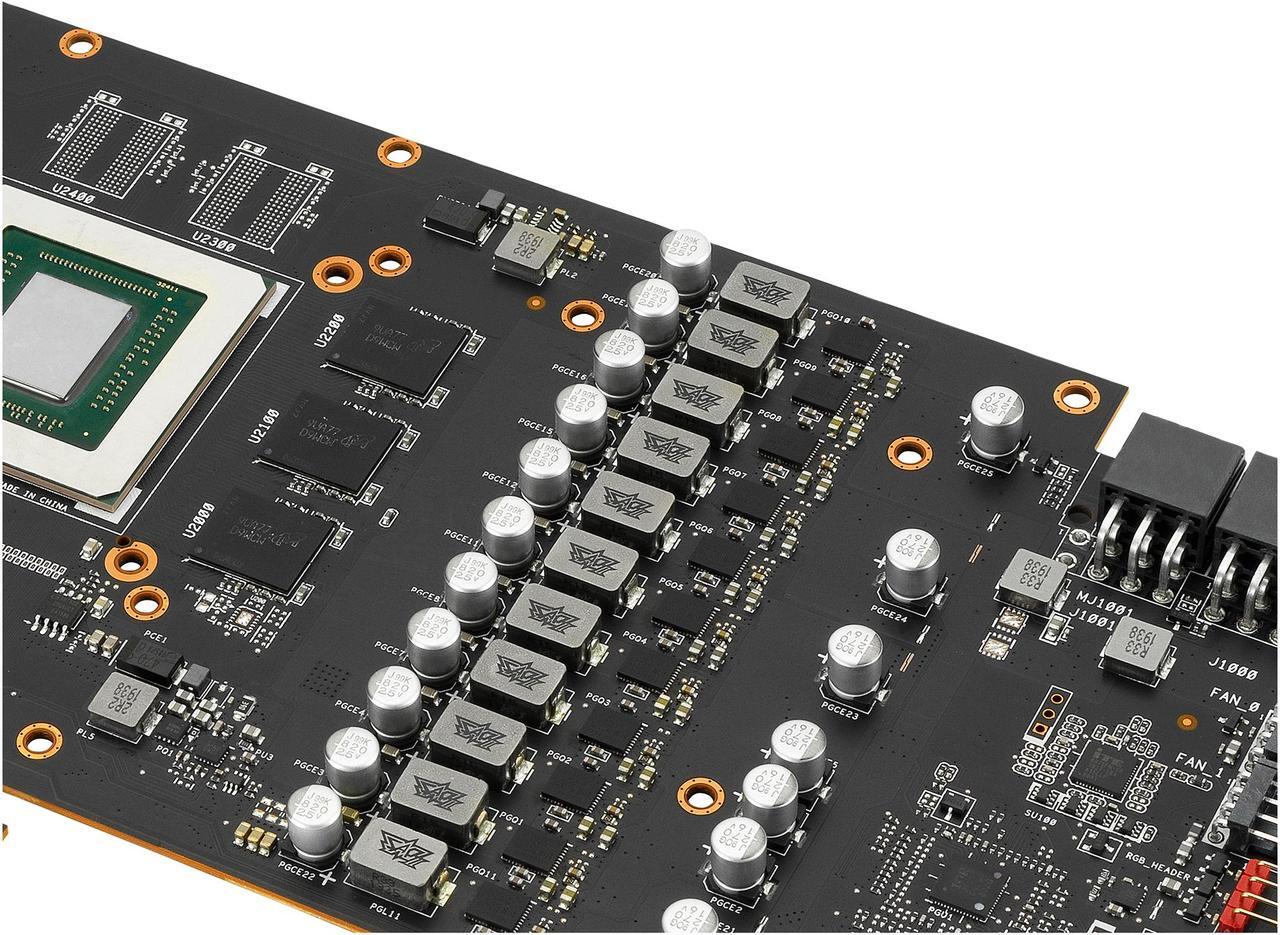

Super Alloy Power II includes premium alloy chokes, solid polymer capacitors, and an array of high-current power stages.

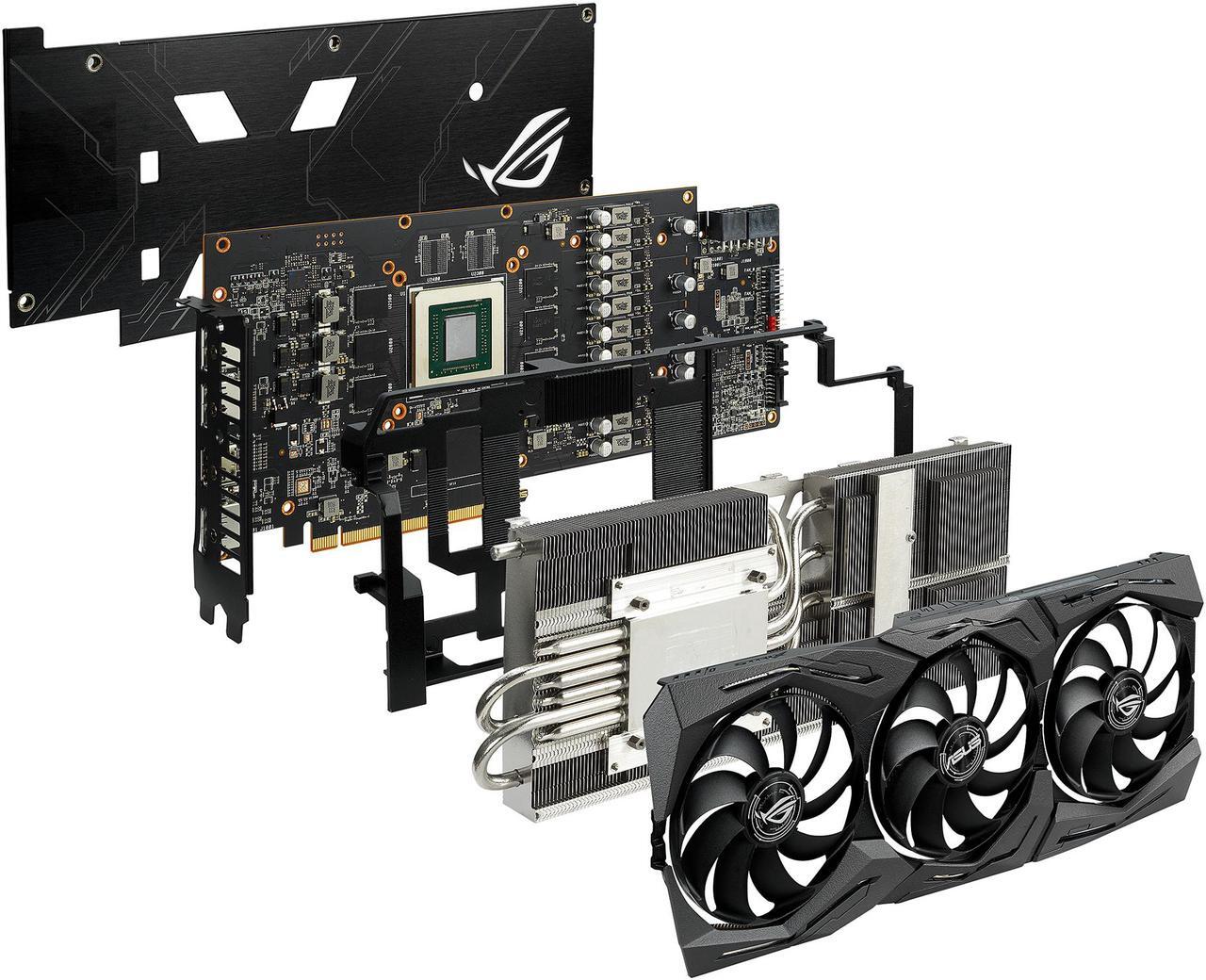

MaxContact Technology allows 2X more contact with the GPU chip for improved thermal transfer.
ASUS FanConnect II equips two hybrid-controlled fan 2 headers for optimal system cooling. |
|---|
Form Factor & Dimensions| Max GPU Length | 304 mm |
|---|
| Card Dimensions (L x H) | 11.96" x 5.12" |
|---|
| Slot Width | 2.7-slot |
|---|

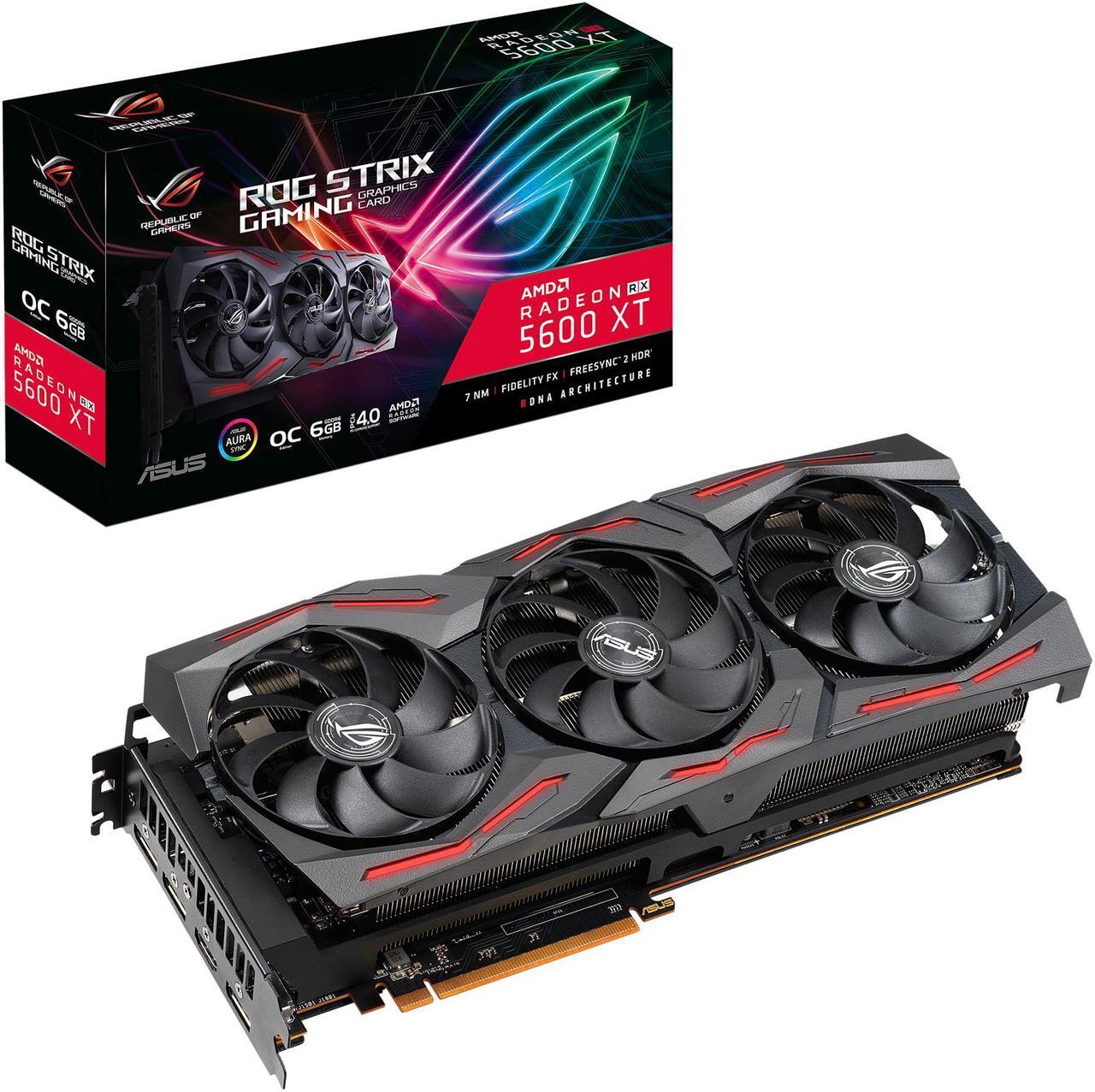

Packaging| Package Contents | Accessories: - 1 x Speedsetup Manual - 1 x ROG Velcro Hook & Loop - 1 x Thank You Card |
|---|
Additional Information| First Listed on Newegg | November 13, 2024 |
|---|
