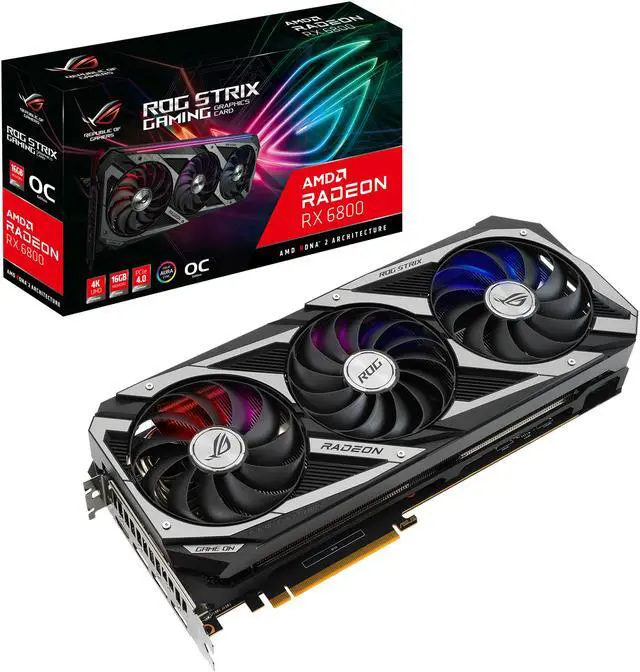

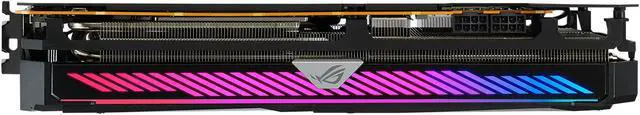

Learn more about the ASUS ROG-STRIX-RX6800-O16G-GAMING
Model
Brand
ASUS
Series
ROG STRIX
Model
ROG-STRIX-RX6800-O16G-GAMING
Interface
Interface
PCI Express 4.0
Chipset
Chipset Manufacturer
AMD
GPU Series
AMD Radeon RX 6000 Series
GPU
Radeon RX 6800
Boost Clock
2190 MHz
Stream Processors
3840 Stream Processors
Memory
Effective Memory Clock
16 Gbps
Memory Size
16GB
Memory Interface
256-Bit
Memory Type
GDDR6
3D API
DirectX
DirectX 12 Ultimate
OpenGL
OpenGL 4.6

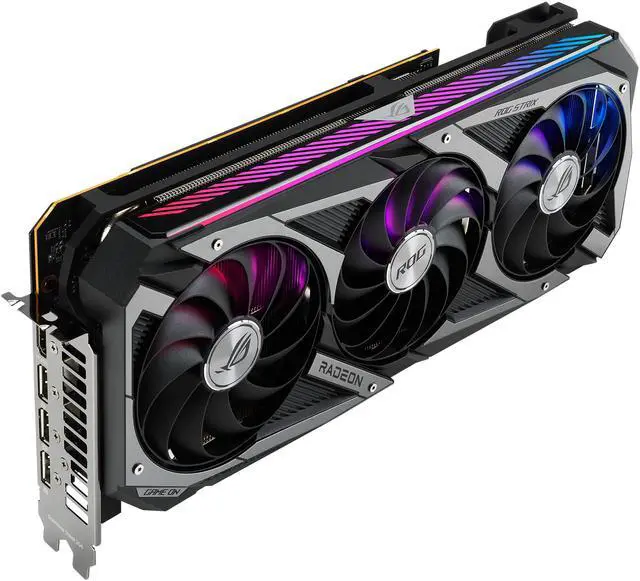

Ports
Multi-Monitor Support
4
HDMI
1 x HDMI 2.1
DisplayPort
3 x DisplayPort 1.4a
Details
Max Resolution
7680 x 4320
CrossFireX Support
Yes for DirecX 12 and Vulkan
Cooler
Triple Fans
System Requirements
Recommended PSU: 650W
Recommended PSU Wattage
650W
Power Connector
2 x 8-Pin
HDCP Ready
2.3
Features
Features

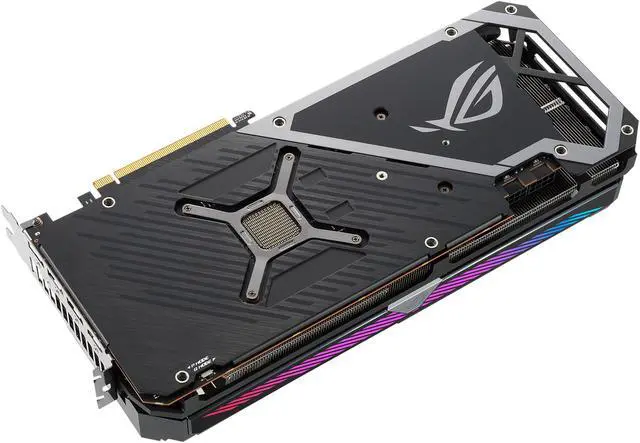

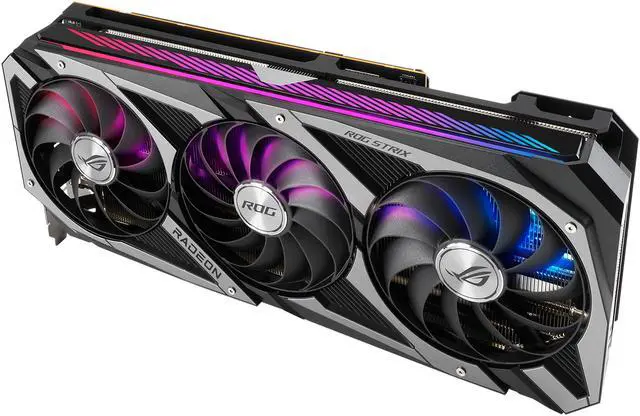

Axial-tech Fan Design has been enhanced with more fan blades and a new rotation scheme. 2.9-slot design expands cooling surface area compared to last gen for more thermal headroom than ever before. Super Alloy Power II includes premium alloy chokes, solid polymer capacitors, and an array of high-current power stages. MaxContact heat spreader allows 2X more contact with the GPU chip for improved thermal transfer. A reinforced frame prevents excessive torsion and lateral bending of the PCB. FanConnect II equips a hybrid-controlled fan header for optimal system cooling. A vented backplate prevents hot air from recirculating through the cooling array.
Form Factor & Dimensions
Max GPU Length
320 mm
Card Dimensions (L x H)
12.60" x 5.07"
Slot Width
2.9 slot
Packaging
Package Contents
Accessories: 1 x ROG Velcro Hook & Loop 1 x ASUS ruler 1 x Collection card 1 x Speedsetup Manual
Additional Information
First Listed on Newegg
November 01, 2024
