ROG Strix first motherboard for AMD's HEDT platform with the Strix X399-E. Designed to take hardcore gamers beyond playing, the Strix X399-E wraps powerful performance in a striking exterior that's easily personalized. Diffused Aura Sync RGB lighting cuts across the board like the slash of a katana, while standard and addressable headers take system illumination to the next level. With Ryzen Threadripper CPUs ready for gaming, streaming, and more, you can showcase your skills with unique style.
Learn more about the ASUS Strix X399-E Gaming
Model
Brand
ASUS
Series
ROG
Model
Strix X399-E Gaming
Supported CPU
CPU Socket Type
sTR4
CPU Type
AMD SocketTR4 for 1st and 2nd Gen AMD Ryzen Threadripper Processors * Refer to www.asus.com for CPU support list
Chipsets
Chipset
AMD X399
Memory
Number of Memory Slots
8x288pin (DDR4)
Memory Standard
DDR4 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x4 mode) 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x4 mode) 1 x U.2 port
SATA RAID
0/1/10
Onboard Audio
Audio Chipset
ROG SupremeFX High Definition Audio CODEC S1220A
Audio Channels
8 Channels
Onboard LAN
LAN Chipset
Intel i211AT
Max LAN Speed
1Gbps
Wireless LAN
WiFi IEEE 802.11 a / b / g / n / ac
Bluetooth
Bluetooth V4.2

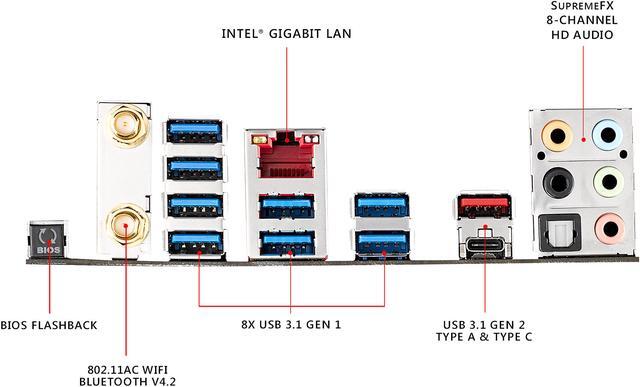

Rear Panel Ports
RJ45
1 x RJ45
USB 3.1
1 x USB 3.1 Gen 2 (Type-A) 8 x USB 3.1 Gen 1 (blue)
USB Type-C
1 x USB 3.1 Gen 2 (Type-C)
S/PDIF Out
1 x Optical
Audio Ports
5 Ports
Internal I/O Connectors
Onboard USB
1 x USB 3.1 Gen 2 front panel connector 2 x USB 3.1 Gen 1 (up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
Other Connectors
1 x Q_Code 1 x Aura Addressable Strip Header(s) 2 x Aura RGB Strip Header(s) 1 x M.2_FAN connector 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x W_PUMP+ connector 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x 5-pin EXT_FAN (Extension Fan) connector 1 x Thermal sensor connector(s) 1 x Power-on button(s) 1 x Clear CMOS jumper(s)
Physical Spec
Form Factor
Extended ATX
LED Lighting
RGB
Dimensions (W x L)
12.0" x 10.6"
Power Pin
1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s)
ROG Exclusive Features: ROG RAMCache II ROG CPU-Z ROG CloneDrive Overwolf GameFirst IV
Special Features: OC Design - ASUS PRO Clock Technology - Full BCLK range for extreme overclocking performance ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5: - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App AURA: - Aura Lighting Control - Aura RGB Strip Headers - Aura Lighting Effects Synchronization with compatible ASUS ROG devices - Aura Addressable Strip Header(s) ASUS Exclusive Features: - USB BIOS Flashback - AI Suite 3 - Ai Charger - Onboard Button: Power ASUS Quiet Thermal Solution: - Stylish Design Heat-pipe solution - ASUS Fan Xpert 4 ASUS EZ DIY: - ASUS EZ Flash 3 - ASUS USB BIOS Flashback - ASUS UEFI BIOS EZ Mode - Multi-language BIOS ASUS Q-Design: - ASUS Q-Shield - ASUS Q-Code - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector Gaming Aesthetics: - 3D printing friendly - AURA-RGB Lighting M.2 and U.2 Onboard (The Latest Transfer Technology with up to 32Gb/s Data-transfer Speeds for M.2 and U.2)
BIOS: 128MB Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability: WfM 2.0, DMI 3.0, WOL by PME, PXE
Operating System: Windows 10 64-bit
Packaging

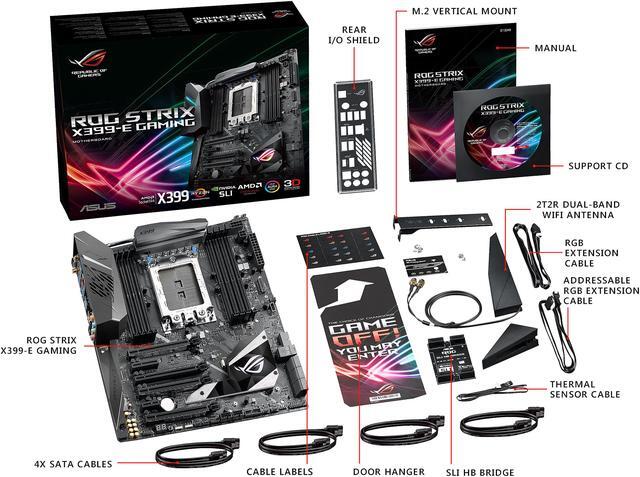

Package Contents
Accessories: User's manual ASUS Q-Shield 1 x Vertical M.2 bracket set 4 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x pack of cable tie 1 x Supporting DVD 1 x SLI HB BRIDGE (2-WAY-M) 1 x Q-Connector 1 x 10-in-1 ROG cable label 1 x Thermal sensor cable pack(s) ROG Fan Label 1 x ROG Door Hanger(s) 1 x Extension cable for Addressable LED
Additional Information
Date First Available
July 31, 2024
