Question 1

bios recognize 4 stick of ram so I can use 4x 16gb (64gb)?

Accepted Answer

i'm still on an old bios (0805) and i'm running 4 sticks of corsair 16 GB (CMH32GX5M2B5600C36) without a problem.

Question 2

Can a 3080 physically fit in the top PCI-E slot?  It looks like that M.2 heatsink might be in the way.

Accepted Answer

hello.. what 3080 are you planning on using ?I'm running a TUF 3080ti in my rig, haven't had any problems on fitment.. hope this helps..

Question 3

What kind of RAM clearance do I need? I'm looking at a Cooler Master 212 CPU cooler to pair with the 7950x.

Accepted Answer

From my personal experience having three different AM5 chips, you would be better served getting a liquid cooler. That being said I think you will be fine using this cooler with any ram. The only ram I can think of that might cause an issue would be the Corsair Dominator as they are quite tall.

Question 4

If I place a Gen 5 NVME SSD in the PCI 5.0 M.2_1 slot, will the PCIe 5.0 x16 slot run at full x16, or will it drop to x8/x4?  Just curious how it will run with my current GPU or when the PCI 5 GPUs start rolling out.  Thanks!

Accepted Answer

amd DOT com/en/products/processors/chipsets/am5 DOT html
AMD lists the X670E as having 44 total PCIe 5.0 lanes.  The top two PCIe slots share their bandwidth, so you can have one a 16x, or two at 8x.  The four M.2 drives each use 4x lanes, so 16 total.  The LAN and Wifi each probably use 4x, so that's 44 lanes in total.

Question 5

Will this motherboard boot with ram only installed in the socket closest and 3rd closest to the cpu socket?

Accepted Answer

I believe it will. that will be single channel slots..

Question 6

What RAM is everyone using and what RAM should we avoid?

Accepted Answer

I'm using,
Kingston FURY Beast 32 GB (2 x 16 GB) DDR5-6000 CL40 Memory.
KF560C40BBK2-32

runs at 6000 MHz no problems.

Question 7

Can this Motherboard run with 4 -32 GB. sequential serial numbered sticks of CORSAIR Vengeance RGB 128 GB. (4x32GB) DDR5 6400 CL-32 ?

Accepted Answer

Sorry but I run GSkil memory exclusively.sp I dont know.

Question 8

Does it come with the 2 sata cables, the keychain, and the stickers, and other accessories?

Accepted Answer

Mine did. I lost the big honking heatsink on my workbench, I need it so am looking for other colling of M.2's.

Question 9

does it come with all the accessories like the 2 sata cables, the keychain, and the sticker?

Accepted Answer

Yes, the package contents include 2 SATA 6Gb/s cables, an ASUS Wi-Fi moving antennas, a key chain, and a ROG Strix sticker.

Brand	ASUS
Series	ROG
Model	STRIX X670E-E GAMING WIFI
Part Number	90MB1BR0-M0AAY0

CPU Socket Type	AM5
CPU Type	Supports AMD Ryzen 7000 / 8000 / 9000 Series Desktop Processors* * Refer to www.asus.com for CPU support list.

Number of Memory Slots	4x288pin (DDR5)
Memory Standard	Supports DDR5 6400+(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600 / 5400 / 5200 / 5000 / 4800 * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
Maximum Memory Supported	256GB
Channel Supported	Dual Channel
ECC Supported	Non-ECC
Buffer Supported	Un-buffered * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function

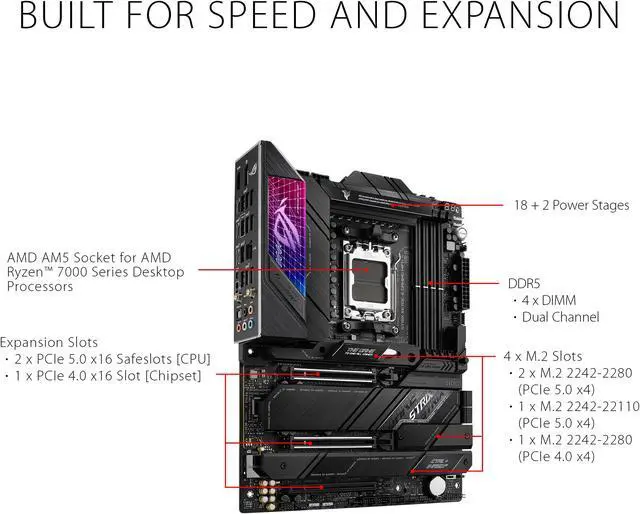

PCI Express 5.0 x16	2 x PCIe 5.0 x16 slots (supports x16 or x8/x4 modes)
PCI Express 4.0 x16	1 x PCI Express 4.0 x16 slot (supports x4 mode)

Serial ATA (SATA)	4 x SATA 6Gb/s
M.2	AMD Ryzen 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) AMD X670 Chipset M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports *AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.

ASUS ROG STRIX X670E-E GAMING WIFI AMD X670 AM5 Ryzen Desktop 9000 8000 & 7000 ATX motherboard, 18+2 power stages, DDR5, 4x M.2 slots with heatsink, PCIe 5.0, USB 3.2 Gen 2x2, WiFi 6E, AI Cooling II

Learn more about the ASUS STRIX X670E-E GAMING WIFI

Customer Reviews of the ASUS STRIX X670E-E GAMING WIFI

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Audio Chipset	Realtek ALC4080

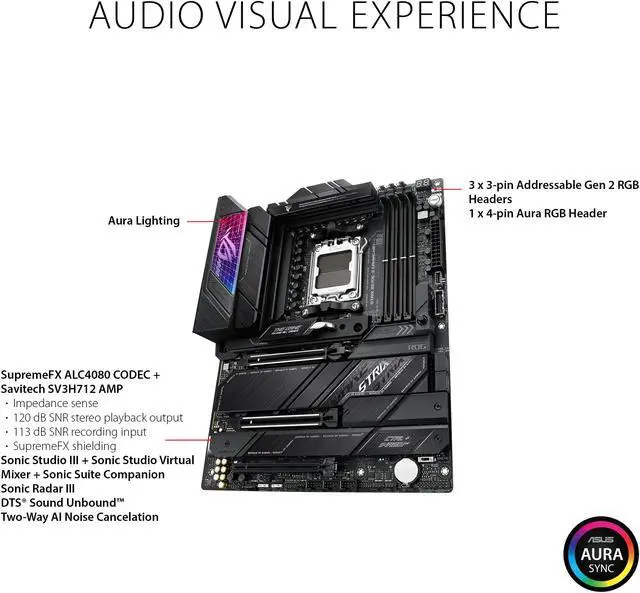

Audio Channels	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback Audio Features - Audio Shielding - Savitech SV3H712 AMP - Gold-plated audio jacks - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Max LAN Speed	2.5Gbps
Wireless LAN	Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* * WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.
Bluetooth	Bluetooth v5.2

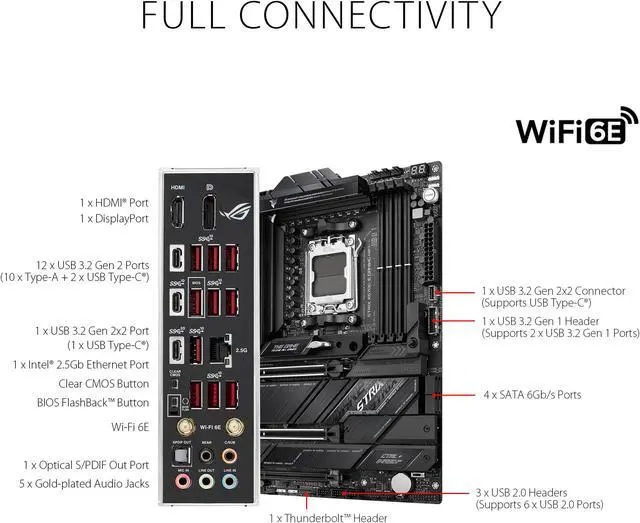

Onboard USB	1 x USB 3.2 Gen 2x2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 3 x USB 2.0 headers support additional 6 USB 2.0 ports
Other Connectors	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan header Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Alteration Mode Switch 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x Start button 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt header

Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin Main Power connector 2 x 8-pin +12V Power connector

Item#: N82E16813119581
