What version of HDMI port it is?

The HDMI port version is HDMI 2.1.

Who would pay 429 for an f series motherboard? I'm thinking 279 on this one.

The ASUS ROG Strix Z790-F Gaming WiFi II motherboard offers features such as a robust power solution with 16+1+2 power stages, ample M.2 support with one PCIe 4.0 M.2 slot with a heatsink and backplate, and four PCIe 4.0 M.2 slots with heatsinks, high-performance networking with on-board WiFi 7 and Intel 2.5 Gb Ethernet, and abundant connectivity options including USB 20Gbps, 10Gbps, and 5Gbps rear I/O ports. These premium features may justify its price point of $429.

$699^.00

Free 30-day Returns

Limit 99999 per customer.

Ships from Hong Kong.

Price alert

Add to wish list

Sold by roboshine

Top Rated

4.5 (140 seller ratings)

Shipped by roboshine

Meet Your Seller

roboshine

See Seller Store

Get Educated

Make informed decisions with expert advice. Learn More

Main image of ASUS ROG Strix Z790-F Gaming WiFi II LGA 1700(Intel 14th &13th & 12th Gen)ATX gaming motherboard(DDR5,2.5 Gb LAN,5XM.2 slots with heatsinks,PCIe 5.0 x16 SafeSlot with Q-Release,WiFi 7,USB 20Gbps rear I/O port and front-panel connector.

Alt view image 2 of 8 - ASUS ROG Strix Z790-F Gaming WiFi II LGA 1700(Intel 14th &13th & 12th Gen)ATX gaming motherboard(DDR5,2.5 Gb LAN,5XM.2 slots with heatsinks,PCIe 5.0 x16 SafeSlot with Q-Release,WiFi 7,USB 20Gbps rear I/O port and front-panel connector.

Alt view image 3 of 8 - ASUS ROG Strix Z790-F Gaming WiFi II LGA 1700(Intel 14th &13th & 12th Gen)ATX gaming motherboard(DDR5,2.5 Gb LAN,5XM.2 slots with heatsinks,PCIe 5.0 x16 SafeSlot with Q-Release,WiFi 7,USB 20Gbps rear I/O port and front-panel connector.

Alt view image 4 of 8 - ASUS ROG Strix Z790-F Gaming WiFi II LGA 1700(Intel 14th &13th & 12th Gen)ATX gaming motherboard(DDR5,2.5 Gb LAN,5XM.2 slots with heatsinks,PCIe 5.0 x16 SafeSlot with Q-Release,WiFi 7,USB 20Gbps rear I/O port and front-panel connector.

Alt view image 5 of 8 - ASUS ROG Strix Z790-F Gaming WiFi II LGA 1700(Intel 14th &13th & 12th Gen)ATX gaming motherboard(DDR5,2.5 Gb LAN,5XM.2 slots with heatsinks,PCIe 5.0 x16 SafeSlot with Q-Release,WiFi 7,USB 20Gbps rear I/O port and front-panel connector.

Alt view image 6 of 8 - ASUS ROG Strix Z790-F Gaming WiFi II LGA 1700(Intel 14th &13th & 12th Gen)ATX gaming motherboard(DDR5,2.5 Gb LAN,5XM.2 slots with heatsinks,PCIe 5.0 x16 SafeSlot with Q-Release,WiFi 7,USB 20Gbps rear I/O port and front-panel connector.

Alt view image 7 of 8 - ASUS ROG Strix Z790-F Gaming WiFi II LGA 1700(Intel 14th &13th & 12th Gen)ATX gaming motherboard(DDR5,2.5 Gb LAN,5XM.2 slots with heatsinks,PCIe 5.0 x16 SafeSlot with Q-Release,WiFi 7,USB 20Gbps rear I/O port and front-panel connector.

Alt view image 8 of 8 - ASUS ROG Strix Z790-F Gaming WiFi II LGA 1700(Intel 14th &13th & 12th Gen)ATX gaming motherboard(DDR5,2.5 Gb LAN,5XM.2 slots with heatsinks,PCIe 5.0 x16 SafeSlot with Q-Release,WiFi 7,USB 20Gbps rear I/O port and front-panel connector.

Customer images

Shop All ASUS Products | Visit Roboshine Store

ASUS ROG Strix Z790-F Gaming WiFi II LGA 1700(Intel 14th &13th & 12th Gen)ATX gaming motherboard(DDR5,2.5 Gb LAN,5XM.2 slots with heatsinks,PCIe 5.0 x16 SafeSlot with Q-Release,WiFi 7,USB 20Gbps rear I/O port and front-panel connector.

(160)(38) Write a Review

Option: ROG STRIX Z790-F GAMING WIFI II

ROG MAXIMUS Z790 FORMULA
ROG MAXIMUS Z790 APEX ENCORE
ROG MAXIMUS Z790 DARK HERO
ROG STRIX Z790-E GAMING WIFI II
ROG STRIX Z790-F GAMING WIFI II
ROG STRIX Z790-A GAMING WIFI II

BIOS update may be required when used with some 14th generation Intel Core processors, visit ASUS support website for more information
Intel LGA 1700 socket: Ready for Intel Socket LGA1700 for Intel Core 14th & 13th & 12th Gen, Pentium Gold and Celeron Processors
Robust Power Solution: 16+1+2 power solution rated for 90A per stage with dual ProCool II power connectors, high-quality alloy chokes, and durable capacitors to support multi-core processors
Optimized VRM Thermals: Massive heatsinks with integrated I/O cover, high-conductivity thermal pads, and connected with an L-shaped heatpipe
Ample M.2 Support: One PCIe 4.0 M.2 slot with a heatsink and backplate, and four PCIe 4.0 M.2 slots with heatsinks
Abundant Connectivity: USB 20Gbps, 10Gbps and 5Gbps rear I/O ports, front-panel USB connector with PD 3.0 up to 30W, PCIe 5.0 x16 SafeSlot, HDMI 2.1, and DisplayPort 1.4
High-Performance Networking: On-board WiFi 7 (802.11be) and Intel 2.5 Gb Ethernet with ASUS LANGuard

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (160)

Any questions? Our AI beta will help you find out quickly.

Try me now

Model
Brand	ASUS
Series	ROG
Model	ROG STRIX Z790-F GAMING WIFI II
Part Number	90MB1FM0-M0AAY0

Supported CPU
CPU Socket Type	LGA 1700
CPU Type	Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipsets
Chipset	Intel Z790

Memory
Number of Memory Slots	4 x DIMM slots, Max. 192GB, DDR5
Memory Standard	DDR5 : 8000+(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II ASUS Enhanced Memory Profile II (AEMP II) Supports DIMM Flex * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Maximum Memory Supported	256GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 5.0 x16	1 x PCI Express 5.0 x16
PCI Express 4.0 x16	1 x PCI Express 4.0 x16
Other Slots	Intel® CoreTM Processors (14th & 13th & 12th Gen)* 1 x PCIe 5.0x16 slot (supports x16 mode) Intel® Z790 Chipset** 1 x PCIe 4.0 x16 slot (supports x4 mode) 1x PCIe 3.0 x1 slot * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Storage Devices
Serial ATA (SATA)	4 x SATA 6Gb/s
M.2	Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® CoreTM Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) Intel® Z790 Chipset M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
SATA RAID	Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.

Onboard Audio
Audio Channels	ROG SupremeFX 5.1 Surround Sound High Definition Audio CODEC ALC4080* - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front and Rear Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input - Supports up to 32-Bit/384 kHz playback on front panel Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Gold-plated audio jacks - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover **The LINE OUT port on the rear I/O does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use an USB interface audio device.

Onboard LAN
Max LAN Speed	1 x Intel® 2.5Gb Ethernet ASUS LANGuard
Wireless LAN	Intel® Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band* Support Wi-Fi 7 160MHz bandwidth, up to 2.4Gbps transfer rate. Bluetooth® v5.4**** * Compatible with Windows 11 or later. Wi-Fi 7 MLO(Multi-link Operation) full functions support will be ready in Windows 11 2024 Platform (Windows 11 24H2) or later. * Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. **** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
Bluetooth	Bluetooth® v5.4****

Rear Panel Ports

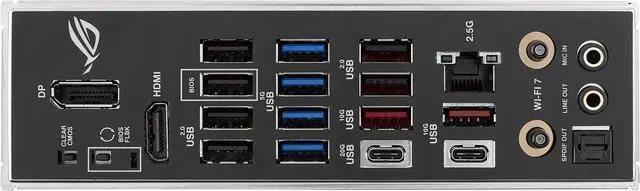

Back I/O Ports	1 x USB 20Gbps port (1 x USB Type-C®) 3 x USB 10Gbps ports (2 x Type-A+1 x USB Type-C®) 4 x USB 5Gbps ports (4 x Type-A) 6 x USB 2.0 ports (6 x Type-A) 1 x DisplayPort 1 x HDMITM port 1 x Wi-Fi Module 1 x Intel® 2.5Gb Ethernet 2 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button

Internal I/O Connectors
Other Connectors	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connector Storage related 5 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD) 1 x USB 5Gbps header supports 2 additional USB 5G ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x Start button 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt™ (USB4®) header

Software Feature
Windows 11	Windows® 11, Windows® 10 64-bit

Physical Spec
Form Factor	ATX
Dimensions (W x L)	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Features
Features	Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-Antenna - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS button - CPU Socket lever protector - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Aura RGB header - Addressable Gen 2 headers Front Panel USB 20Gbps with PD Fast Charge Support - Support: up to 30W fast charging and USB Wattage Watcher - Output: 5V/9V max. 3A, 12V max 2.5A - Compatible with PD3.0

Additional Information
Date First Available	August 08, 2025
