What size tower case is needed for this motherboard?

The mobi is roughly 11w x 12h. A ful atx would be recommended because you have alot of connections you can make off this board. Some will extend the width and the height depending on your peripherals.

Best Memory Speeds for this board? if one were to buy 128 gigs of 3600, yea a bit extreme, but to get the absolute most out of this board. what speeds would you buy

It depends on which CPU you pair with it and how many sticks of RAM. You should look up the Threadripper RAM channel/speed chart on Google for more info on that. I purchased a 256GB kit of Trident Z Neo to pair with my 3970X. The RAM I bought is rated for 3200mhz, but I'm only able to run it at 2933Mhz. Any higher than that and the system becomes completely unstable, even though 3200 is the XMP profile.

what is the boot time?

That completely depends on the other components of your system. I have decent memory and the sabrent rocket m.2ssd and it boots to windows in about 30 seconds or less. If you have a mechanical hard drive it will take longer.

HDMI or DisplayPort; Those ports would be available on the graphic card that you would buy for the motherboard. And the quantity of the ports varies from one GPU to another!

what is the socket... strx4?

this is the socket for 3rd generation AMD Threadripper processors.

Does this have dual thunderbolt 3 on the motherboard? If not which ones do, specifically for the Threadripper 3 / TRX40 boards?

Thunderbolt 3 isn't usually on an AMD motherboard as it's an intel technology, so no

$514^.00

Free 30-day Returns

Limit 99999 per customer.

Ships from China.

Price alert

Add to wish list

Sold by sanqiangbaihuo

Shipped by sanqiangbaihuo

Meet Your Seller

sanqiangbaihuo

See Seller Store

Main image of ASUS ROG ZENITH II EXTREME sTRX4 AMD TRX40 Extended ATX AMD Motherboard

Alt view image 2 of 7 - ASUS ROG ZENITH II EXTREME sTRX4 AMD TRX40 Extended ATX AMD Motherboard

Alt view image 3 of 7 - ASUS ROG ZENITH II EXTREME sTRX4 AMD TRX40 Extended ATX AMD Motherboard

Alt view image 4 of 7 - ASUS ROG ZENITH II EXTREME sTRX4 AMD TRX40 Extended ATX AMD Motherboard

Alt view image 5 of 7 - ASUS ROG ZENITH II EXTREME sTRX4 AMD TRX40 Extended ATX AMD Motherboard

Alt view image 6 of 7 - ASUS ROG ZENITH II EXTREME sTRX4 AMD TRX40 Extended ATX AMD Motherboard

Alt view image 7 of 7 - ASUS ROG ZENITH II EXTREME sTRX4 AMD TRX40 Extended ATX AMD Motherboard

Shop All ASUS Products | Visit Sanqiangbaihuo Store

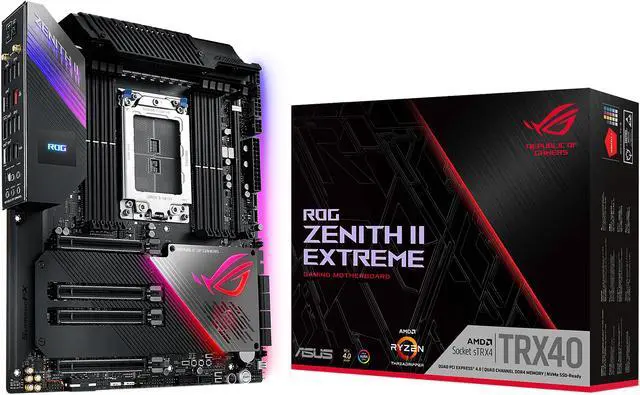

ASUS ROG ZENITH II EXTREME sTRX4 AMD TRX40 Extended ATX AMD Motherboard

(30) Write a Review

Option: ROG ZENITH II EXTREME

PRIME TRX40-PRO
ROG STRIX TRX40-E GAMING
ROG ZENITH II EXTREME

Ready for AMD 3rd Gen Ryzen Threadripper Processors: Maximize connectivity and speed with up to five M.2 drives, USB3.2 Gen2x2 and AMD StoreMI
Robust power delivery: Optimized power solution with 16 Infineon TDA21472 power stages, ProCool II power connectors, microfine alloy chokes and 10K capacitors

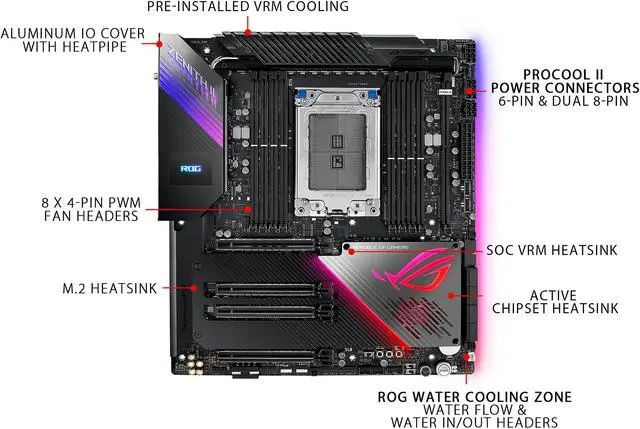

Comprehensive thermal design: Active-cooling VRM heatsink, PCIe-zone M.2 aluminum heatsink, backplate, Fan Extension Card II and water-cooling zone
High-performance networking: Onboard Aquantia 10 Gbps Ethernet, Wi-Fi 6 (802.11 ax) with MU-MIMO support, and GameFirst V technology

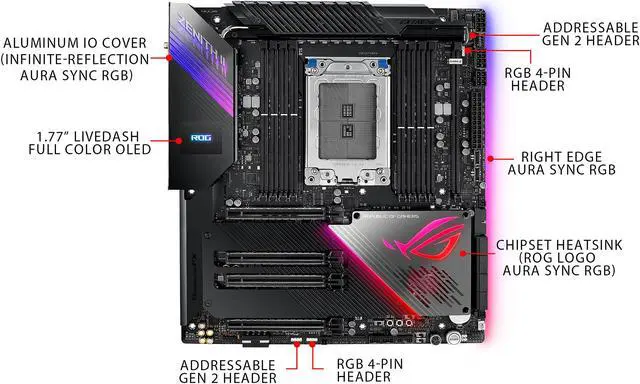

Unmatched personalization: Color OLED display and ASUS-exclusive Aura Sync RGB lighting, including two additional RGB headers and two addressable headers
Industry-leading ROG audio: SupremeFX S1220 and ESS SABRE9018Q2C for enthusiast-grade audio performance, featuring Japanese capacitors
DIY-friendly design: Pre-mounted I/O shield, ASUS SafeSlot, BIOS FlashBack and FlexKey

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (30)

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

Model
Brand	ASUS
Series	ROG
Model	ZENITH II EXTREME

Supported CPU
CPU Socket Type	sTRX4
CPU Type	AMD Socket sTRX4 for 3rd Gen AMD Ryzen Threadripper Series Desktop Processors

Chipsets
Chipset	AMD TRX40

Memory
Number of Memory Slots	8x288pin (DDR4)
Memory Standard	DDR4 4600+(O.C)/ 4400(O.C)/ 4266(O.C)/ 4133(O.C)/ 4000(O.C)/ 3866(O.C)/ 3800(O.C)/ 3733(O.C)/ 3600(O.C)/ 3466(O.C)/ 3400(O.C)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz ECC and non-ECC, Unbuffered memory
Maximum Memory Supported	256GB
Channel Supported	Quad Channel

Expansion Slots
PCI Express 4.0 x16	3rd Gen AMD Ryzen Threadripper Series Desktop Processors 4 x pcie 4.0 x16 Safeslots (supports x16, x16/x16, x16/x8/x16, x16/x8/x16/x8 modes)

Storage Devices
Serial ATA (SATA)	AMD TRX40 chipset 4 x SATA 6Gb/s ports ASMedia SATA controller 4 x SATA 6Gb/s ports
M.2	1 x DIMM.2 Module supports - 2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 (supports PCIe 4.0 x4 and SATA modes) 2 x M.2 Socket 3 with M Key, type 2242/2260/2280 (PCIe 4.0 x4 mode)* 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 (PCIe 4.0 x4/x2 mode)** * When the M.2_2 on board is operating in PCIe mode, PCIE x16_4 will running at x4 mode ** When the M.2_3 on board is operating in PCIe x4 mode, SATA6G_E1-E4 will be disabled

Onboard Audio
Audio Chipset	ROG SupremeFX High Definition Audio CODEC S1220
Audio Channels	8 Channels

Onboard LAN
LAN Chipset	AQUANTIA AQC107
Second LAN Chipset	Intel I211-AT
Max LAN Speed	10Gbps + 1Gbps
Wireless LAN	Intel Wi-Fi 6 AX200 Wi-Fi 802.11 ax, Bluetooth 5.0 Supports dual band frequency 2.4/5 GHz Supports 2x2 MU-MIMO Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed
Bluetooth	BT 5.0

Rear Panel Ports

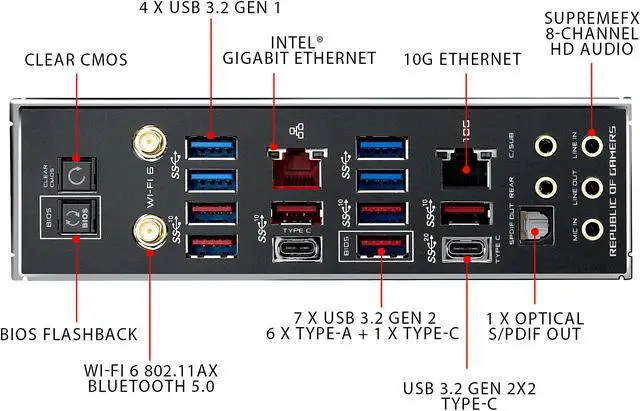

Back I/O Ports	1 x Clear CMOS Button 1 x BIOS Flashback Button 1 x 2x2 Wi-Fi Module 1 x Aquantia AQC-107 10G LAN 1 x Anti-surge LAN (RJ45) 4 x USB 3.2 Gen1 ports [blue] 7 x USB 3.2 Gen2 ports (6 x Type-A [red] and 1 x Type-C [black]) 1 x USB 3.2 Gen2x2 port (1 x Type-C [black]) 1 x Optical S/PDIF out 5 x LED-illuminated audio jacks

Internal I/O Connectors
Onboard USB	2 x USB 3.2 Gen2 Type-C front panel connector 2 x USB 3.2 Gen1 header supports additional 4 USB 3.2 Gen1 ports 2 x USB 2.0 header supports additional 3 USB 2.0 ports
Other Connectors	1 x 4-Pin CPU fan connector 1 x 4-Pin CPU_OPT fan connector 2 x 4-Pin W_PUMP+ connector 2 x 4-Pin Chassis fan connectors 1 x 4-Pin VRM_HS fan connector 1 x 4-Pin Chipset fan connector 2 x Thermal sensor connectors 1 x EZ Plug connector (4-pin Molex power connector) 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 1 x WB_SENSOR header 2 x Aura RGB headers 2 x Aura Addressable Gen2 headers 1 x Front panel audio connector (AAFP) 1 x Start button 1 x FlexKey button 1 x Safe Boot button 1 x ReTry button 1 x Slow mode Switch 1 x RSVD switch 1 x NODE connector 1 x LN2 mode jumper 1 x BIOS Switch button 7 x ProbeIt Measurement Points 1 x TPM connector 1 x M.2_3 Switch 1 x Speaker header 1 x System panel connector

Physical Spec
Form Factor	Extended ATX
LED Lighting	RGB
Dimensions (W x L)	12.2" x 10.9"
Power Pin	1 x 24-Pin EATX power connector 2 x 8-Pin EATX 12V power connectors 1 x 6-Pin EATX 12V power connector

Features
Features	Multi-GPU Support: Supports NVIDIA 3-Way SLI Technology Supports AMD 3-Way CrossFireX Technology ROG Exclusive Features: Clear CMOS button ROG CPU-Z ROG Aura - Aura Lighting Control - Aura RGB Strip Headers Extreme Engine Digi+: - Infineon TDA21472 Power Stage - 10K Black Metallic Capacitors ROG Extreme OC kit: - OptiMem III - ReTry button - Safe Boot button - Start button - Slow Mode - LN2 Mode - FlexKey Button ProbeIt UEFI BIOS features: - ROG SSD Secure Erase - Graphic Card Information Preview USB BIOS FlashBack ROG Patented Pre-mounted I/O Shield ROG Exclusive Software - Mem Tweakit - RAMCache III - GameFirst V - Sonic Radar III - Sonic Studio III + Sonic Studio Virtual Mixer ROG DIMM.2 module with heatsink ROG Aluminum heatsink cover Special Features: ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5: - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App Gamer's Guardian: - DRAM Overcurrent Protection - 10K Black Metallic Capacitors - DIGI+ VRM - SafeSlot - ESD Guards on LAN, Audio, and USB ports LiveDash OLED 1.77" AURA: - Aura Lighting Control - Aura RGB Strip Headers - Addressable Gen 2 Header ASUS Exclusive Features: - AI Suite 3 - Ai Charger+ - Pre-mounted I/O Shield - ASUS EZ Flash 3 - ASUS C.P.R. (CPU Parameter Recall) - BIOS FlashBack Button - Clear CMOS Button ASUS Q-Design: - ASUS Q-Code - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED, HDD LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector Digi+VRM MemOK! II Armoury Crate BIOS: 2 x 128MB Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2 Manageability: WOL, PXE Operating System: Windows 10 64-bit

Packaging

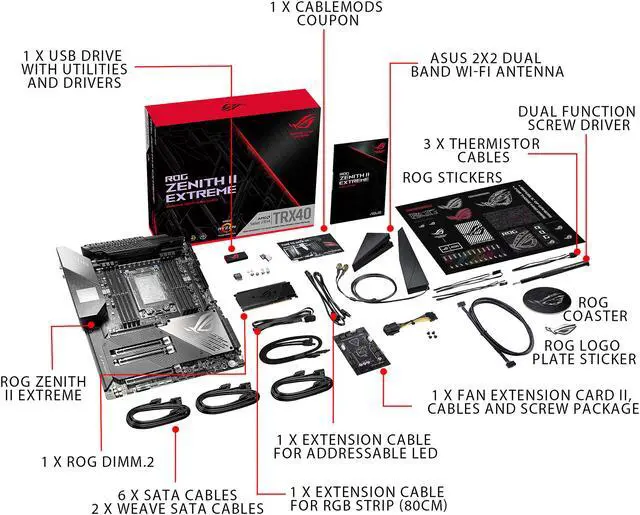

Package Contents	Accessory: 1 x User's manual 1 x USB drive with utilities and drivers 1 x ROG DIMM.2 with heatsink 1 x 2-in-1 weave SATA 6Gb/s cables 3 x 2-in-1 SATA 6Gb/s cables 5 x M.2 Screw Package 1 x 3-in-1 thermistor cable 1 x Q-Connector 1 x ROG Coaster 1 x ROG big sticker 1 x ROG logo plate sticker 1 x 2-in-1 rubbers for ROG DIMM.2 1 x Extension Cable for RGB strips (80cm) 1 x Extension cable for Addressable Strips(80cm) 1 x ASUS 2T2R dual band Wi-Fi moving antenna (Wi-Fi 802.11 a/b/g/n/ac/ax compliant) 1 x Dual function screwdriver Fan Extension Card II: 1 x Fan Extension Card II (6 x 4-pin Chassis Fan connectors, 3 x 4-pin RGB headers, 3 x 2-pin Thermal sensor header) 1 x Fan Extension Card II power cable 1 x Fan Extension Card II NODE connector cable 1 x Fan Extension Card II screw package
