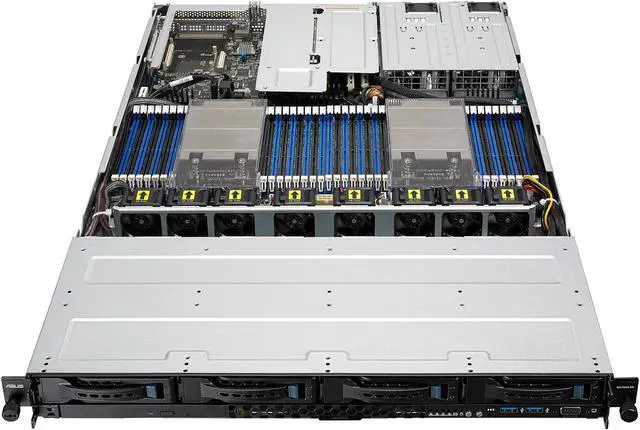

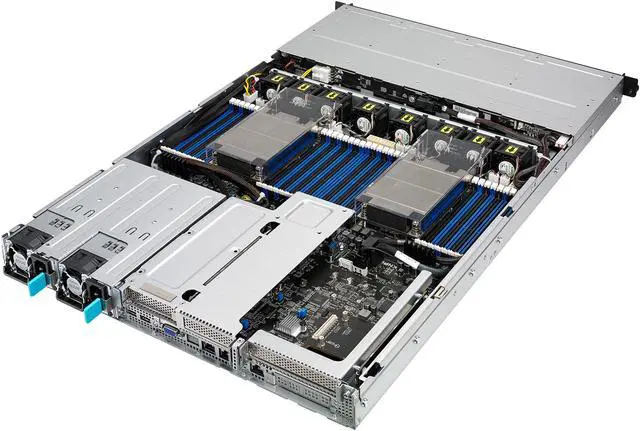

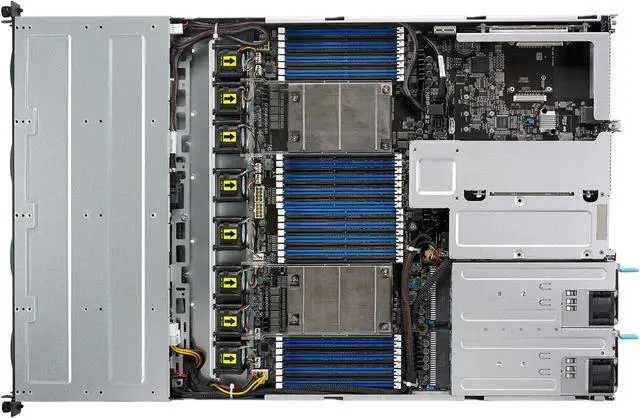

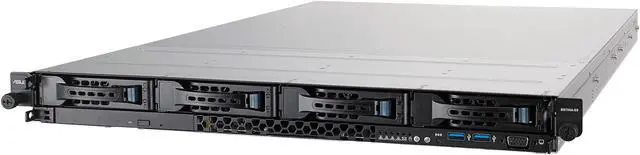

ASUS RS700A-E9-RS4 1U Rackmount Server Barebone E9 DDR4 2666 / 2400 / 2133 RDIMM DDR4 2666 / 2400 / 2133 LRDIMM

Sold and Shipped by Newegg

Purchases from these Sellers are generally covered under our Newegg Marketplace Guarantee.
Marketplace Seller
  • AMD EPYC 7000 Series
  • 1+1 Redundant 800W 80 PLUS Platinum Power Supply
  • Rating: 100-127 / 200-240V AC, 9.4A / 4.72A ,50/60 Hz Class I

  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews

MAIN OVERVIEW FEATURES:

  • Processor Supported: EPYC
  • 64-bit Processing: Yes
  • Maximum Memory: 4 TB
  • Memory Technology: DDR4 SDRAM
  • Memory Standard: DDR4-2666/PC4-21300
  • Number of Total Memory Slots: 32
  • Controller Type: Serial ATA/600
  • Graphics Controller Manufacturer: ASPEED
  • Graphics Controller Model: AST2500
  • Graphics Memory Capacity: 64 MB
  • Ethernet Technology: Ethernet
  • Number of Total Expansion Bays: 4
  • Number of 3.5" Bays: 4
  • Number of Total Expansion Slots: 4
  • Number of PCI Express x8 Slots: 1
  • Number of PCI Express x16 Slots: 3
  • Total Number of USB Ports: 4
  • Number of USB 3.0 Ports: 4
  • Number of SATA Interfaces: 10
  • Operating System Supported: SuSE Linux Enterprise Server,Windows Server 2012 R2,CentOS,Windows Server 2016,Red Hat Enterprise Linux WS 6.3,Red Hat Enterprise Linux WS 6.3 x64,Ubuntu Linux
  • Input Voltage: 120 V AC,230 V AC
  • Number of Power Supplies Installed: 2
  • Maximum Power Supply Wattage: 800 W
  • Form Factor: Rack-mountable
  • Rack Height: 1U
  • Height: 1.73" (43.94 mm)
  • Width: 17.48" (443.99 mm)
  • Depth: 27" (685.80 mm)
  • Environmentally Friendly: Yes
  • Environmental Certification: RoHS


Learn more about the ASUS RS700A-E9-RS4

Model

|
Brand
ASUS
Model
RS700A-E9-RS4

CPU Supported

|
CPU Type
AMD EPYC 7000 Series

Memory Supported

|
Max Memory Supported
Maximum up to 4096GB LRDIMM
Memory Type Supported
DDR4 2666 / 2400 / 2133 RDIMM
DDR4 2666 / 2400 / 2133 LRDIMM

Storage Supported

|
Serial ATA
10 x SATA3 6Gb/s ports
2 x M.2 connector (SATA 6Gb/s & PCI-E Gen3 x4 link)
SAS
ASUS PIKE II 3008 8-port SAS HBA card
ASUS PIKE II 3108 8-port SAS HW RAID card
12G SAS Support

Graphics

|
GPU/VPU
Aspeed AST2500
Video Memory
64MB

Expansion Slots

|
PCI Express
1 x PCI-E x16 (Gen3 x16 link), FH, HL
1 x PCI-E x16 (Gen3 x8 link), LP
1 x PCI-E x8 (Gen3 x8 link), LP
1 x OCP Mezzanine 2.0 (Gen3 x16 link)

Communications

|
First LAN
1 x Dual Port Intel Ethernet Controller i350-AM2 + 1 x Mgmt LAN

Expansion Bays

|
Hot-Swap Bays
4 x 3.5" Hot-Swap HDD Bays

Panel Ports

|
VGA
1
Rear USB
2 x USB 3.0 ports
RJ45
2 x RJ-45 GbE LAN ports
1 x RJ-45 Mgmt LAN port

Power Supply

|
Max. Power
1+1 Redundant 800W 80 PLUS Platinum Power Supply
Rating: 100-127 / 200-240V AC, 9.4A / 4.72A ,50/60 Hz Class I

Features

|
Features
Brand-new AMD EPYC platform design

3 + 1 expansion slots

Friendly design and premium efficiency

Complete remote server management

Details

|
Form Factor
1U Rackmount

Dimensions & Weight

|
Dimensions
1.73" x 27.01" x 17.48"
Weight
39.68 lbs.

Additional Information

|
Date First Available
March 13, 2018
Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
  • Read full details
  • Return Policies
    • Return for refund within: 30 days
    • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Standard Return Policy.
