Standards | IEEE 802.11b/g, IEEE 802.11n Draft 2.0 |
---|
Device Management | Bandwidth Management: Allow multiple network activities (FTP, Game, P2P…) to work smoothly at the same time. Smart Wizard browser-based administration. Remote management. Save/restore configuration files. Upgrades via web browser. Firmware restoration. Device discovery. DHCP server, WAN DHCP client. |
---|
Security | 64/128-bit WEP, WPA, WPA2, TKIP, AES, WPA-PSK, WPA2-PSK, MAC address, 802.1x, WPS.
Firewall: NAT and SPI (Stateful Packet Inspection), intrusion detection including logging.
Logging: Dropped packet, security event, Syslog.
Filtering: Port, IP packet, URL Keyword, MAC address. |
---|
WPA | WPA2 |
---|

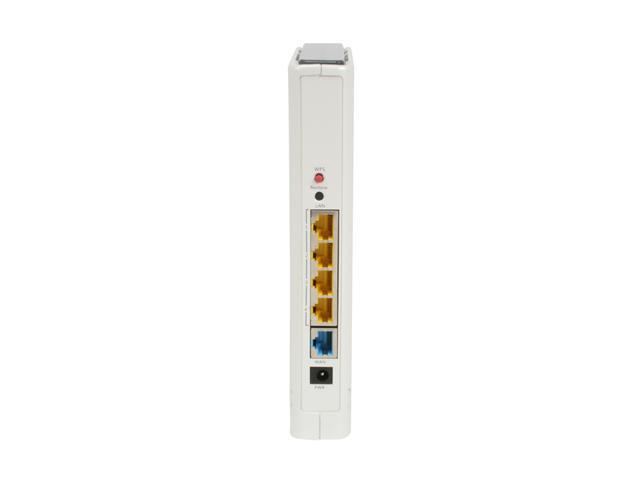

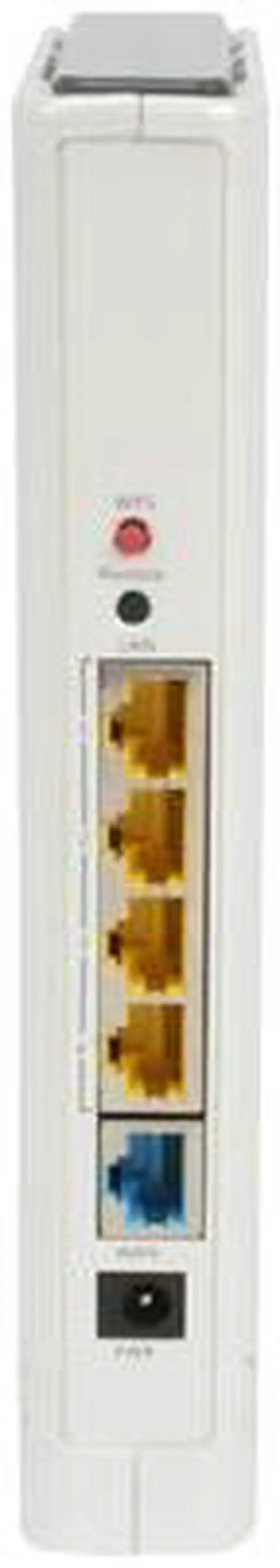

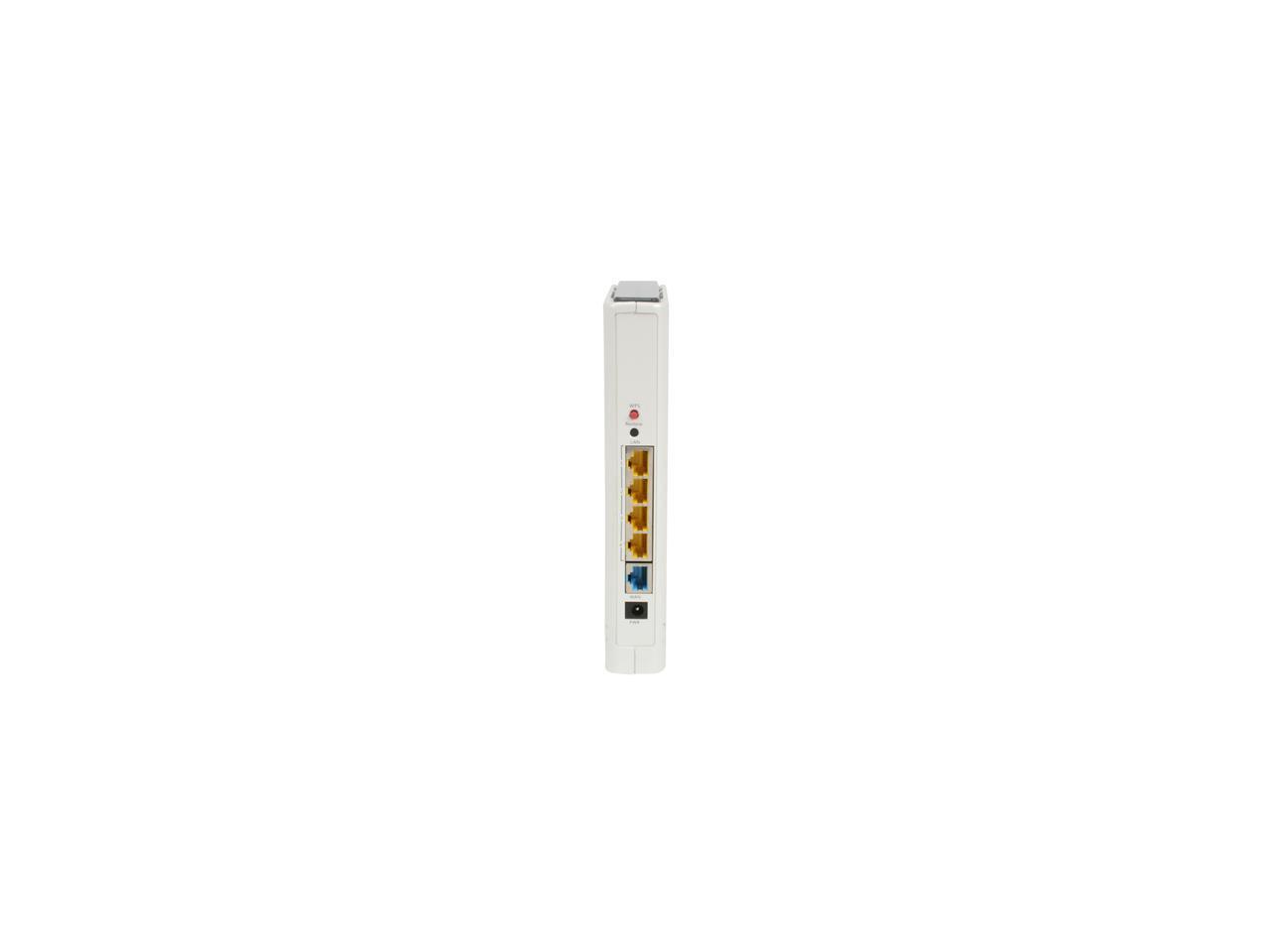

WAN Ports | LAN Ports: WAN: 1 x RJ45 for 10/100/1000 BaseT; LAN: 4 x RJ45 for 10/100/1000 BaseT. Support Ethernet and 802.3 with max. bit rate 10/100/1000Mbps and auto cross-over function (MDI-X). Switch supports up to 12K Jumbo Frames.
WAN Ports: Static IP Address Dynamic IP Address (DHCP Client) PPP over Ethernet (PPPoE) PPTP L2TP. |
---|
LAN Ports | 4 x 10/100/1000M |
---|
Wireless Data Rates | 802.11n Draft: up to 300Mbps ; 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps; 802.11b: 1, 2, 5.5, 11Mbps. |
---|
Frequency Band | 2.4 GHz |
---|
Antenna | 3 x internal antenna |
---|
Transmitted Power | 15.5~16.5dBm(g mode), 15.8~19.5dBm(b mode), 15.8~19.5dBm(n mode) |
---|
Interface | Ethernet Port |
---|
Power Supply | AC input: 100V~240V(50~60HZ); DC output: 5V with max. 2.5A current |
---|
Wireless Adapter included | No |
---|
