ASUS AMD Radeon RX 5700 XT PCIe 4.0 VR Ready Graphics Card with 8GB GDDR6 memory and support for up to 6 monitors (RX5700XT-8G) With graphics technology engineered to deliver the win, AMD Radeon 5700 series graphics cards offer what you need to accelerate the next generation of high-fidelity gaming. Powered by extreme RDNA gaming architecture, Radeon 5700 series GPUs harness industry-leading technology to drive exceptional performance, immersive graphics, and smoother gameplay. Powered by AMD Radeon 2nd Generation 7nm Technology with 1905MHz Boost Clock, 2560 Stream Processors and 8GB of advanced GDDR6 memory. PCI Express 4.0 delivers double the bandwidth compared to PCI Express 3.0 with throughput up to 16 GT/s. Supports up-to 6 Monitors with 3x DisplayPorts, 1x HDMI 8K resolution at 60 Hz or 5K at 120 Hz with DisplayPort 1.4 with DSC Radeon VR Ready Premium meets or exceeds recommended minimum GPU specification for Oculus Rift and HTC Vive.
Learn more about the ASUS RX5700XT-8G
Model
Brand
ASUS
Model
RX5700XT-8G
Interface
Interface
PCI Express 4.0
Chipset
Chipset Manufacturer
AMD
GPU Series
AMD Radeon RX 5700 Series
GPU
Radeon RX 5700 XT
Core Clock
1605 MHz
Boost Clock
1905 MHz
Stream Processors
2560 Stream Processors
Memory
Effective Memory Clock
14 Gbps
Memory Size
8GB
Memory Interface
256-Bit
Memory Type
GDDR6
3D API
DirectX
DirectX 12
OpenGL
OpenGL 4.6

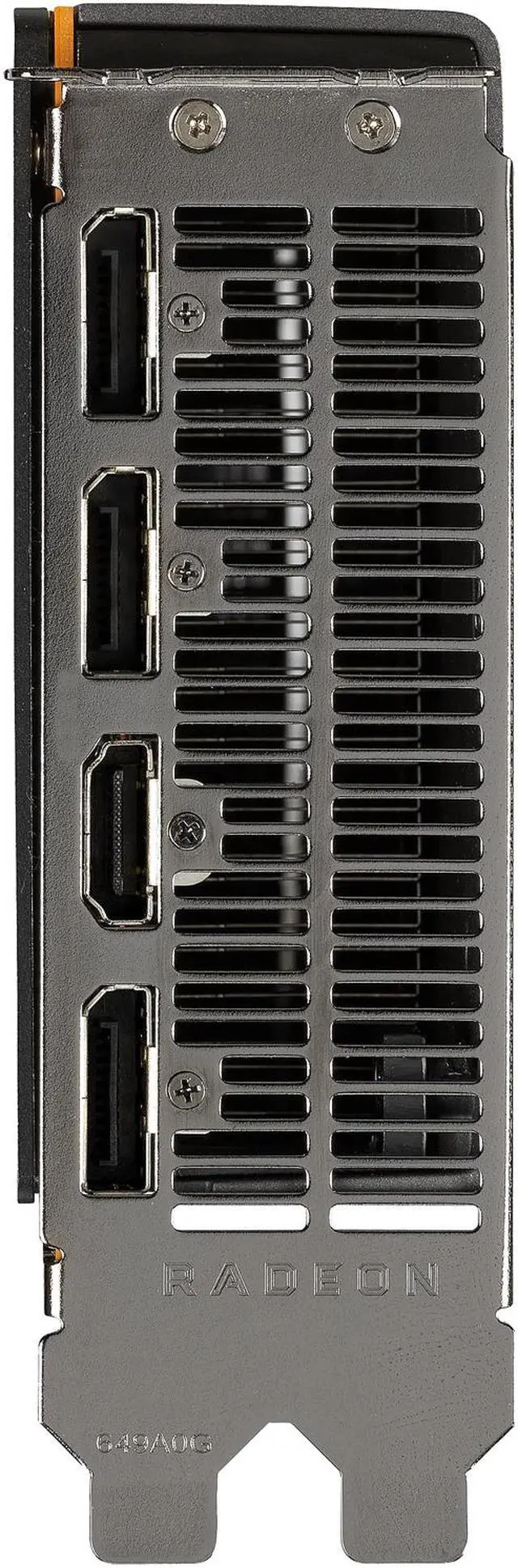

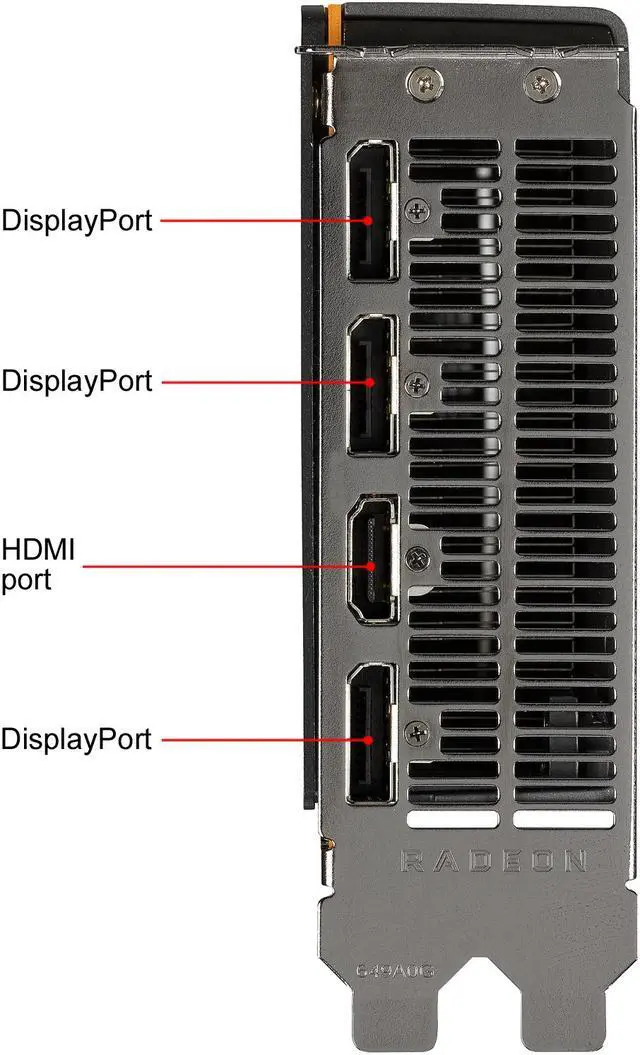

Ports
Multi-Monitor Support
6
HDMI
1 x HDMI 2.0b
DisplayPort
3 x DisplayPort 1.4
Details
Max Resolution
7680 x 4320
Eyefinity Support
Yes
Virtual Reality Ready
Yes
Cooler
Single Fan
Thermal Design Power
225W
System Requirements
Recommended PSU: 600W
Recommended PSU Wattage
600W

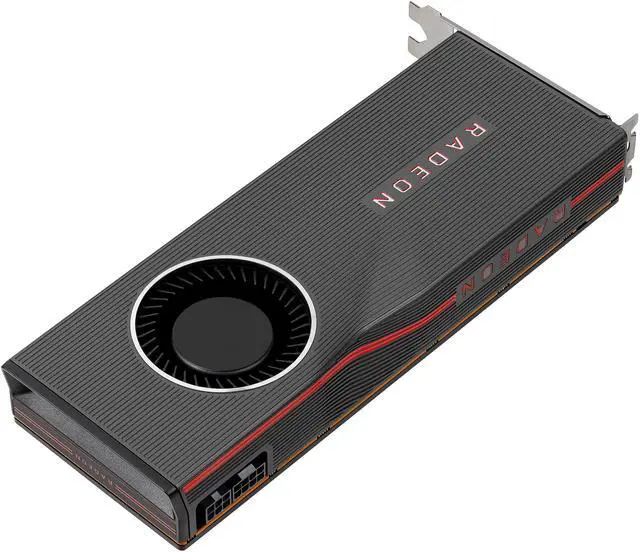

Power Connector
1 x 8-pin and 1 x 6-pin
HDCP Ready
2.3
Features
Features
RDNA Architecture is built with a 7nm process and includes 40 redesigned compute units and up to 4x IPC improvement.
Purpose-built for 1440p gaming.
Redesigned shroud with machined accents and airflow-directing contours.
Game-changing technology like Radeon Image Sharpening, FidelityFX, TressFX, and TrueAudio Next improve in-game performance and image quality.
AMD FreeSync offers stutter-free and tear-free gaming.
Radeon Software includes 0-day updates and a host of tools to customize the gaming experience.
GPU Tweak II provides intuitive performance tweaking, thermal controls, and system monitoring.
Form Factor & Dimensions
Max GPU Length
270 mm
Card Dimensions (L x H)
10.63" x 4.33"
Slot Width
2 Slots
Packaging

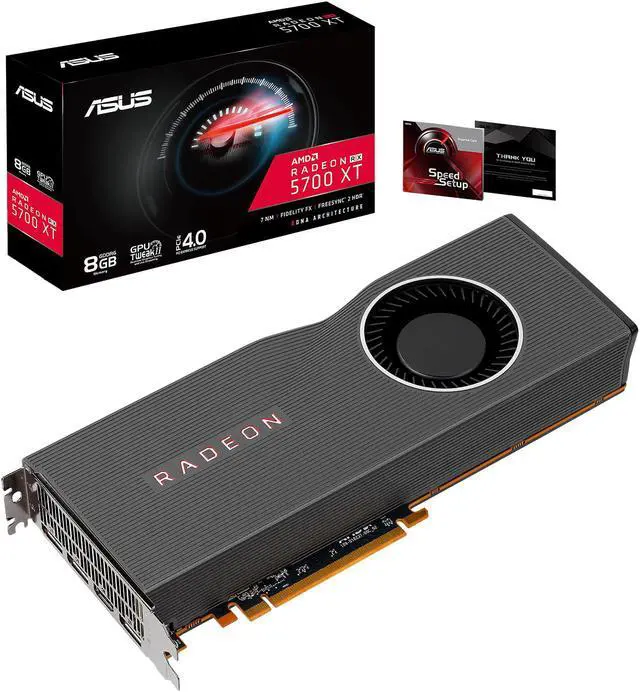

Package Contents
Accessories: 1 x Quick Guide
Additional Information
First Listed on Newegg
October 08, 2024
