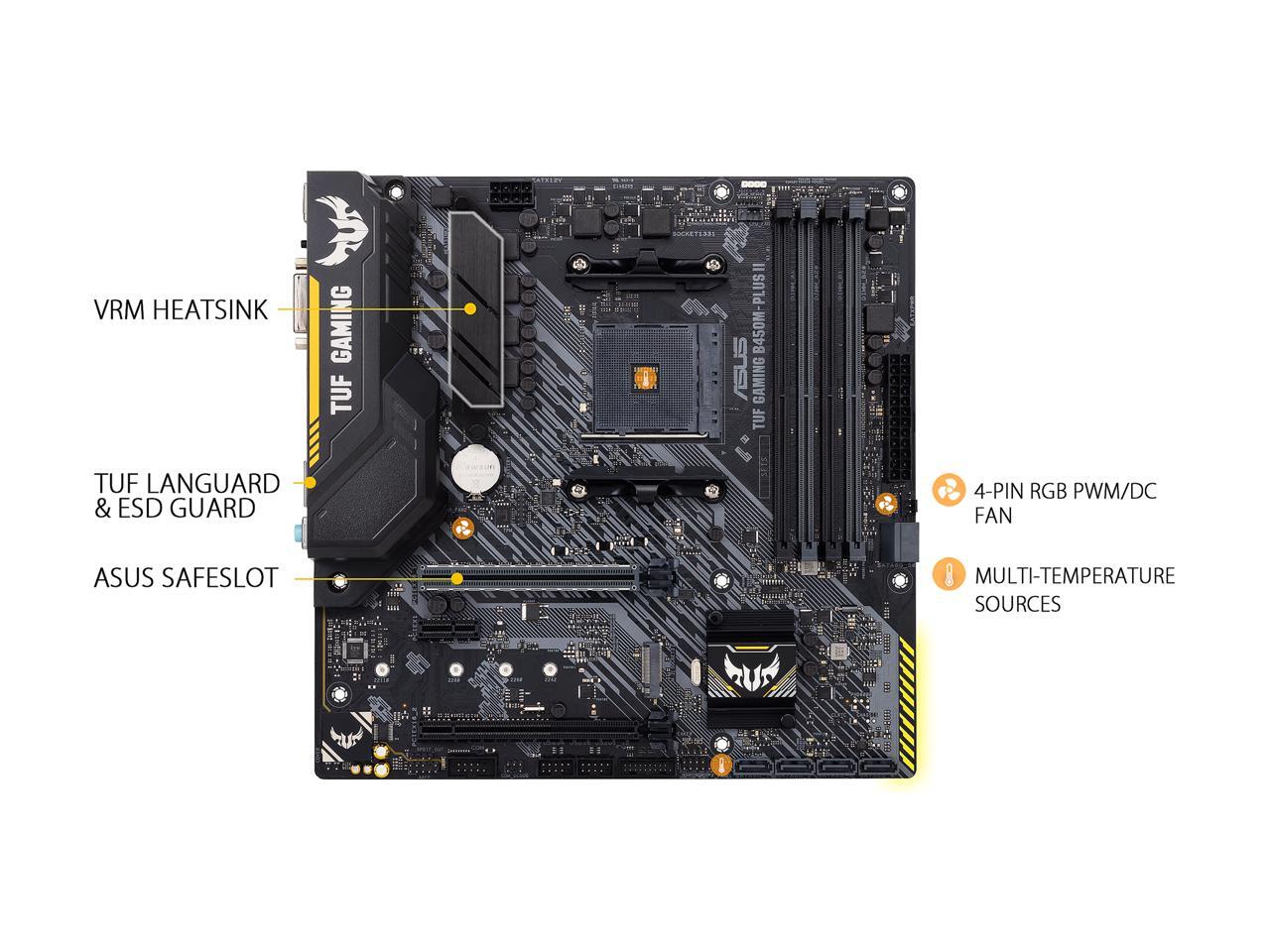

ASUS TUF GAMING B450M-PLUS II AM4 AMD B450 SATA 6Gb/s Micro ATX AMD Motherboard
+ $15 off w/ promo code 28WTRCLS223, limited offer
- AMD B450
- AMD AM4 Socket for 3rd/2nd/1st Gen AMD Ryzen / 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics / Athlon with Radeon Vega Graphics Processors
- DDR4 4400(O.C)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3533(O.C)/ 3466(O.C.)/ 3400(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Un-buffered Memory
- ECC Memory (ECC mode) support varies by CPU
Learn more about the ASUS TUF GAMING B450M-PLUS II
| Best Seller Ranking | #61 in AMD Motherboards |
|---|
| Brand | ASUS |
|---|---|
| Model | TUF GAMING B450M-PLUS II |
| CPU Socket Type | AM4 |
|---|---|
| CPU Type | AMD AM4 Socket for 3rd/2nd/1st Gen AMD Ryzen / 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics / Athlon with Radeon Vega Graphics Processors * * Refer to www.asus.com for CPU support list |
| Chipset | AMD B450 |
|---|
| Number of Memory Slots | 4×288pin |
|---|---|
| Memory Standard | DDR4 4400(O.C)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3533(O.C)/ 3466(O.C.)/ 3400(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Un-buffered Memory * ECC Memory (ECC mode) support varies by CPU. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). * The maximum memory frequency supported varies by processor. |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 3rd/2nd/1st Gen AMD Ryzen Processors 1 x PCIe 3.0/2.0 x16 (x16 mode) 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors 1 x PCIe 3.0/2.0 x16 (x8 mode) Athlon with Radeon Vega Graphics Processors 1 x PCIe 3.0/2.0 x16 (max at x4 mode) |
|---|---|
| PCI Express 2.0 x16 | 1 x PCIe 2.0 x16 (x4 mode) |
| PCI Express x1 | 1 x PCIe 2.0 x1 |
| SATA 6Gb/s | 3rd/2nd/1st Gen AMD Ryzen / 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics / Athlon with Radeon Vega Graphics Processors: 2 x SATA 6Gb/s port(s) AMD B450 chipset: 4 x SATA 6Gb/s port(s) |
|---|---|
| M.2 | 3rd/2nd/1st Gen AMD Ryzen / 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics: 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 3.0 x4 and SATA modes) storage devices support* Athlon with Radeon Vega Graphics Processors: 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)* * The M.2 slot shares bandwidth with the SATA_5/6 ports, and therefore the SATA_5/6 ports cannot be used when an M.2 device is installed. |
| SATA RAID | 0/1/10 |
| Onboard Video Chipset | Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics / Athlon with Radeon Vega Graphics Processors 1 x HDMI 2.0b 1 x DVI-D * Graphics specifications may vary between CPU types. |
|---|
| Audio Chipset | Realtek ALC887 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek RTL8111H |
|---|---|
| Max LAN Speed | 10/100/1000Mbps |
| Back I/O Ports | 1 x PS/2 keyboard/mouse combo port(s) 1 x DVI-D 1 x HDMI 1 x LAN (RJ45) port(s) 1 x USB 3.2 Gen 2 (teal blue) Type-A 2 x USB 3.2 Gen 1 (blue) Type-A 1 x USB 3.2 Gen 1 (black) Type-C 2 x USB 2.0 3 x Audio jack(s) 1 x BIOS FlashBack Button(s) |
|---|
| Onboard USB | 1 x USB 3.2 Gen 1 (up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) |
|---|---|
| Other Connectors | 1 x CPU Fan connector(s) 2 x Chassis Fan connector(s) 1 x Aura RGB Strip Header 1 x SPI TPM header 1 x S/PDIF out header(s) 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header 1 x Speaker connector |
| Form Factor | Micro ATX |
|---|---|
| LED Lighting | RGB |
| Dimensions (W x L) | 9.6" x 9.6" |
| Power Pin | 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors |
| Features | Multi-GPU Support: Supports AMD 2-Way CrossFireX Technology Software Features: ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - AI Noise-Canceling Microphone AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 2+ - EZ update - PC Cleaner TUF GAMING CPU-Z AI Charger ASUS Turbo LAN DAEMON Tools DTS Custom for GAMING Headsets Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS Special Features: ASUS TUF PROTECTION - ASUS DIGI+ VRM - ASUS Enhanced DRAM Overcurrent Protection - ASUS ESD Guards - TUF LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-Slot ASUS Thermal Solution - Aluminum heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED AURA Sync - AURA RGB header BIOS: 256MB Flash ROM, UEFI AMI BIOS Manageability: WOL by PXE Operating System: Windows 10 64-bit Windows 7 64-bit * * To support Windows 7 64-bit, please install an AMD Ryzen 2nd Generation or Ryzen 1st Generation Processor. |
|---|
| Package Contents | Accessories: User's manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x Supporting DVD 1 x TUF Gaming Sticker 1 x TUF Certification card(s) 1 x M.2 SSD screw package(s) |
|---|
| Date First Available | September 30, 2020 |
|---|
- External Link(s):
- Manual
Pros: Price and mid-range product positioning of the TUF line of products B450M is a micro-ATX size Plus II has better cooling and features than the original release BIOS update from the back I/O of the motherboard
Cons: Compared with the enthusiast-level micro-ATX board it replaced, the TUF B450 has an overall more budget quality level and fewer features - fewer USB connections on rear I/O - only 2 case fan connectors - no opt CPU fan connector or AIO liquid cooling pump specific - no reset button on the board itself or debug codes - more flex in the pcb board during installation, which added to the budget feel
Overall Review: - I've built a Strix B350 ATX motherboard system and it didn't seem to have the TUF shortcomings, so I'd recommend Strix instead. - I tried the TUF B450M because I prefer the micro-ATX format and there is no Strix boards in that size - Get a Strix, TUF is too stripped down
Pros: It Works was on Sale Why I bought it. I NEVER do Micro had to many Problems way back BUT it Now and i LOVE Asus and It Does Look Fantastic.
Cons: Where do i Begin i have a 512 2.5 that i use as a Tester it has W10 on it. the board Fired wright up. i wanted 1 TB WITH 4 New SSD would NONE Fire up got Bios and that was IT. From the NV to 2.5 NONE would go past Bios. So i put in the Old 512 again fired up. So I contacted Windows and loaded the Numbers. Rebooted and it Worked. NOW it said 3600 ram Works in the Manual but i had 3200 in. So i went into the Bios and Set It to 3600 NOTHING it Just Locked Up have Several different 3600 Nothing. So i Took the Battery OUT for 5-6 Seconds and put the 3200 back in NOTHING so Again again took the Battery for 15-18 Seconds still with the 3200 ram it Fired Wright UP. Been Running Great at 3200 Ram. ???? Using a 3600 6 Core it is FAST
Overall Review: A Few Months back i bought those CD Keys were on sale 2 W10 Keys for 12 $$ they Both Worked so i Bought another one 12 $$ They Both Worked 24 $$$ for 4 Pro W 10 ..Best Buy EVER and there Activated BY Windows. .. PLEASE TAKE CARE I HAVE BEEN STUCK HOME SINCE MARCH WHY I'M NOT WORRIED STAY HOME OR DIE
Cons: I just got all my pc stuff today and mostly everything got shipped in one box besides the case, hard drive, and graphic cards. In my box that was supposed to have my motherboard, I got everything that was supposed to be in there like the CPU, Anti-Static, bracelet, and memory but somehow got a liquid cooler I didn't order and no motherboard.
Overall Review: Newegg, I love you guys but please fix this.
Overall Review: This motherboard support 3600x or 5600x?
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 3 years
- Limited Warranty period (labor): 3 years
- Read full details
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by Newegg.com's Standard Return Policy
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-510-739-3777
- Support Website
- View other products from ASUS
Pros: None.
Cons: BEWARE. DO NOT BUY THIS MOTHERBOARD. The layout is horrible. It's the worst that I have ever seen from a motherboard. The M.2 slot is located under a video card if you have 2 video cards installed, the 2nd video card covers the sata ports and i/o wire connectors. The M.2 slot died on me after 3 days of use. I don't like Asus motherboard's bios, it can be confusing, they use proprietary terms in the bios that other motherboard manufacturers don't use. This motherboard isn't TUF, it's JUNK.
Overall Review: DO NOT BUY THIS MOTHERBOARD. This motherboard isn't TUF, it's JUNK.
