Does this support booting from NVME?

Yes as long the nvme is set to a boot storage from the motherboard’s bios

its supports 32 gb ram DDR4 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory ??

Yes, it supports DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory up to a maximum of 128GB.

Can you boot OS on M.2 NVME drive?

The newer motherboards with the M.2 slots are able to be boot from NVMe. So, as long as you see the M.2 slot on a newer motherboard, you'll be able to install a drive to be able to boot from it. What I do if I'm installing an operating system in a system that I have multiple drives that will be installed, is I unplug all the drives except for the one that I'm installing to in order to make it easier for the installation to happen.

$232^.10

Free 30-day Returns

Limit 99999 per customer.

Ships from Hong Kong.

Price alert

Add to wish list

Sold by LESCOLTON

Top Rated

4.1 (9 seller ratings)

Shipped by LESCOLTON

Meet Your Seller

LESCOLTON

See Seller Store

Get Educated

Make informed decisions with expert advice. Learn More

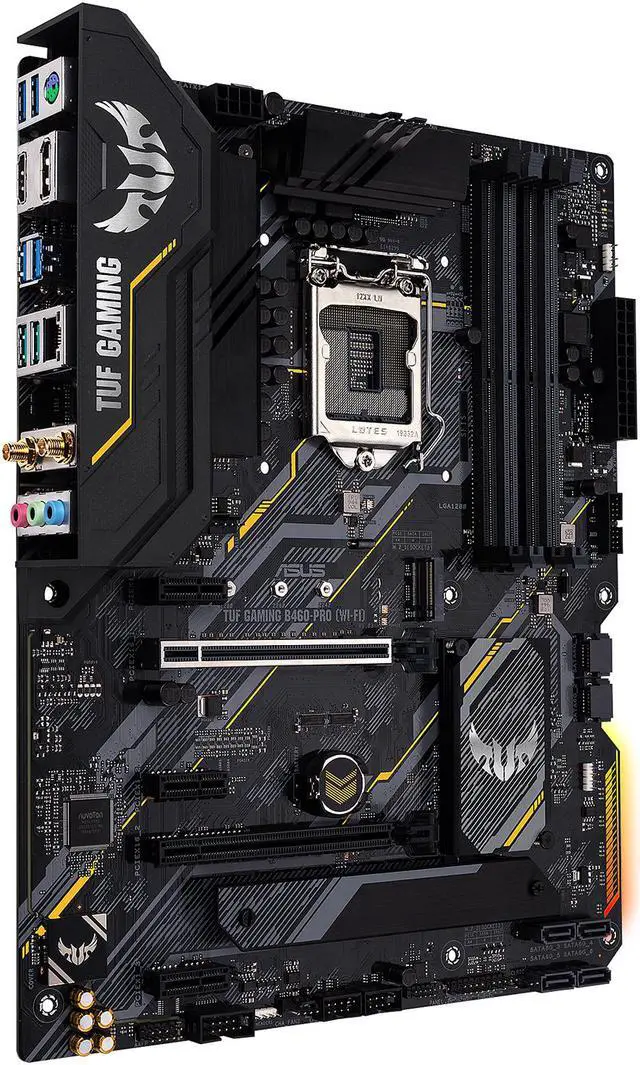

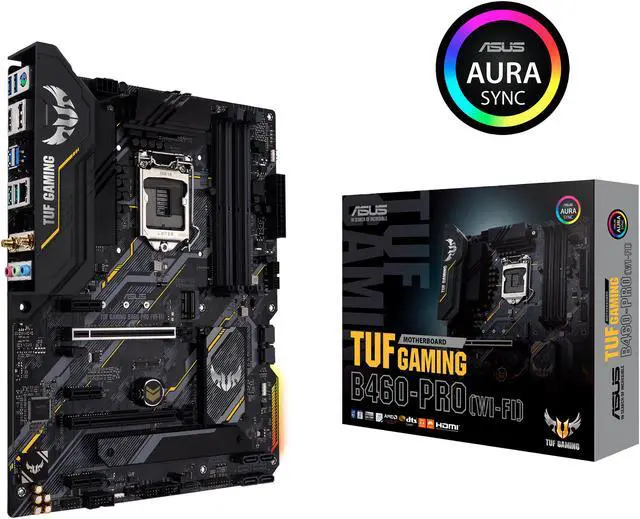

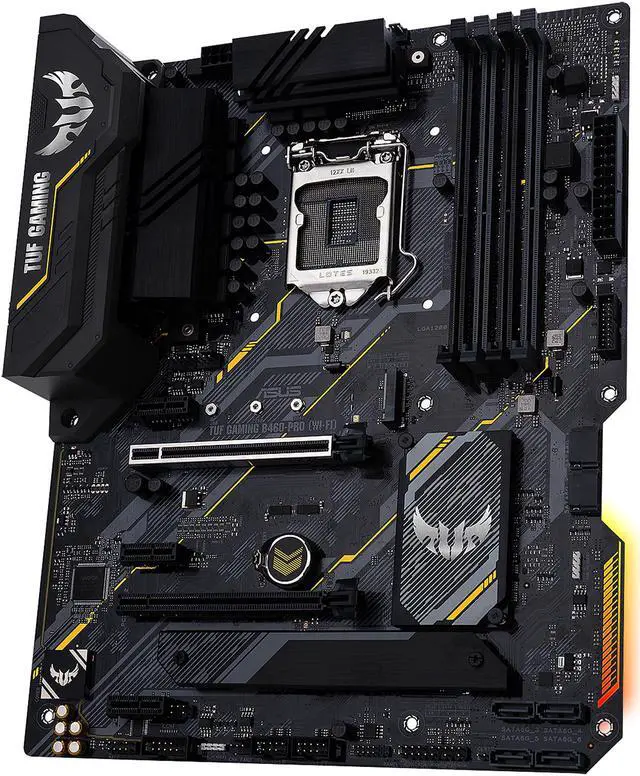

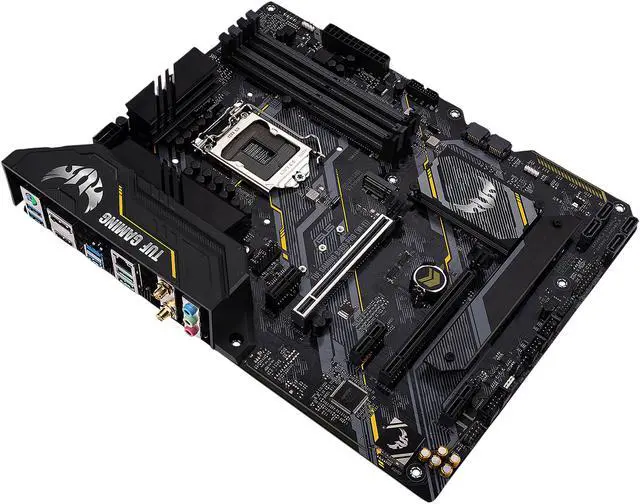

Main image of ASUS TUF GAMING B460-PRO (WI-FI) LGA 1200 Intel B460 ATX Intel Motherboard

Alt view image 2 of 14 - ASUS TUF GAMING B460-PRO (WI-FI) LGA 1200 Intel B460 ATX Intel Motherboard

Alt view image 3 of 14 - ASUS TUF GAMING B460-PRO (WI-FI) LGA 1200 Intel B460 ATX Intel Motherboard

Alt view image 4 of 14 - ASUS TUF GAMING B460-PRO (WI-FI) LGA 1200 Intel B460 ATX Intel Motherboard

Alt view image 5 of 14 - ASUS TUF GAMING B460-PRO (WI-FI) LGA 1200 Intel B460 ATX Intel Motherboard

Alt view image 6 of 14 - ASUS TUF GAMING B460-PRO (WI-FI) LGA 1200 Intel B460 ATX Intel Motherboard

Alt view image 7 of 14 - ASUS TUF GAMING B460-PRO (WI-FI) LGA 1200 Intel B460 ATX Intel Motherboard

Alt view image 8 of 14 - ASUS TUF GAMING B460-PRO (WI-FI) LGA 1200 Intel B460 ATX Intel Motherboard

Alt view image 9 of 14 - ASUS TUF GAMING B460-PRO (WI-FI) LGA 1200 Intel B460 ATX Intel Motherboard

Alt view image 10 of 14 - ASUS TUF GAMING B460-PRO (WI-FI) LGA 1200 Intel B460 ATX Intel Motherboard

Alt view image 11 of 14 - ASUS TUF GAMING B460-PRO (WI-FI) LGA 1200 Intel B460 ATX Intel Motherboard

Alt view image 12 of 14 - ASUS TUF GAMING B460-PRO (WI-FI) LGA 1200 Intel B460 ATX Intel Motherboard

Alt view image 13 of 14 - ASUS TUF GAMING B460-PRO (WI-FI) LGA 1200 Intel B460 ATX Intel Motherboard

Alt view image 14 of 14 - ASUS TUF GAMING B460-PRO (WI-FI) LGA 1200 Intel B460 ATX Intel Motherboard

Customer images

Shop All ASUS Products | Visit LESCOLTON Store

ASUS TUF GAMING B460-PRO (WI-FI) LGA 1200 Intel B460 ATX Intel Motherboard

(11)(1) Write a Review

Intel B460
Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors
DDR4 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (11)

Model
Brand	ASUS
Model	TUF GAMING B460-PRO (WI-FI)

Supported CPU
CPU Socket Type	LGA 1200
CPU Type	Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors * * Refer to www.asus.com for CPU support list
Supported CPU Technologies	Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipsets
Chipset	Intel B460

Onboard Video
Onboard Video Chipset	Integrated Graphics Processor 1 x DisplayPort 1.4 ** 1 x HDMI 1.4b * Graphics specifications may vary between CPU types. ** Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.

Memory
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory * * 10th Gen Intel Core i9/i7 CPUs support 2933/ 2800/ 2666/ 2400/ 2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported	128GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 3.0 x16	Intel 10th Gen Processors 1 x PCIe 3.0 x16 (x16 mode) Intel B460 Chipset 1 x PCIe 3.0 x16 (x4 mode) 1 By default, the PCIe x16_2 slot is set to run in x4 mode and shares bandwidth with the PCIe x1_1, PCIe x1_2 or PCIe x3 slot. When a PCIe device is detected in any of the PCIe x1 slots, the PCIe x16_2 slot will run in x1 mode.
PCI Express x1	3 x PCIe 3.0 x1 * * By default, the PCIe x16_2 slot is set to run in x4 mode and shares bandwidth with the PCIe x1_1, PCIe x1_2 or PCIe x3 slot. When a PCIe device is detected in any of the PCIe x1 slots, the PCIe x16_2 slot will run in x1 mode.

Storage Devices
Serial ATA (SATA)	6 x SATA 6Gb/s
M.2	Intel B460 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x4 mode)* 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x4 mode) * M.2_1 shares bandwidth with SATA6G_1. When M.2_1 runs SATA mode, SATA6G_1 will be disabled.
Intel Optane Ready	Intel Optane Memory Ready * * Only the M.2_2 socket can support Intel Optane Memory Ready.
SATA RAID	0/1/5/10

Onboard Audio
Audio Chipset	Realtek ALC S1200A
Audio Channels	8 Channels * Choose the chassis with HD audio module in front panel to support 8-channel audio output.

Onboard LAN
LAN Chipset	Intel I219-V
Max LAN Speed	1Gbps

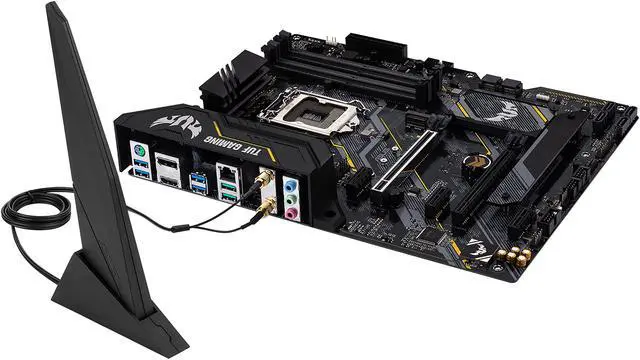

Wireless LAN	Intel Wi-Fi 6 AX200 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO Supports up to 2.4Gbps max data rate Supports dual band frequency 2.4/5 GHz Supports channel bandwidth: HT20/HT40/HT80/HT160 Supports PCIe interface
Bluetooth	Bluetooth v5.1* * BT 5.1 function will be ready in Windows 10 build 19041 or later.

Rear Panel Ports

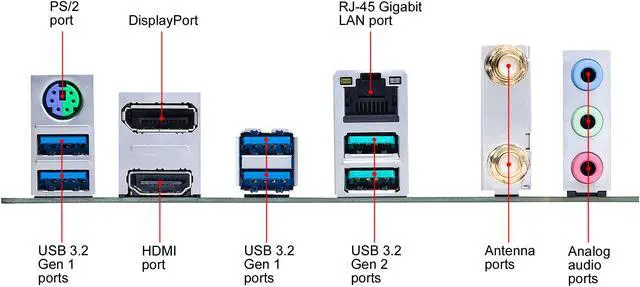

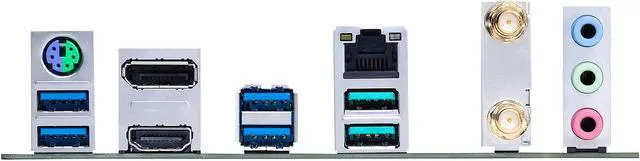

Back I/O Ports	1 x PS/2 keyboard/mouse combo port(s) 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.2 Gen 2 Type-A 4 x USB 3.2 Gen 1 Type-A 3 x Audio jack(s) 1 x ASUS Wi-Fi Module

Internal I/O Connectors
Onboard USB	1 x USB 3.2 Gen 1 (up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
Other Connectors	1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x AIO_PUMP connector 2 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header

Physical Spec
Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors

Features
Features	Multi-GPU Support: Supports AMD 2-Way CrossFireX Technology Software Features: ASUS Exclusive Software Armoury Crate - Aura Sync AI Suite 3 - Performance And Power Saving Utility Digi+ VRM EPU Fan Xpert 4 - EZ update - PC Cleaner - System Information AI Charger ASUS Turbo LAN DTS Custom for GAMING Headsets Norton Anti-virus software (Free Trial for 60 days) DAEMON Tools Google Chrome Browser & Google Toolbar TUF GAMING CPU-Z WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS Special Features: ASUS TUF PROTECTION - ASUS DIGI+ VRM - ASUS Enhanced DRAM Overcurrent Protection - ASUS ESD Guards - ASUS LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot Core+ - ASUS Stainless-Steel Back I/O ASUS Q-Design : - ASUS Q-DIMM - ASUS Q-Slot - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) ASUS Thermal Solution: - Aluminum M.2 heatsink - Aluminum heatsink design ASUS EZ DIY - Box Headers AURA Sync - Addressable Gen 2 RGB header - Standard RGB headers BIOS: 128MB Flash ROM, UEFI AMI BIOS Manageability: WOL by PME, PXE Operating System: Windows 10 64-bit

Packaging

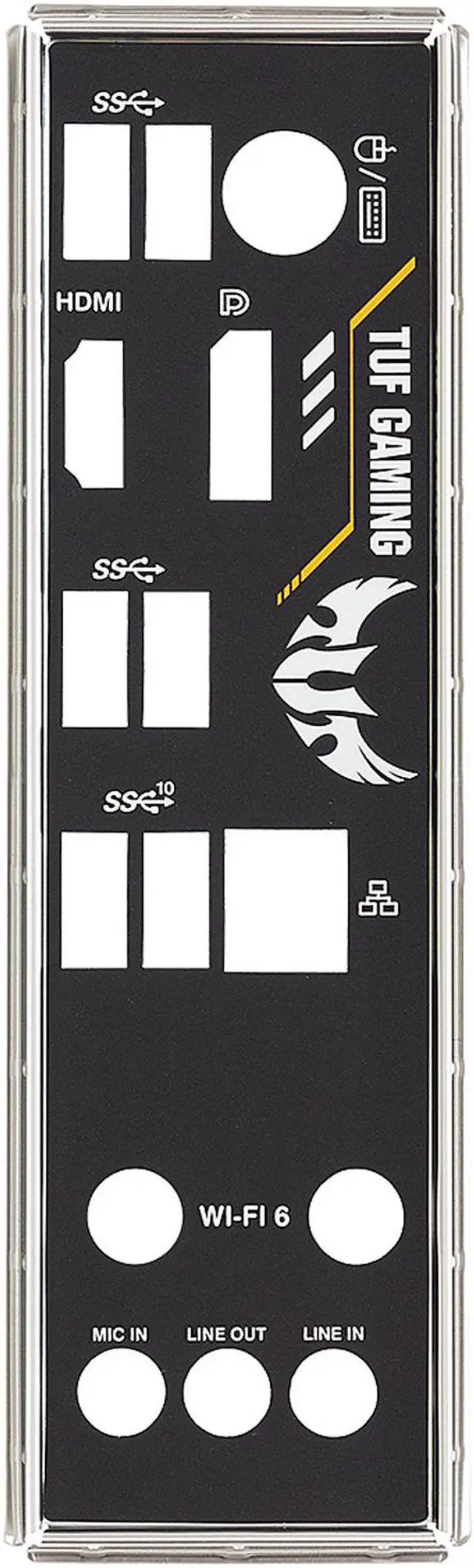

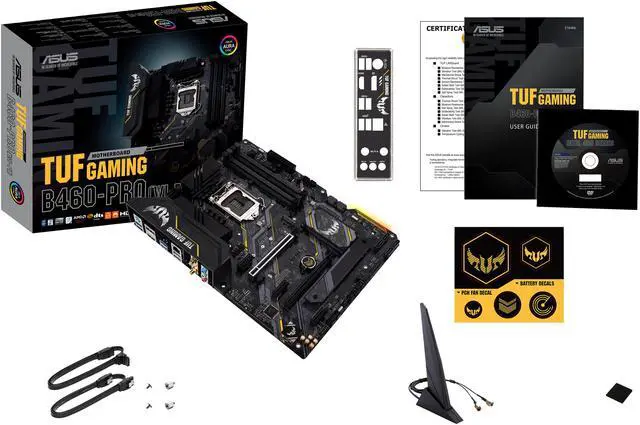

Package Contents	Accessories: User's manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x Supporting DVD 1 x TUF Gaming Sticker 1 x TUF Certification card(s) 1 x Wi-Fi moving antenna 1 x M.2 SSD screw package(s) 1 x M.2 Rubber Package(s)
