Intel B460 Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors DDR4 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory

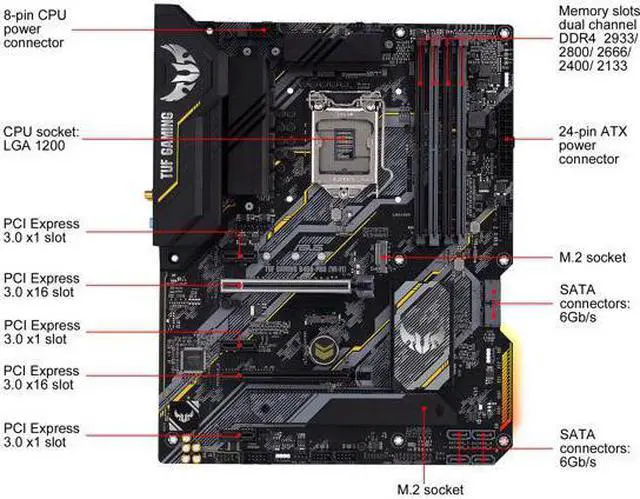

Learn more about the ASUS TUF GAMING B460-PRO (WI-FI)
Model
Brand
ASUS
Model
TUF GAMING B460-PRO (WI-FI)
Supported CPU
CPU Socket Type
LGA 1200
CPU Type
Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors ** Refer to www.asus.com for CPU support list
Supported CPU Technologies
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipsets
Chipset
Intel B460
Onboard Video
Onboard Video Chipset
Integrated Graphics Processor1 x DisplayPort 1.4 **1 x HDMI 1.4b* Graphics specifications may vary between CPU types.** Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.
Memory
Number of Memory Slots
4x288pin (DDR4)
Memory Standard
DDR4 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory ** 10th Gen Intel Core i9/i7 CPUs support 2933/ 2800/ 2666/ 2400/ 2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported
128GB
Channel Supported
Dual Channel
Expansion Slots
PCI Express 3.0 x16
Intel 10th Gen Processors1 x PCIe 3.0 x16 (x16 mode)Intel B460 Chipset1 x PCIe 3.0 x16 (x4 mode) *1* By default, the PCIe x16_2 slot is set to run in x4 mode and shares bandwidth with the PCIe x1_1, PCIe x1_2 or PCIe x3 slot. When a PCIe device is detected in any of the PCIe x1 slots, the PCIe x16_2 slot will run in x1 mode.
PCI Express x1
3 x PCIe 3.0 x1 ** By default, the PCIe x16_2 slot is set to run in x4 mode and shares bandwidth with the PCIe x1_1, PCIe x1_2 or PCIe x3 slot. When a PCIe device is detected in any of the PCIe x1 slots, the PCIe x16_2 slot will run in x1 mode.
Storage Devices
Serial ATA (SATA)
6 x SATA 6Gb/s
M.2
Intel B460 Chipset :1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x4 mode)*1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x4 mode)* M.2_1 shares bandwidth with SATA6G_1. When M.2_1 runs SATA mode, SATA6G_1 will be disabled.
Intel Optane Ready
Intel Optane Memory Ready ** Only the M.2_2 socket can support Intel Optane Memory Ready.
SATA RAID
0/1/5/10
Onboard Audio
Audio Chipset
Realtek ALC S1200A
Audio Channels
8 Channels* Choose the chassis with HD audio module in front panel to support 8-channel audio output.
Onboard LAN
LAN Chipset
Intel I219-V
Max LAN Speed
1Gbps
Wireless LAN
Intel Wi-Fi 6 AX2002x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMOSupports up to 2.4Gbps max data rateSupports dual band frequency 2.4/5 GHzSupports channel bandwidth: HT20/HT40/HT80/HT160Supports PCIe interface
Bluetooth
Bluetooth v5.1** BT 5.1 function will be ready in Windows 10 build 19041 or later.
Rear Panel Ports

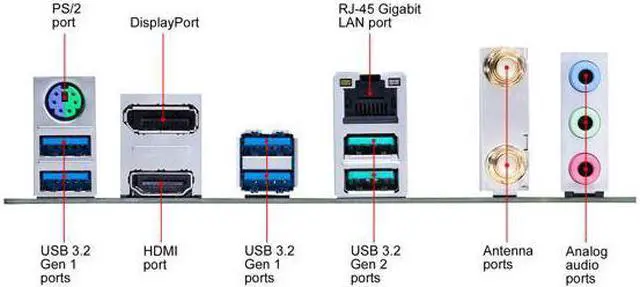

Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s)1 x DisplayPort1 x HDMI1 x LAN (RJ45) port(s)2 x USB 3.2 Gen 2 Type-A4 x USB 3.2 Gen 1 Type-A3 x Audio jack(s)1 x ASUS Wi-Fi Module
Internal I/O Connectors
Onboard USB
1 x USB 3.2 Gen 1 (up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
Other Connectors
1 x CPU Fan connector(s)1 x CPU OPT Fan connector(s)2 x Chassis Fan connector(s)1 x AIO_PUMP connector2 x Aura RGB Strip Headers1 x Addressable Gen 2 header(s)1 x Front panel audio connector(s) (AAFP)1 x Clear CMOS jumper(s)1 x System panel connector1 x COM port header
Physical Spec
Form Factor
ATX
LED Lighting
RGB
Dimensions (W x L)
12.0" x 9.6"
Power Pin
1 x 24-pin EATX Power connector(s)1 x 8-pin EATX 12V Power connectors
Features
Features
Multi-GPU Support:Supports AMD 2-Way CrossFireX Technology Software Features:ASUS Exclusive SoftwareArmoury Crate- Aura SyncAI Suite 3- Performance And Power Saving UtilityDigi+ VRMEPUFan Xpert 4- EZ update- PC Cleaner- System InformationAI ChargerASUS Turbo LANDTS Custom for GAMING HeadsetsNorton Anti-virus software (Free Trial for 60 days)DAEMON ToolsGoogle Chrome Browser & Google ToolbarTUF GAMING CPU-ZWinRARUEFI BIOSASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ ModeASUS Special Features:ASUS TUF PROTECTION- ASUS DIGI+ VRM- ASUS Enhanced DRAM Overcurrent Protection- ASUS ESD Guards- ASUS LANGuard- ASUS Overvoltage Protection- ASUS SafeSlot Core+- ASUS Stainless-Steel Back I/OASUS Q-Design :- ASUS Q-DIMM- ASUS Q-Slot- ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])ASUS Thermal Solution:- Aluminum M.2 heatsink- Aluminum heatsink designASUS EZ DIY- Box HeadersAURA Sync- Addressable Gen 2 RGB header- Standard RGB headersBIOS:128MB Flash ROM, UEFI AMI BIOSManageability:WOL by PME, PXEOperating System:Windows 10 64-bit
Packaging
Package Contents

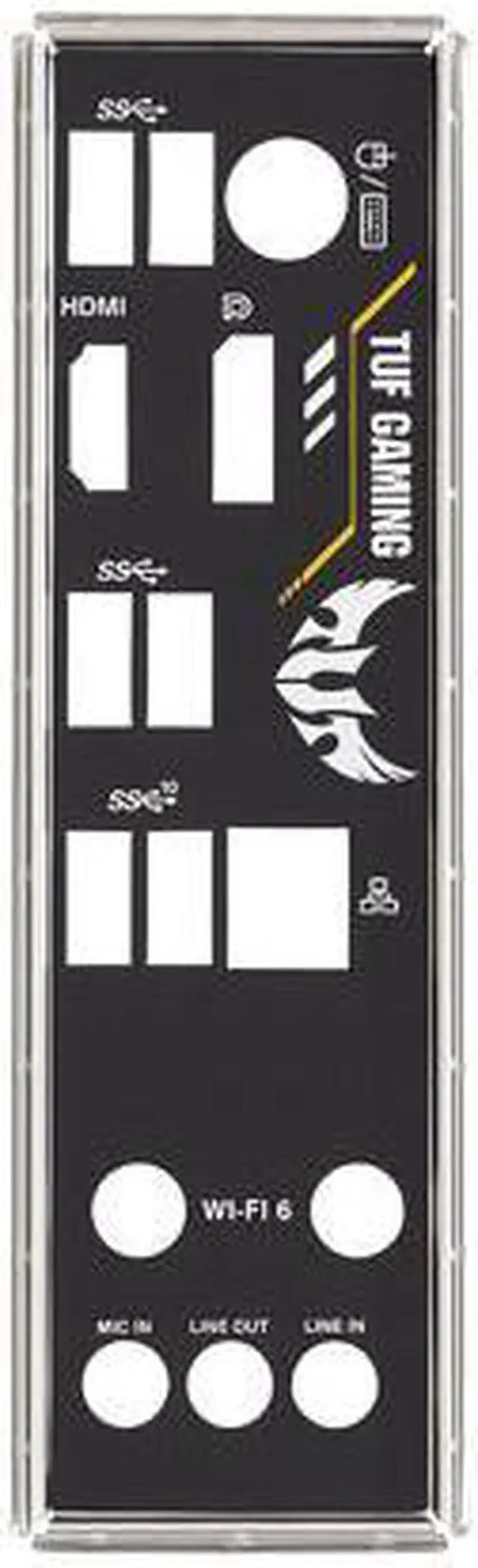

Accessories:User's manualI/O Shield2 x SATA 6Gb/s cable(s)1 x Supporting DVD1 x TUF Gaming Sticker1 x TUF Certification card(s)1 x Wi-Fi moving antenna1 x M.2 SSD screw package(s)1 x M.2 Rubber Package(s)
