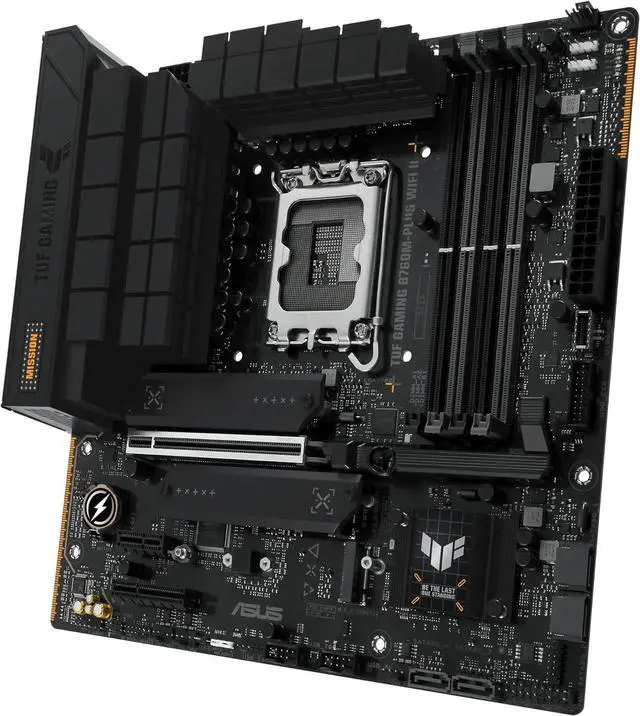

Main image of TUF GAMING B760M-PLUS WIFI II Intel B760 LGA 1700 mATX motherboard with PCIe 5.0, three 4.0 M.2 slots, DDR5, WiFi 6E With Q-Antenna, Realtek 2.5Gb Ethernet, DisplayPort, HDMI, SATA 6 Gbps

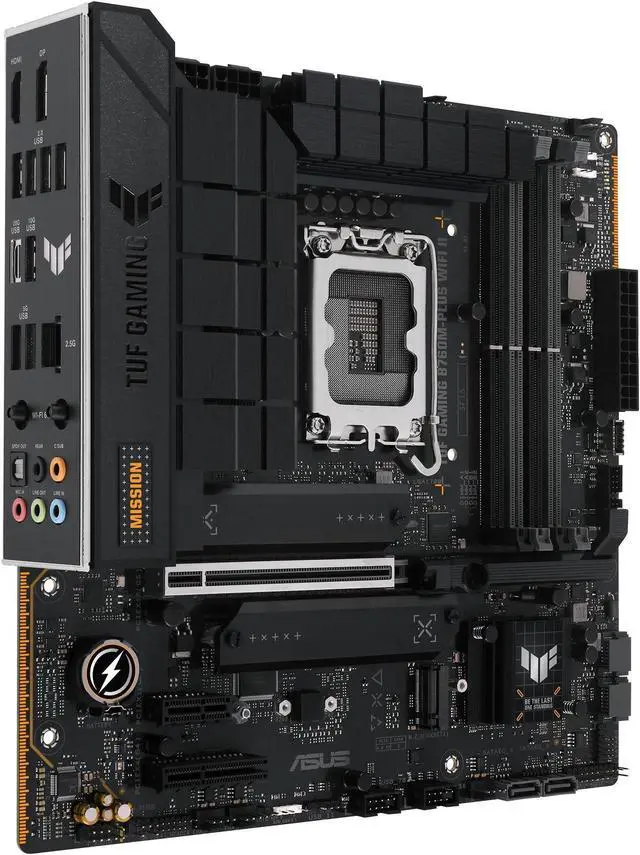

Alt view image 2 of 9 - TUF GAMING B760M-PLUS WIFI II Intel B760 LGA 1700 mATX motherboard with PCIe 5.0, three 4.0 M.2 slots, DDR5, WiFi 6E With Q-Antenna, Realtek 2.5Gb Ethernet, DisplayPort, HDMI, SATA 6 Gbps

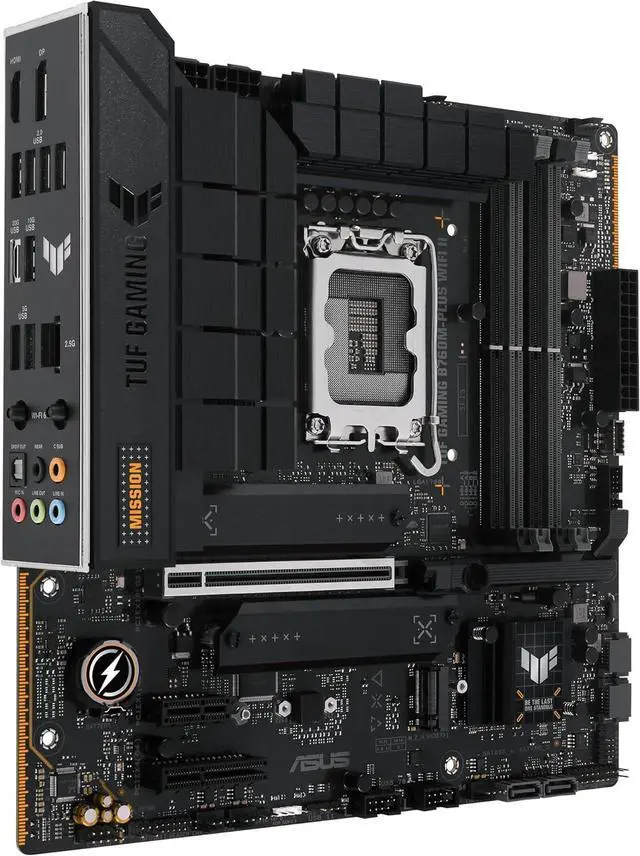

Alt view image 3 of 9 - TUF GAMING B760M-PLUS WIFI II Intel B760 LGA 1700 mATX motherboard with PCIe 5.0, three 4.0 M.2 slots, DDR5, WiFi 6E With Q-Antenna, Realtek 2.5Gb Ethernet, DisplayPort, HDMI, SATA 6 Gbps

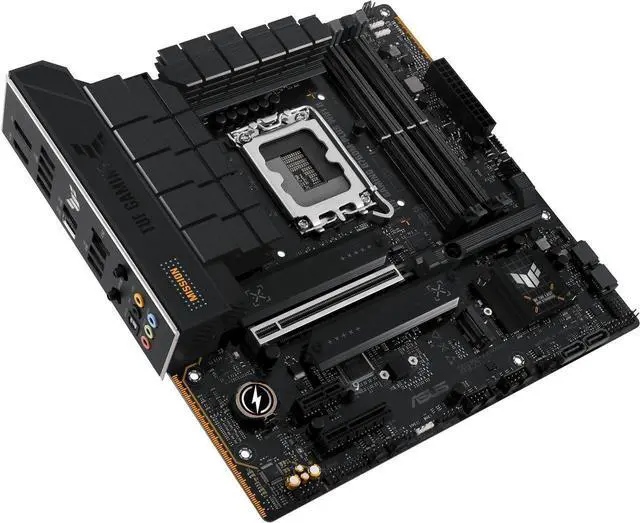

Alt view image 4 of 9 - TUF GAMING B760M-PLUS WIFI II Intel B760 LGA 1700 mATX motherboard with PCIe 5.0, three 4.0 M.2 slots, DDR5, WiFi 6E With Q-Antenna, Realtek 2.5Gb Ethernet, DisplayPort, HDMI, SATA 6 Gbps

Alt view image 5 of 9 - TUF GAMING B760M-PLUS WIFI II Intel B760 LGA 1700 mATX motherboard with PCIe 5.0, three 4.0 M.2 slots, DDR5, WiFi 6E With Q-Antenna, Realtek 2.5Gb Ethernet, DisplayPort, HDMI, SATA 6 Gbps

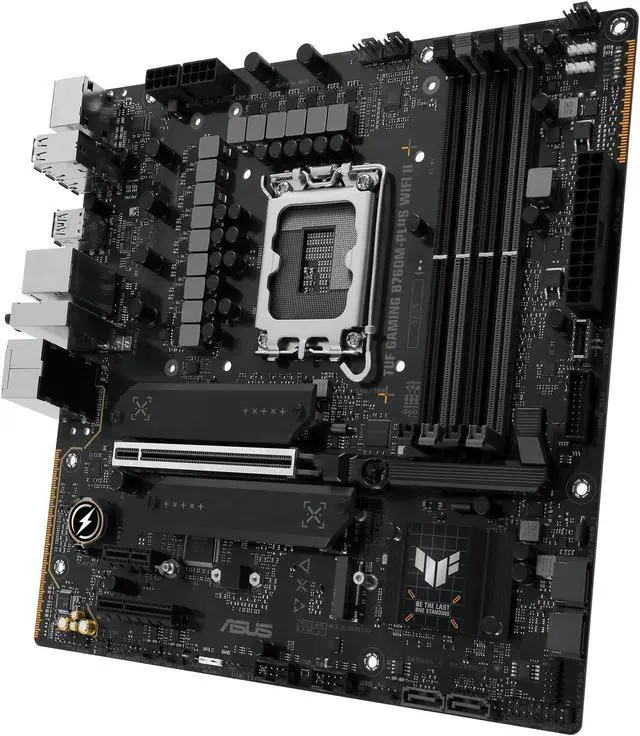

Alt view image 6 of 9 - TUF GAMING B760M-PLUS WIFI II Intel B760 LGA 1700 mATX motherboard with PCIe 5.0, three 4.0 M.2 slots, DDR5, WiFi 6E With Q-Antenna, Realtek 2.5Gb Ethernet, DisplayPort, HDMI, SATA 6 Gbps

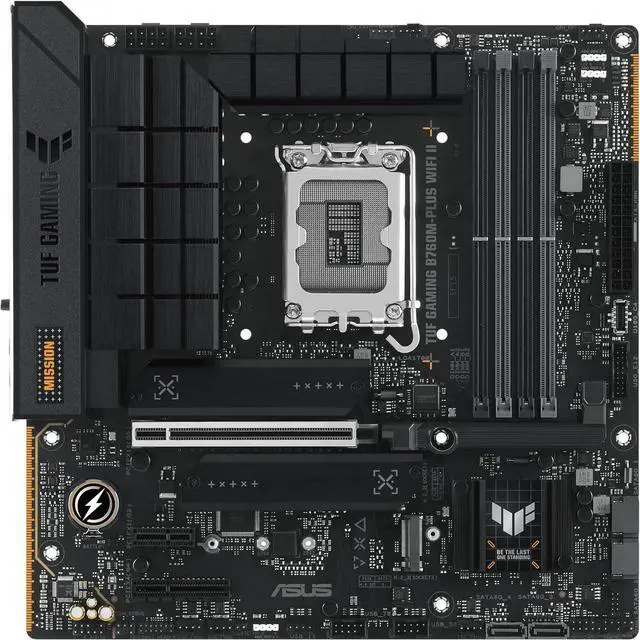

Alt view image 7 of 9 - TUF GAMING B760M-PLUS WIFI II Intel B760 LGA 1700 mATX motherboard with PCIe 5.0, three 4.0 M.2 slots, DDR5, WiFi 6E With Q-Antenna, Realtek 2.5Gb Ethernet, DisplayPort, HDMI, SATA 6 Gbps

Alt view image 8 of 9 - TUF GAMING B760M-PLUS WIFI II Intel B760 LGA 1700 mATX motherboard with PCIe 5.0, three 4.0 M.2 slots, DDR5, WiFi 6E With Q-Antenna, Realtek 2.5Gb Ethernet, DisplayPort, HDMI, SATA 6 Gbps

Alt view image 9 of 9 - TUF GAMING B760M-PLUS WIFI II Intel B760 LGA 1700 mATX motherboard with PCIe 5.0, three 4.0 M.2 slots, DDR5, WiFi 6E With Q-Antenna, Realtek 2.5Gb Ethernet, DisplayPort, HDMI, SATA 6 Gbps

Shop All ASUS Products | Visit Computer Headquarters Store

TUF GAMING B760M-PLUS WIFI II Intel B760 LGA 1700 mATX motherboard with PCIe 5.0, three 4.0 M.2 slots, DDR5, WiFi 6E With Q-Antenna, Realtek 2.5Gb Ethernet, DisplayPort, HDMI, SATA 6 Gbps

REFURBISHED

Be the first to review this product...

Intel LGA 1700 Socket: Ready for 14th, 13th and 12th Gen Intel processors
Enhanced power solution: 12+1 DrMOS power stages, six-layer PCB, 8+8 ProCool sockets, military-grade TUF components and Digi+ VRM for maximum durability
Comprehensive cooling: Enlarged VRM heatsinks, M.2 heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 2+
Latest connectivity: PCIe 5.0 slot, three PCIe 4.0 M.2 slots, rear USB 20Gbps Type-C, front panel header for USB 10Gbps Type-C and Thunderbolt (USB4) header support
Made for online gaming: WiFi 6E, Realtek 2.5Gb Ethernet, TUF LANGuard
Two-way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Intel LGA 1700
Socket: Ready for 14th, 13th and 12th Gen Intel processors
Enhanced power solution: 12+1 DrMOS power stages, six-layer PCB, 8+8 ProCool sockets, military-grade TUF components and Digi+ VRM for maximum durability
Comprehensive cooling: Enlarged VRM heatsinks, M. 2 heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 2+
Latest connectivity: PCIe 5.0 slot, three PCIe 4.0 M. 2 slots, rear USB 20Gbps Type-C, front panel header for USB 10Gbps Type-C and Thunderbolt (USB4) header support
Made for online gaming: WiFi 6E, Realtek 2.5G b Ethernet, TUF LAN
Guard
Two-way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences

Model
Brand	ASUS
Model	TUF GAMING B760M-PLUS WIFI II

Supported CPU
CPU Socket Type	LGA 1700
CPU Type	LGA 1700

Chipsets
Chipset	Intel B760

Memory
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR5 5600
Maximum Memory Supported	256GB
Channel Supported	Dual Channel
Memory Feature	DDR5 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory* Supports Intel Extreme Memory Profile (XMP) ASUS Enhanced Memory Profile II (AEMP II) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Expansion Slots
PCI Express 5.0 x16	1 x PCI Express 5.0 x16
PCI Express x4	1 x PCI Express 4.0 x4
PCI Express x1	1 x PCI Express 3.0 x1

Storage Devices
Serial ATA (SATA)	4 x SATA 6Gb/s
M.2	Intel Core Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
SATA RAID	0/1/5/10

Onboard Audio
Audio Channels	7.1 Channels

Onboard LAN
Max LAN Speed	2.5Gbps
Wireless LAN	2x2 Wi-Fi 6E (802.11ax)
Bluetooth	Bluetooth 5.3

Rear Panel Ports

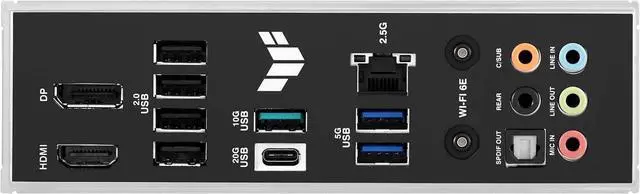

Back I/O Ports	1 x USB 20Gbps port (1 x USB Type-C) 1 x USB 10Gbps port (1 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port

Internal I/O Connectors
Onboard USB	1 x USB 20Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 3 x USB 2.0 headers support 5 additional USB 2.0 ports
Other Connectors	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x Front panel audio header (F_AUDIO) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt (USB4) header

Software Feature
Windows 11	Supported

Physical Spec
Form Factor	Micro ATX
Dimensions (W x L)	9.6" x 9.6"
Power Pin	1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors

Features
Features	Special Features: ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-steel back I/O ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-Antenna - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsinks - VRM heatsink design ASUS EZ DIY - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeDIMM AURA Sync - Addressable Gen 2 headers Software Features: ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Fan Xpert 2+ - Power Saving - Two-Way AI Noise Cancelation AI Suite 3 DIGI+ VRM - PC Cleaner MyASUS TUF GAMING CPU-Z DTS Audio Processing Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode

Packaging
Package Contents	Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x M.2 Rubber Package 1 x TUF Gaming sticker B148 2 x Screw packages for M.2 SSD Documentation 1 x TUF Certification card 1 x Quick start guide
