- 8GB 128-Bit GDDR7
- Boost Clock OC mode: 2677MHz Default mode: 2640MHz (Boost Clock)

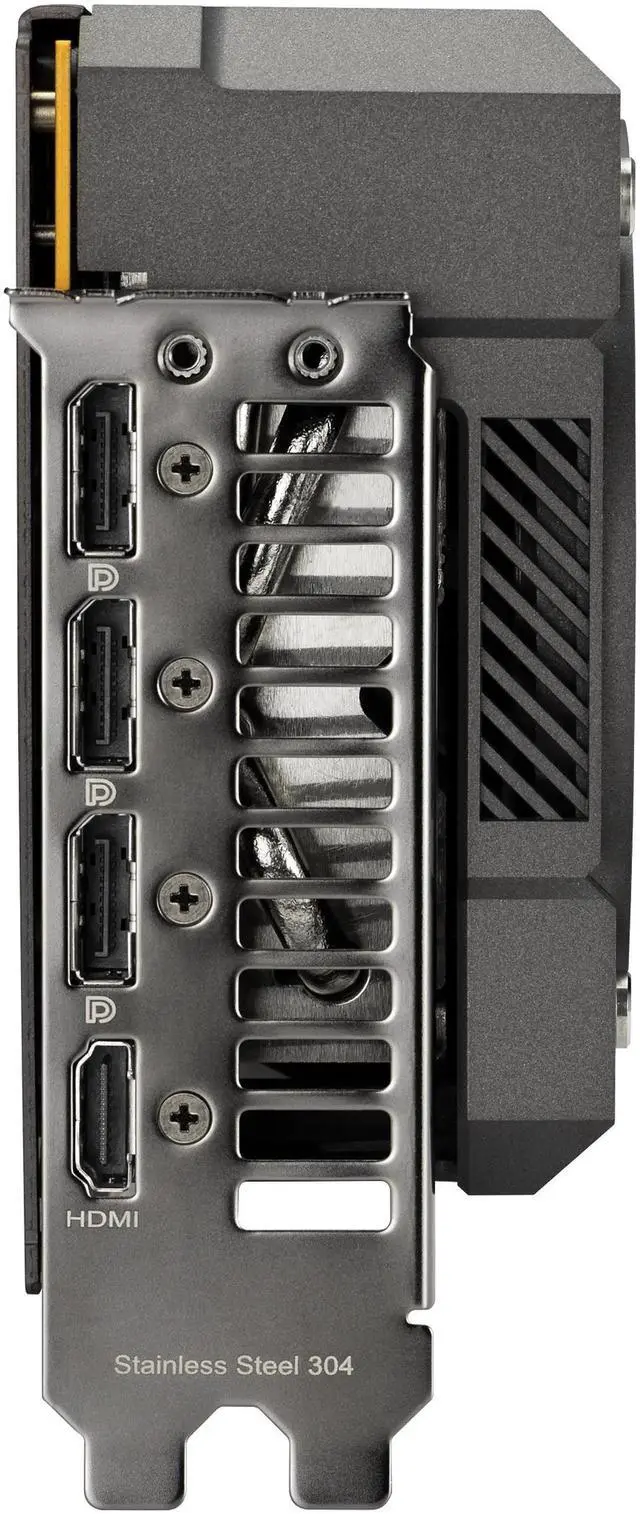

- 1 x HDMI 2.1b 3 x DisplayPort 2.1b
- 3840 Cores CUDA Cores
- PCI Express 5.0 x8
Learn more about the ASUS TUF-RTX5060-8G-GAMING
Model| Brand | ASUS |
|---|
| Series | TUF Gaming |
|---|
| Model | TUF-RTX5060-8G-GAMING |
|---|
Interface| Interface | PCI Express 5.0 x8 |
|---|
Chipset| Chipset Manufacturer | NVIDIA |
|---|
| GPU Series | NVIDIA GeForce RTX 50 Series |
|---|
| GPU | GeForce RTX 5060 |
|---|
| Architecture | Blackwell |
|---|
| Boost Clock | OC mode: 2677MHz Default mode: 2640MHz (Boost Clock) |
|---|
| CUDA Cores | 3840 Cores |
|---|
Memory| Effective Memory Clock | 28 Gbps |
|---|
| Memory Size | 8GB |
|---|
| Memory Interface | 128-Bit |
|---|
| Memory Type | GDDR7 |
|---|
3D API| DirectX | DirectX 12 Ultimate |
|---|
| OpenGL | OpenGL 4.6 |
|---|
Ports| Multi-Monitor Support | 4 |
|---|
| HDMI | 1 x HDMI 2.1b |
|---|
| DisplayPort | 3 x DisplayPort 2.1b |
|---|
Details| Color | Gray |
|---|
| Max Resolution | 7680 x 4320 |
|---|
| CrossFireX Support | No |
|---|
| SLI Support | No |
|---|
| Virtual Reality Ready | Yes |
|---|
| Cooler | Triple Fans |
|---|
| Recommended PSU Wattage | 550W |
|---|
| Power Connector | 8-Pin |
|---|
| HDCP Ready | Yes |
|---|
Form Factor & Dimensions| Form Factor | ATX |
|---|
| Max GPU Length | 302 mm |
|---|
| Card Dimensions (L x H) | 302 x 133.5 x 62mm |
|---|
| Slot Width | 3.1 Slots |
|---|
Additional Information| First Listed on Newegg | August 24, 2025 |
|---|
