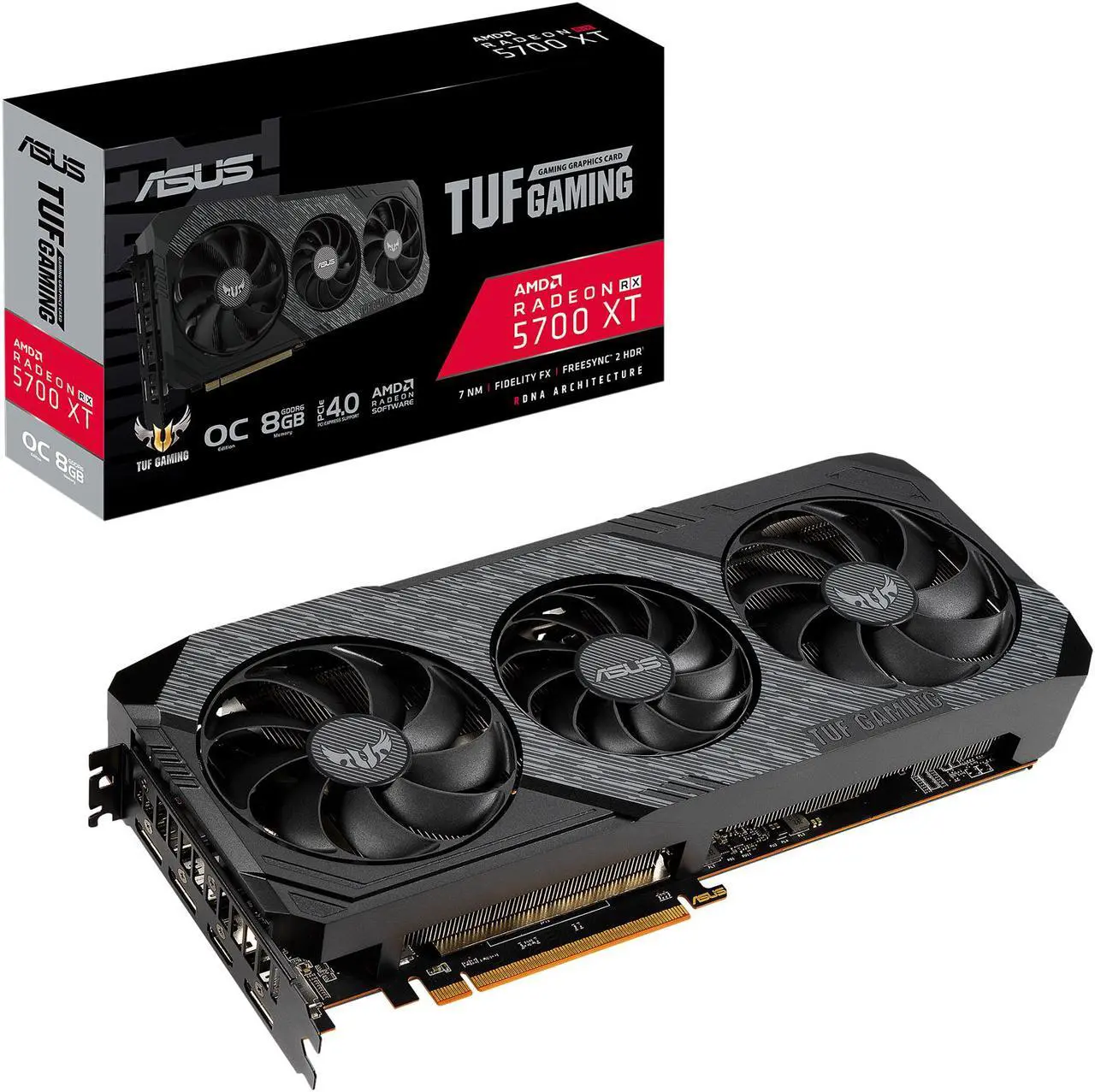

Learn more about the ASUS TUF 3-RX5700XT-O8G-EVO-GAMING
ModelBrand | ASUS |
---|
Series | TUF Gaming X3 |
---|
Model | TUF 3-RX5700XT-O8G-EVO-GAMING |
---|
InterfaceInterface | PCI Express 4.0 |
---|
ChipsetChipset Manufacturer | AMD |
---|
GPU Series | AMD Radeon RX 5700 Series |
---|
GPU | Radeon RX 5700 XT |
---|
Boost Clock | OC Mode: 1980 MHz Gaming Mode: 1905 MHz |
---|
Stream Processors | 2560 Stream Processors |
---|
MemoryEffective Memory Clock | 14 Gbps |
---|
Memory Size | 8GB |
---|
Memory Interface | 256-Bit |
---|
Memory Type | GDDR6 |
---|
3D APIDirectX | DirectX 12 |
---|
OpenGL | OpenGL 4.6 |
---|
PortsMulti-Monitor Support | 6 |
---|
HDMI | 1 x HDMI 2.0b |
---|
DisplayPort | 3 x DisplayPort 1.4 |
---|
DetailsMax Resolution | 7680 x 4320 |
---|
Virtual Reality Ready | Yes |
---|
Cooler | Triple Fans |
---|
Thermal Design Power | 225W |
---|
System Requirements | Recommended PSU: 600W |
---|
Recommended PSU Wattage | 600W |
---|
Power Connector | 1 x 6-pin, 1 x 8-pin |
---|
HDCP Ready | 2.3 |
---|
FeaturesFeatures | OC Edition: Boost Clock ~1980 MHz (OC Mode) / ~1905 MHz (Gaming Mode).
Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.
0dB technology lets you enjoy light gaming in relative silence.
2.7-slot design expands cooling surface area to make the most of the three powerful fans.
Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
Auto-Extreme Technology uses automation to enhance reliability.
A protective backplate secures components during transportation and installation.
TUF compatibility testing ensures TUF Gaming and TUF alliance products work together flawlessly.
A 144-hour validation program puts cards through a series of stringent tests to ensure compatibility with the latest games. |
---|
Form Factor & DimensionsMax GPU Length | 283 mm |
---|
Card Dimensions (L x H) | 11.13" x 5.06" |
---|
Slot Width | 2.7 slot |
---|
PackagingPackage Contents | Accessories: 1 x Thank you card 1 x Speedsetup manual |
---|
Additional InformationDate First Available | October 08, 2024 |
---|
