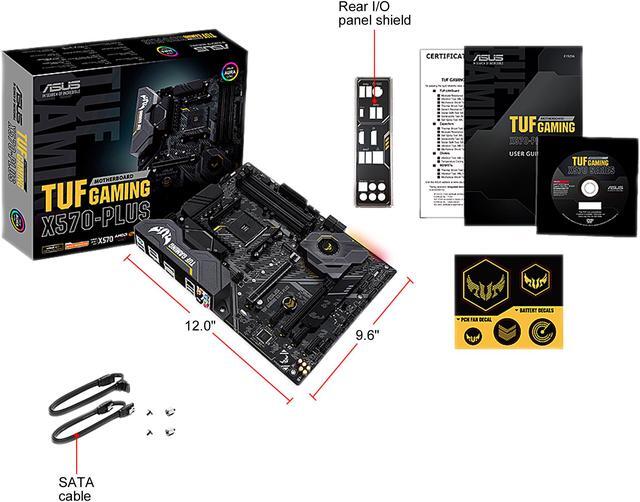

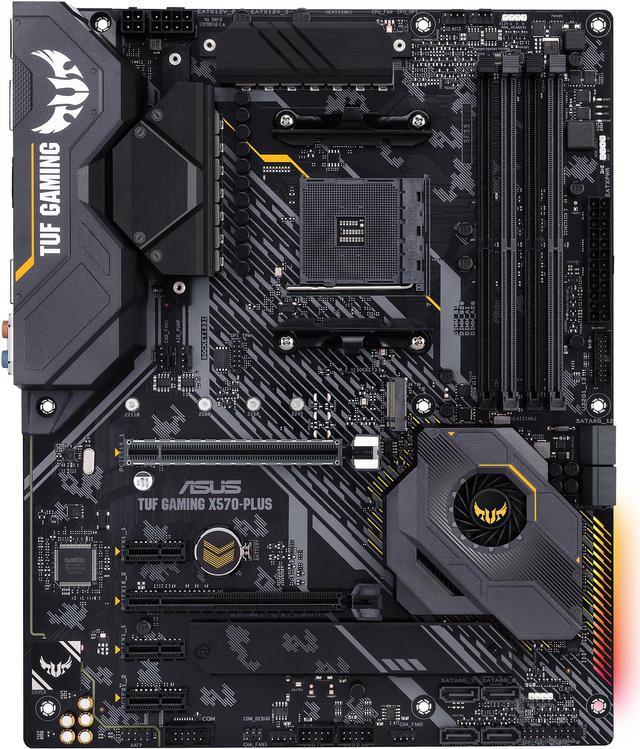

Main image of ASUS AM4 TUF GAMING X570-Plus ATX Motherboard with PCIe 4.0, Dual M.2, 12+2 with Dr. MOS Power Stage, HDMI, DP, SATA 6Gb/s, USB 3.2 Gen 2 and Aura Sync RGB Lighting

Alt view image 2 of 7 - ASUS AM4 TUF GAMING X570-Plus ATX Motherboard with PCIe 4.0, Dual M.2, 12+2 with Dr. MOS Power Stage, HDMI, DP, SATA 6Gb/s, USB 3.2 Gen 2 and Aura Sync RGB Lighting

Alt view image 3 of 7 - ASUS AM4 TUF GAMING X570-Plus ATX Motherboard with PCIe 4.0, Dual M.2, 12+2 with Dr. MOS Power Stage, HDMI, DP, SATA 6Gb/s, USB 3.2 Gen 2 and Aura Sync RGB Lighting

Alt view image 4 of 7 - ASUS AM4 TUF GAMING X570-Plus ATX Motherboard with PCIe 4.0, Dual M.2, 12+2 with Dr. MOS Power Stage, HDMI, DP, SATA 6Gb/s, USB 3.2 Gen 2 and Aura Sync RGB Lighting

Alt view image 5 of 7 - ASUS AM4 TUF GAMING X570-Plus ATX Motherboard with PCIe 4.0, Dual M.2, 12+2 with Dr. MOS Power Stage, HDMI, DP, SATA 6Gb/s, USB 3.2 Gen 2 and Aura Sync RGB Lighting

Alt view image 6 of 7 - ASUS AM4 TUF GAMING X570-Plus ATX Motherboard with PCIe 4.0, Dual M.2, 12+2 with Dr. MOS Power Stage, HDMI, DP, SATA 6Gb/s, USB 3.2 Gen 2 and Aura Sync RGB Lighting

Alt view image 7 of 7 - ASUS AM4 TUF GAMING X570-Plus ATX Motherboard with PCIe 4.0, Dual M.2, 12+2 with Dr. MOS Power Stage, HDMI, DP, SATA 6Gb/s, USB 3.2 Gen 2 and Aura Sync RGB Lighting

Customer images

Shop All ASUS Products | Visit Volcanic electron Store

ASUS AM4 TUF GAMING X570-Plus ATX Motherboard with PCIe 4.0, Dual M.2, 12+2 with Dr. MOS Power Stage, HDMI, DP, SATA 6Gb/s, USB 3.2 Gen 2 and Aura Sync RGB Lighting

Name: ASUS TUF GAMING X570-PLUS ATX AMD Motherboard
Brand: ASUS
SKU: N82E16813119198
Price: 181.08 USD
Availability: InStock
Rating: 4 (2762 reviews)

(2,762)(177) Write a Review

Option: TUF GAMING X570-PLUS

PRIME X570-P
PRIME X570-PRO
Pro WS X570-ACE
ROG CROSSHAIR VIII FORMULA
ROG CROSSHAIR VIII HERO
ROG CROSSHAIR VIII HERO (WI-FI)
ROG STRIX X570-E GAMING
ROG STRIX X570-E GAMING WIFI II
ROG STRIX X570-F GAMING
TUF GAMING X570-PLUS
TUF GAMING X570-PLUS (Wi-Fi)

BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU
AMD AM4 socket: Ready for 2nd and 3rd Gen AMD Ryzen processors to maximize connectivity and speed with up to two M.2 Drives, USB 3.2 Gen2 and AMD StoreMI
Enhanced Power Solution: Military-grade TUF Gaming components, ProCool socket and Digi+ VRM for maximum durability
Comprehensive Cooling: Active PCH heatsink, VRM heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 4

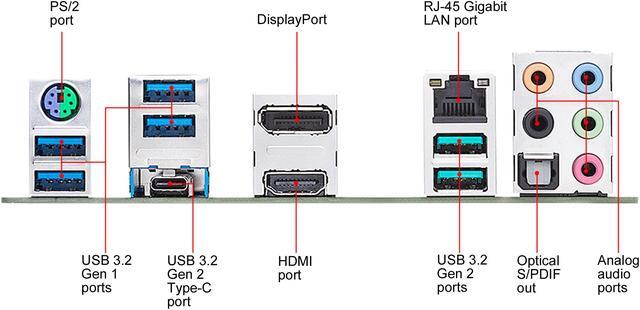

Next-Gen Connectivity: Dual PCIe 4.0 M.2, USB 3.2 Gen 2 ports, exclusive Realtek L8200A Gigabit Ethernet, TUF LANGuard and TurboLAN technology
Realtek S1200A Codec: Features an unprecedented 108dB signal-to-noise ratio for the stereo line-out and a 103dB SNR for the line-in, providing pristine audio quality
Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear, including addressable RGB strips
TUF Gaming Alliance: ASUS hardware ecosystem ensures the best compatibility and complementary aesthetics from components to case

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (2,762)

Any questions? Our AI beta will help you find out quickly.

Try me now

ASUS TUF GAMING X570-PLUS - Motherboard - ATX - Socket AM4 - AMD X570 - USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
Read full details
CONTACT

Return Policies

Return for refund within: 30 days
Return for replacement within: 30 days
This item is covered by Volcanic electron Return Policy

Manufacturer Contact Info

For a directory of all our manufacturers, please click below.
Manufacturers Directory

CPU Socket Type	AM4
CPU Type	Supports AMD Ryzen 5000 Series / 5000 G-Series / 4000 G-Series / 3000 Series / 3000 G-Series / 2000 Series / 2000 G-Series Processors * BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU. Refer to ASUS website for CPU support list. * Due to CPU limitation, CPU cores supported varies by processors.

Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 5100(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3200(OC) / 3000(OC) / 2933 / 2800 / 2666 / 2400 / 2133 * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). * The maximum memory frequency supported varies by processor.
Maximum Memory Supported	128GB
Channel Supported	Dual Channel
ECC Supported	ECC Memory (ECC mode) support varies by CPU.
Buffer Supported	Un-buffered

PCI Express 4.0 x16	2 x PCI Express 4.0 x16 * Actual support may vary by CPU.
PCI Express x1	3 x PCIe 4.0 x1

Serial ATA (SATA)	8 x SATA 6Gb/s
M.2	AMD Ryzen 5000 Series / 3000 Series Desktop Processors: 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 4.0 x4 and SATA modes) storage devices support AMD Ryzen 5000 G-Series / 4000 G-Series / 3000 G-Series / 2000 Series / 2000 G-Series Desktop Processors: 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 3.0 x4 and SATA modes) storage devices support AMD X570 chipset: 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 4.0 x4 and SATA modes) storage devices support
SATA RAID	0/1/10

Audio Chipset	Realtek ALC S1200A High Definition Audio CODEC
Audio Channels	8 Channels

Best Sellers

Meet Your Seller

ASUS AM4 TUF GAMING X570-Plus ATX Motherboard with PCIe 4.0, Dual M.2, 12+2 with Dr. MOS Power Stage, HDMI, DP, SATA 6Gb/s, USB 3.2 Gen 2 and Aura Sync RGB Lighting

Learn more about the ASUS TUF GAMING X570-PLUS

Customer Reviews of the ASUS TUF GAMING X570-PLUS

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Onboard USB	1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
Other Connectors	2 x Aura RGB Strip Header(s) 1 x Addressable Gen 2 header(s) 1 x SPI TPM header 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x COM port header

Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s)

Onboard LAN
LAN Chipset	Realtek L8200A
Max LAN Speed	1Gbps

Item#: 9SIBWH3K9T9097
