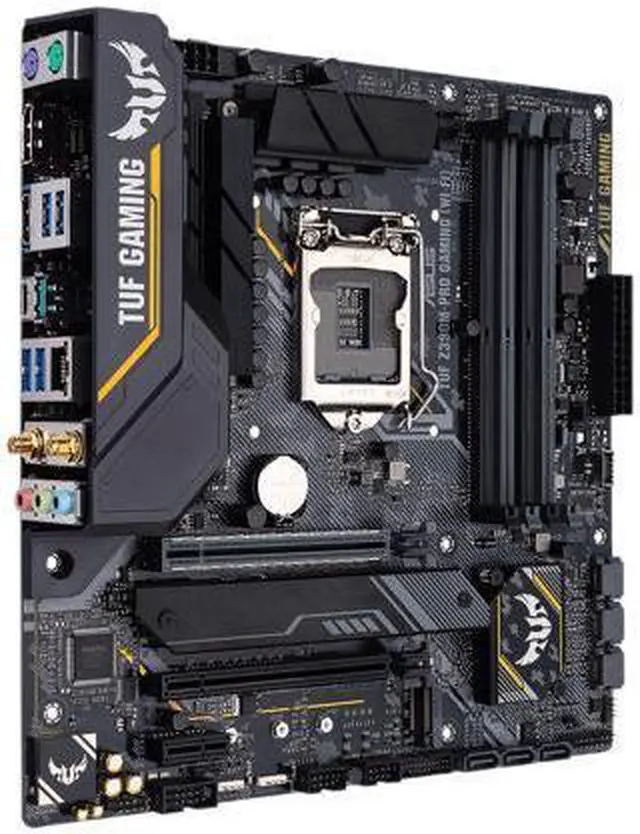

ASUS TUF Z390M-Pro Gaming (Wi-Fi) LGA1151 (Intel 8th and 9th Gen) DDR4 DP HDMI M.2 Z390 Micro ATX (mATX) Motherboard with Onboard 802.11 ac Wi-Fi and USB 3.1 Gen2
This means the product was tested and repaired as required to meet the standards of the refurbisher, which may or may not be the original manufacturer. Any exceptions to the condition of the item outside the manufacturer’s information should be provided in the listing, up to and including warranty details.
Designed for 9th and 8th generation Intel Core processors to maximize connectivity and speed with dual M.2, Gigabit LAN, USB 3.1 Gen2
Military-Grade TUF Components like TUF LANGuard, TUF Chokes, TUF Capacitors, and TUF MOSFETs maximize system durability
Gamer's Guardian with SafeSlot and FanXpert 4 provides hardware-level safeguards for maximum performance with dynamic system cooling
8-channel HD Gaming Audio with TUF Gaming Headphone featuring Realtek S1200A high definition audio codec driven by Japanese capacitors for warm, immersive sound
ASUS OptiMem II improves memory stability and performance by improving trace isolation between PCB layers to maintain signal integrity even at higher frequencies
Learn more about the ASUS Z390M-Pro Gaming (Wi-Fi)
Model
Brand
ASUS
Series
TUF
Model
Z390M-Pro Gaming (Wi-Fi)
Supported CPU
CPU Socket Type
LGA 1151 (300 Series)
CPU Type
Core i7 / i5 / i3 (8th Gen, LGA1151)
Supported CPU Technologies
Turbo Boost Technology 3.0
Chipsets
Chipset
Intel Z390
Onboard Video
Onboard Video Chipset
Supported only by CPU with integrated graphic
Memory
Number of Memory Slots
4x288pin (DDR4)
Memory Standard
DDR4 2666
Maximum Memory Supported
64GB
Channel Supported
Dual Channel
Expansion Slots
PCI Express 3.0 x16
2 x PCI Express 3.0 x16
PCI Express x1
1 x PCI Express x1
Storage Devices
Serial ATA (SATA)
6 x SATA 6Gb/s
M.2
2 x M.2
Intel Optane Ready
Yes
SATA RAID
0/1/5/10
Onboard Audio
Audio Chipset
Realtek ALC S1200A High Definition Audio CODEC
Audio Channels
8 Channels
Onboard LAN
LAN Chipset
Intel I219-V
Max LAN Speed
1Gbps
Wireless LAN
Wi-Fi 802.11 ac
Bluetooth
Yes

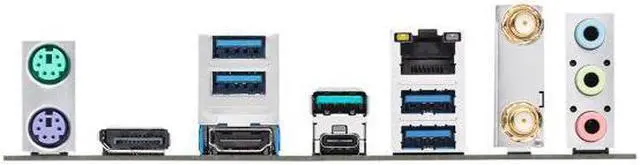

Rear Panel Ports
PS/2
2
HDMI
1 x HDMI
RJ45
1 x RJ45
DisplayPort
1 x DisplayPort
USB 3.1
5 x USB 3.1
USB Type-C
1 x USB 3.1
Audio Ports
3 Ports
Antenna Connectors
2 x Wi-Fi antenna port(s)
Internal I/O Connectors
Onboard USB
3 x USB 3.1 + 4 x USB 2.0
Other Connectors
2 x Lighting Control RGB Strip Header(s)1 x CPU Fan connector(s) (4-pin)1 x CPU OPT Fan connector(s) (4-pin)2 x Chassis Fan connector(s) (4-pin)1 x AIO_PUMP connector (4-pin)1 x S/PDIF out header(s)1 x Front panel audio connector(s) (AAFP)1 x MemOK! II switch(es)1 x Clear CMOS jumper(s)1 x Serial Port header1 x System panel connector
Physical Spec
Form Factor
Micro ATX
LED Lighting
RGB
Dimensions (W x L)
9.6" x 9.6"
Power Pin
24 Pin
Features
Features
Multi-GPU Support:Supports NVIDIA SLI TechnologySupports AMD CrossFireX Technology Special Features:ASUS TUF PROTECTION- ASUS SafeSlot: Protect your graphics card Investment- ASUS ESD Guard: Enhanced ESD protection- ASUS Overvoltage Protection: World-class circuit-protecting power design- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!ASUS Optimem II:- Optimem (Improved DDR4 stability)ASUS EPU:- EPUAURA:- Aura Lighting Control- Aura RGB Strip HeadersASUS Exclusive Features:- AI Suite 3- Ai Charger- PC Cleaner- ASUS C.P.R. (CPU Parameter Recall)ASUS Quiet Thermal Solution:- Stylish Fanless Design: PCH Heat-sink & MOS Heat-sink & M.2 Heat-sink solution- ASUS Fan Xpert 4ASUS EZ DIY:- ASUS O.C. Tuner- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ ModeASUS Q-Design:- ASUS Q-Slot- ASUS Q-DIMM- ASUS Q-ConnectorM.2 Onboard (The latest transfer technologies with up to 32Gb/s data transfer speeds)MemOK! IIBIOS:128MB Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory informationSupport Disc:DriversASUS UtilitiesASUS EZ UpdateAnti-virus software (OEM version)Operating System:Windows 10 64-bitManagement Solution:WOL by PME, PXE
Packaging
Package Contents
Accessories:User's manualI/O Shield2 x SATA 6Gb/s cable(s)1 x M.2 Screw Package1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11 a/b/g/n/ac compliant)1 x TUF Gaming Sticker1 x SLI HB BRIDGE (2-WAY-S)1 x Q-Connector1 x TUF Certification card(s)1 x SCD (by region)
