* Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Please refer to ASUS AVL for the latest update. * Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU.
Intel Core X-series Processors (4-core): 4 x DIMM, Max. 64GB
Expansion Slots
PCI Express 3.0 x16
44-Lane CPU: 2 x PCIe 3.0 x16 (x16 mode) 1 x PCIe 3.0 x16 (x8 mode) 1 x PCIe 3.0 x16 (x4 mode)
28-Lane CPU: 1 x PCIe 3.0 x16 (x16 mode) 1 x PCIe 3.0 x16 (x8 mode) 1 x PCIe 3.0 x16 (x4 mode)
16-Lane CPU: 1 x PCIe 3.0 x16 (x8 mode) 2 x PCIe 3.0 x16 (x4 mode)
PCI Express x4
44-Lane CPU: 1 x PCIe 3.0 x4 (x4 mode)
28-Lane CPU: 1 x PCIe 3.0 x4 (x4 mode)
16-Lane CPU: 1 x PCIe 3.0 x4 (x4 mode)
Storage Devices
Serial ATA (SATA)
6 x SATA 6Gb/s
M.2
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x4 mode)*1 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)*2 1 x U.2 connector
*1 Bandwidth is shared between M.2_2 and U.2 *2 SATA Bandwidth is shared between M.2_1 and SAT6G_1
SATA RAID
0/1/5/10
Onboard Audio
Audio Chipset
Realtek ALC S1220A
Audio Channels
7.1 Channels
Onboard LAN
LAN Chipset
Intel I210-AT
Max LAN Speed
2 x 1Gbps

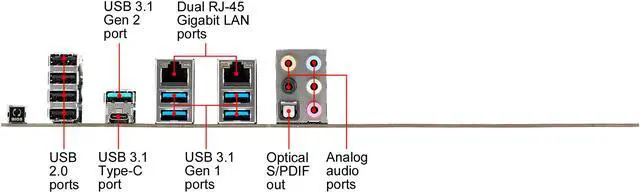

Rear Panel Ports
RJ45
2 x RJ45
USB 3.1
1 x USB 3.1 Gen 2 (Type-A) 4 x USB 3.1 Gen 1
USB 1.1/2.0
4 x USB 2.0
USB Type-C
1 x USB 3.1
S/PDIF Out
1 x Optical
Audio Ports
1 x 8-channel Audio I/O
Internal I/O Connectors
Onboard USB
1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
Other Connectors
1 x Aura Addressable Strip Header(s) 1 x Aura RGB Strip Header 1 x COM port(s) connector(s) 1 x VROC_HW_Key 1 x Thunderbolt header(s) 1 x EZ XMP switch 1 x VGA connector(s) 1 x AUX panel header(s) 1 x 5-pin EXT_FAN (Extension Fan) connector 1 x Power-on button(s) 1 x Reset button(s) 1 x Clear CMOS button(s) 1 x Front fan 1 x Rear fan 1 x U.2 Connector (support U.2 NVMe device) 1 x AIO PUMP Header 1 x Thermal sensor connector 1 x CPU_OV jumper 1 x MemOK! Button 1 x PANEL2 1 x PUMP Fan connector 1 x PANEL1
Physical Spec
Form Factor
CEB
LED Lighting
RGB

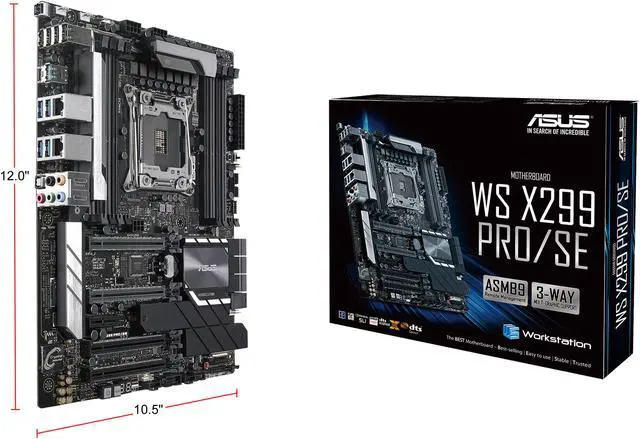

Dimensions (W x L)
12.0" x 10.5"
Power Pin
1 x 24-pin EATX Power connector(s) 1 x 6-pin ATX Power connector 2 x 8-pin ATX 12V Power connector(s)
Features
Features
ASUS Control Center: A software utility that provides convenient, secure and cost-saving centralized IT management for small and medium businesses.
ASMB9-iKVM (BMC): supports remote BIOS updates, fans control, standalone KVM, video recording, and BSOD capture, providing around-the-clock remote monitoring and diagnostics through remote console (Web GUI & CLI)
Ultra-efficient VRM heatsink: Metal fin array connected to large surface area via a heatpipe tames X299 thermals to enable unthrottled performance.
Next-gen transfer speeds: Up to 32Gbps dual M.2 and U.2, plus up to 10Gbps USB 3.1 Type-A and Type-C connections.
Multi-GPU Support: Supports NVIDIA 3-Way SLI Technology * Supports AMD 3-Way CrossFireX Technology * *Actual number of Multi-graphic supported differs per Vendors' Graphic cards. Please check with Vendor beforehand.
Special Features: OC Design - ASUS PRO Clock II Technology ASUS 5X Protection: - ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention - ASUS ESD Guards - Enhanced ESD protection - ASUS Stainless Steel Back I/O - 3x more durable corrosion-resistant coating ASUS EPU: - EPU ASUS Digital Power Design: - Industry leading Digital 8 Phase CPU Power Design - Industry leading Digital 2 Phase DRAM Power Design AURA: - Aura RGB Strip Headers - Aura Addressable Strip Header(s) ASUS Exclusive Features: - Ai Charger+ - Turbo LAN - Crystal Sound 3 ASUS Quiet Thermal Solution: - Stylish Fanless Design with M.2 Heat-sink solution ASUS Q-Design: - ASUS Q-Shield - ASUS Q-Code - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector M.2 and U.2 Onboard (The Latest Transfer Technology with up to 32Gb/s Data-transfer Speeds for M.2 and U.2) Asus Control Center (ACC) IT management software supported
Packaging
Package Contents
Accessories: User's manual 1 x Vertical M.2 bracket set I/O Shield 1 x COM port cable(s) 6 x SATA 6Gb/s cable(s) 2 x M.2 screws 1 x Supporting DVD 1 x 3-Way SLI bridge(s) 1 x SLI bridge(s) 1 x Q-Connector 1 x 2-port USB module(s) 1 x Extension Cable for RGB strips (80cm)
Additional Information
Date First Available
June 29, 2024
