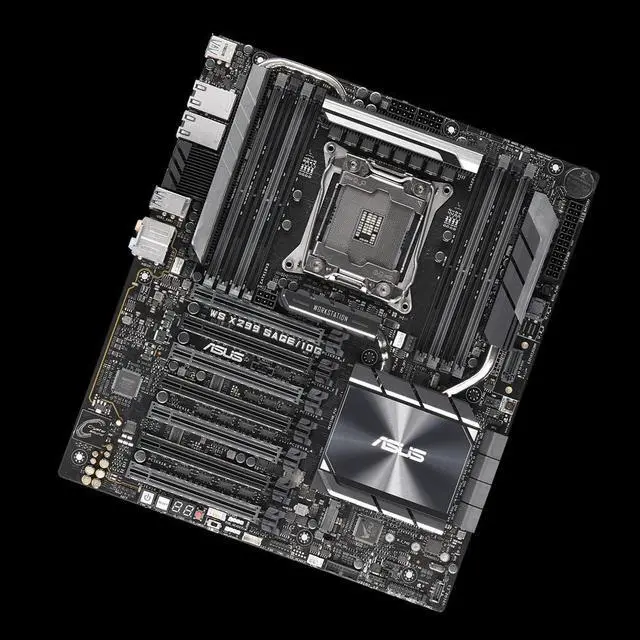

Main image of ASUS WS X299 SAGE/10G CEB Server Motherboard Socket 2066 Intel X299

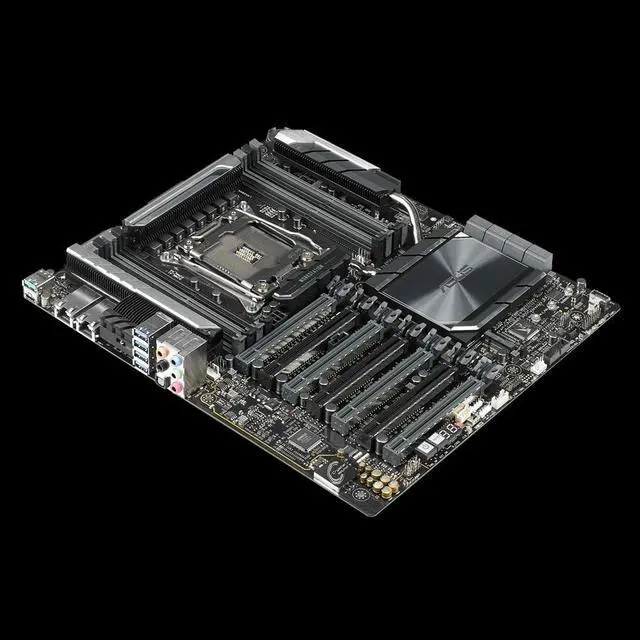

Alt view image 2 of 9 - ASUS WS X299 SAGE/10G CEB Server Motherboard Socket 2066 Intel X299

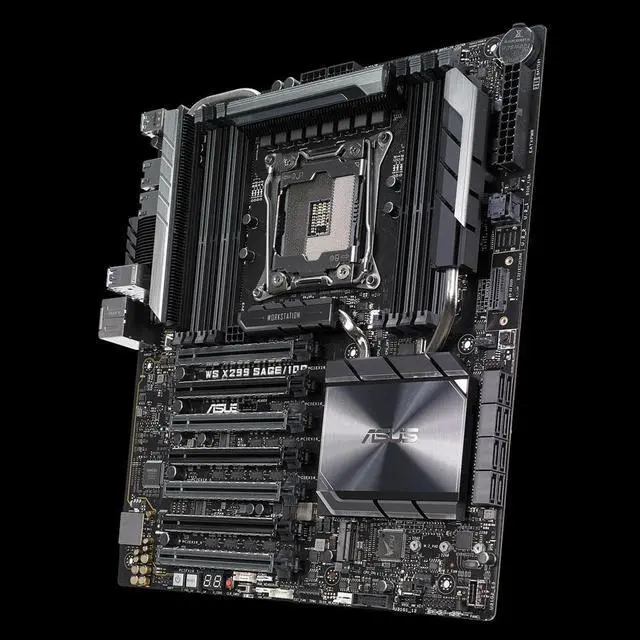

Alt view image 3 of 9 - ASUS WS X299 SAGE/10G CEB Server Motherboard Socket 2066 Intel X299

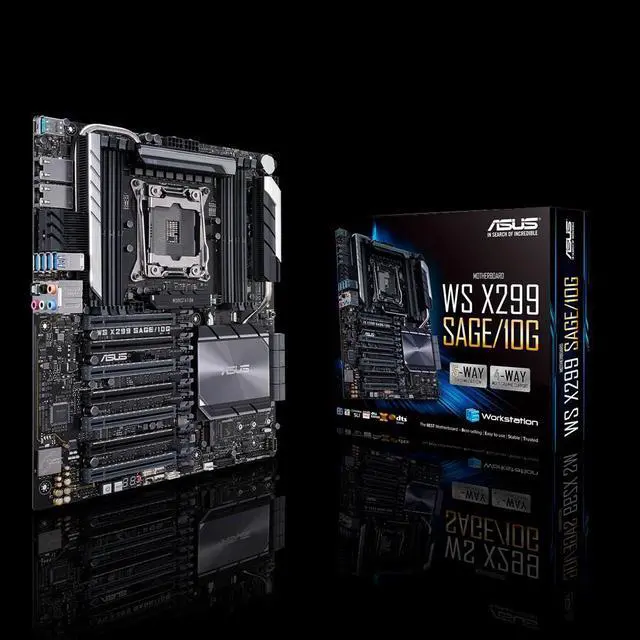

Alt view image 4 of 9 - ASUS WS X299 SAGE/10G CEB Server Motherboard Socket 2066 Intel X299

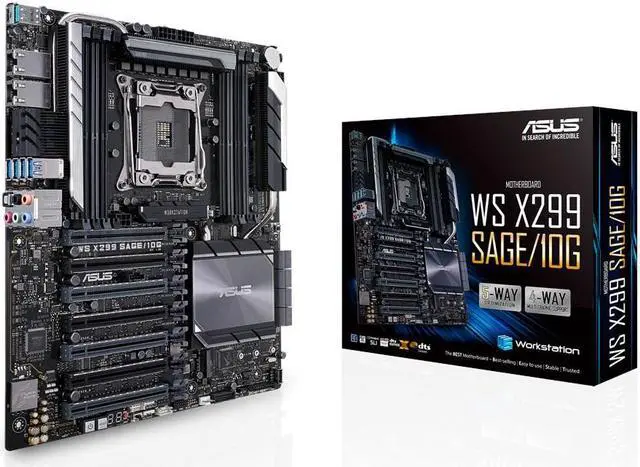

Alt view image 5 of 9 - ASUS WS X299 SAGE/10G CEB Server Motherboard Socket 2066 Intel X299

Alt view image 6 of 9 - ASUS WS X299 SAGE/10G CEB Server Motherboard Socket 2066 Intel X299

Alt view image 7 of 9 - ASUS WS X299 SAGE/10G CEB Server Motherboard Socket 2066 Intel X299

Alt view image 8 of 9 - ASUS WS X299 SAGE/10G CEB Server Motherboard Socket 2066 Intel X299

Alt view image 9 of 9 - ASUS WS X299 SAGE/10G CEB Server Motherboard Socket 2066 Intel X299

Shop All ASUS Products | Visit MemoryC Store

ASUS WS X299 SAGE/10G CEB Server Motherboard Socket 2066 Intel X299

Be the first to review this product...

Socket 2066
Intel X299

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Model
Brand	ASUS
Model	WS X299 SAGE/10G

Supported CPU
CPU Socket Type	Socket 2066
CPU Type	Intel Socket 2066 Core X-Series Processors Supports Intel Virtual RAID on CPU (VROC) Supports Intel 14 nm CPU Supports Intel Turbo Boost Max Technology 3.0 * The Intel Turbo Boost Technology 3.0 Support Depends on the CPU types.

Chipsets
North Bridge	Intel X299

Memory
Number of DDR4 Slots	8 x 288-pin
DDR4 Standard	Intel Core X-series Processors (6-core above) 8 x DIMM, Max. 128GB, DDR4 4200 (O.C.) / 4133 (O.C.) / 4000 (O.C.) / 3600 (O.C.) / 2666 / 2400 / 2133 MHz Non-ECC, Un-buffered Memory Intel Core X-series Processors (4-core) 4 x DIMM, Max. 64GB, DDR4 4200 (O.C.) / 4133 (O.C.) / 4000 (O.C.) / 3600 (O.C.) / 2666 / 2400 / 2133 MHz Non-ECC, Un-buffered Memory Supports Intel Extreme Memory Profile (XMP) * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU.
Maximum Memory Supported	256GB

Expansion Slots
PCI Express 3.0 x16	7 x PCIe 3.0 x16 (single x16 or dual x16/x16 or triple x16/x16/x16 or quad x16/x16/x16/x16 or seven x16/x8/x8/x8/x8/x8/x8)

Storage Devices
SATA	8 x SATA 6.0Gb/s
SATA RAID	0/1/5/10
M.2	1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 1 x U.2 connector

Onboard LAN
LAN Chipset	Intel X550-AT2
LAN Speed	10Gbps
Second LAN Chipset	Intel X550-AT2
Second LAN Speed	10Gbps

Rear Panel Ports
RJ45	2 x RJ45
USB 3.1	1 x USB 3.1 Gen 2 (teal blue) Type-A 1 x USB 3.1 Gen 2 (black) Type-C 4 x USB 3.1 Gen 1 (blue)

Features
Features	Dual onboard Intel 10G LAN (X550-AT2) ports: Increased data throughput and improved efficiency, ideal for transferring uncompressed 4K video and backing up large files. Quad-GPU graphics power: Fits up to four dual-slot graphics cards and supports 4-way NVIDIA SLI or AMD CrossFireX GPU configurations. 5-Way Optimization: One-click, system-wide tuning, delivers optimized overclocking and intelligent cooling for a diverse range of workloads. Industry-leading cooling options: Comprehensive controls for fans and water pumps, via Fan Xpert 4 software or the acclaimed ASUS UEFI. Ultra-efficient VRM heatsink: Metal-fin-array design maximizes surface area for heat dissipation to enable unthrottled performance. ASUS Control Center: A software utility that provides convenient, secure and cost-saving centralized IT management for small - and medium-sized businesses. Ultra-fast storage: Up to 32 Gbps dual M.2, U.2, plus up to 10 Gbps USB 3.1 Gen 2 with Type-A and Type-C ports onboard and a front-panel connector.

Dimensions
Form Factor	CEB
Dimensions (W x L)	12.0" x 10.5"

Packaging
Package Contents	Accessories: User's manual Addressable LED extension cable 1 x Vertical M.2 bracket set I/O Shield 1 x COM port cable(s) 8 x SATA 6Gb/s cable(s) 1 x M.2 screws 1 x Supporting DVD 1 x MOS Cooling kit (fan bracket and 40mm x 40mm fan) 1 x 3-Way SLI bridge(s) 1 x 4-Way SLI bridge(s) 1 x SLI HB BRIDGE (2-WAY-M) 1 x Q-Connector

Additional Information
First Listed on Newegg	January 13, 2022
